Key features
- 110Ah LiFePO4 capacity — 1,408 Wh total energy
- Integrated 30A DC-DC charger with 11.5–30 V DC input range
- Integrated 30A MPPT solar controller with 13.5–50 V DC input range
- 100A continuous discharge; 300A pulse discharge (< 1 second)
- Bluetooth built-in for real-time state-of-charge monitoring via smartphone
- Integrated BMS with 65 °C high-temperature cut-off
- Slimline 52 mm height for under-seat and tight-space installation
- 120A Anderson (discharge) and 50A Anderson (charge) terminals
- >4,000 cycle life at 100% DOD with >80% remaining capacity
- Discharge range −20 °C to 60 °C; charge range 0 °C to 55 °C
Overview

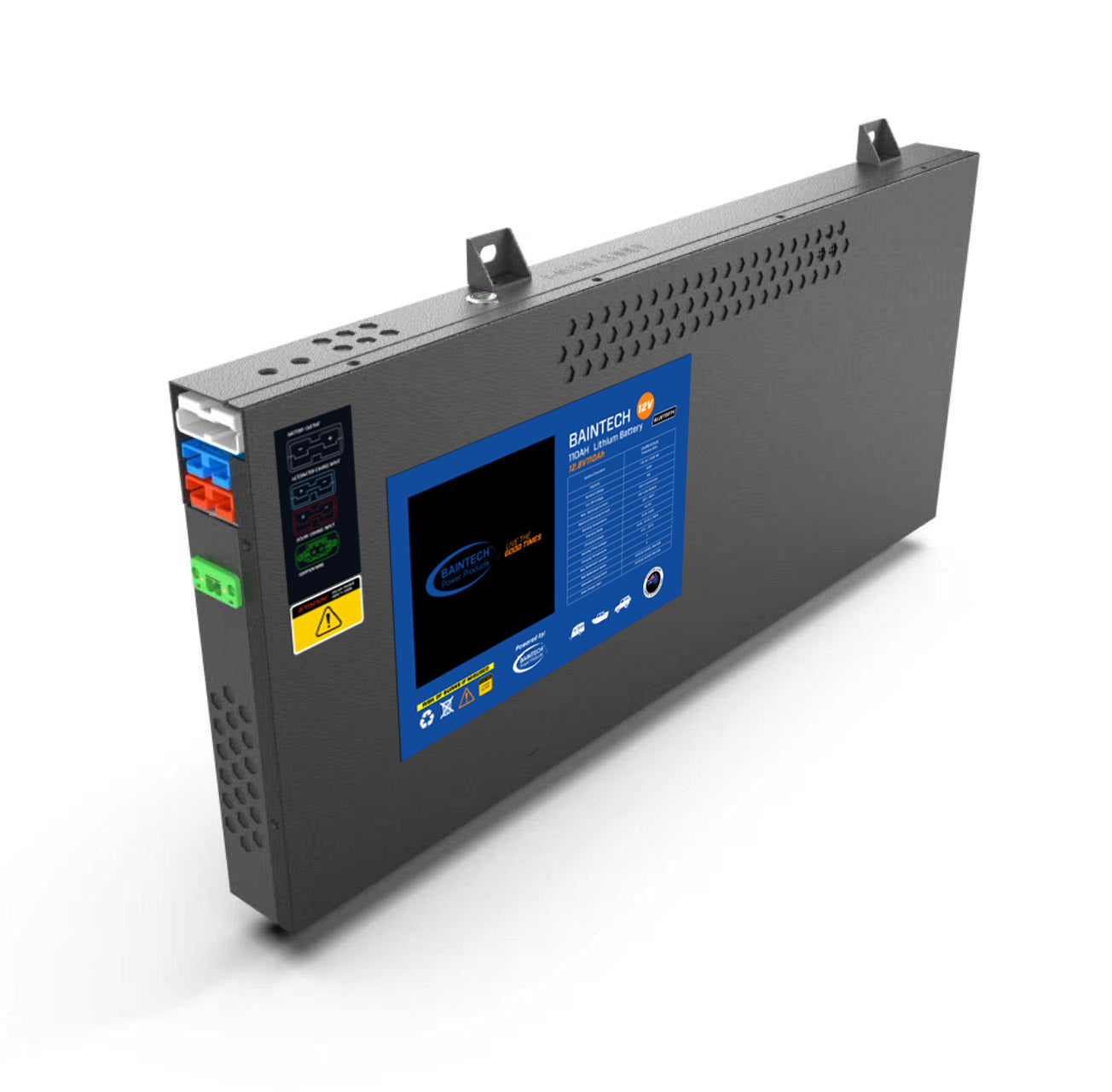

The Baintech 110Ah Slimline LiFePO4 battery integrates a 30A DC-DC charger and 30A MPPT solar controller into a single ultra-slim 52 mm profile, delivering 1,408 Wh of usable energy with a 100A continuous discharge rating. Built-in Bluetooth monitoring lets you check state of charge, voltage and current in real time from your phone, while the integrated BMS provides comprehensive protection against over-charge, over-discharge, short circuit and temperature extremes — with a high-temperature cut-off at 65 °C. With a rated cycle life exceeding 4,000 cycles at 100% depth of discharge and more than 80% remaining capacity, this battery is engineered for long-term, hard-working use.
Designed for caravanners, overlanders and anyone running a serious 12 V setup, this battery charges from your vehicle alternator via the 30A DC-DC charger (accepting 11.5–30 V input) or directly from a rooftop or portable solar array via the MPPT controller (accepting 13.5–50 V, up to 30A). Its slimline 52 mm height makes it ideal for under-seat or tight-cabinet installations in caravans, camper trailers and 4WDs where space is at a premium. Dual Anderson connectors — a 120A for high-current discharge and a 50A for charging — ensure clean, safe and flexible wiring integration.
- 110Ah LiFePO4 rated capacity — 1,408 Wh of usable energy
- Integrated 30A DC-DC charger: 11.5–30 V DC input, charges from vehicle alternator
- Integrated 30A MPPT solar controller: 13.5–50 V DC input, up to 30A solar charge current
- 100A continuous discharge current; 300A pulse discharge (under 1 second)
- Built-in Bluetooth monitoring for real-time battery management via smartphone
- Integrated BMS with high-temperature cut-off at 65 °C
- Ultra-slimline 52 mm height — fits under seats and in tight caravan cabinets
- Dual Anderson terminals: 120A (discharge) and 50A (charge)
- Rated for over 4,000 cycles at 100% DOD with >80% capacity retained
- Operating range: discharge −20 °C to 60 °C; charge 0 °C to 55 °C
Delivery, returns & warranty
Shipping
This product is shipped Australia-wide and typically arrives within 3–5 business days to metropolitan areas; regional and remote locations may require additional transit time. As this is a heavy and bulky item (17.5 kg), some deliveries may require a freight quote — if this applies to your order, we will contact you to confirm shipping costs before dispatching.
Warranty Details
+
Warranty Details
+
- This product is covered by a 5-year manufacturer warranty provided by Baintech.
Specifications
| Nominal Voltage | 12.8 V |
|---|---|
| Rated Capacity | 110 Ah |
| Energy | 1,408 Wh |
| Cell Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >4,000 cycles at 100% DOD (>80% capacity retained) |
| Continuous Discharge Current | 100 A |
| Pulse Discharge Current | 300 A (< 1 second) |
| Recommended Charge Current | 55 A |
| Charge Voltage | 14.2–14.6 V |
| DC-DC Charge Input | 11.5–30 V DC, max. 30 A |
| Solar / MPPT Charge Input | 13.5–50 V DC, max. 30 A |
| Terminals | 120 A Anderson (discharge) + 50 A Anderson (charge) |
| Housing Protection | IP20 |
| Dimensions (L × W × H) | 665 × 290 × 52 mm |
| Weight | 17.5 kg |
| Discharge Temperature Range | −20 °C to 60 °C |
| Charge Temperature Range | 0 °C to 55 °C |
| BMS High-Temperature Cut-Off | 65 °C |
| Bluetooth | Yes — built-in |
-
