$3,745.00

Calculate Shipping

+

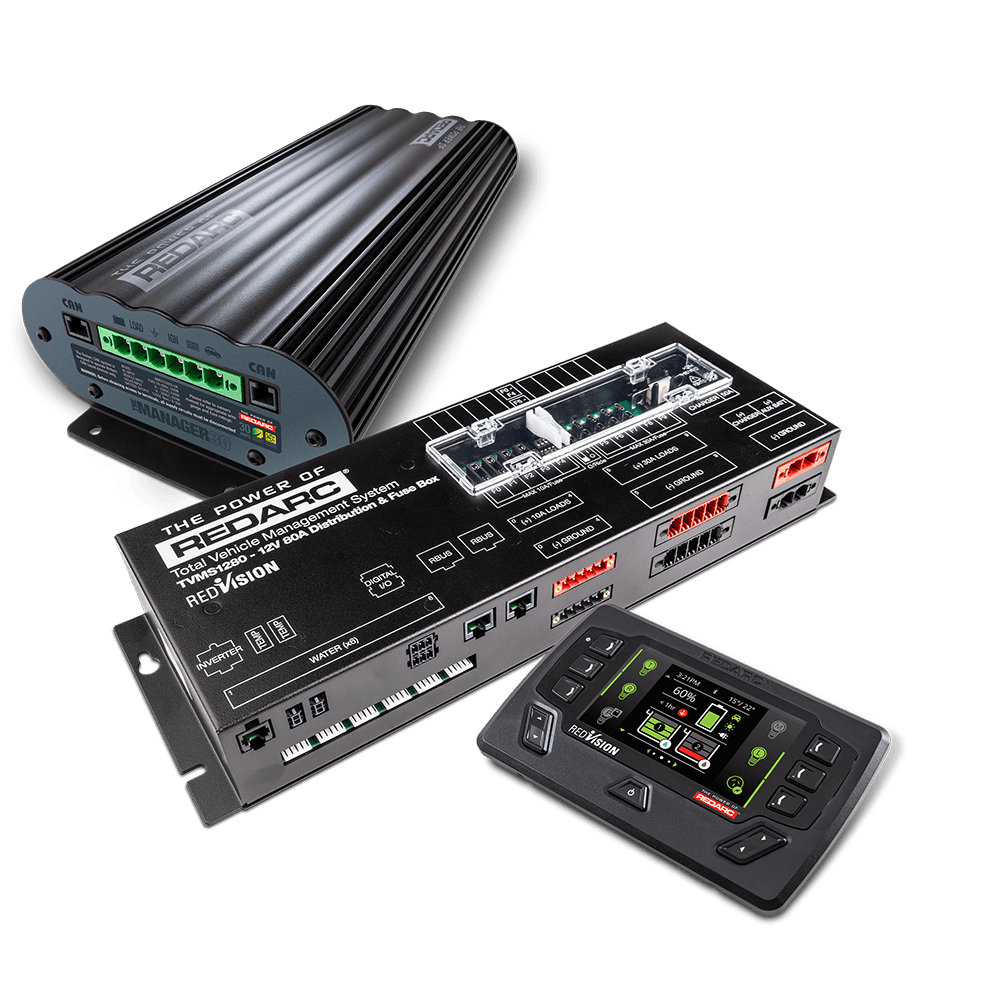

The REDARC RedVision Total Vehicle Management System with Manager 30 (SKU: TVMSKIT05) integrates smart battery charging and accessory control in one package. Designed for camper trailers and mid-sized caravans, it includes the Manager 30 battery charger, providing AC/DC and DC/DC charging, MPPT solar regulation, and battery isolation. The RedVision system offers 80A max current, 6 tank sensor inputs, 10 output channels, and a dedicated inverter output, allowing seamless monitoring and control of essential devices via the display or Bluetooth app.

Key Features:

  • Powerful Outputs: 5x 30A and 5x 10A outputs (80A max)
  • Versatile Charging: Multi-stage AC/DC, DC-DC, and solar charging
  • Complete Monitoring: Includes 6 tank sensors, 2 temp sensors, and voltage input
  • Device Control: Control lights, fridges, fans, pumps, etc.
  • Battery Compatibility: Charges AGM, Gel, Calcium, VRLA, Lead Acid, and Lithium (LiFePO4)

Specifications:

  • Maximum Current: 80A
  • Output Channels: 10 + 1 inverter channel
  • Tank Inputs: 6
  • Temperature Inputs: 2
  • Battery Compatibility: AGM, Gel, Calcium, VRLA, Lead Acid, Lithium (LiFePO4)

What’s in the Box:

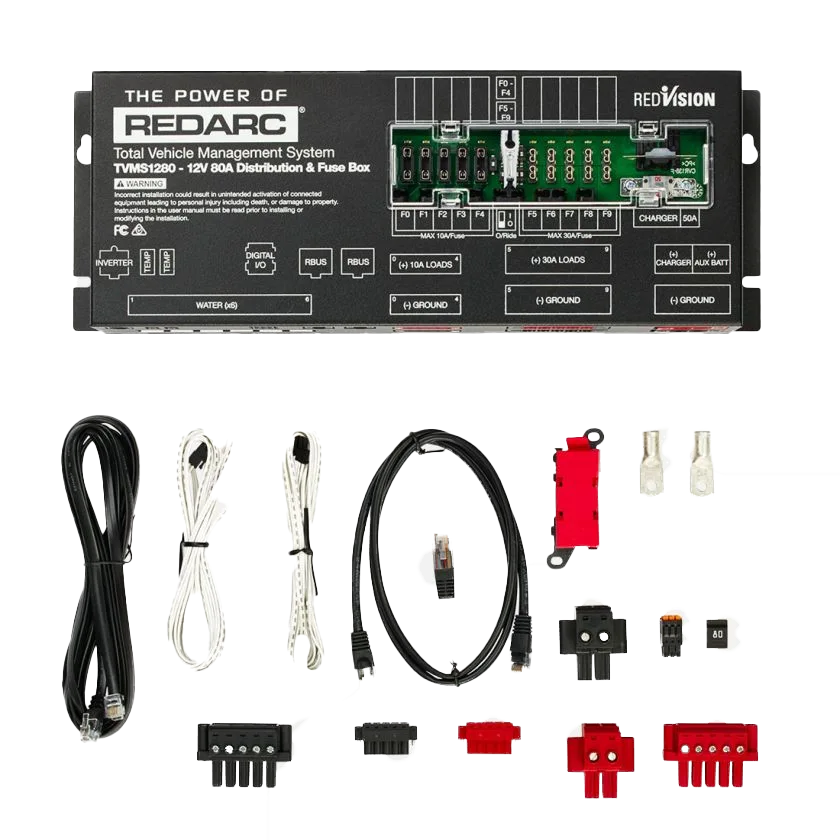

  • 1 x TVMS Prime RedVision Control Module

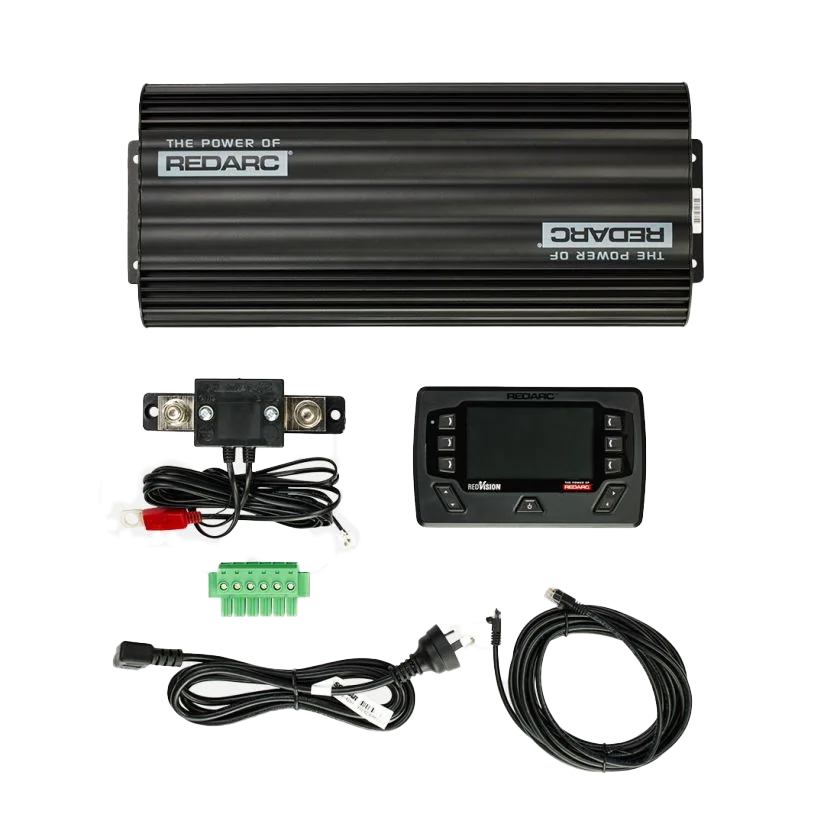

  • 1 x Manager30 Battery Management System
  • 1 x RedVision Display

Features

+
  • Fully programmable
  • 80A maximum current
  • 6x tank sensor inputs
  • 1x dedicated inverter output
  • ACDC and DCDC charger
  • Maximum Power Point Tracking Solar Regulator
  • Dual Battery Isolator
  • Load Disconnect Controller

Specifications

+
Model Information
SKU TVMS1280
Brand REDARC
Kit SKU TVMSKIT05
System Specifications
System Voltage 12V
Maximum Charger Current 40A
Maximum Battery Current 80A
Switched Circuits 5 x 10A Max, 5 x 30A Max
Distribution Box Specifications
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 85°C
Environmental Protection IP30
Dimensions 385 x 138 x 58 mm (L x W x D)
Weight 2.0 kg
Display Unit Specifications
Display SKU DISP4300-RC
Operating Temperature -40°C to 75°C
Storage Temperature -40°C to 85°C
Environmental Protection Splash Resistant
Dimensions 178 x 109 x 25 mm (L x W x D)
Weight 312 g
Shipping Specifications
Shipping Weight 8.4500 kg
Shipping Dimensions Length => 0.490 m, Width => 0.400 m, Height => 0.165 m
Shipping Volume 0.032340000 m³
Compliance & Warranty
EMC Compliance RCM, AS/NZS, CISPR11
Safety Compliance AS/NZS 60335.2.29, AS/NZS 60335.1
Environmental Compliance RoHS
Warranty Period 2 years
