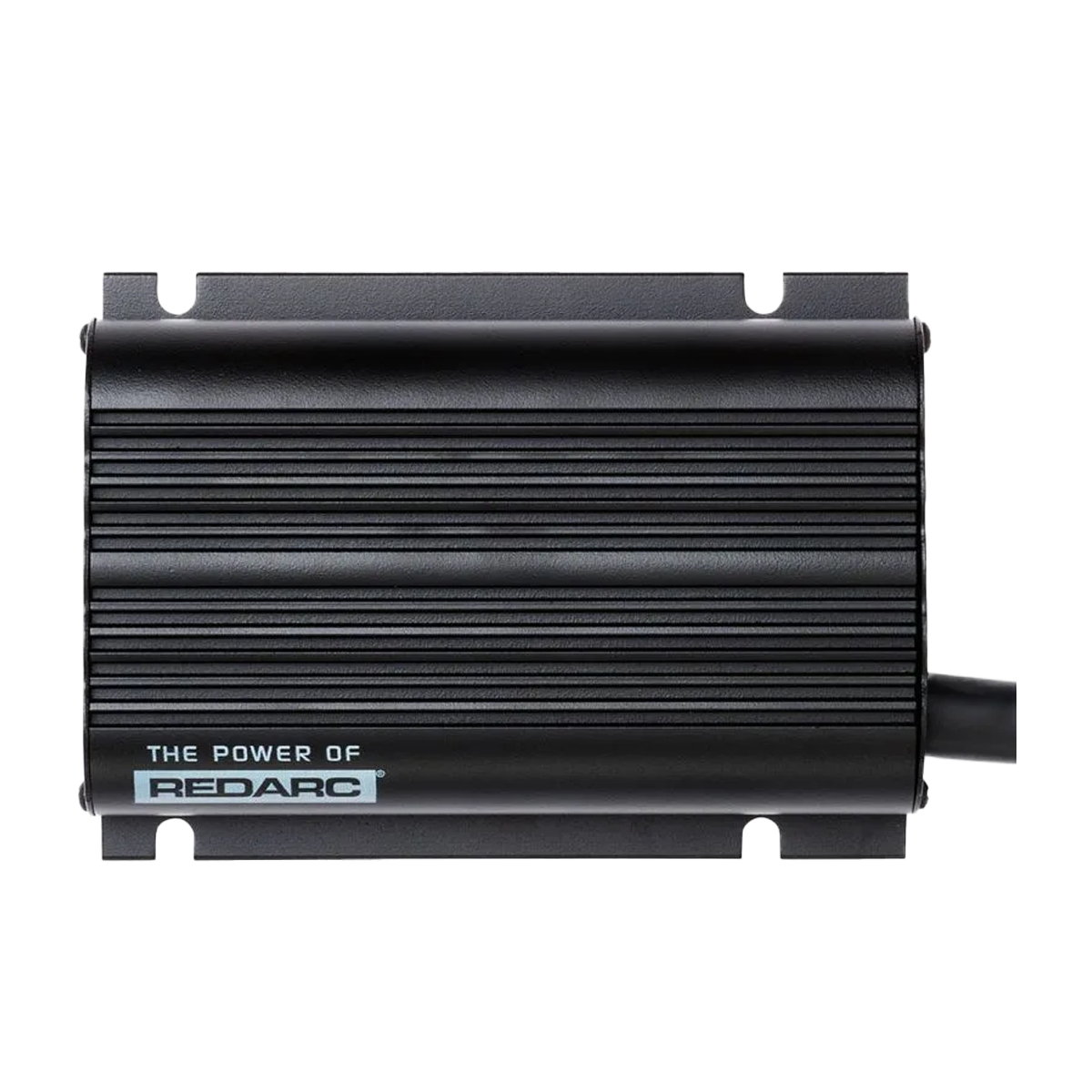

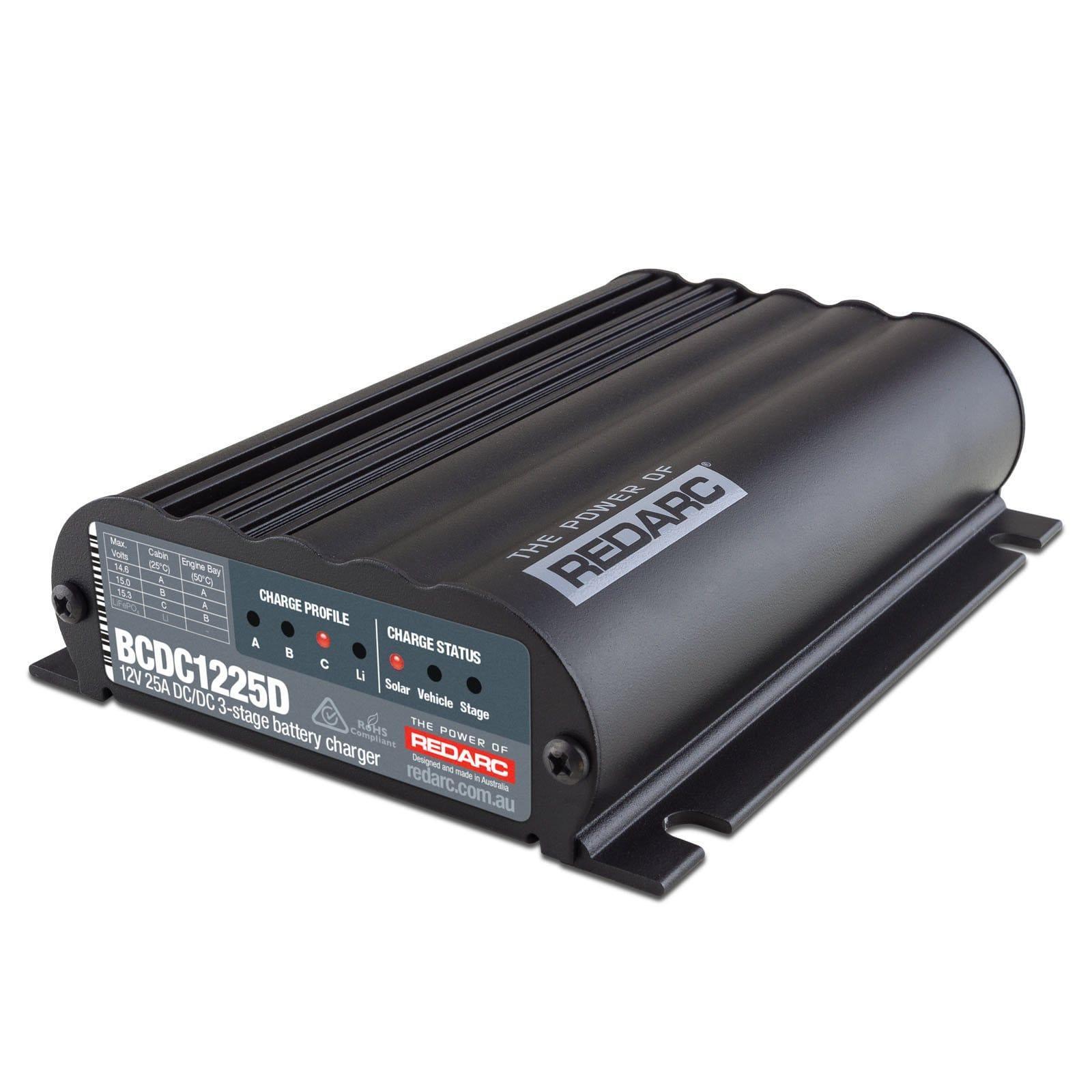

REDARC BCDC1225D Classic DC-DC Battery Charger

RedArch REDARC BCDC1225D Classic DC-DC Battery Charger - Product Overview

Learn more about the REDARC BCDC1225D Classic DC-DC Battery Charger and its key features in this detailed product demonstration.

REDARC BCDC1225D Classic DC-DC Battery Charger

Name: REDARC BCDC1225D Classic DC-DC Battery Charger
Brand: RedArch
SKU: BCDC1225D
Price: 669.00 AUD
Availability: InStock

$799.00

$669.00

Calculate Shipping

+

The REDARC BCDC1225D Classic DC-DC Battery Charger is a 12V 25A charger engineered for under-bonnet installation, featuring durable protection against heat, dust, and water. Utilizing Green Power Priority with an MPPT solar regulator, it prioritizes solar charging, reducing alternator load while maximizing battery performance. This versatile charger supports both 12V/24V systems and is compatible with various battery types, including AGM, Gel, Lead Acid, Calcium, and Lithium (LiFePO4).

Key Features:

25A output with DC and solar inputs
Green Power Priority for optimized solar charging
MPPT solar regulator
Compact, under-bonnet ready

Specifications:

Nominal Voltage: 12V/24V
Output Current: 25A
Battery Compatibility: AGM, GEL, Lead Acid, Calcium, Lithium (LiFePO4)
Operating Temperature: Up to 80°C
Recommended Battery Bank Size: 75-200AH

What's in the Box:

1 x REDARC BCDC1225D Classic DC-DC Battery Charger

Features

+

Suitable for in-cabin and canopy installations
Compact form factor
Green Power Priority
Maximises the performance and life of your auxiliary battery
Suits 12V/24V standard and variable voltage/smart alternators
Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries

Specifications

+

Model Information
SKU	BCDC1225D
Brand	REDARC
Unit Of Measure	ea
Installation Requirements
Installation Location	External / Under Bonnet
Connector Type	Bare wire
Charging Capabilities
Compatible Battery Types	Standard Lead Acid, Calcium, Gel, AGM or LiFePO4
Power Type	DC to DC
Electrical Specifications
Continuous Rating	25A
Maximum Rated Output Current	25A
Nominal Output Power	375W
Input Voltage Range	9 - 32V
Output Voltage	12 VDC
Maximum Charging Voltage	15.3V
Solar Input Voltage	9 - 32V
Solar Switch on Voltage	9V
Operating Parameters
No Load Current	<100mA
Standby Current	<8mA
Operating Temperature	-15°C to 80°C
Protection Features
Input Fuse Rating (not supplied)	40A
Output Fuse Rating (not supplied)	40A
Physical Specifications
Weight	1 kg
Dimensions	165 x 120 x 37 mm (L x W x D)
Shipping Specifications
Shipping Weight	1.1500 kg
Shipping Dimensions	Length => 0.330 m, Width => 0.130 m, Height => 0.060 m
Shipping Volume	0.002574000 m³
Warranty
Warranty Period	2 Years
