REDARC BCDC Alpha50 Battery Charger
REDARC BCDC Alpha50 Battery Charger
REDARC BCDC Alpha50 Battery Charger
REDARC BCDC Alpha50 Battery Charger
REDARC BCDC Alpha50 Battery Charger
REDARC BCDC Alpha50 Battery Charger
REDARC BCDC Alpha50 Battery Charger
REDARC BCDC Alpha50 Battery Charger
RedArc REDARC BCDC Alpha50 Battery Charger - Product Overview
Learn more about the REDARC BCDC Alpha50 Battery Charger and its key features in this detailed product demonstration.

REDARC BCDC Alpha50 Battery Charger

REDARC BCDC Alpha50 Battery Charger

$899.00

Calculate Shipping

+

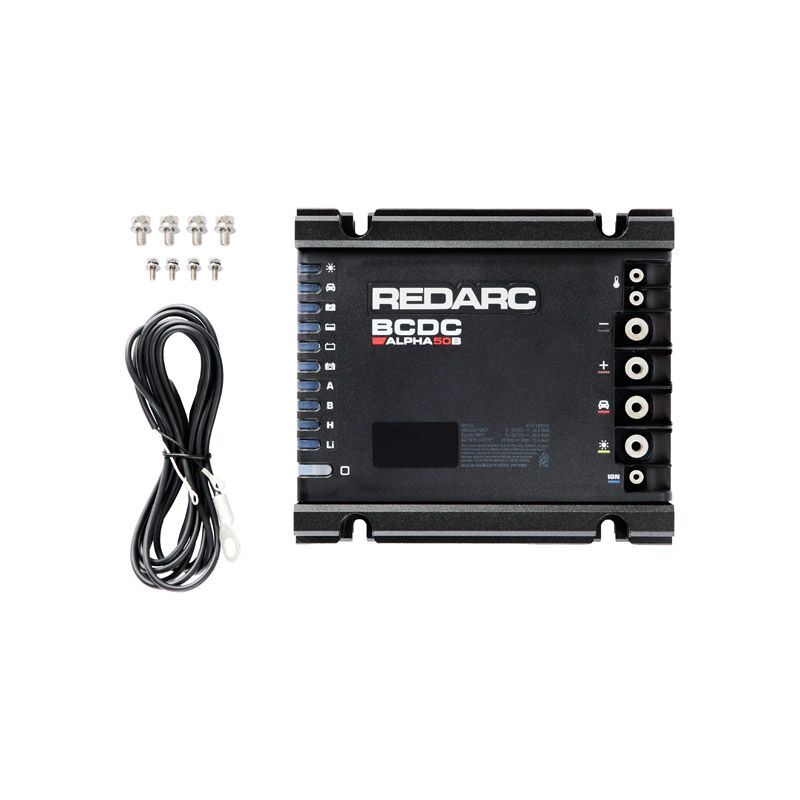

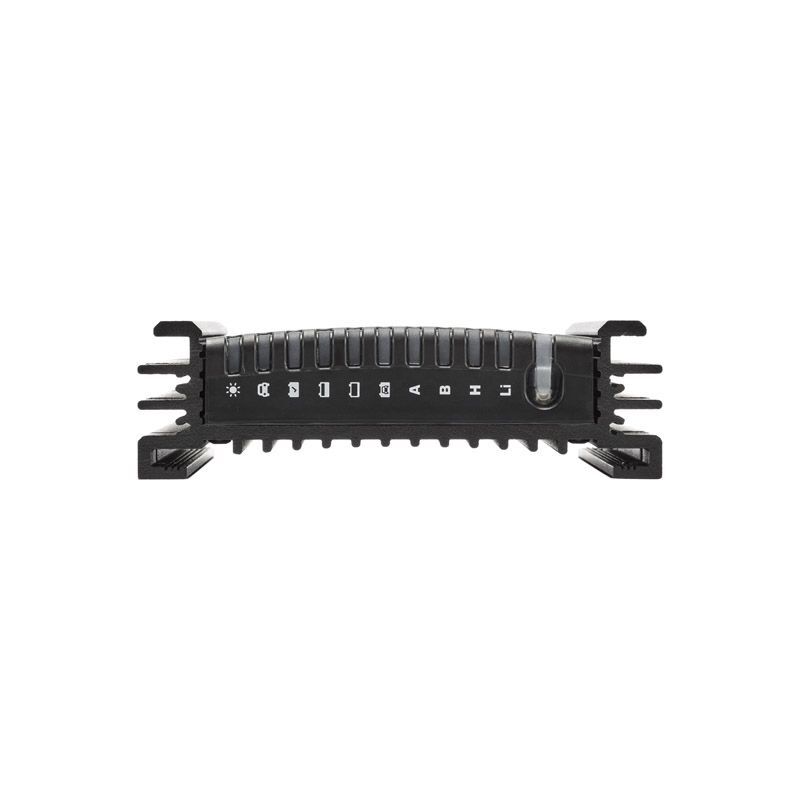

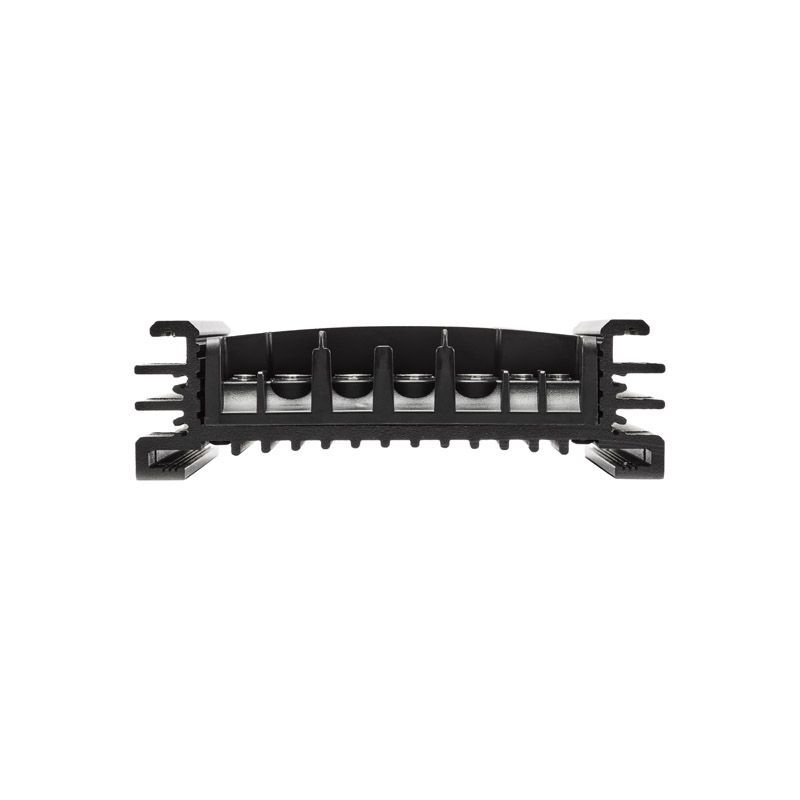

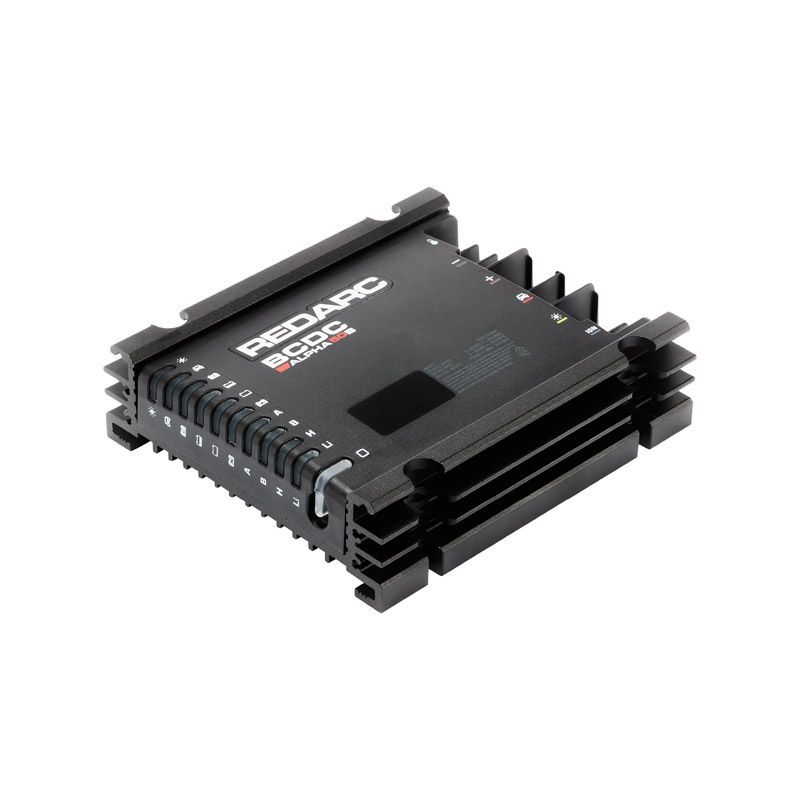

The REDARC BCDC Alpha50 Battery Charger is the ultimate 50A dual battery charger built for off-road enthusiasts. Combining advanced technology with Bluetooth connectivity, it allows real-time monitoring and control via the RedVision app. This charger offers DC and solar charging, flat start battery recovery, and excess solar power diversion. The Alpha50 is designed for easy installation and is IP67/69K-rated for dust and moisture resistance, ensuring reliability in harsh environments.

Features:

  • 50A DC and solar charging
  • IP67/69K protection
  • Pushbutton interface with screw connections
  • Bluetooth control via RedVision app
  • Flat start battery recovery

Specifications:

  • Charging Capacity: 50A
  • IP Rating: IP67/69K
  • Bluetooth Enabled: Yes
  • Weight: 1.25kg
  • Over-the-air updates

Features

+
  • 50A Charging from DC and solar power
  • Compatible with all common automotive battery types including lithium (LiFePO4)
  • Outlast other chargers with IP67/69K dust and moisture protection
  • Easy installation with pushbutton interface and screw connections
  • Charge back to your start battery with excess solar
  • Recover a flat start battery with the push of a button
  • Remote monitoring and control from the RedVision app with Bluetooth
  • Protect your vehicle’s alternator with adjustable input current limit
  • Future proof charging with over-the-air updates

Specifications

+
Physical Specifications
Dimensions 164 × 146 × 44mm (6.46" × 5.75" × 1.73")
Weight 1.25kg
IP Rating IP67/IP69K
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Electrical Specifications
Nominal Current Rating 50A
Start Battery Input 9-32V DC, Maximum Current: 28A
Solar Input 9-48V DC, Maximum Current: 28A, Maximum Array Size: 750W
Output Specifications 12V nominal, 9-16V DC range, Maximum Output: 50A
Battery Compatibility
Recommended Battery Capacity 40 to 300Ah
Maximum Charging Voltages AGM/Gel: Boost 14.5V, Float 13.3VCalcium: Boost 15.2V, Float 13.3VStandard Lead Acid: Boost 14.9V, Float 13.3VLithium (Standard & Heated): Boost 14.2V, Float 13.6V
Battery Temperature Ranges AGM/Calcium/SLA: -25°C to 90°C (-13°F to 194°F)Gel: 0°C to 90°C (32°F to 194°F)Standard LiFePO4: 0°C to 60°C (32°F to 140°F)Heated LiFePO4: -25°C to 60°C (-13°F to 140°F)
Temperature Compensation AGM/Calcium/Gel/SLA: -30mV/°C (0-60°C), -17mV/°F (32-140°F)LiFePO4: -70mV/°C (40-60°C), -39mV/°F (104-140°F)
