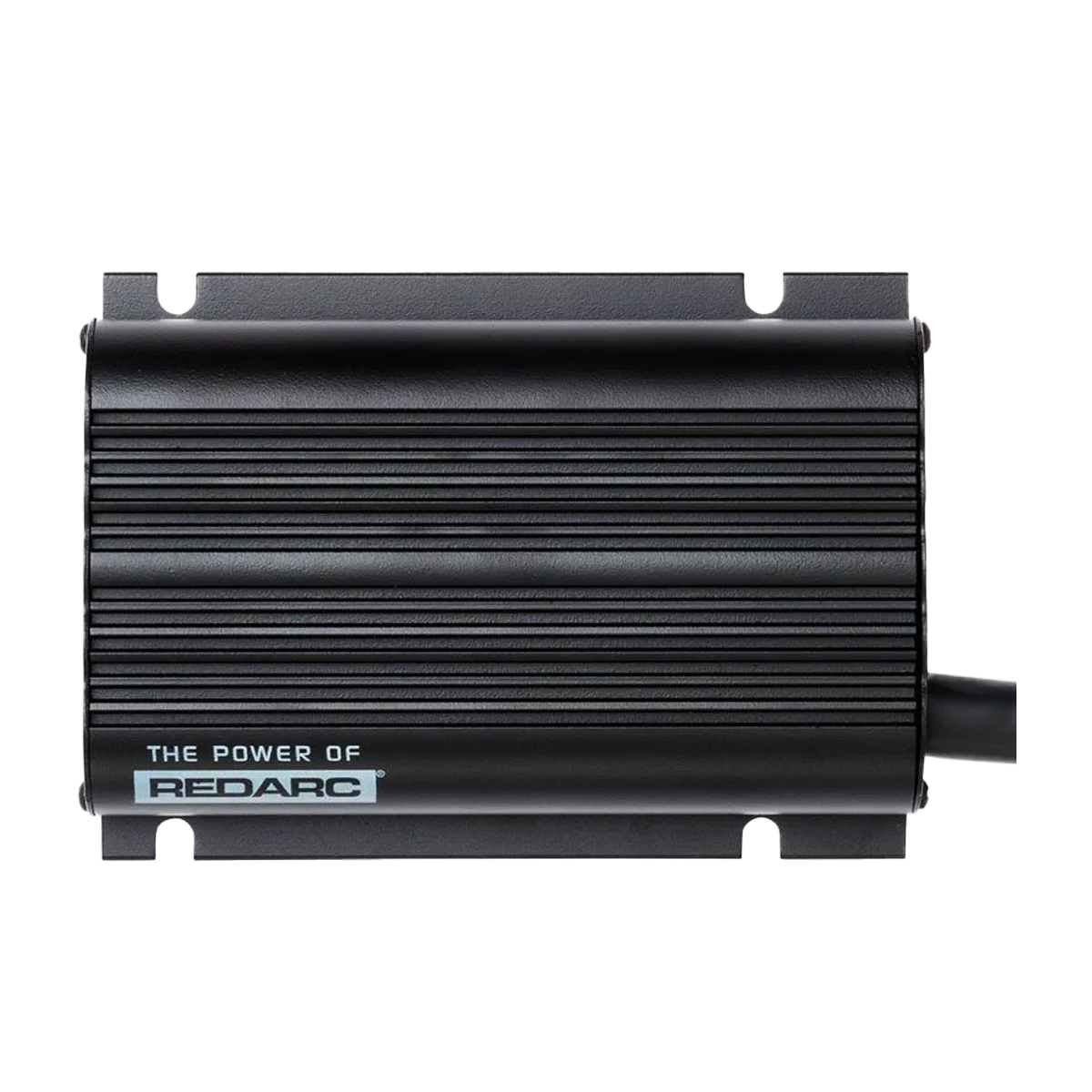

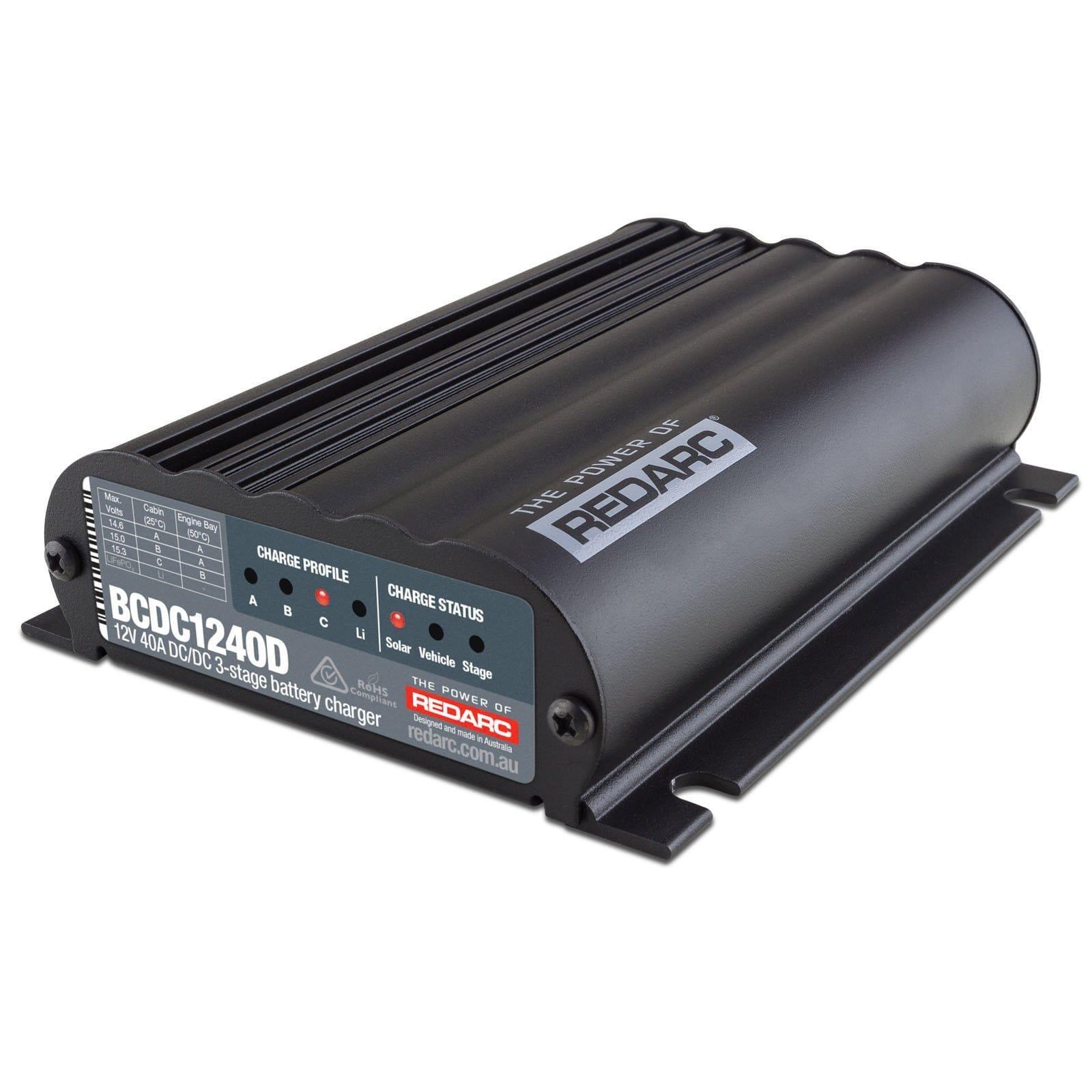

REDARC BCDC1240D Classic DC-DC Battery Charger
REDARC BCDC1240D Classic DC-DC Battery Charger
REDARC BCDC1240D Classic DC-DC Battery Charger
REDARC BCDC1240D Classic DC-DC Battery Charger

REDARC BCDC1240D Classic DC-DC Battery Charger

REDARC BCDC1240D Classic DC-DC Battery Charger

$799.00

$789.00

The REDARC BCDC1240D Classic DC-DC Battery Charger is a robust 40A charger designed for under-bonnet installations, providing durable performance against heat, water, and dust. With Green Power Priority, it optimizes solar charging to reduce alternator load, using an integrated MPPT solar regulator to charge from both solar and alternator simultaneously. Compatible with 12V/24V systems and various battery types (AGM, GEL, lead acid, calcium, and Lithium LiFePO4), this charger ensures efficient battery management for off-grid adventures.

Key Features:

  • 40A output
  • Dual DC and solar inputs with MPPT and Green Power Priority
  • Suitable for under-bonnet installation
  • Battery compatibility: AGM, GEL, lead acid, calcium, and Lithium (LiFePO4)
  • Rugged, built for Australian conditions

Specifications:

  • Nominal Voltage: 12V/24V
  • Output Current: 40A
  • Battery Compatibility: AGM, GEL, Lead Acid, Calcium, Lithium (LiFePO4)
  • Operating Temperature: Up to 80°C
  • Weight: 1.5 kg

What's in the Box:

  • 1 x REDARC BCDC1240D Classic DC-DC Battery Charger

Features

+
  • Suitable for in-cabin and canopy installations
  • Compact form factor
  • Green Power Priority
  • Maximises the performance and life of your auxiliary battery
  • Suits 12V/24V standard and variable voltage/smart alternators
  • Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries

Specifications

+
Model Information
SKU BCDC1240D
Brand REDARC
Unit Of Measure ea
Installation Requirements
Installation Location External / Under Bonnet
Connector Type Bare wire
Charging Capabilities
Compatible Battery Types Standard Lead Acid, Calcium, Gel, AGM or LiFePO4
Power Type DC to DC
Electrical Specifications
Continuous Rating 40A
Maximum Rated Output Current 40A
Nominal Output Power 600W
Input Voltage Range 9 - 32V
Output Voltage 12 VDC
Maximum Charging Voltage 15.3V
Solar Input Voltage 9 - 32V
Solar Switch on Voltage 9V
Operating Parameters
No Load Current <100mA
Standby Current <8mA
Operating Temperature -15°C to 80°C
Protection Features
Input Fuse Rating (not supplied) 60A
Output Fuse Rating (not supplied) 60A
Physical Specifications
Weight 1 kg
Dimensions 165 x 120 x 37 mm (L x W x D)
Shipping Specifications
Shipping Weight 1.1500 kg
Shipping Dimensions Length => 0.330 m, Width => 0.130 m, Height => 0.060 m
Shipping Volume 0.002574000 m³
Warranty
Warranty Period 2 Years

Warranty Details

+
  • 2 Year Warranty
