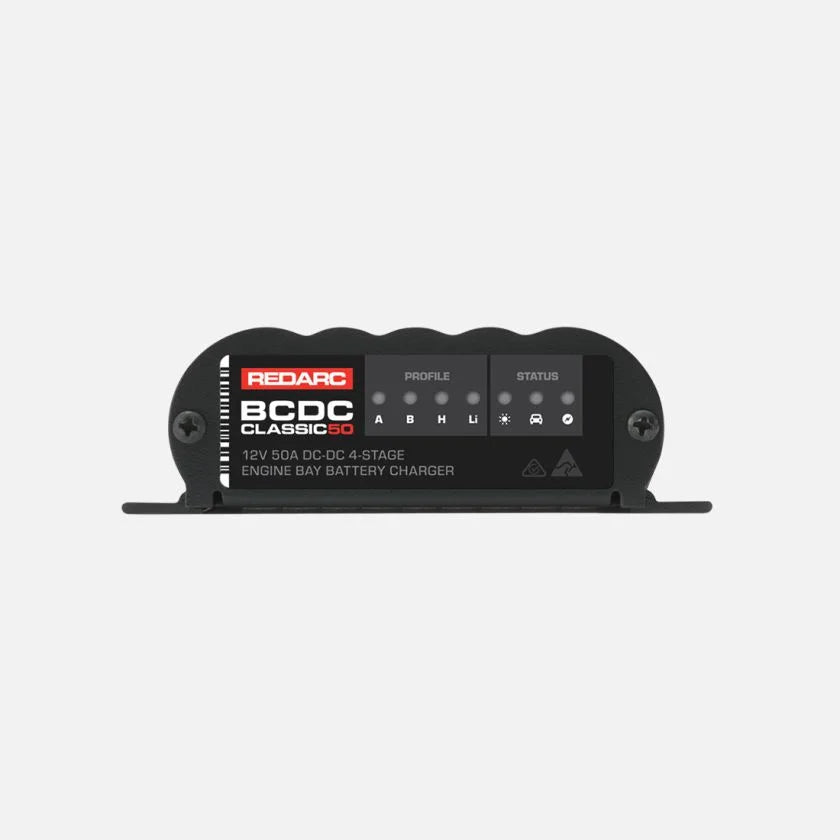

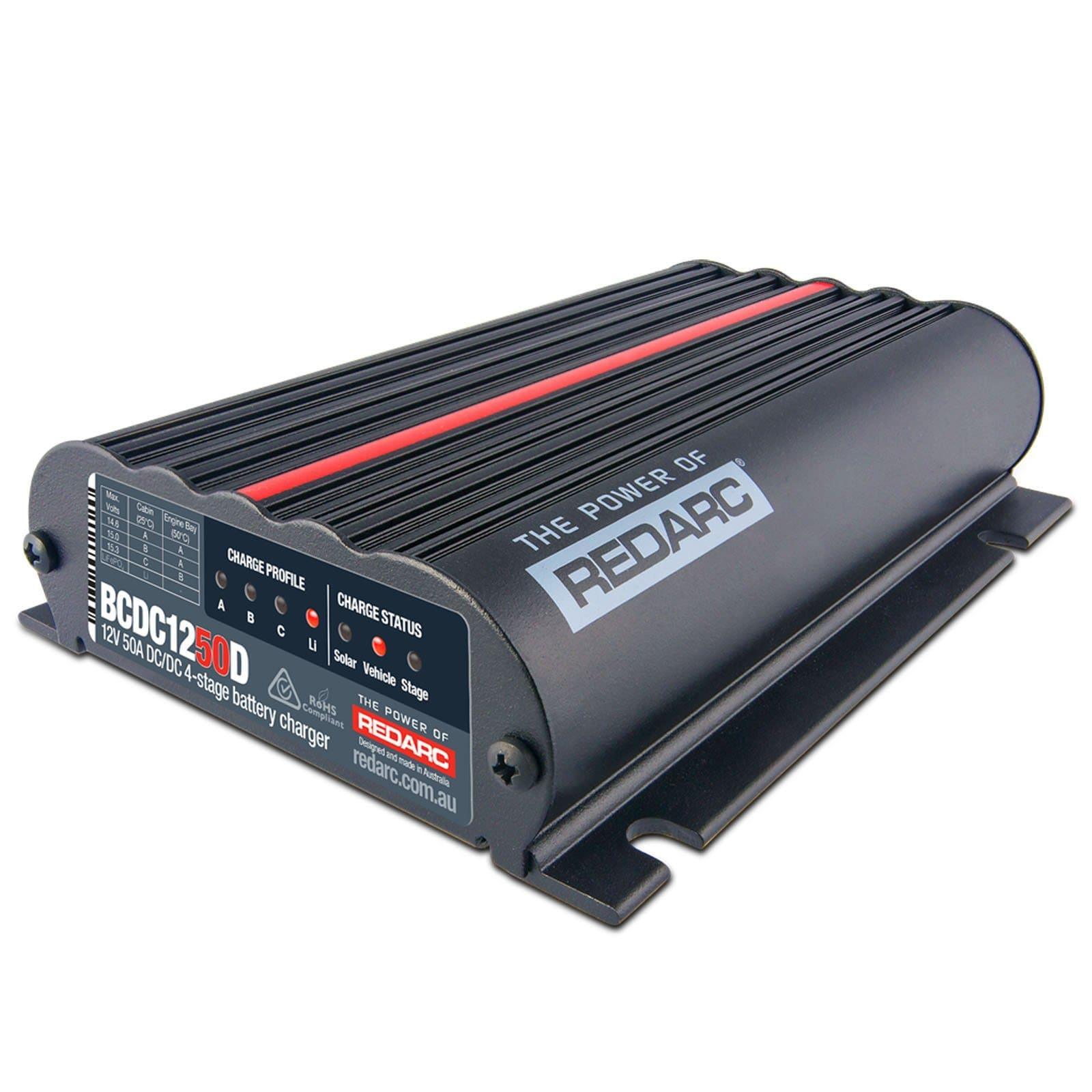

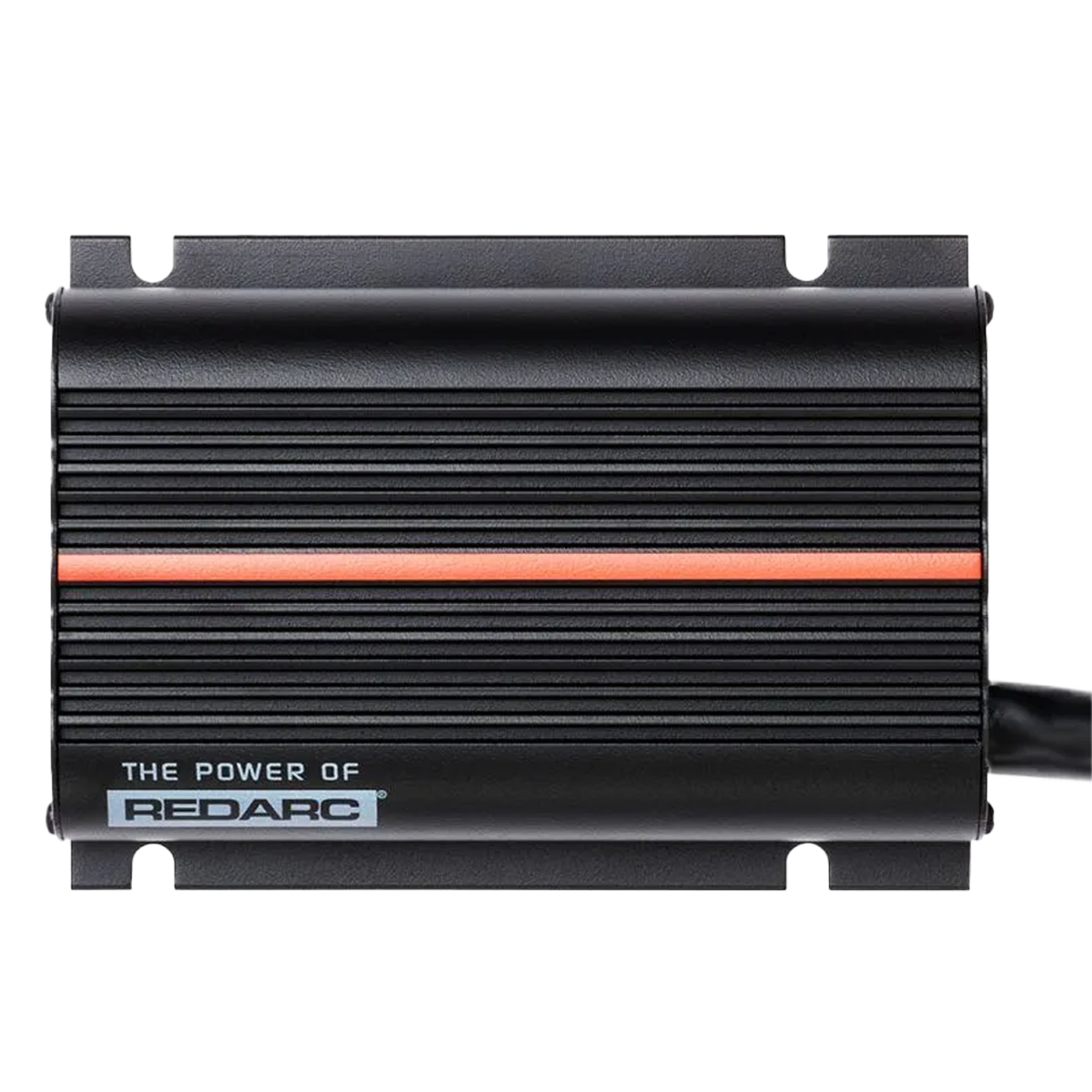

SKU |
BCDC1250D |
Brand |
REDARC |
Available Models |
BCDCN1225, BCDCN1240, BCDC1225D, BCDC1240D, BCDC1250D |
Unit Of Measure |
ea |
Compatible Battery Types |
Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
Charging Stages |
Four-stage (Soft Start, Boost, Absorption, Float) |
Installation Location |
External / Under Bonnet |
Operating Temperature |
-15°C to +80°C (5°F to +176°F) |
Continuous Current Rating |
50A |
Nominal Output Power |
750W |
Vehicle Input Voltage Range |
9 to 32V |
Solar Input Voltage Range |
9 to 32V (unregulated only) |
Output Voltage |
12 VDC |
No Load Current |
<100mA |
Standby Current |
<8mA |
Profile A Maximum Voltage |
14.6V |
Profile B Maximum Voltage |
15.0V |
Profile C Maximum Voltage |
15.3V |
LiFePO4 Profile Maximum Voltage |
14.5V |
Float Voltage Lead Acid |
13.3V |
Float Voltage LiFePO4 |
13.6V |
Minimum Output Battery Voltage |
0.1V |
Input Fuse Rating Required |
60A (Not Supplied) |
Output Fuse Rating Required |
60A |
Weight |
1 kg |
Dimensions |
165 x 120 x 37 mm (L x W x D) |
Shipping Weight |
1.2000 kg |
Shipping Dimensions |
Length => 0.330 m, Width => 0.130 m, Height => 0.060 m |
Shipping Volume |
0.002574000 m³ |
Warranty |
2 years |
Compliance Marks |
RCM, E-mark, CE, UKCA |
