Questions? for expert advice, or read our buying guides
Key features

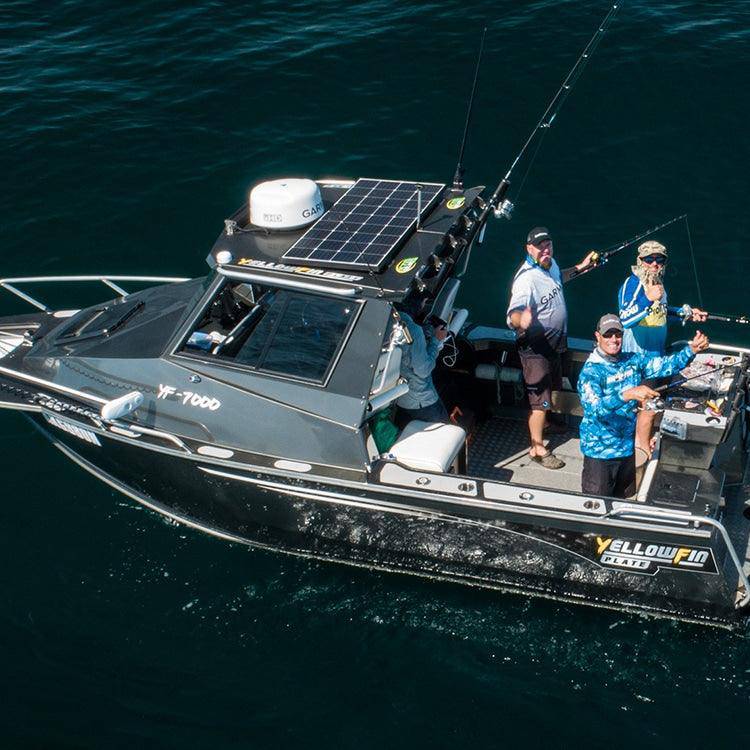

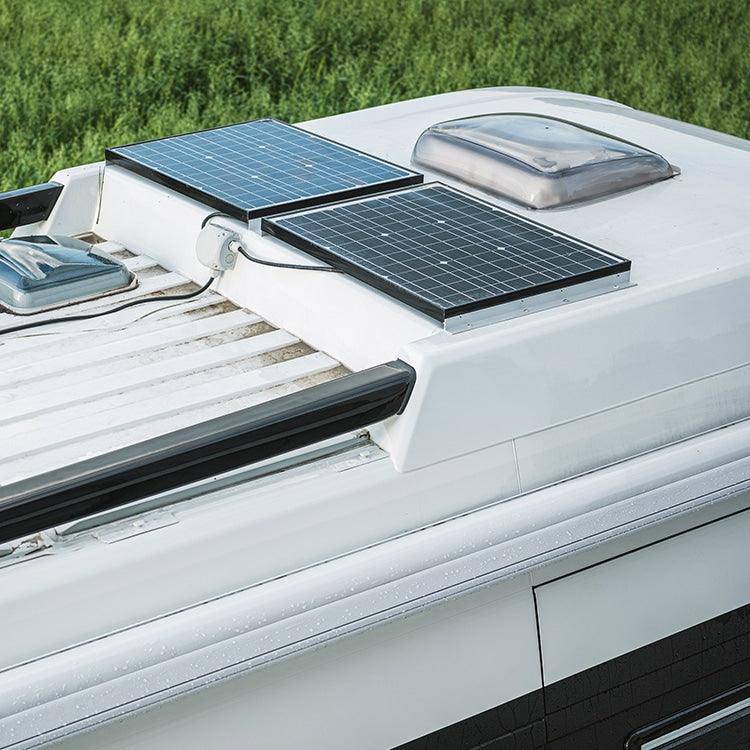

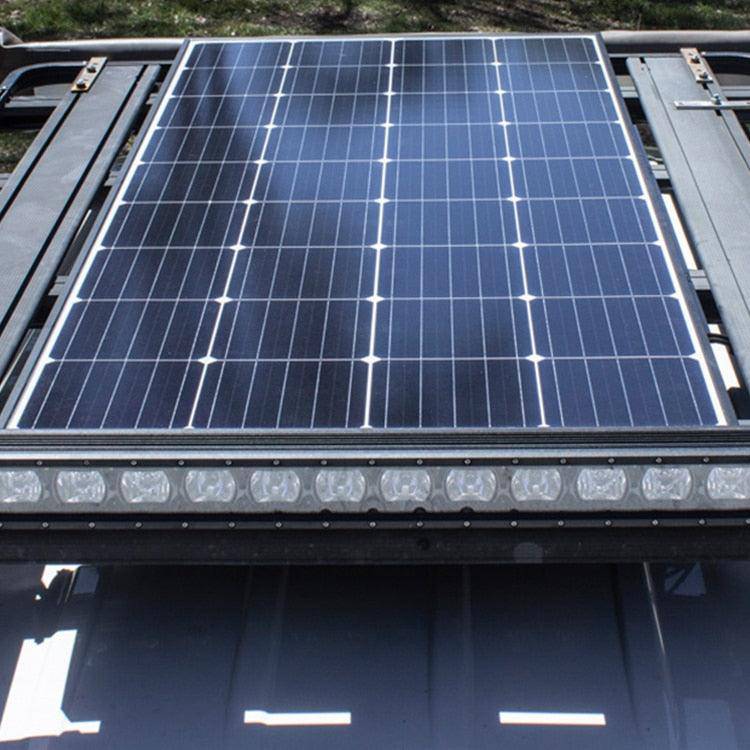

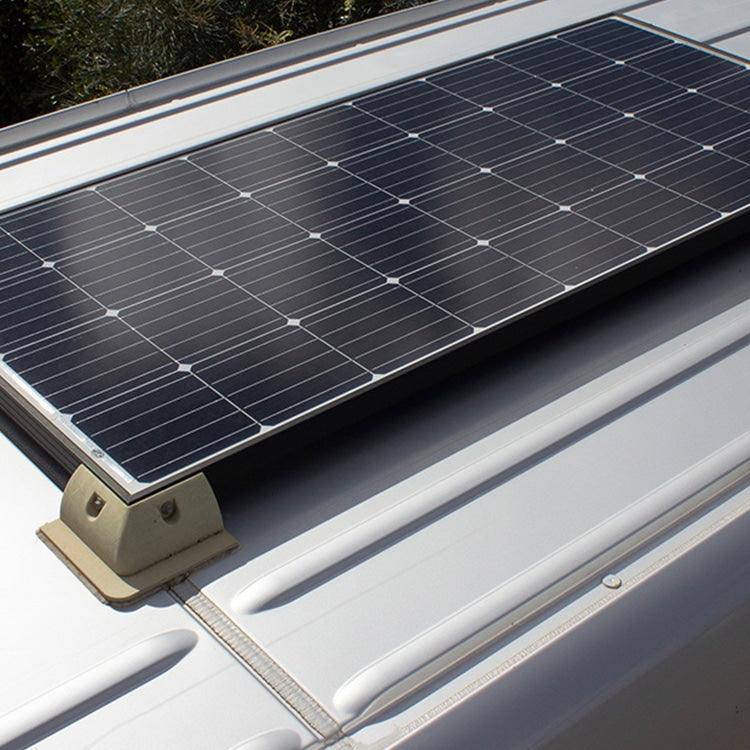

Ideal for installation on 4WD’s, caravans, campers, motorhomes, commercial vehicles, boats & yachts
Ideal for home and rural applications including off-grid shed power
Requires regulation by solar charge controller
Direct connection to batteries with 900mm PV cables with positive (+) and negative (-) TUV certified connectors
Overview

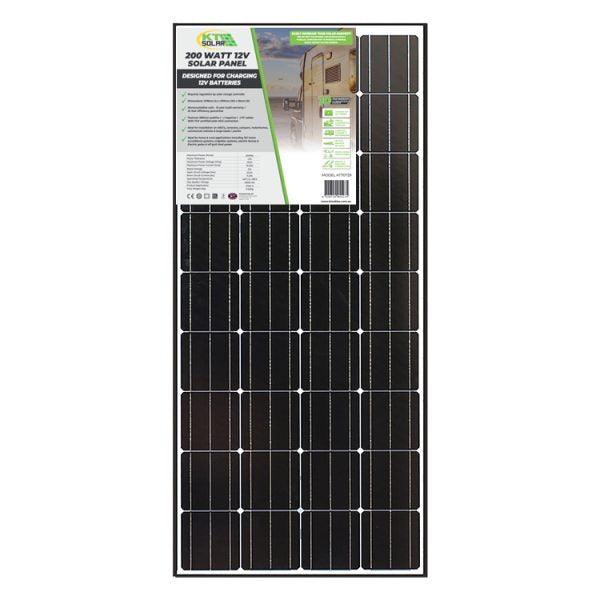

The 200W 12V Single Cell Mono-Crystalline Solar Panel is designed for permanent installations on vehicles and marine applications, as well as for home and rural use. It is particularly suitable for powering 12V devices such as fridges, air-compressors, lighting, and more. This solar panel is also ideal for applications like home surveillance systems, irrigation systems, and off-grid power for sheds. It comes with 900mm PV cables terminated with TUV certified solar connectors, and requires regulation from a solar charge controller, such as the KT Solar Controller Model No. KT70757.
Key Features:
Permanent Installation Design: Ideal for vehicles, boats, and home applications.
Direct Battery Connection: Equipped with PV cables and TUV certified connectors.
Broad Application Range: Suitable for various 12V systems and devices.
Specifications:
Dimensions: 1476mm (H) x 670mm (L) x 40mm (D)
Panel Weight: 11.50Kg
Maximum Power (Pmax): 200Wp
Rated Voltage: 12V
Specifications
Power Tolerance +3%
Maximum Power (Pmax) 200Wp
Maximum Power Voltage (Vmp) 19.6V
Maximum Power Current (Imp) 10.20A
Rated Voltage 12V
Open Circuit Voltage (Voc) 23.2V
Short Circuit Current (Isc) 11.27A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC
