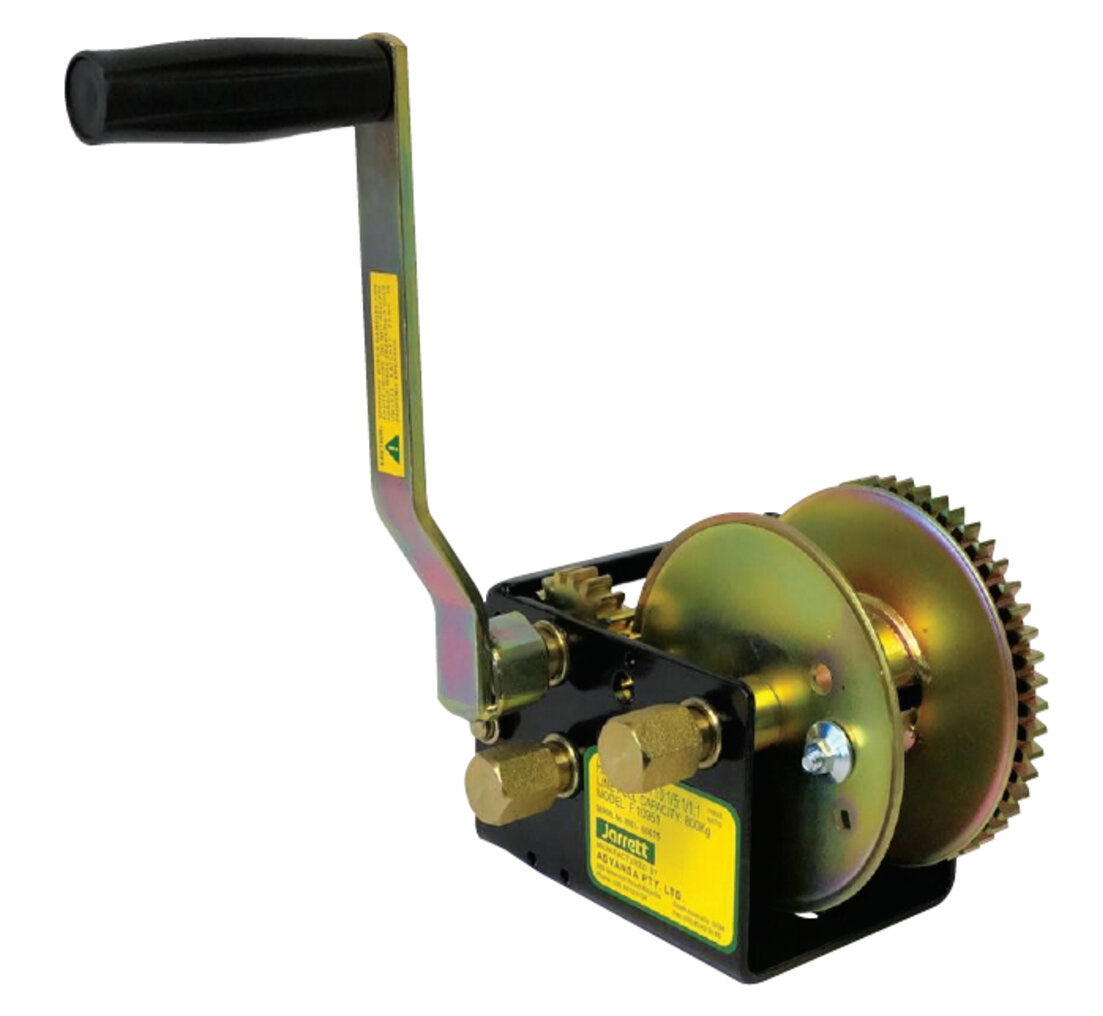

Jarrett 3-Speed 10:1/5:1/1:1 Hand Winch 1000 kg

Scan the QR code to download the free Camping Australia app - 5,000+ campsites and 1,100+ free camps in your pocket

Jarrett 3-Speed 10:1/5:1/1:1 Hand Winch 1000 kg

$156.55

Configuration - Bare (no rope/hook)

The Jarrett 3-Speed 1000 kg hand winch is built for operators who need serious rated capacity with the fatigue-reducing benefit of three selectable gear ratios. At 1000 kg working load, this winch handles larger fibreglass boats, pontoon craft and heavier industrial loads that would over-stress lesser winches. The same 10:1 / 5:1 / 1:1 three-speed system as the 800 kg model — but with a heavier-duty drum and frame rated for the additional load.

Features

+

1000 kg rated working capacity — handles large fibreglass boats and industrial loads
10:1 for maximum pulling power on heavy starts
5:1 mid-range ratio for the main haul with manageable handle effort
1:1 direct drive for fast line take-up once the load is free
Heavy-duty drum and frame rated for 1000 kg working load
Hot-dip galvanised steel, ratchet pawl, removable handle

Specifications

+

Winch Specifications
Brand	Jarrett
Speed	3-Speed
Gear Ratios	10:1 / 5:1 / 1:1
Rated Capacity	1000 kg
Construction	Hot-dip galvanised steel
Pawl	Ratchet
Handle	Removable
Configurations
Bare (F10951)	Drum only, no rope or hook
Cable (F10953)	4 mm × 6 m galvanised cable + snap hook

Shipping & Returns

+

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

2 Year Manufacturer's Warranty

Common questions about Jarrett 3-Speed 10:1/5:1/1:1 Hand Winch 1000 kg

When do you actually need 10:1?

At the two hardest moments — breaking the hull off wet rollers at the start, and the final stretch once the boat is clear of the water and its whole weight hangs on the line. Run 5:1 through the middle and direct drive for slack, and the retrieve stays comfortable.

Is 1000 kg enough for my boat?

Add it up properly: hull, motor, full fuel, batteries, gear and whatever lives in the lockers. Then allow for a steep ramp, worn rollers and a wet surface, all of which lift the load the winch actually sees. Borderline against the rating means go to the bigger unit.

Bare drum or the cable version?

Only take the bare drum if the line you are transferring is genuinely sound — no kinks, no broken strands, no rust weeping out of the lay. Most people fitting a new winch are also overdue for new line. Measure winch post to bow eye before you choose either.
