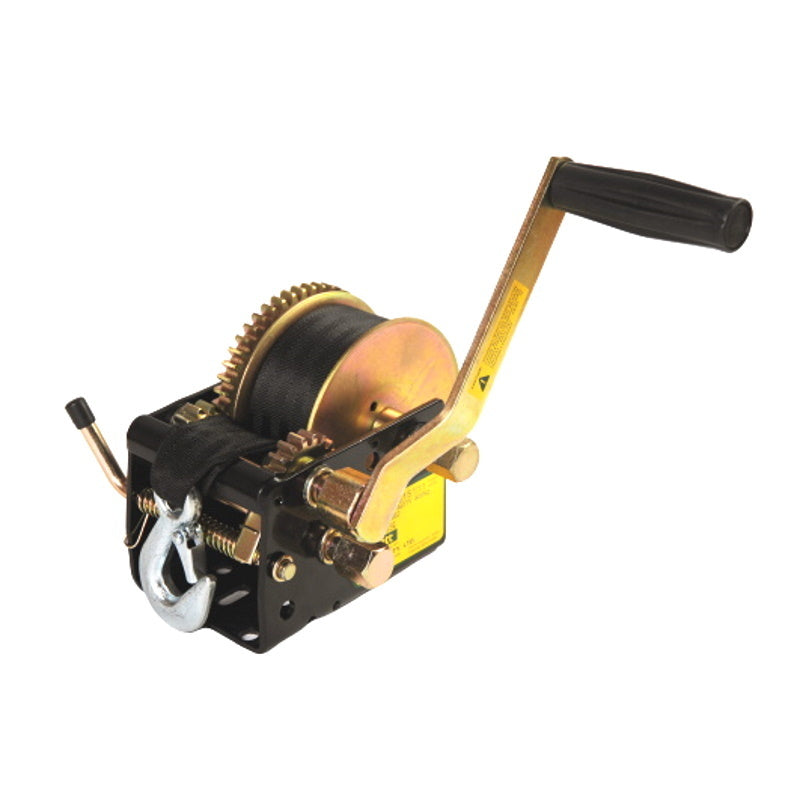

Jarrett 3-Speed 10:1/5:1/1:1 Hand Winch 800 kg

Scan the QR code to download the free Camping Australia app - 5,000+ campsites and 1,100+ free camps in your pocket

Jarrett 3-Speed 10:1/5:1/1:1 Hand Winch 800 kg

$177.75

Configuration - Jarrett 3 Speed Boat Trailer Winch 10:1 / 5:1 / 1:1 - 7.5m Webbing & Snap Hook - Winch rated at 800kg capacity.

The Jarrett 3-Speed hand winch is the workhorse of the range — three distinct gear ratios give you precision control across the full range of winching tasks. Start in 10:1 to break a stuck load or haul a heavy, well-laden boat up a steep ramp; shift to 5:1 for the bulk of the haul; then switch to 1:1 direct drive to take up the last few metres of slack quickly once the boat is moving freely. Rated to 800 kg working load.

The three speeds are selected by handle direction and a simple selector — the mechanism is intuitive to use once you've tried it and dramatically reduces fatigue on heavy hauls. Popular with boat owners trailering heavier aluminium and fibreglass vessels in the 5–7 metre range.

Features

+

800 kg rated working capacity across three selectable gear ratios
10:1 for breaking stuck loads and hauling up steep ramps with minimum effort
5:1 for the main haul once the load is moving
1:1 direct drive for fast line take-up when the boat is rolling freely
Three-speed selection dramatically reduces fatigue on heavy retrieval
Hot-dip galvanised steel with ratchet pawl and removable handle
Cover variant (F10952WC) protects drum from salt, grit and UV

Specifications

+

Winch Specifications
Brand	Jarrett
Speed	3-Speed
Gear Ratios	10:1 / 5:1 / 1:1
Rated Capacity	800 kg
Construction	Hot-dip galvanised steel
Pawl	Ratchet
Handle	Removable
Configurations
Webbing (F10952)	6 m polyester webbing + snap hook
Webbing+Cover (F10952WC)	6 m webbing + snap hook + protective drum cover
Cable (F10950)	4 mm × 6 m galvanised cable + snap hook

Shipping & Returns

+

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

2 Year Manufacturer's Warranty

Common questions about Jarrett 3-Speed 10:1/5:1/1:1 Hand Winch 800 kg

Why pick the 800 kg over the heavier three-speed?

Same three ratios, lighter drum and frame. If your loaded rig sits comfortably under 800 kg you carry less weight on the drawbar and less hardware to rinse and grease. Sitting close to the rating, or planning to upsize the boat, take the heavier model instead.

Cable or webbing on this one?

Webbing for fibreglass — it will not scuff the gelcoat around the bow eye and it lies flat as it stacks. Cable for boats retrieved over sand and grit, where webbing picks up abrasive and wears from the inside. Either way, keep it covered against sun between trips.

Is this too much winch for a small tinnie?

Probably. A boat you can nearly push on by hand does not need three ratios or a drum built for 800 kg, and you would be hauling around weight and maintenance you never use. Buy the three-speed when the retrieve is genuinely hard: heavy hull, steep ramp, loading solo.
