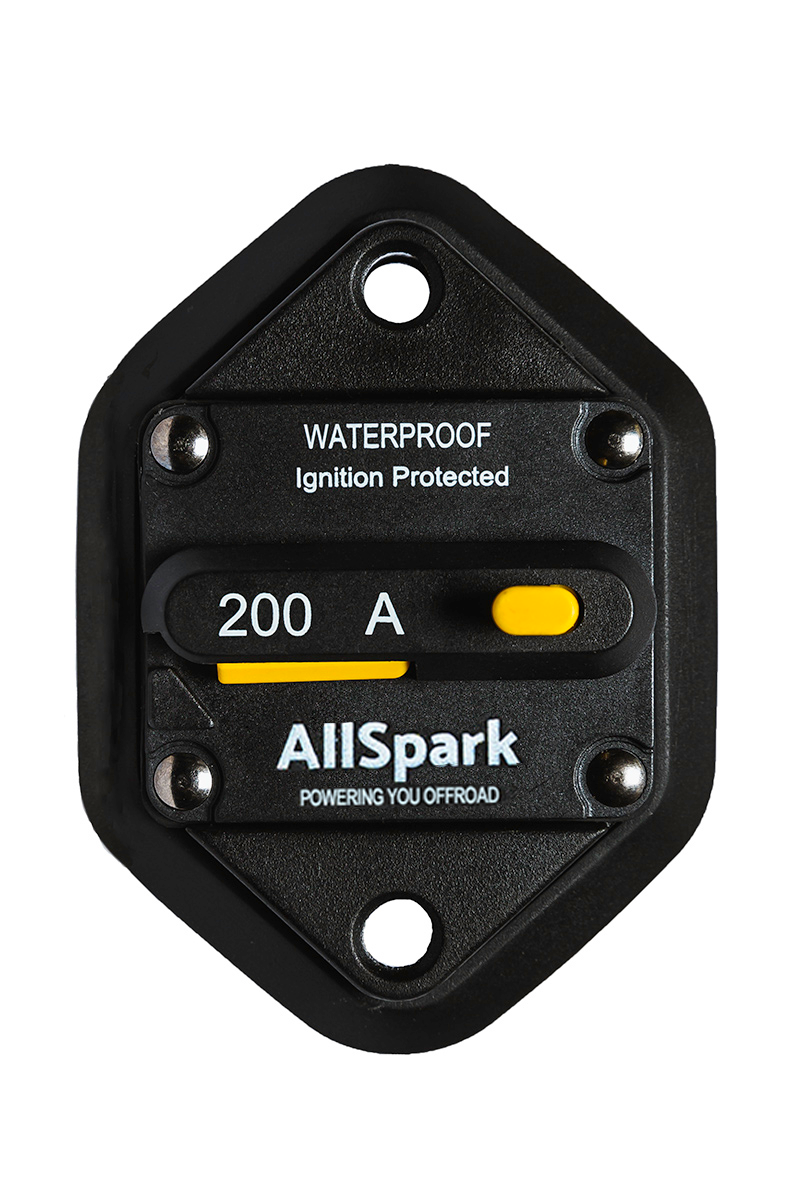

AllSpark Circuit Breakers - Flush Mount 200A

AllSpark Circuit Breakers - Flush Mount 200A AllSpark

AllSpark Circuit Breakers - Flush Mount 200A

SKU AS-CB200FM

$59.00

Operating temperature: −32°C to +85°C

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

200A rating, manual push-to-trip and hand reset
Flush panel mount for a finished installation
IP67 sealed and ignition protected
Terminates on 1/4-28 threaded studs — minimum 0 B&S cable with a 50mm lug
Rated 12–48V DC with 3000A interrupt at 30V DC
DC only — never fit to a 240V AC circuit
Certified to ABYC E-11 and SAE J1171 External Ignition Protection, and SAE J553

Overview

A 200A manual-reset circuit breaker in a flush-mount body, sized for battery-to-busbar main feeds and large inverter runs. The breaker sits behind the panel with only the reset button and studs presented, which suits a switch panel, battery box lid or purpose-built distribution board.

Sealed to IP67 and ignition protected, it resets by hand rather than consuming a fuse. Size the cable to the breaker rating, not to the load you happen to be running today.

Common questions

Is 200A too big for my system?

If your cable is not 0 B&S, yes. This is for battery-to-busbar main feeds and large inverter runs, and it only protects wire heavy enough to match. Fitting a 200A breaker on lighter cable means the wire becomes the fuse, which is the outcome the breaker exists to prevent.

What lugs and tools will I need?

50mm lugs crimped onto 0 B&S cable, which is beyond hand crimpers — a hydraulic crimper or an auto sparky. Then torque the nuts to no more than 5.6 N•m. Heavy cable also wants supporting near the breaker so its weight is not hanging off the studs.

Does one big breaker cover the whole system?

No, and it should not. A 200A breaker protects the heavy feed only; every circuit hanging off the busbar downstream still needs its own fuse or breaker sized to its own thinner cable. One large device at the front is protection for the trunk, not for the branches.

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

Warranty & Returns

Limited 12 Month Manufacturer Warranty

If you experience issues with your gear, please contact us for support.

What’s Covered?

Manufacturing defects
Faults in materials or workmanship

What’s Not Covered?

Damage caused by misuse, neglect, or improper use
Incidents occurring during delivery
Normal wear and tear from usage

How to Initiate a Warranty Claim

If you need to file a warranty claim, please follow these steps:

Contact us via email or the via the contact us
Provide the following details:
- Order ID
- Detailed description of the issue
- Images/videos clearly showcasing the fault (ensure they meet the recommended format and size for optimal review)
Our team will assess your claim and get back to you as soon as possible.

Note: Do not open a PayPal dispute, as this may delay the resolution process. Please follow the official claim process for quicker results.

⚠ Important Note:
We recommend testing your purchased product within one year of purchase. We cannot help process warranty claims beyond this period.

For full details, please refer to our other policies:

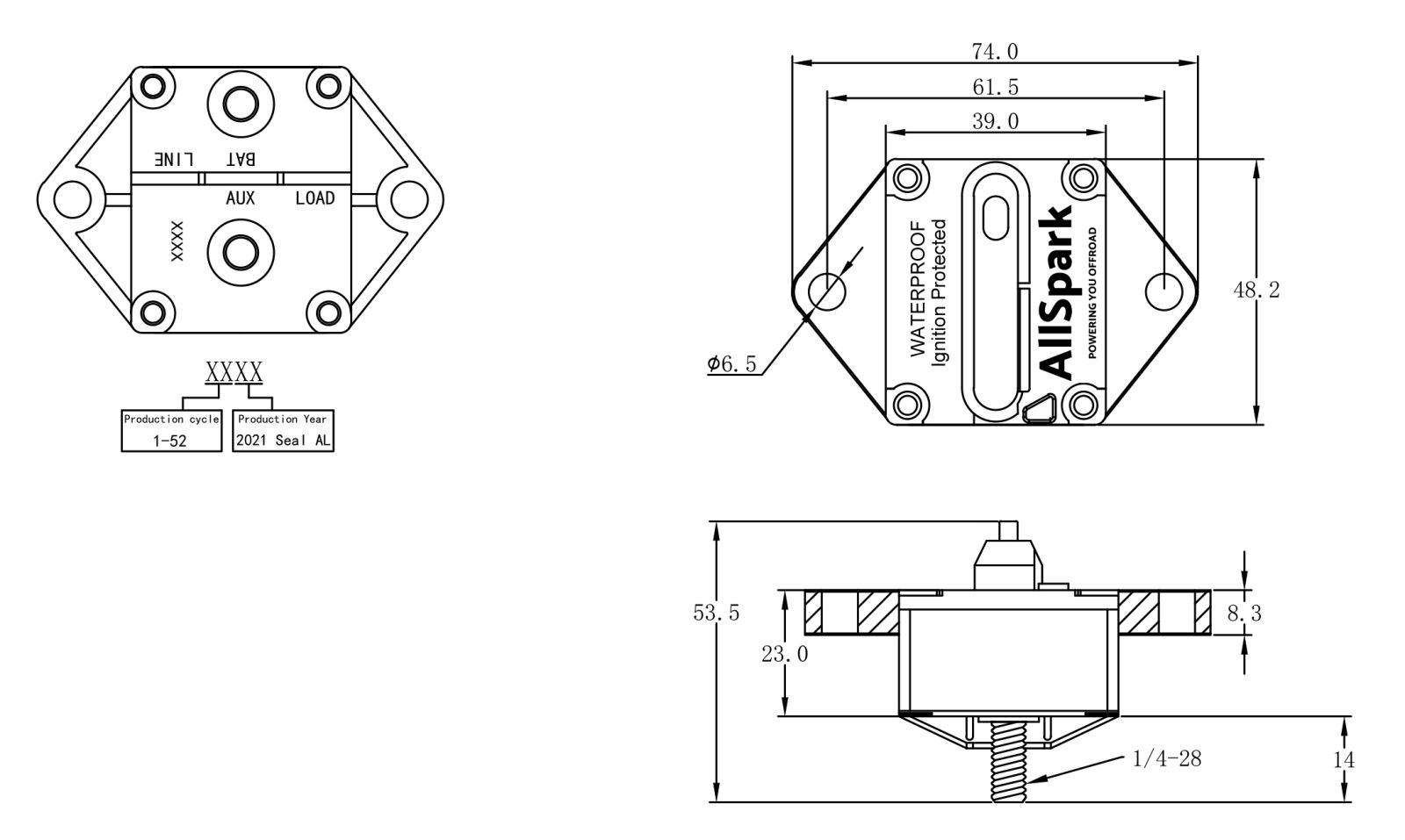

Specifications

Rating	200A
Mounting	Flush / panel mount
Termination stud	1/4-28 threaded
Minimum cable size	0 B&S
Lug	50mm
Voltage range	12–48V DC
Interrupt rating	3000A @ 30V DC
Operating temperature	−32°C to +85°C
Storage temperature	−34°C to +149°C
IP rating	IP67
Materials	Black UL 94V-0 rated thermoset plastic
Torque rating	50 in-lbs (5.6 N•m) max
Certification	ABYC E-11, SAE J1171 External Ignition Protection, SAE J553
Warranty	5 year manufacturer warranty
In the box	1 × AllSpark 200A flush-mount circuit breaker
Range available	20A, 25A, 30A, 40A, 50A, 60A, 70A, 80A, 100A, 175A, 200A
