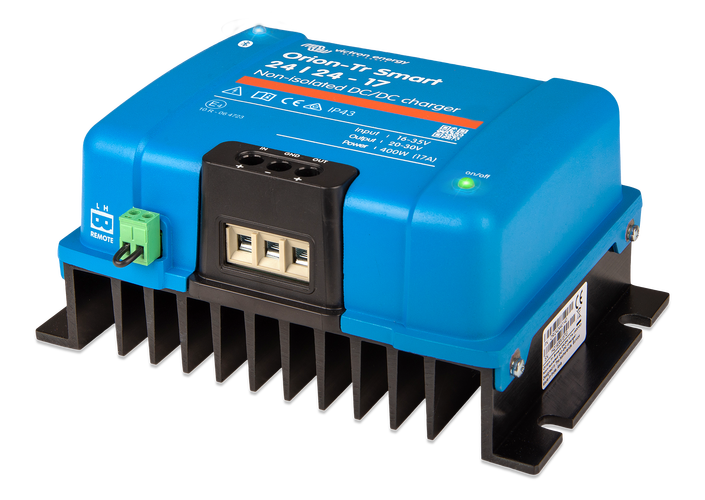

Victron Orion-Tr Smart 24/24-17A (400W) Non-isolated DC-DC charger

Victron Orion-Tr Smart 24/24-17A (400W) Non-isolated DC-DC charger Victron

Victron Orion-Tr Smart 24/24-17A (400W) Non-isolated DC-DC charger

SKU ORI242440140

$355.00

Weight: 0.9 kg
Dimensions (L × W × H): 171 × 110 × 45 mm
Operating Temperature: -40°C to +60°C

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

400W rated output power with up to 17A charge current for fast, reliable service battery charging
Non-isolated topology delivers high conversion efficiency (up to 93%) in a compact, lightweight enclosure
Integrated Bluetooth with VictronConnect app for wireless monitoring, battery profile configuration, and firmware updates
Multi-stage adaptive 7-step charging algorithm compatible with AGM, gel, LiFePO₄, flooded, and VRLA batteries
Programmable engine-running detection via input voltage threshold to protect the starter battery from depletion
Wide input voltage range of 16–40V DC accommodates varying alternator output and battery voltage sag
Output voltage adjustable from 20–30V DC to fine-tune charge voltage for your specific battery chemistry
Temperature-compensated charging via optional VE.Smart networking with Victron Smart Battery Sense
Remote on/off control via dedicated H/L terminal for integration into vehicle switching circuits
Robust aluminium housing rated for harsh environments with a wide operating temperature range of -40°C to +60°C

Overview

The Victron Orion-Tr Smart 24/24-17A (400W) Non-isolated DC-DC Charger delivers intelligent, multi-stage charging from a 24V vehicle or alternator source directly to a 24V service battery — without the cost or bulk of an isolation transformer. Rated at 400W continuous output and up to 17A charge current, it integrates Victron's renowned adaptive charging algorithm supporting AGM, gel, lithium (LiFePO₄), and standard flooded batteries. Built-in Bluetooth connectivity pairs with the free VictronConnect app, letting you monitor charge status, configure battery profiles, and set engine-running detection thresholds — all from your phone, no additional hardware required.

Purpose-built for Australian caravanners, 4WD tourers, and RV travellers running 24V dual-battery systems, the Orion-Tr Smart 24/24-17A is the go-to solution for keeping your house battery bank topped up on the road. Whether you're crossing the Nullarbor, heading bush in a dual-cab ute, or parked up at a remote campsite after a long drive, this charger ensures your lights, fridge, CPAP, and 12V accessories keep running. The non-isolated design keeps things compact and efficient, making it ideal for installations where alternator output and service battery share a common negative — common in caravans, camper trailers, motorhomes, and slide-on campers across Australia.

Key Features

400W / 17A continuous DC-DC charging from 24V source to 24V service battery
Bluetooth-enabled via VictronConnect app — configure, monitor, and update firmware wirelessly
Multi-stage adaptive charging supports AGM, gel, LiFePO₄, and flooded lead-acid batteries
Built-in engine-running detection prevents accidental discharge of the starter battery
Compact non-isolated design for efficient 24V-to-24V dual-battery installations in caravans and 4WDs

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

5-year manufacturer warranty against defects in materials and workmanship.

Specifications

SKU / Model	ORI242440140
Input Voltage Range	16–40V DC
Output Voltage Range	20–30V DC (adjustable)
Rated Output Current	17A
Rated Output Power	400W
Peak Conversion Efficiency	Up to 93%
Standby Current Draw	< 1.5 mA (remote off)
Operating Temperature	-40°C to +60°C
Topology	Non-isolated (buck-boost)
Communication Interface	Bluetooth (VictronConnect app), VE.Smart networking
Remote On/Off	Yes — dedicated H/L terminal
Battery Types Supported	AGM, Gel, Flooded, LiFePO₄, VRLA
Protection	Over-temperature, over-voltage output, short circuit
Dimensions (L × W × H)	171 × 110 × 45 mm
Weight	0.9 kg
