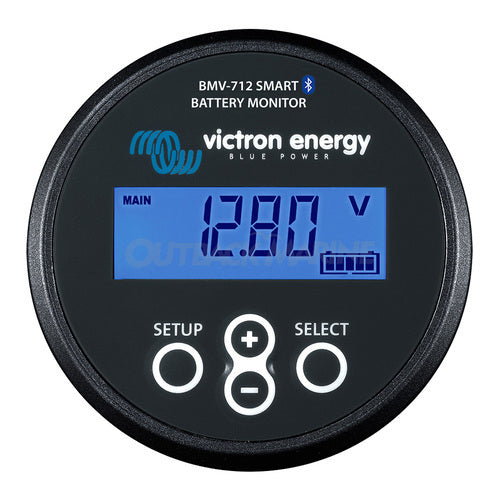

Victron BMV-712 Black Battery Monitor with Bluetooth

Name: Victron BMV-712 Black Battery Monitor with Bluetooth
Brand: Victron
SKU: BAM030712200R
Price: 235.0 AUD
Availability: InStock

$235.00

The Victron BMV-712 Black is a high-precision smart battery monitor that gives you complete visibility over your 12V, 24V, or 48V battery system — right from your smartphone. Built-in Bluetooth connects directly to the free VictronConnect app, letting you track state of charge (SoC), voltage, current draw, consumed amp-hours, and time-to-go in real time without any extra hardware or dongles. The 500A shunt handles even the most demanding caravan and RV loads, while the wide operating range of 6.5 to 95V makes it compatible with virtually any deep-cycle battery chemistry including lithium, AGM, gel, and flooded lead-acid.

The BMV-712 is the go-to battery monitor for Australian caravanners, 4WD tourers, and RV travellers who need to know exactly how much power is left before they reach their next camp. Whether you're dry-camping in the outback, running a solar-charged 12V setup in a camper trailer, or managing a multi-battery bank in a motorhome, the BMV-712 takes the guesswork out of energy management. The optional temperature sensor input lets you compensate for the effects of Aussie heat on battery capacity, and the programmable relay output can trigger alarms or automated loads when SoC thresholds are crossed — essential for protecting expensive lithium batteries from deep discharge in remote off-road conditions.

Built-in Bluetooth for wireless monitoring via the free VictronConnect app (iOS and Android)
Monitors state of charge (SoC), voltage, current (A), power (W), consumed Ah, and time-to-go
Wide input voltage range: 6.5–95V — compatible with 12V, 24V, and 48V battery systems
Included 500A/50mV shunt suits high-load caravan and RV electrical setups
Secondary voltage input to simultaneously monitor a second battery or solar panel voltage
Programmable alarm relay output for automated load control or low-SoC protection
Compatible with lithium (LiFePO4), AGM, gel, and flooded lead-acid battery types
Integrates with other Victron devices via VE.Direct port for full system monitoring

Key Features

Built-in Bluetooth — monitor your battery wirelessly via the free VictronConnect app on iOS or Android
Tracks state of charge, voltage, current, power, consumed Ah, and time-to-go from a single display
Wide voltage range (6.5–95V) supports 12V, 24V, and 48V systems with all battery chemistries
Included 500A/50mV shunt handles heavy 4WD and caravan electrical loads with precision
Programmable relay and alarm output protects batteries from deep discharge on remote off-road trips

Features

+

Built-in Bluetooth Smart (BLE) connects directly to VictronConnect app — no additional interface needed
Monitors state of charge (SoC), voltage, current, power (watts), consumed amp-hours, and time-to-go
Operating voltage range 6.5–95V — suitable for 12V, 24V, and 48V DC battery systems
Supplied with a 500A/50mV shunt for accurate high-current measurement in caravan, RV, and 4WD setups
Secondary input monitors a second battery bank or midpoint voltage simultaneously
Optional temperature sensor input (not included) enables temperature-compensated SoC readings
Programmable relay output for alarm activation or automated load control at configurable SoC thresholds
Compatible with LiFePO4 (lithium iron phosphate), AGM, gel, and flooded lead-acid battery chemistries
VE.Direct port enables integration with Victron GX devices, Color Control, and CCGX for full system monitoring
Stores historical data including deepest discharge, average discharge, and number of charge cycles

Specifications

+

Model	BMV-712 Smart (Black)
SKU / Part Number	BAM030712200R
Operating Voltage Range	6.5–95V DC
Current Measurement	±500A via included 500A/50mV shunt
Voltage Measurement Accuracy	±0.01V
Current Measurement Accuracy	±0.1% full scale (±0.01A resolution)
Bluetooth	Built-in Bluetooth Smart (BLE) — VictronConnect app (iOS & Android)
Secondary Input	Second voltage input for dual battery or midpoint monitoring
Temperature Sensor Input	Optional (accessory sold separately)
Relay Output	Programmable SPDT relay, 3A / 30V DC
VE.Direct Port	Yes — compatible with Victron GX devices and CCGX
Battery Compatibility	LiFePO4, AGM, gel, flooded lead-acid
Power Consumption (display)	2.9W (backlight on)
Dimensions (display unit)	110 × 65 × 35 mm
Weight	0.35 kg (monitor + shunt)
Warranty	5-year manufacturer warranty
