Victron BlueSolar MPPT 150/45-MC4 Victron

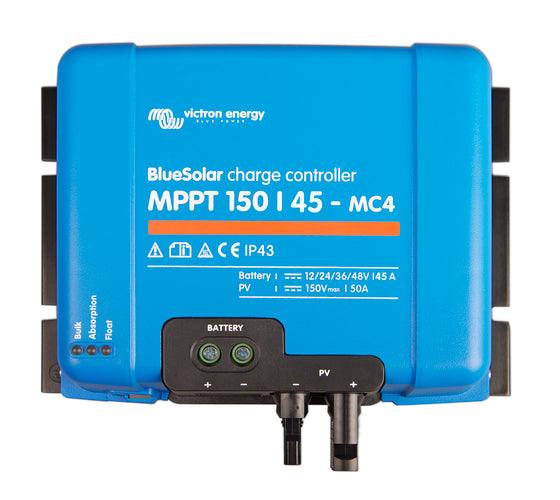

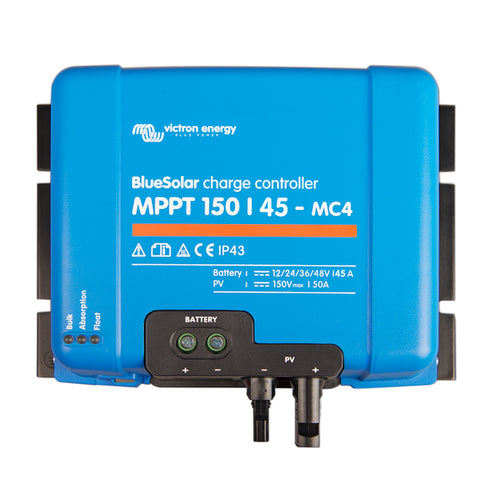

Victron BlueSolar MPPT 150/45-MC4

SKU SCC010045300

$896.00

Weight: 3 kg
Dimensions (H x W x D): 230 x 250 x 95 mm
Operating Temperature: -30 to +60°C

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

Ultra-fast Maximum Power Point Tracking improves energy harvest by up to 30% versus PWM and up to 10% versus slower MPPT controllers
Advanced partial-shading detection locks onto the optimum maximum power point when trees or roof gear shade the array
Automatic 12/24/48V battery voltage recognition, with 36V selectable via software tool
Maximum conversion efficiency exceeds 98% with no cooling fan
Full rated output current available up to 40°C ambient temperature
Adaptive three-stage charging (bulk, absorption, float) with eight pre-programmed algorithms selectable by rotary switch
Fully programmable charge algorithm via the VictronConnect app
Internal temperature sensor compensates absorption and float voltages
Protection against PV short circuit, PV reverse polarity, PV reverse current and over-temperature with power derating
VE.Direct port for monitoring via a Bluetooth Smart dongle, MPPT Control display or GX device

Overview

The Victron BlueSolar MPPT 150/45-MC4 is a 45A solar charge controller that squeezes more power out of your panels, with ultra-fast Maximum Power Point Tracking that can lift energy harvest by up to 30% over a PWM controller. It auto-detects 12, 24 or 48V battery systems, handles up to 650W of solar at 12V (1300W at 24V, 2600W at 48V), and reaches peak efficiency above 98% with no cooling fan to clog with dust.

Built for Australian caravan, motorhome and 4WD setups, the MC4 version plugs straight into standard solar panel leads, so roof-mounted arrays, fold-out camping panels and off-grid installs go together quickly. It copes with the shifting light of cloudy days and partial shade from trees or roof gear, and runs at full rated output up to 40°C. That makes it a dependable choice for extended outback touring, remote station stays and off-grid camping, whether you are upgrading an existing RV or wiring a new rig from scratch.

Key Features

45A rated charge current with auto-select 12/24/48V battery voltage
Ultra-fast MPPT tracking boosts harvest by up to 30% over PWM controllers
Handles up to 650W (12V), 1300W (24V) or 2600W (48V) of solar
Peak efficiency above 98% with silent, fanless operation
Dual MC4 PV connectors for quick plug-in panel connection

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

5-year Victron Energy manufacturer warranty against defects in materials and workmanship.

Customer reviews

No reviews for the Victron BlueSolar MPPT 150/45-MC4 yet. Be the first.

Specifications

Model	BlueSolar MPPT 150/45-MC4
Battery Voltage	12 / 24 / 48V auto select (36V via software tool)
Rated Charge Current	45A
Maximum PV Power (12V)	650W
Maximum PV Power (24V)	1300W
Maximum PV Power (48V)	2600W
Maximum PV Open Circuit Voltage	150V absolute maximum (145V start-up and operating)
Maximum Efficiency	98%
Charge Voltage Absorption (default)	14.4 / 28.8 / 43.2 / 57.6V (adjustable)
Charge Voltage Float (default)	13.8 / 27.6 / 41.4 / 55.2V (adjustable)
Operating Temperature	-30 to +60°C (full rated output up to 40°C)
PV Connection	Dual MC4 connectors
Battery Terminals	35 mm² / AWG2
Data Communication Port	VE.Direct
Protection Category	IP43 (electronics), IP22 (connection area)
Dimensions (H x W x D)	230 x 250 x 95 mm
Weight	3 kg
