Key features
- Advanced MPPT algorithm tracks and locks peak power point for up to 30% efficiency gain over PWM
- 15A rated charge and discharge current with 200W/12V or 400W/24V maximum PV input power
- Auto-detects 12V or 24V system nominal voltage (lithium batteries require manual voltage setting)
- Broad battery compatibility: sealed, gel, flooded, and user-defined lead-acid; LiFePO4 and Li-NiCoMn lithium
- RS485 communication port with standard MODBUS protocol for system integration and data logging

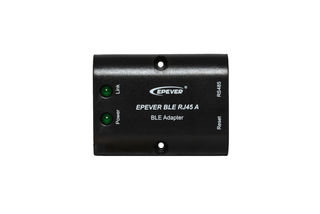

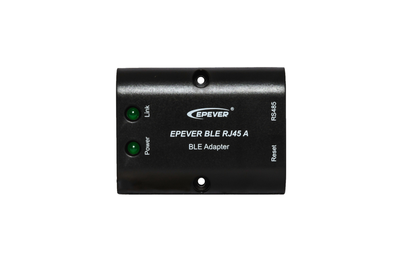

- Compatible with optional MT50 remote meter, Wi-Fi module, Bluetooth adapter, and IoT cloud module
- Built-in protections: over-charge, over-discharge, over-current, short circuit, reverse polarity, and over-temperature
- Temperature compensation coefficient of -3mV/°C/2V for accurate charging in Australian climate extremes
- Ultra-low self-consumption of ≤13mA at 12V minimises parasitic drain on your battery
- EN, EMC, and RoHS certified — meets international quality and safety standards
Overview

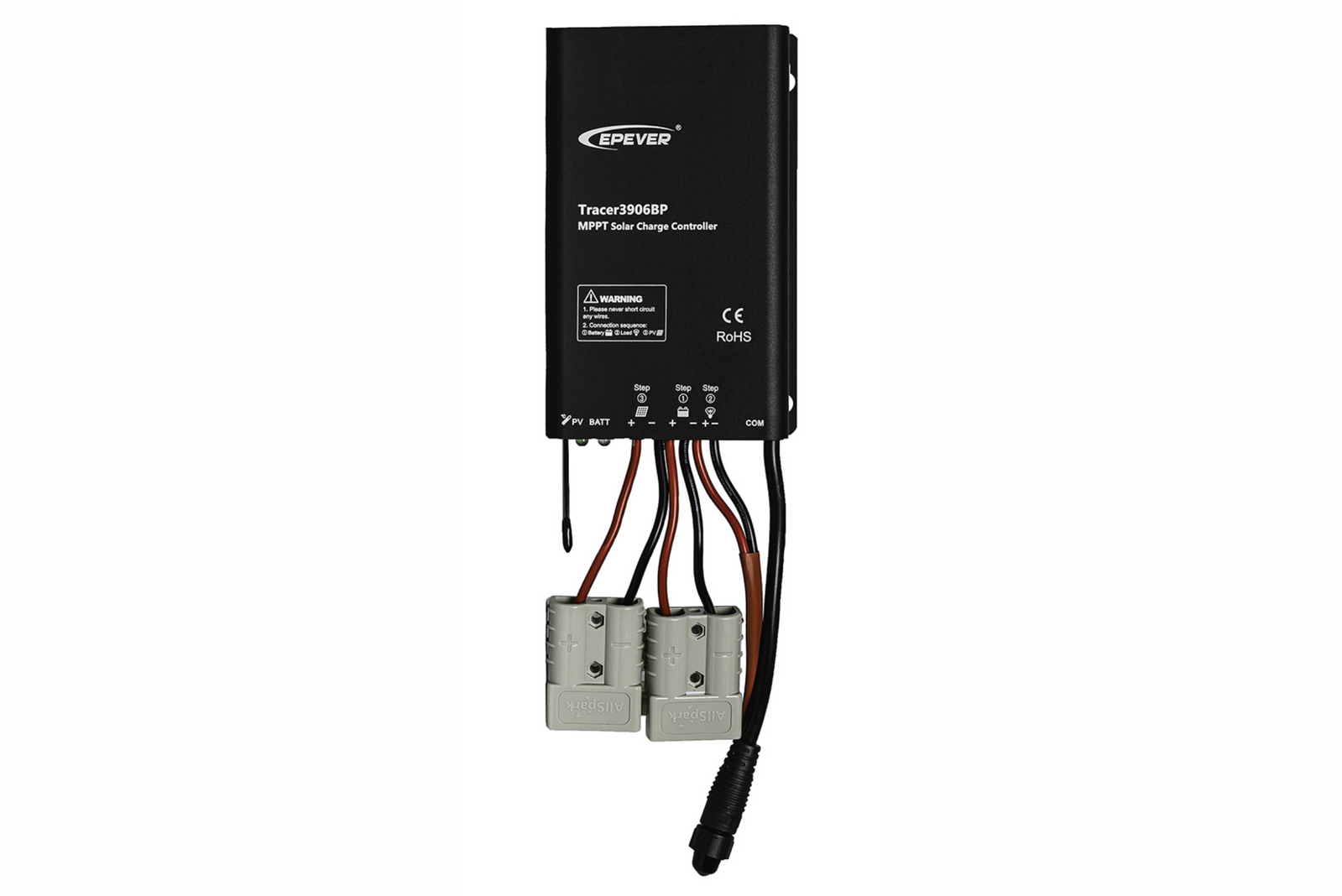

The EPever Tracer 3906BP is a 15A IoT-ready MPPT solar charge controller engineered to extract maximum energy from your solar panels — delivering up to 30% greater charging efficiency than conventional PWM controllers. Its advanced Maximum Power Point Tracking algorithm continuously scans and locks onto the peak power point of your solar array, converting up to 200W at 12V (or 400W at 24V) of PV input into precise, stage-optimised charging current for your battery bank. Compatible with sealed, gel, flooded, LiFePO4, and Li-NiCoMn batteries, the Tracer 3906BP automatically identifies 12V or 24V system voltage and applies the correct charge profile from the moment it is connected.
Built for Australian caravanners, 4WD tourers, and off-grid campers who depend on solar power in the field, the Tracer 3906BP handles everything from a rooftop panel on a caravan or camper trailer through to a dedicated off-grid cabin or remote campsite power setup. Its RS485 MODBUS communication port pairs with the optional MT50 remote display, Bluetooth adapter, or Wi-Fi module so you can monitor state of charge, PV input voltage, and charge status from your phone — essential when the controller is mounted inside a 4WD canopy or caravan battery bay. EN, EMC, and RoHS certified, this controller is a dependable, future-proof choice for any serious solar setup on Australian roads and tracks.
Key Features
- MPPT charging algorithm delivers up to 30% more efficiency than PWM controllers
- Supports 12/24V auto-detection with max PV input of 200W (12V) / 400W (24V)
- Compatible with sealed, gel, flooded, LiFePO4, and Li-NiCoMn battery types
- RS485 MODBUS interface supports MT50 display, Wi-Fi, and Bluetooth remote monitoring
- EN, EMC, and RoHS certified with comprehensive multi-stage protection built in
Delivery, returns & warranty
Shipping & Returns
Shipping
Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:
- Our warehouse in Bendigo, Victoria
- Partner supplier warehouses on the East Coast
- Partner supplier warehouses on the West Coast
This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.
Important Shipping Notes:
- We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
- Depot pickup options may be available at reduced rates (contact us to discuss)
- Off-mainland deliveries require additional shipping fees (custom quoted)
- Missed deliveries may incur a redelivery fee set by the courier
- All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex
Returns
As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.
You can return items if:
- The product is faulty or not of merchantable quality
- The product is not fit for its intended purpose
- The product does not match the description
- You can present proof of purchase
For change of mind returns:
- Item must be in original condition with tags attached
- Must be returned within 30 days of purchase
- Original proof of purchase required
- Return shipping is at customer's expense
- Original delivery charges are non-refundable unless due to our error
Refunds will be processed within 10 business days of receiving and inspecting the return.
For full details, please refer to our:
Warranty Details
+
Warranty Details
+
- 12-month manufacturer warranty against defects in materials and workmanship.
Specifications
| Model | Tracer3906BP |
|---|---|
| Rated Charge / Discharge Current | 15A |
| Nominal System Voltage | 12/24VDC Auto (lithium requires manual setting) |
| Battery Input Voltage Range | 8.5–32VDC |
| Max PV Input Power | 200W @ 12V / 400W @ 24V |
| Max PV Open Circuit Voltage | 60V (at min. operating temp); 46V (at 25°C) |
| MPP Voltage Range | (Battery voltage + 2V) to 36V |
| Battery Types Supported | Sealed, Gel, Flooded, User (lead-acid); LiFePO4, Li-NiCoMn, User (lithium) |
| Float Charging Voltage (Lead-Acid) | 13.8V (sealed/gel/flooded) |
| Boost Charging Voltage (LiFePO4) | 14.5V |
| Low Voltage Disconnect (Lead-Acid) | 11.1V (sealed/gel/flooded) |
| Self-Consumption | ≤13mA @ 12V; ≤11.5mA @ 24V |
| Temperature Compensation | -3mV/°C/2V |
| Communication Interface | RS485 (MODBUS protocol) |
| Certifications | EN, EMC, RoHS |
-
