Key features
- MPPT tracking efficiency up to 99.5% for maximum solar energy harvest
- Supports 12V and 24V nominal battery systems, auto-detects system voltage
- Compatible with AGM, GEL, flooded lead-acid, sealed, and lithium battery types
- Maximum PV open-circuit voltage of 100V DC; rated charge current 20A
- High-resolution LCD display with real-time readout of PV input, battery voltage, charge current, and load
- Multiple load control modes: manual, light ON/OFF, time-controlled, and always ON
- Built-in temperature compensation adjusts charging voltage for ambient conditions
- Comprehensive electronic protection: overcharge, over-discharge, reverse polarity, short circuit, overload, and overtemperature
- RS-485 communication port for remote monitoring and data logging via PC software (eBox-WIFI/LAN optional)
- Compact and lightweight design suitable for caravan battery bays, camper trailers, and off-grid setups
Overview

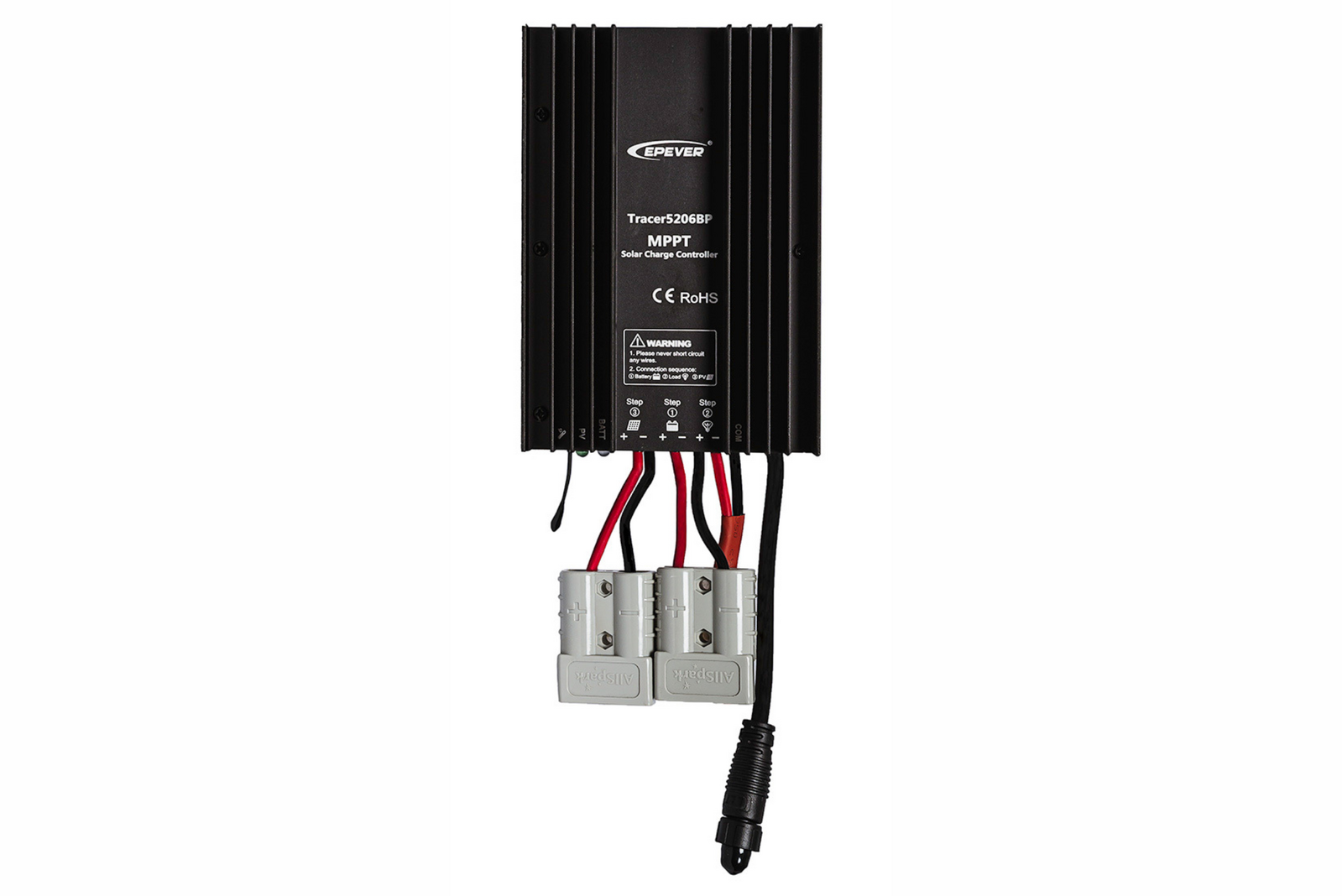

The EP Ever Tracer 20A MPPT Solar Charge Controller delivers maximum power point tracking efficiency of up to 99.5%, extracting every available watt from your solar panels and converting that energy into reliable battery charge. Featuring an advanced MPPT algorithm that responds to changing light conditions in milliseconds, this controller supports 12V and 24V battery systems and accepts a maximum PV open-circuit voltage of 100V DC — making it compatible with a wide range of solar panel configurations. The compact yet robust unit includes a high-resolution LCD display for real-time monitoring of solar input, battery voltage, charging current, and load output, all from a single glance.
Designed for Australian caravanners, RV travellers, 4WD adventurers, and off-grid campers who depend on solar power away from the grid, the EP Ever Tracer 20A fits neatly into caravan battery bays, camper trailer setups, and roof-mounted solar systems on motorhomes. Whether you're parked up at a remote bush camp, running accessories from your 4WD dual-battery system, or keeping your AGM, GEL, flooded lead-acid, or lithium battery bank topped up on an extended trip across Australia, this controller's multiple load control modes and built-in protection circuits keep your system running safely and efficiently in the harshest conditions.
Key Features
- MPPT tracking efficiency up to 99.5% — maximises energy harvest from your solar panels
- Supports 12V and 24V battery systems including AGM, GEL, flooded lead-acid, and lithium
- Maximum PV input voltage of 100V DC with 20A rated charge current
- High-resolution LCD display shows real-time voltage, current, power, and battery status
- Comprehensive protection: overcharge, over-discharge, short circuit, reverse polarity, and overtemperature
Delivery, returns & warranty
Shipping & Returns
Shipping
Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:
- Our warehouse in Bendigo, Victoria
- Partner supplier warehouses on the East Coast
- Partner supplier warehouses on the West Coast
This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.
Important Shipping Notes:
- We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
- Depot pickup options may be available at reduced rates (contact us to discuss)
- Off-mainland deliveries require additional shipping fees (custom quoted)
- Missed deliveries may incur a redelivery fee set by the courier
- All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex
Returns
As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.
You can return items if:
- The product is faulty or not of merchantable quality
- The product is not fit for its intended purpose
- The product does not match the description
- You can present proof of purchase
For change of mind returns:
- Item must be in original condition with tags attached
- Must be returned within 30 days of purchase
- Original proof of purchase required
- Return shipping is at customer's expense
- Original delivery charges are non-refundable unless due to our error
Refunds will be processed within 10 business days of receiving and inspecting the return.
For full details, please refer to our:
Warranty Details
+
Warranty Details
+
- 12-month manufacturer warranty against defects in materials and workmanship.
Specifications
| Model | EPS-5206BP20A (Tracer AN Series) |
|---|---|
| Rated Charge Current | 20A |
| Rated Load Current | 20A |
| System Voltage | 12V / 24V auto-detect |
| Max. PV Open-Circuit Voltage | 100V DC |
| Max. PV Input Power (12V) | 260W |
| Max. PV Input Power (24V) | 520W |
| MPPT Tracking Efficiency | ≥99.5% |
| Charge Circuit Efficiency | Up to 98% |
| Battery Types Supported | AGM, GEL, Flooded, Sealed, Lithium |
| Load Control Modes | Manual, Light ON/OFF, Time Control, Always ON |
| Communication Interface | RS-485 (eBox-WIFI / eBox-LAN compatible) |
| Display | High-resolution LCD |
| Operating Temperature | -20°C to +55°C |
| Dimensions (L×W×H) | 174 × 100 × 47 mm |
| Weight | 0.55 kg |
| Enclosure Rating | IP32 |
-
