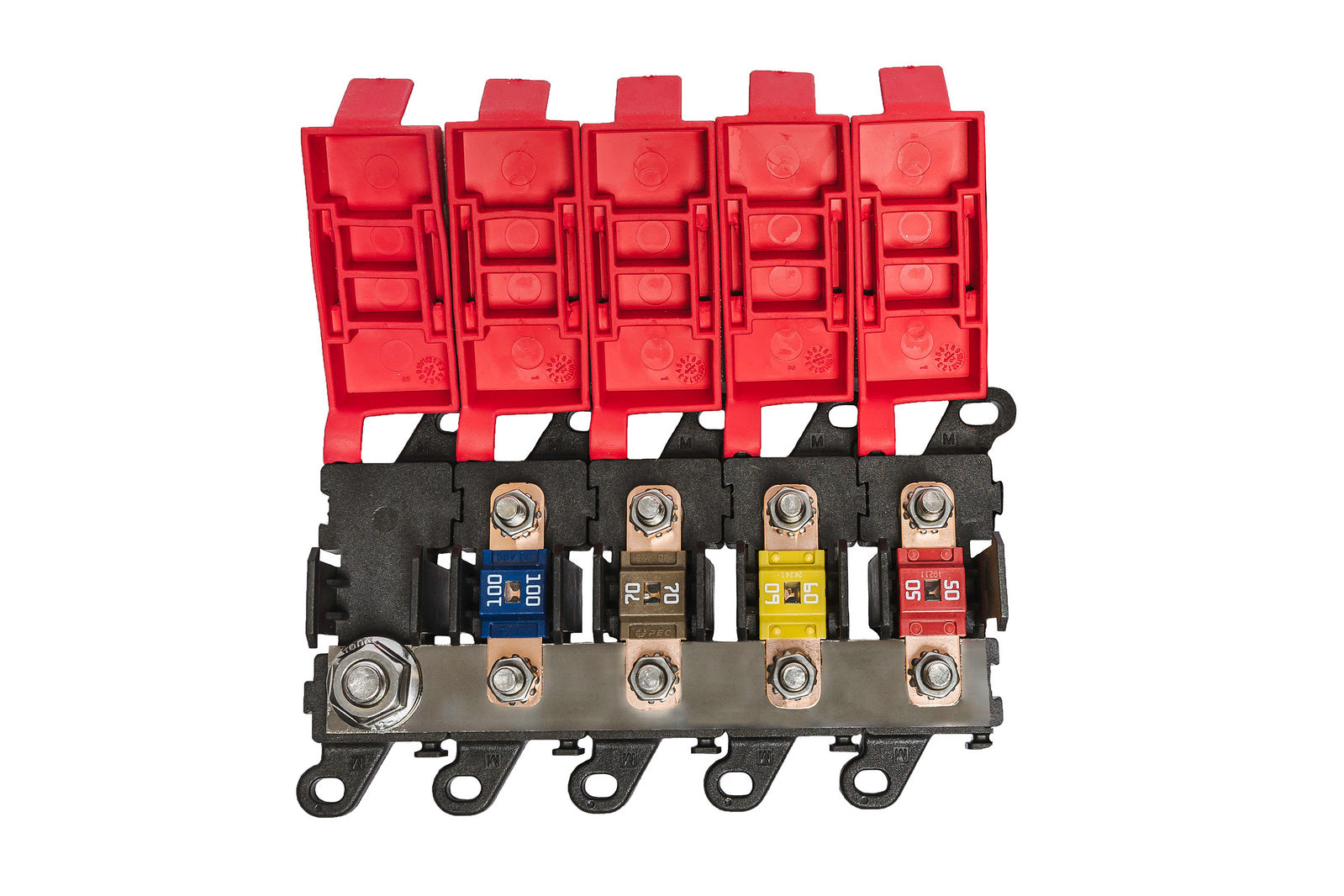

AllSpark Modular Fuse Holders - 4 x Midi Fuse Holder + Input Module + Busbar

AllSpark Modular Fuse Holders - 4 x Midi Fuse Holder + Input Module + Busbar AllSpark

AllSpark Modular Fuse Holders - 4 x Midi Fuse Holder + Input Module + Busbar

SKU MIDIMODBUNDLE-4

$80.00

or pay now with

Questions? for expert advice, or read our buying guides

Key features

4 modular Midi fuse holders
Each holder accepts a standard Midi/AMI fuse up to 200A
Rated up to 200A per holder, with total busbar current up to 400A
Compatible with Bussmann LMI "Little Block" fuse panels
Modular — add holders as the system grows
Midi fuses sold separately

Overview

Heavy-duty DC circuit protection in a modular format: 4 Midi fuse holders that clip together into one compact block instead of 4 separate holders scattered across a battery box.

The system is compatible with Bussmann LMI "Little Block" fuse panels, so it drops into an existing installation or forms the basis of a new one.

Common questions

How do I decide fuse ratings across the holders?

Work circuit by circuit: each fuse protects the cable leaving that holder, so the rating follows the cable size, not the appliance sticker. A holder rated to 200A does not mean a 200A fuse belongs in it. That number is the ceiling, not a recommendation.

Can all 4 circuits pull their full rating at once?

No. Four holders at 200A each would ask for more than the 400A the busbar can pass, so the block is sized for real-world loads that peak at different times. If your circuits genuinely all run hard together, split them across separate feeds.

Where should this sit in the system?

Right after the main battery protection, where the heavy feed splits. Put it close enough to the battery that the cable between them is short and well supported, and somewhere you can actually reach. A fuse you cannot get a spanner to gets replaced with a bolt eventually.

Specifications

Holders	4
Maximum per holder	200A
Maximum busbar current	400A
Fuse type	Midi / AMI
Compatibility	Bussmann LMI "Little Block" fuse panels
