Key features
- 175A continuous current rating for high-draw DC applications including winches, inverters, and lithium battery systems
- Wide voltage compatibility: 12V, 24V, 36V, and 48V DC systems
- Genderless, polarisation-free Anderson-style design — both connector halves are identical
- High-impact grey thermoplastic housing rated to withstand UV exposure and Australian heat
- Solid copper power contacts for minimal resistance and maximum current transfer
- Vibration-resistant locking mechanism ideal for use on corrugated outback roads and off-road tracks
- 600V insulation rating provides a safe, robust electrical connection
- Accepts 1/0 AWG (50mm²) cable for heavy-duty wiring applications
- Sold as a single connector — compatible with all standard 175A Anderson-style plugs
- Suitable for solar panel connections, DC-DC chargers, battery banks, camper trailer charge leads, and winch circuits
Overview

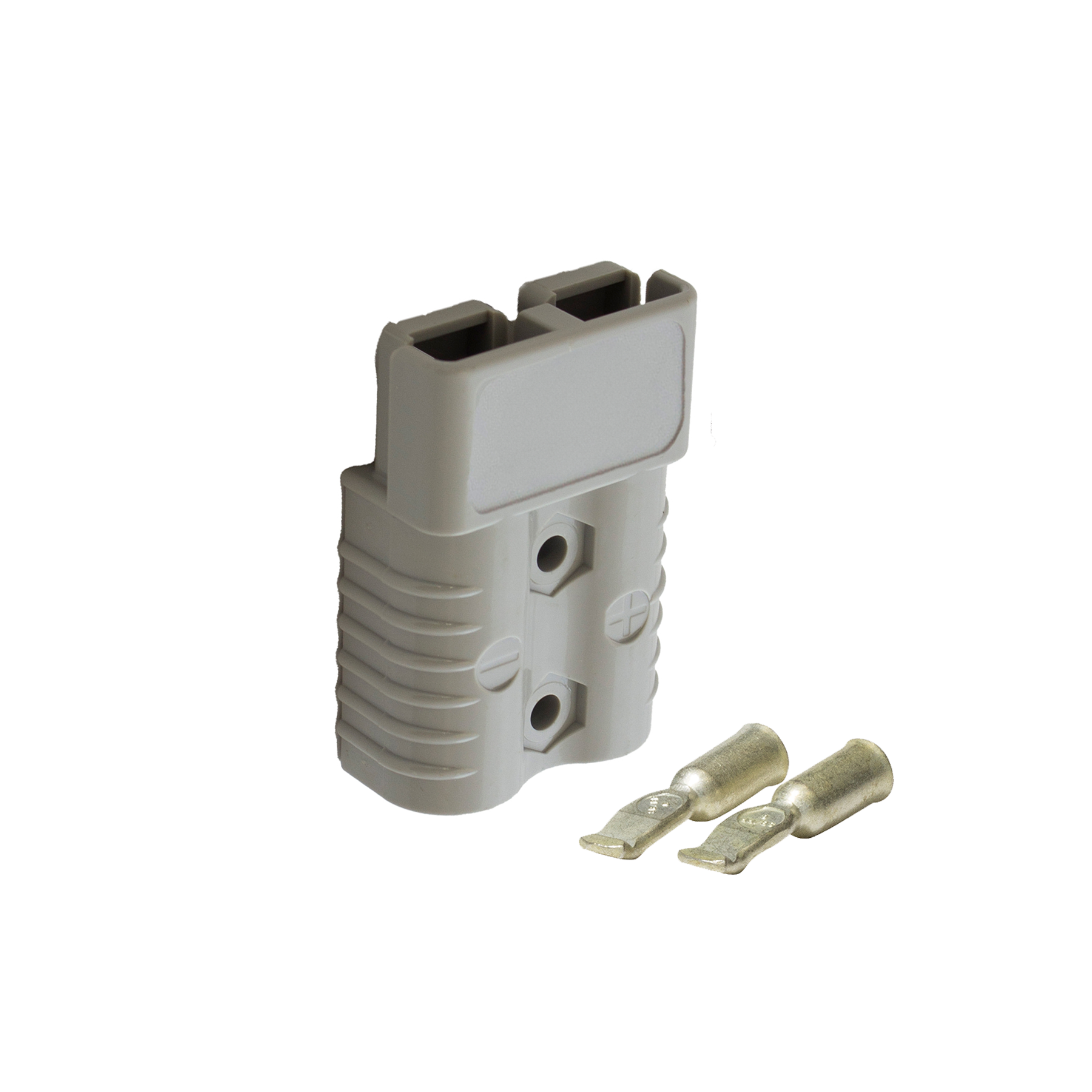

The KT Solar KTHDC175 is a 175-amp, Anderson-style heavy duty power connector rated for use across 12V, 24V, 36V, and 48V DC systems — making it one of the most versatile quick-connect solutions available for Australian off-grid and mobile power setups. Constructed with a high-impact grey thermoplastic housing and solid copper power contacts, this single-pack connector delivers a reliable, vibration-resistant connection that can handle the punishment of corrugated outback tracks and the heat of an Australian summer. The genderless, polarisation-free design means both halves are identical, so there's no frustration fumbling with male/female orientations at the campsite — just push together and your circuit is live.
Purpose-built for caravanners, 4WD tourers, and off-grid solar enthusiasts, the KTHDC175 is the go-to connector for linking portable solar blankets and panels to battery management systems, connecting winches and high-draw accessories in 4WD builds, and wiring Anderson-style charge leads between tow vehicles and camper trailers. It's equally at home in motorhome and RV solar arrays, as a battery-to-inverter disconnect in a 48V lithium bank, or as a shore-power quick-disconnect for a camper trailer. Sold as a single connector, it pairs directly with any standard 175A Anderson-compatible plug already fitted to your vehicle, solar regulator, or DC-DC charger — no adapters required.
Key Features
- 175A continuous current rating suits high-draw applications including winches, inverters, and solar arrays
- Compatible with 12V, 24V, 36V, and 48V DC systems for versatile off-grid and vehicle use
- Genderless Anderson-style design — both halves are identical, no male/female mismatch
- High-impact thermoplastic grey housing with solid copper contacts for durability and low resistance
- Single-pack format — pairs with any existing 175A Anderson-compatible connector in your setup
Delivery, returns & warranty
Shipping & Returns
Shipping
Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:
- Our warehouse in Bendigo, Victoria
- Partner supplier warehouses on the East Coast
- Partner supplier warehouses on the West Coast
This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.
Important Shipping Notes:
- We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
- Depot pickup options may be available at reduced rates (contact us to discuss)
- Off-mainland deliveries require additional shipping fees (custom quoted)
- Missed deliveries may incur a redelivery fee set by the courier
- All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex
Returns
As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.
You can return items if:
- The product is faulty or not of merchantable quality
- The product is not fit for its intended purpose
- The product does not match the description
- You can present proof of purchase
For change of mind returns:
- Item must be in original condition with tags attached
- Must be returned within 30 days of purchase
- Original proof of purchase required
- Return shipping is at customer's expense
- Original delivery charges are non-refundable unless due to our error
Refunds will be processed within 10 business days of receiving and inspecting the return.
For full details, please refer to our:
Warranty Details
+
Warranty Details
+
- 12-month manufacturer warranty against defects in materials and workmanship.
Specifications
| Brand | KT Solar |
|---|---|
| Model / SKU | KTHDC175 |
| Connector Style | Anderson-style heavy duty power connector (genderless) |
| Current Rating | 175A continuous |
| Voltage Rating | 12V / 24V / 36V / 48V DC (600V insulation rating) |
| Housing Colour | Grey |
| Housing Material | High-impact thermoplastic (UV stabilised) |
| Contact Material | Solid copper |
| Cable Compatibility | 1/0 AWG / 50mm² cable |
| Pack Contents | 1 x single connector (single pack) |
| Polarity | Genderless / polarisation-free |
| Typical Applications | Solar panels, DC-DC chargers, battery banks, winches, inverters, camper trailer charge leads |
| Compatible Voltage Systems | 12V, 24V, 36V, 48V DC off-grid and vehicle systems |
| Country of Origin | China |
-
