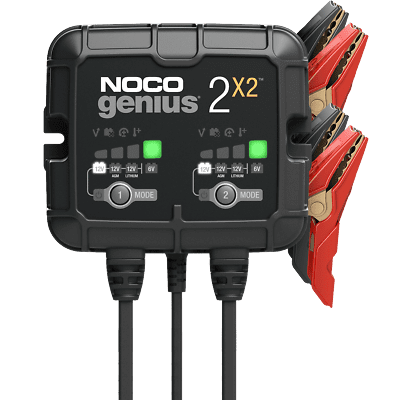

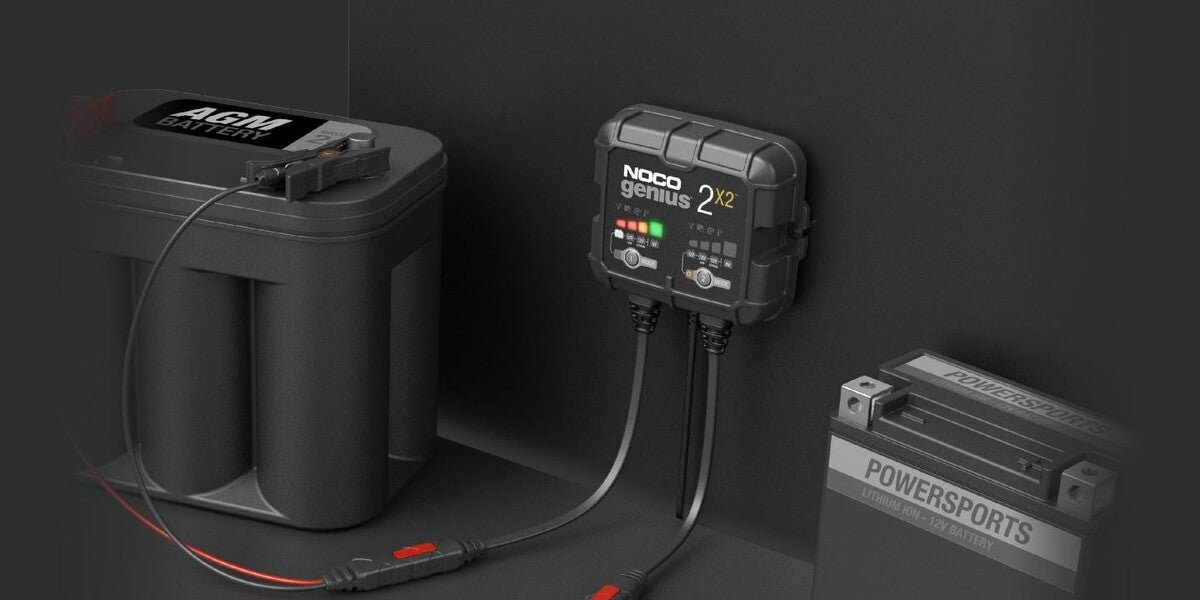

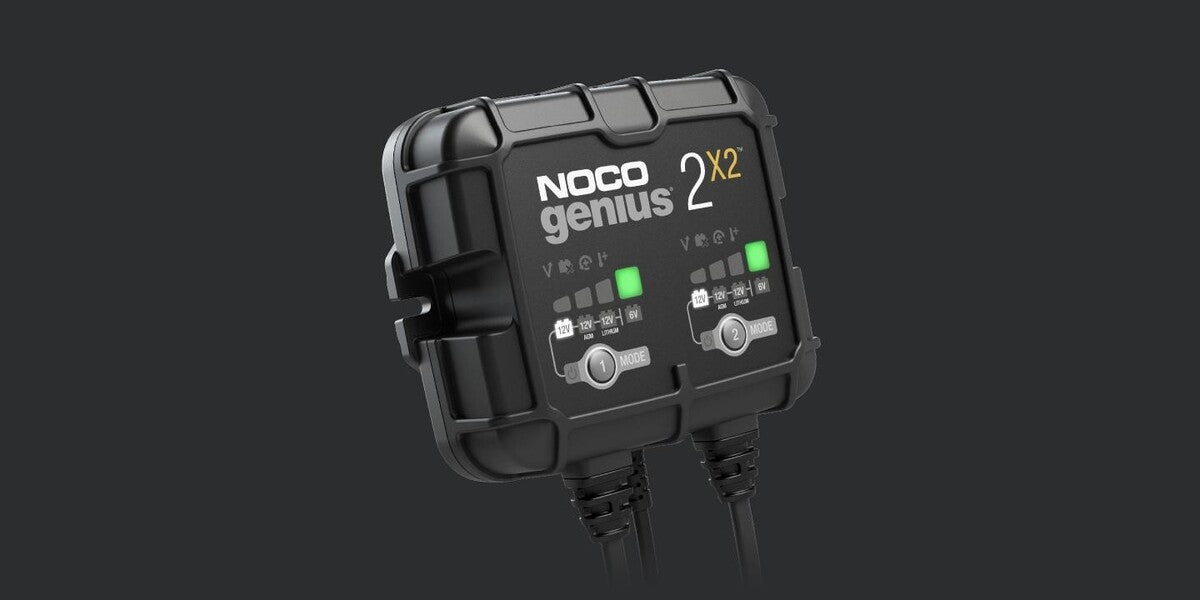

Introducing the all-new GENIUS2X2, one of our most powerful, highest-performing, energy-efficient, and compact chargers yet. The GENIUS2X2 is a versatile 6-volt and 12-volt two-bank battery charger, battery maintainer, trickle charger, and battery desulfator. Rated at 4-amps (2-amps per bank), it supports all types of lead-acid and lithium-ion batteries, including flooded, gel, AGM, as well as marine and deep-cycle batteries.
Key Features
-
Multi-Functionality: Acts as a battery charger, maintainer, trickle charger, and desulfator.
-
Two-Bank Charging: 4-amps total (2-amps per bank) with a 40Ah capacity range.
-
Wide Compatibility: Suitable for 6-volt and 12-volt lead-acid and lithium-ion batteries, including flooded, gel, AGM, and maintenance-free.
-
Integrated Thermal Sensor: Detects ambient temperature to prevent over-charging in hot climates and under-charging in cold climates.
-
Advanced Detection: Automatically detects battery sulfation and acid stratification to restore lost battery performance.
-
Force Mode: Manually begin charging dead batteries down to zero volts.
-
Automatic and Worry-Free: Fully automatic charger for 24/7 operation with zero overcharge.
Specifications
-
Line Voltage: 120V to 240V AC
-
Frequency: 50Hz to 60Hz
-
Operating Temperature: -4° to 104° F (-20° to 40° C)
-
Storage Temperature: -22° to 140° F (-30° to 60° C)
-
Relative Humidity: 0 to 95% Non-Condensing
-
Current: 2 Amps DC x 2 Banks
-
Voltages: 6V, 12V
-
Battery Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
-
Battery Capacity Range: Up to 40 Amp-Hours
-
Maintenance: Suitable for all battery sizes
-
Power Consumption: 30 Watts (Max) x 2 Banks
-
IP Rating: IP60
-
Safety Features: Short-Circuit, Open-Circuit, Overheating, Overcharge, Spark-Proof, Reverse Polarity protection
Product Dimensions
-
Height: 113mm (4.4 Inches)
-
Width: 131.8mm (5.2 Inches)
-
Depth: 47.8mm (1.9 Inches)
-
Weight: 0.5kg (1.1 Pounds)
Cord Management
-
DC Cable + Clamp Length: 86.4cm (34 Inches)
-
DC Extension Cable Length: 3m (10 Feet)
-
AC Cable Length: 1.9m (75 Inches)
-
Cable Size: 18 AWG
-
DC Fuse Size: 4 AMP MINI Blade Fuse
-
Resistance: Oil, gas, grease, water, chemical, UV, abrasion resistant

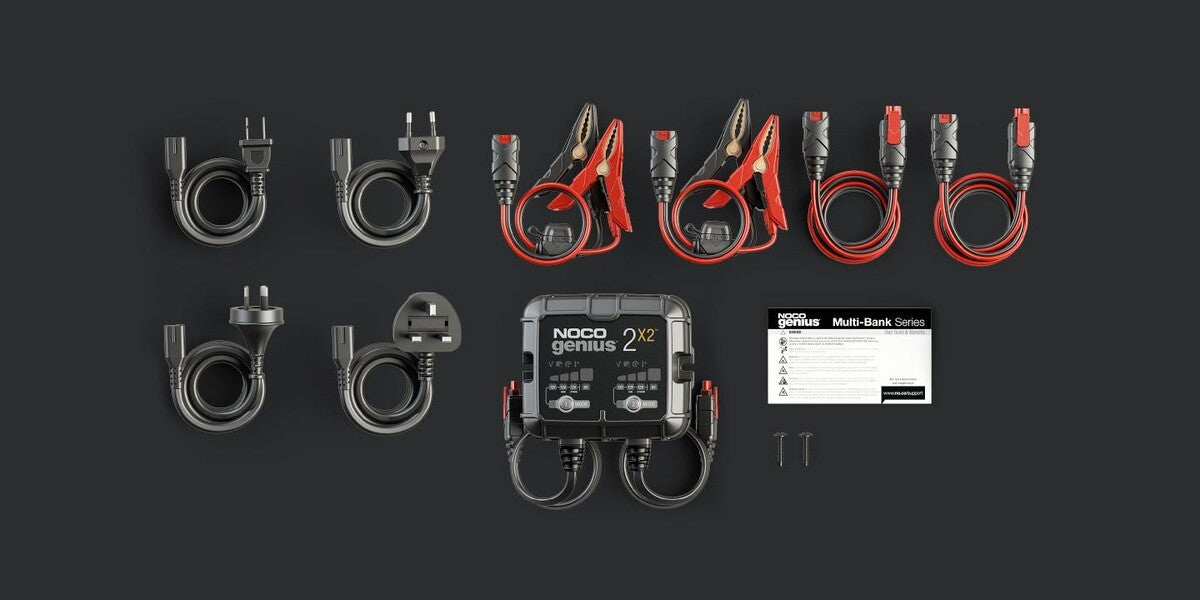

What's In the Box
- GENIUS2X2 Battery Charger with (2) Interchangeable Connectors
- (2) Clamps with Integrated Eyelets
- (2) 10’ Extension Cords
- (2) Self-Tapping Screws
- Type A, C, G, and I Power Cables
- User Guide & Warranty Information
Limited Warranty
