Eberspacher Hydronic HS3 D5E Diesel Water Heater Kit Eberspacher

Eberspacher Hydronic HS3 D5E Diesel Water Heater Kit

SKU 100-02406

$5,322.00

Heater Body Weight: 2 kg
Heater Body Dimensions: 215 × 91 × 144 mm

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

Stepless heat output from 1.3 kW to 5 kW — automatically modulates to demand
Draws from vehicle diesel tank — no LPG bottles required
12V operation with ultra-low power draw: just 5–32 W running
Near-silent operation: digital dosing pump with combustion air silencer and exhaust muffler included
Compact heater body: 215 × 91 × 144 mm, 2 kg
EasyStart Pro controller included — 7-day programmable timer, remote start capable
ECE-R122 and ECE-R10 (EMC) certified; operates at altitude up to 3,000 m
Complete installation kit — no additional parts required

Overview

The Eberspächer Hydronic HS3 D5E is a 5 kW diesel-fuelled hydronic water heater engineered for caravans, motorhomes, and campervans. Unlike propane systems, it draws directly from your vehicle's diesel tank — no gas bottles required. Output modulates automatically between 1.3 kW and 5 kW to match demand, minimising fuel use while maintaining consistent hot water and cabin heating. At just 2 kg and 215 × 91 × 144 mm, the heater body is extremely compact with a low 12V draw of just 5–32 W during operation.

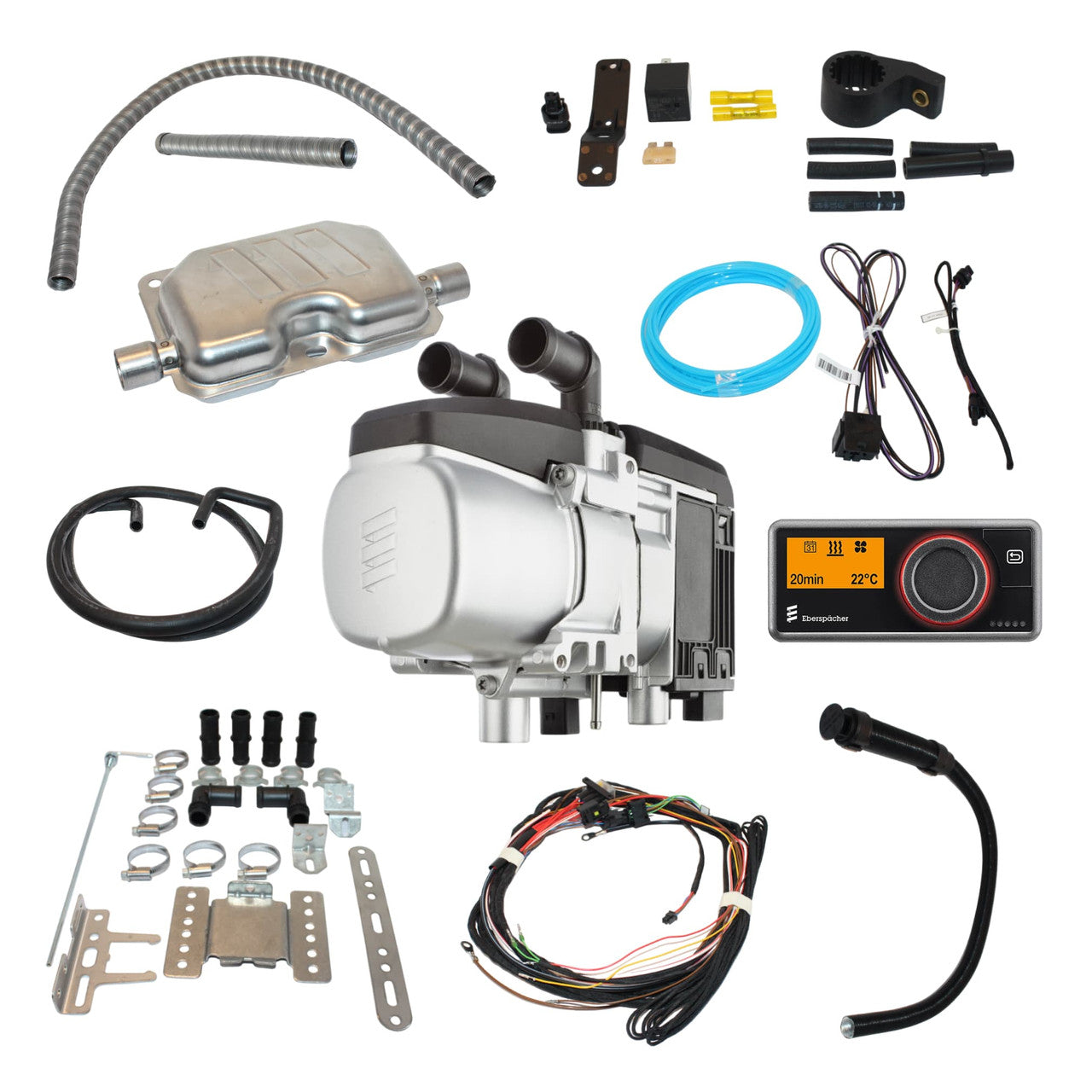

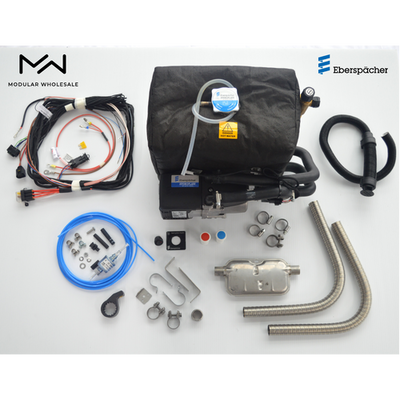

Kit includes the Hydronic D5E heater unit with EasyStart Pro 7-day programmable controller, coolant circulation pump, digital fuel metering pump, wiring harnesses, fuel line, exhaust muffler, combustion air intake silencer, and all installation hardware — a complete ready-to-install package.

Common questions

How noisy is it inside the van at night?

Quieter than most people expect, because nothing roars down a duct. The loudest part is the dosing pump ticking as it meters fuel. Mount it away from a bed or a thin panel and soft-mount it if you can, or that tick telegraphs through the floor and keeps light sleepers awake.

Will it still light up in the high country?

It is rated to 3,000 m, which covers everything you can tow to in Australia: Kosciuszko, the Victorian alps, the Great Dividing Range. Altitude thins the air and leans the burn, so if you spend a lot of time up high, keep the combustion air intake clear and service it on schedule.

Where does a unit this small actually go?

Under a bunk, in a front boot or in a spare bay. At 215 mm long it fits places a gas system never will. What decides the spot is not the box: it is a straight run for the exhaust out through the floor, clean intake air, and room to service it later.

Specifications

Heat Output	1.3 kW – 5 kW (stepless modulation)
Maximum Output (BTU)	17,000 BTU/h
Fuel Type	Diesel (draws from vehicle tank)
Fuel Consumption	0.15 – 0.59 L/h
Operating Voltage	12V DC
Power Consumption	5 – 32 W
Heater Body Dimensions	215 × 91 × 144 mm
Heater Body Weight	2 kg
Max Operating Altitude	3,000 m
Certifications	ECE-R122, ECE-R10 (EMC)
Warranty	2 years
