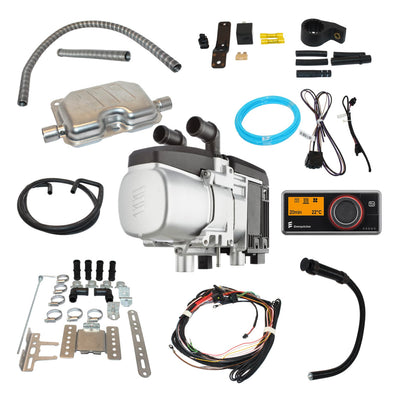

Eberspacher Hydronic HS3 D5E Diesel Water Heater Kit

$5,322.00

Born to Roam 2KW Bluetooth Diesel Heater Full Kit

$699.00

Thermomate Diesel Heater 12V 5kW Caravan Tank Remote...

$339.50

Giantz Diesel Air Heater All-in-one 12V 5KW LCD Remo...

$249.99$141.90

Diesel Heater 12V Caravan Camper Trailer Van Air Mot...

$339.50

Eberspacher

Eberspacher Airtronic D2L 12V Diesel Air Heater - AS3 Single Outlet Kit

Name: Eberspacher Airtronic D2L 12V Diesel Air Heater - AS3 Single Outlet Kit
Brand: Eberspacher
SKU: 100-02402
Price: 3278.0 AUD
Availability: InStock

Eberspacher Airtronic D2L 12V Diesel Air Heater - AS3 Single Outlet Kit

$3,278.00

The Eberspächer Airtronic D2L is a 2.2 kW diesel-fuelled air heater that burns fuel from your vehicle's existing diesel tank — completely independent of LPG cylinders — producing dry, clean heat distributed through a single 60 mm duct. A stepless modulating burner ramps output between 0.85 kW and 2.2 kW to maintain your set temperature precisely, drawing as little as 6 W in low-heat steady state.

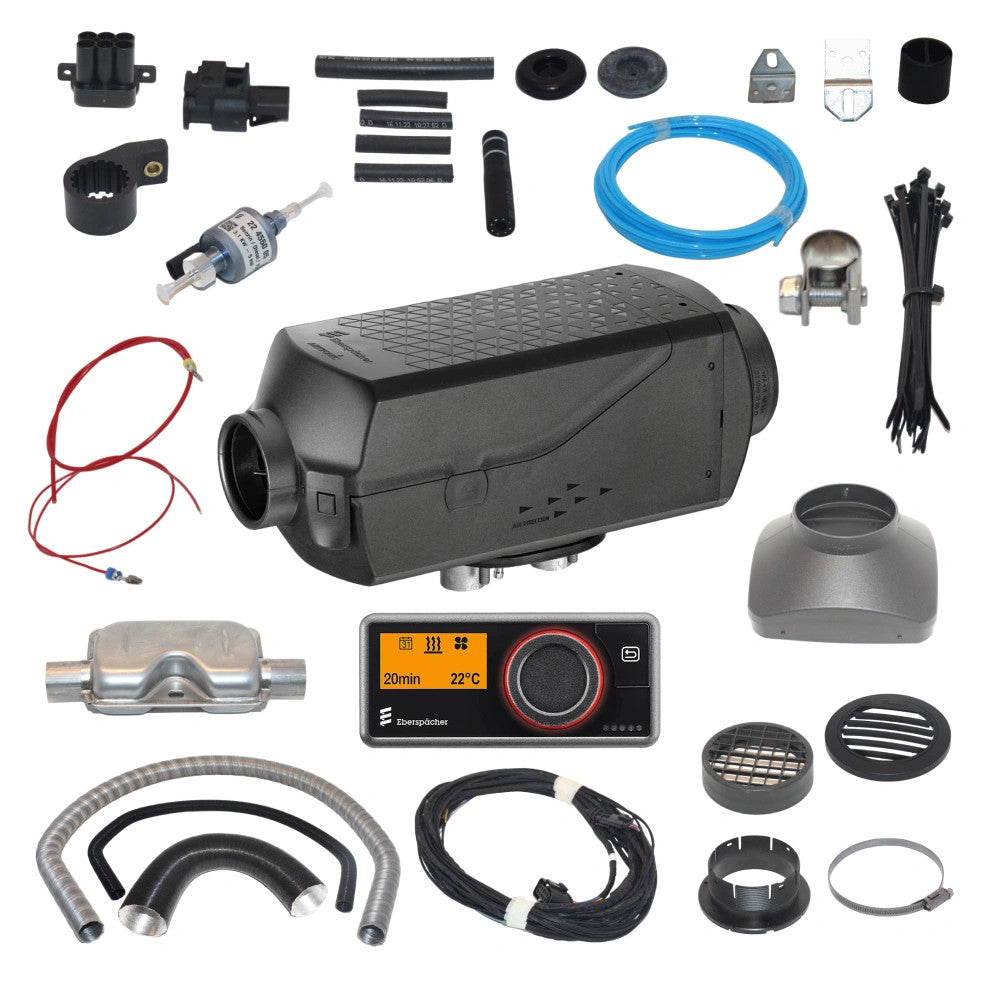

Fuel consumption at minimum output is just 0.10 L/hr. The brushless fan motor extends the service interval to 5,000 hours. The AS3 single outlet kit includes every component for a complete installation: heater unit, EasyStart Pro 7-day programmable controller, metering fuel pump, stainless exhaust with silencer, combustion air intake pipe, 60 mm flexible warm air ducting, harnesses, and floor mounting plate.

Features

+

2.2 kW max output; steplessly modulates down to 0.85 kW to match demand precisely
Diesel fuel from your vehicle's tank — no LPG cylinders required
Fuel consumption: 0.10–0.27 L/h across the full output range
Ultra-low power draw: just 6–31 W running (after 90-second glow pin startup)
Brushless fan motor — 5,000-hour service interval
EasyStart Pro controller: 7-day programmable timer, fault diagnostics, automatic altitude adjustment
Operates from -46°C; altitude rated to 4,000 m
Compact heater unit: 310 × 115 × 122 mm, 2.5 kg
Complete AS3 kit — all installation components included, no additional parts required

Specifications

+

Heat Output Range	0.85 kW – 2.2 kW (2,900–7,500 BTU/hr)
Fuel Type	Diesel (from vehicle tank)
Fuel Consumption (min)	0.10 L/hr
Fuel Consumption (max)	0.27 L/hr
Operating Voltage	12V DC
Power Draw (running)	6–31 W (0.5–2.6A at 12V)
Power Draw (startup)	~90 W for ~90 seconds (glow pin)
Heater Unit Dimensions	310 × 115 × 122 mm
Heater Unit Weight	2.5 kg
Airflow	50–105 m³/hr
Duct Outlet Diameter	60 mm
Min Operating Temperature	-46°C
Max Operating Altitude	4,000 m
Service Interval	5,000 hours (brushless motor)
Certifications	EN 55025 Class 5; IP5K4K (operating)
