Deutsch DT 8-way connector kit

SKU DT8WKIT

$27.00

Receptacle Dimensions (DT04-8P): 45.67 mm L x 36.45 mm W x 25.40 mm H
Operating Temperature: -55°C to 125°C

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

8-circuit, 2-row DT series wire-to-wire connector kit

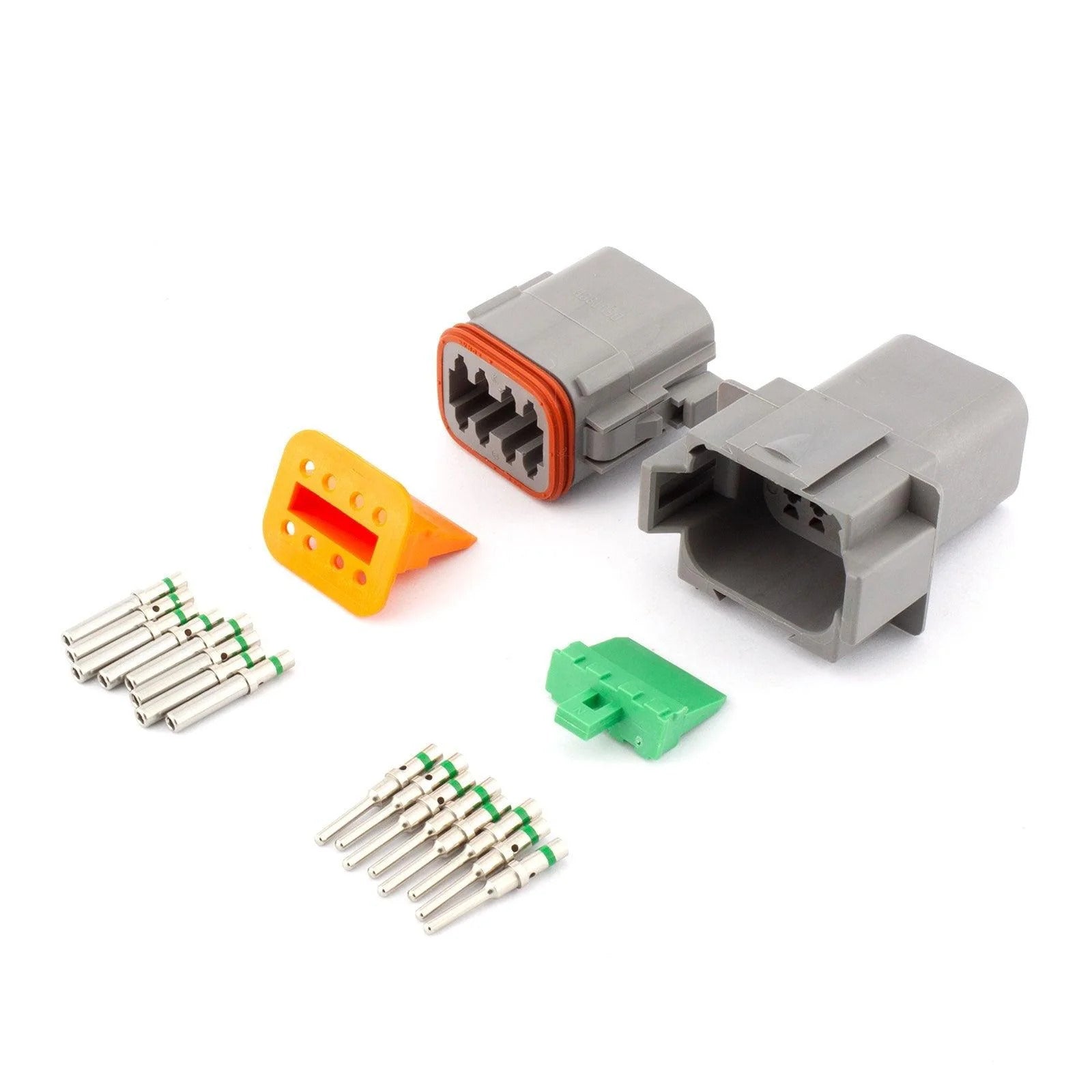

Includes 1 receptacle housing (DT04-8P) and 1 plug housing (DT06-8S)
Includes 2 wedgelocks (W8P and W8S) to lock contacts in place
Male pins and female sockets, size 16 solid nickel contacts
Each contact rated 13 amps continuous, up to 250 V AC/DC
Thermoplastic housings with silicone rubber seals keep out water, dust and mud
Integrated latch gives a positive click when mating
Suits 16-20 AWG (approx. 3-4 mm auto cable) wire
Withstands 20G RMS vibration from 10 to 2000 Hz for rough-road use
Operates from -55°C to 125°C for hot Australian conditions and under-bonnet or chassis mounting

Overview

The Deutsch DT 8-way connector kit gives you a fully sealed, vibration-proof wiring join for the harsh conditions your rig sees on the road. Built around the DT04-8P receptacle and DT06-8S plug, it uses a thermoplastic housing with silicone rubber seals and wedgelocks that lock each contact in place. Each size 16 contact carries up to 13 amps continuous, and the sealed design is rated IP68 when installed to specification.

This kit suits anyone wiring or repairing a caravan, camper trailer, motorhome or 4WD. Typical jobs include extending or joining harnesses for driving lights, light bars, winch controls, auxiliary battery and dual-battery systems, trailer lighting and fridge circuits. It copes with corrugations, creek crossings, dust and Australian summer heat, so it is a solid choice for off-road builds and RV upgrades where a standard spade or bullet connector would fail.

Key Features

8-circuit Deutsch DT series kit with receptacle (DT04-8P) and plug (DT06-8S) housings
Size 16 contacts rated 13 amps continuous per circuit
Environmentally sealed with silicone rubber seals, IP68 when installed to specification
Wedgelocks secure contact alignment and retention against vibration
Operating temperature range of -55°C to 125°C for extreme outback conditions

Delivery, returns & warranty

Shipping & Returns

Shipping

Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:

Our warehouse in Bendigo, Victoria
Partner supplier warehouses on the East Coast
Partner supplier warehouses on the West Coast

This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.

Important Shipping Notes:

We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
Depot pickup options may be available at reduced rates (contact us to discuss)
Off-mainland deliveries require additional shipping fees (custom quoted)
Missed deliveries may incur a redelivery fee set by the courier
All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex

Returns

As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.

You can return items if:

The product is faulty or not of merchantable quality
The product is not fit for its intended purpose
The product does not match the description
You can present proof of purchase

For change of mind returns:

Item must be in original condition with tags attached
Must be returned within 30 days of purchase
Original proof of purchase required
Return shipping is at customer's expense
Original delivery charges are non-refundable unless due to our error

Refunds will be processed within 10 business days of receiving and inspecting the return.

For full details, please refer to our:

Warranty Details

+

Warranty & Returns

Limited 12 Month Manufacturer Warranty

If you experience issues with your gear, please contact us for support.

What’s Covered?

Manufacturing defects
Faults in materials or workmanship

What’s Not Covered?

Damage caused by misuse, neglect, or improper use
Incidents occurring during delivery
Normal wear and tear from usage

How to Initiate a Warranty Claim

If you need to file a warranty claim, please follow these steps:

Contact us via email or the via the contact us
Provide the following details:
- Order ID
- Detailed description of the issue
- Images/videos clearly showcasing the fault (ensure they meet the recommended format and size for optimal review)
Our team will assess your claim and get back to you as soon as possible.

Note: Do not open a PayPal dispute, as this may delay the resolution process. Please follow the official claim process for quicker results.

⚠ Important Note:
We recommend testing your purchased product within one year of purchase. We cannot help process warranty claims beyond this period.

For full details, please refer to our other policies:

Specifications

Brand	Deutsch (DT series)
SKU	DT8WKIT
Connector Type	Wire-to-wire, in-line
Number of Positions	8 positions, 2 rows
Kit Contents	1 x receptacle (DT04-8P), 1 x plug (DT06-8S), 2 x wedgelocks, male pins and female sockets
Contact Size	16
Contact Material	Solid nickel
Current Rating	13 A continuous per contact
Voltage Rating	Up to 250 V AC/DC
Wire Gauge	16-20 AWG
Housing Material	Thermoplastic with silicone rubber seals
Operating Temperature	-55°C to 125°C
Ingress Protection	IP68 (IP67 rated on supplier listings), when installed to specification
Vibration Resistance	20G RMS, 10-2000 Hz
Receptacle Dimensions (DT04-8P)	45.67 mm L x 36.45 mm W x 25.40 mm H
Plug Dimensions (DT06-8S)	30.91 mm L x 37.21 mm W x 19.71 mm H
