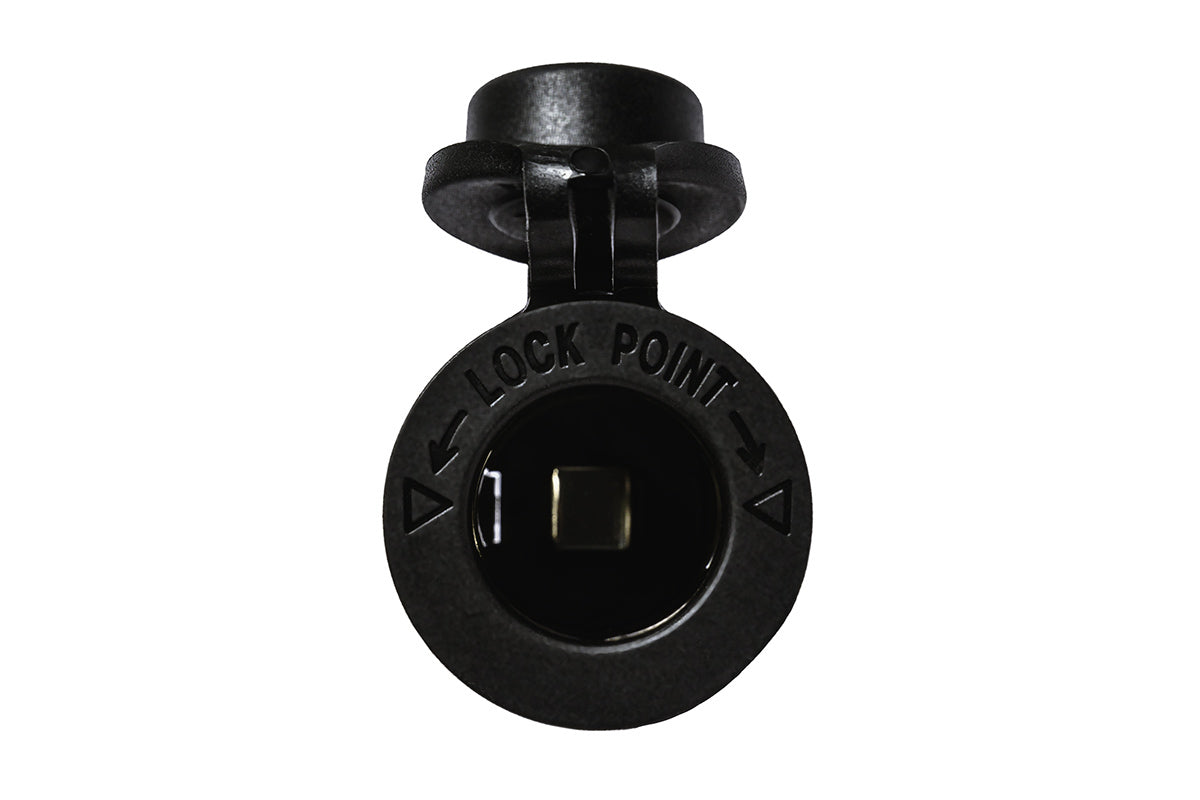

AllSpark Socket - Black 12-24V DC Cig Socket

AllSpark Socket - Black 12-24V DC Cig Socket AllSpark

AllSpark Socket - Black 12-24V DC Cig Socket

SKU AS-CIGSOCKBLK

$7.50

Operating temperature: −20°C to +80°C

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

12V / 24V DC nominal, 36V peak maximum
10A maximum
IP65 rubber socket cap
Copper / nickel-plated 1/4" (6.3mm) spade terminals
No idle power draw
Black body

Overview

A black 12–24V DC cigarette socket rated 10A, with an IP65 rubber cap over the socket when nothing is plugged in. The standard round outlet for a compressor, a fridge lead or a phone charger.

Terminals are nickel-plated copper 6.3mm spades, so it wires in with standard blade terminals rather than needing a special connector.

Common questions

What can I actually run off 10A?

Phone and laptop chargers, LED lighting, a fridge lead and most camp gear with a round plug on it. What it will not carry is a big tyre compressor or an inverter, which draw well past 10A and want a heavy-duty outlet wired straight to the battery instead.

Is the IP65 rating good enough for an outside wall?

With the cap shut, yes. With a plug in it, the seal is gone and you are back to an open hole facing the weather. Mount it under an awning or in a hatch rather than on a bare exterior wall, and get in the habit of closing the cap.

What size hole do I cut?

The minimum is 29.2mm, and a 28.8mm body means there is not much slop to hide a rough cut. Check clearance behind before you start, because the body needs depth and the spade terminals need more again. Deburr the edge so the hole does not chew the wiring later.

Specifications

Nominal voltage	12V / 24V DC
Peak voltage	36V max
Maximum current	10A
Idle power draw	Nil
Socket IP rating	IP65 (rubber cap)
Terminals	Copper / nickel-plated 1/4" (6.3mm)
Operating temperature	−20°C to +80°C
Socket body diameter	28.8mm
Mounting hole size	29.2mm (min)
Colour	Black
