Q: What size fuse do I need?
A: Max 20A fuse - if load is higher than 20A, use this switch to switch a higher current relay rather than the load directly.
Q: How do I wire this switch in?
A: Wiring instructions are as follows:

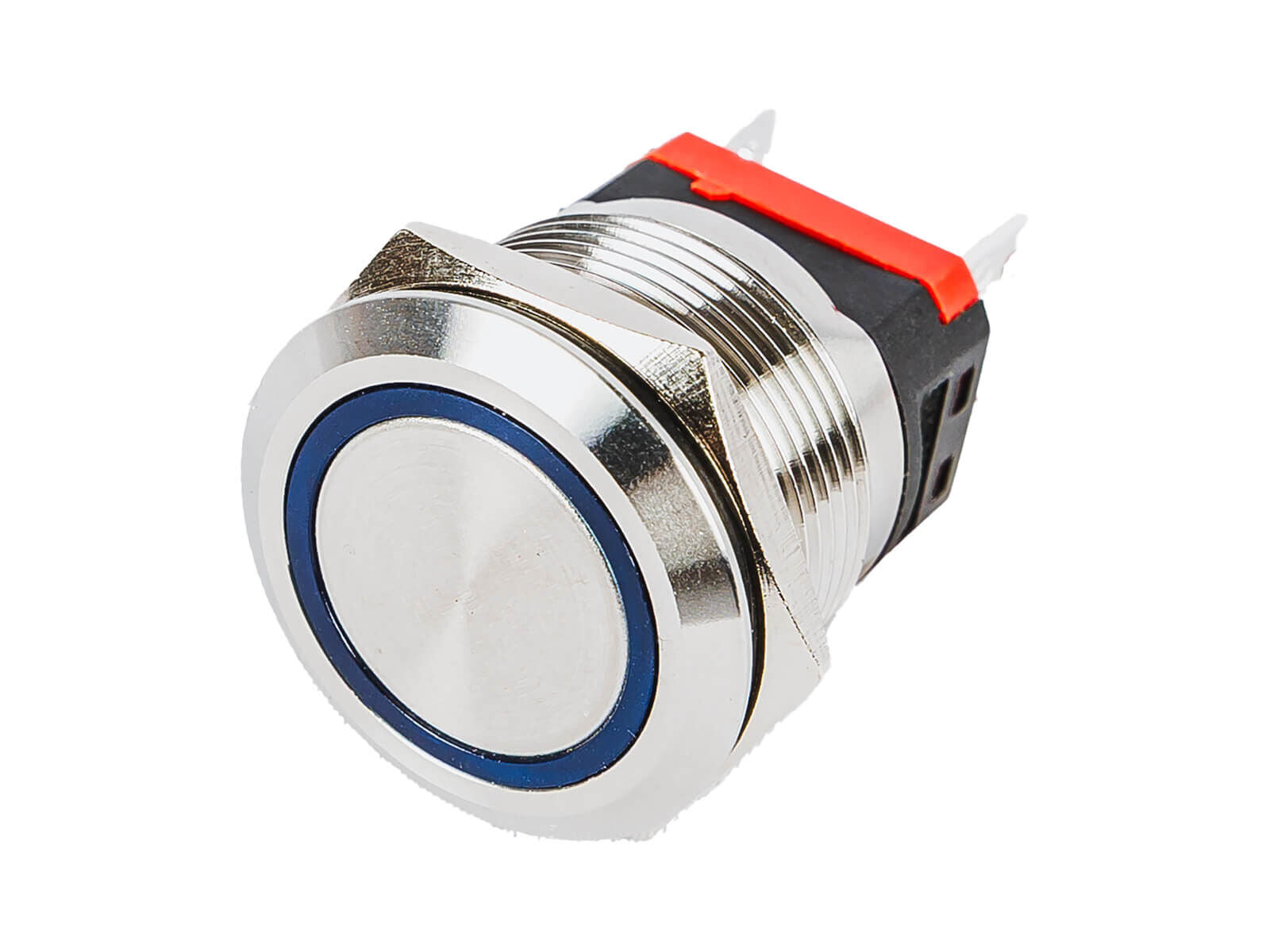

- Switch Terminals are marks "ON" or "IN" - Option 1 vs Option 2 is simply a matter of rotating the switch body 180 deg
- 2 x red wires for the Supply - battery connections (Fused Positive and Negative Connections)
- 2 x green wires for the output (Fused Positive and Negative Connections).
- Option 1 - LED light only on when button pushed in = Red wires to "ON" terminal side
- Option 2 - LED light always on = Red wires to "IN" terminal side
