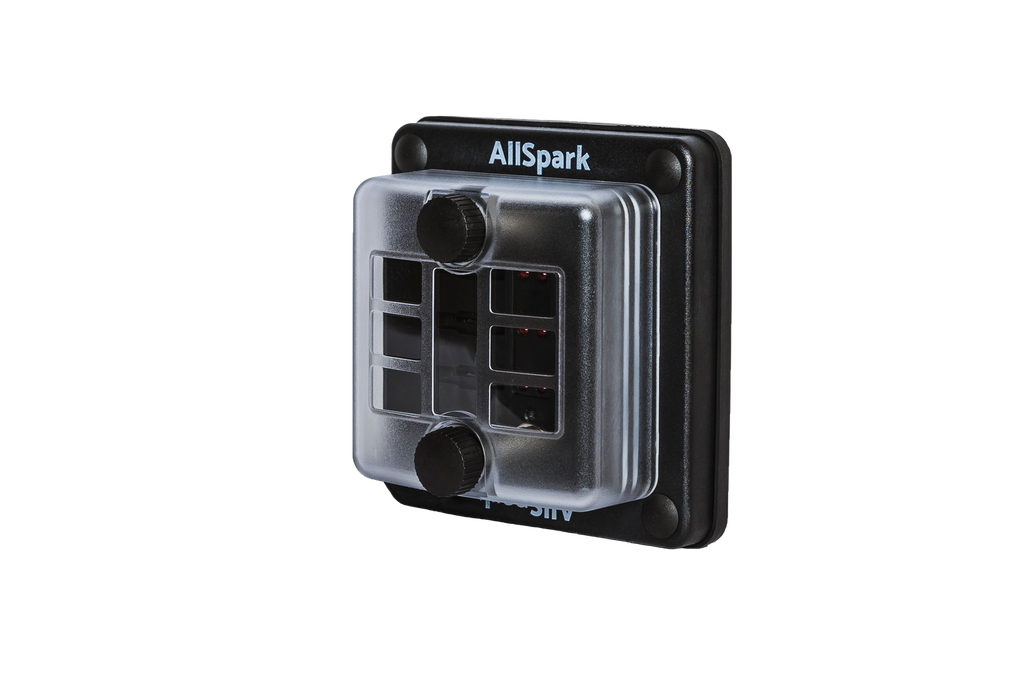

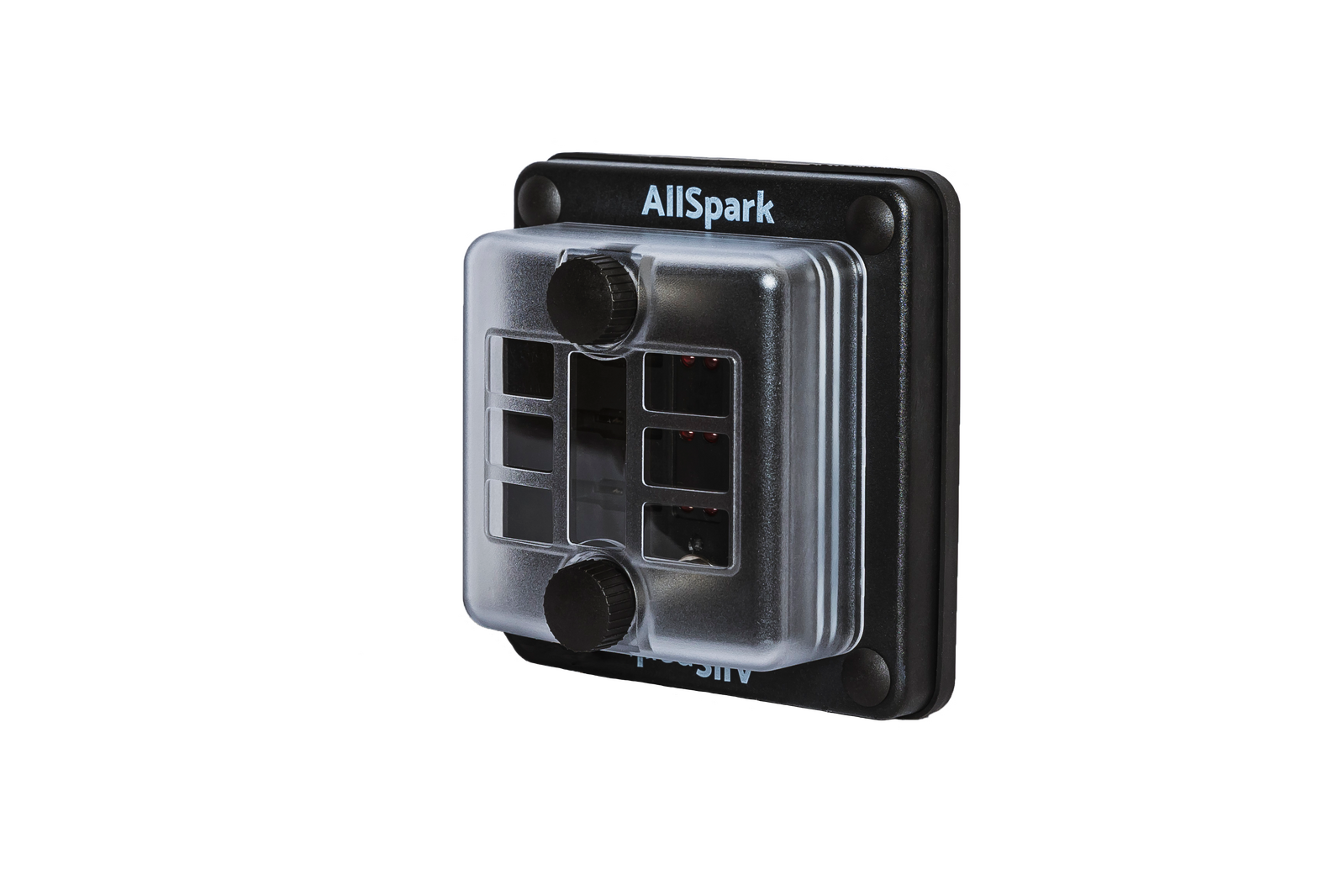

AllSpark Flush Mount Fuse block with indication light - 6 way

$29.00

DESCRIPTION

ALLSPARK FUSE BLOCKS PROVIDE THE ULTIMATE PROTECTION FOR YOUR OFFROAD POWER SYSTEM

Eliminate messy, unsafe wiring with this compact design, allowing you to consolidate all low current circuits into one central location - IP65 Waterproof rating.

Our AllSpark Fuse Blocks come in either a 6 Way or 12 Way. They have a max current of 100A (30A max per circuit 12-32V DC) and are equipped with LED indication lights to clearly show blown fuse locations.

WHATS IN THE BOX

1 x AllSpark Flush Mount Fuse block with indication light - 6 Way
Fuses and labels

WARRANTY

12 MONTHS MANUFACTURERS WARRANTY
30 DAY MONEY BACK GUARANTEE

FEATURES

100A max current - 30A max per circuit 12-32V DC
Positive Stud (m5)
Blade terminals
LED indication light - to show blown fuse locations
IP65 waterproof rating

SPECIFICATIONS

PRODUCT SPECIFICATIONS - ALLSPARK FUSE BLOCKS

MODEL		6 Way Flush	12 Way Flush	6 Way Surface	12 Way Surface
Electrical
Main Line	Terminal	M5 Threaded Studs
	Rating	100A 32V DC Max
	Wire Size (AWG)	4-6		4
Individual Circuits	Terminal	Copper/nickel plating 1/4" (6.3mm) - blade		M4 Screws - ring terminals
	Rating	30A 32V DC Max
	Wire Size (AWG)	8-16
Material
Base		PA66
Cap		PC
Terminal		Nickel Plated Copper
Screw		Stainless Steel
Gasket		Butadiene rubber		N/A
Seal Ring		Silicone		N/A
Label		PP x 70
Dimension (W x L mm)		55 X 60 (cut out)	55 x 97.5 (cut out)	84 x 94	85 x 137
Fuse Size		1A to 30A

FAQ's

Why am I getting voltage readings either side of the fuse holder with no fuse in place?

Fuse holders with LED indication will provide a voltage reading less than that of the battery itself as there is a resistor in series across the terminals. If you connect a load, you will not be able to power that load without a fuse in tact. In simple terms, you can measure lower voltage, but no amps will flow. This is normal for all fuse blocks with LED blown fuse indication.
