AllSpark 12V 1000 Watt PRO Series Pure Sine Wave Inverter with CB

Scan the QR code to download the free Camping Australia app - 5,000+ campsites and 1,100+ free camps in your pocket

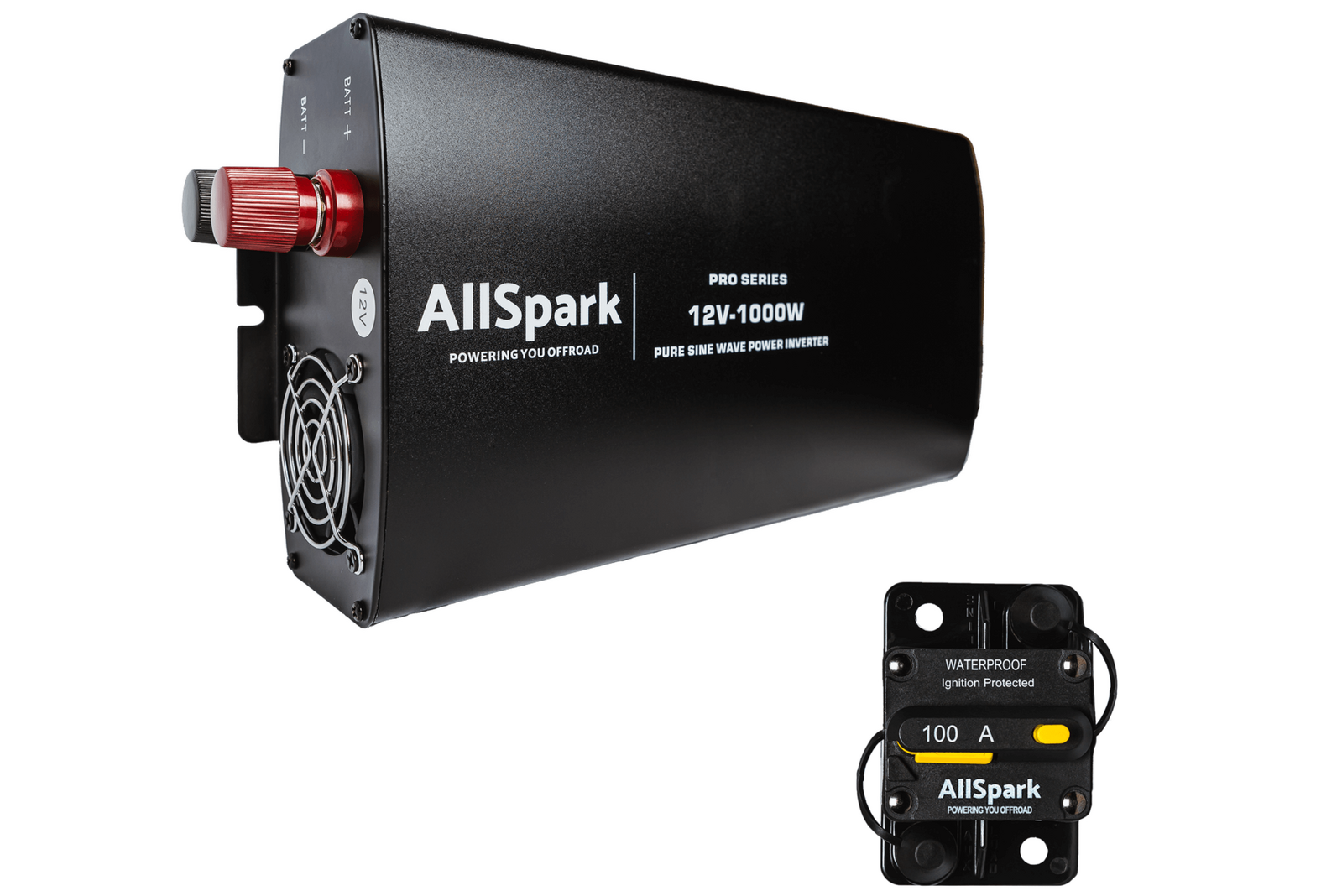

AllSpark 1000W PRO Series Pure Sine Wave Inverter 12V with Circuit Breaker

Name: AllSpark 1000W PRO Series Pure Sine Wave Inverter 12V with Circuit Breaker
Brand: AllSpark
SKU: AS-100012PSWPROCB
Price: 399.0 AUD
Availability: InStock

AllSpark 1000W PRO Series Pure Sine Wave Inverter 12V with Circuit Breaker

$399.00

A 1000W pure sine wave inverter from the AllSpark PRO series, running 230V Australian-standard power off a 12V battery bank. Pure sine wave matters once you are running a laptop, a coffee grinder, camera chargers and the odd power tool — modified sine will run some of it badly and damage the rest.

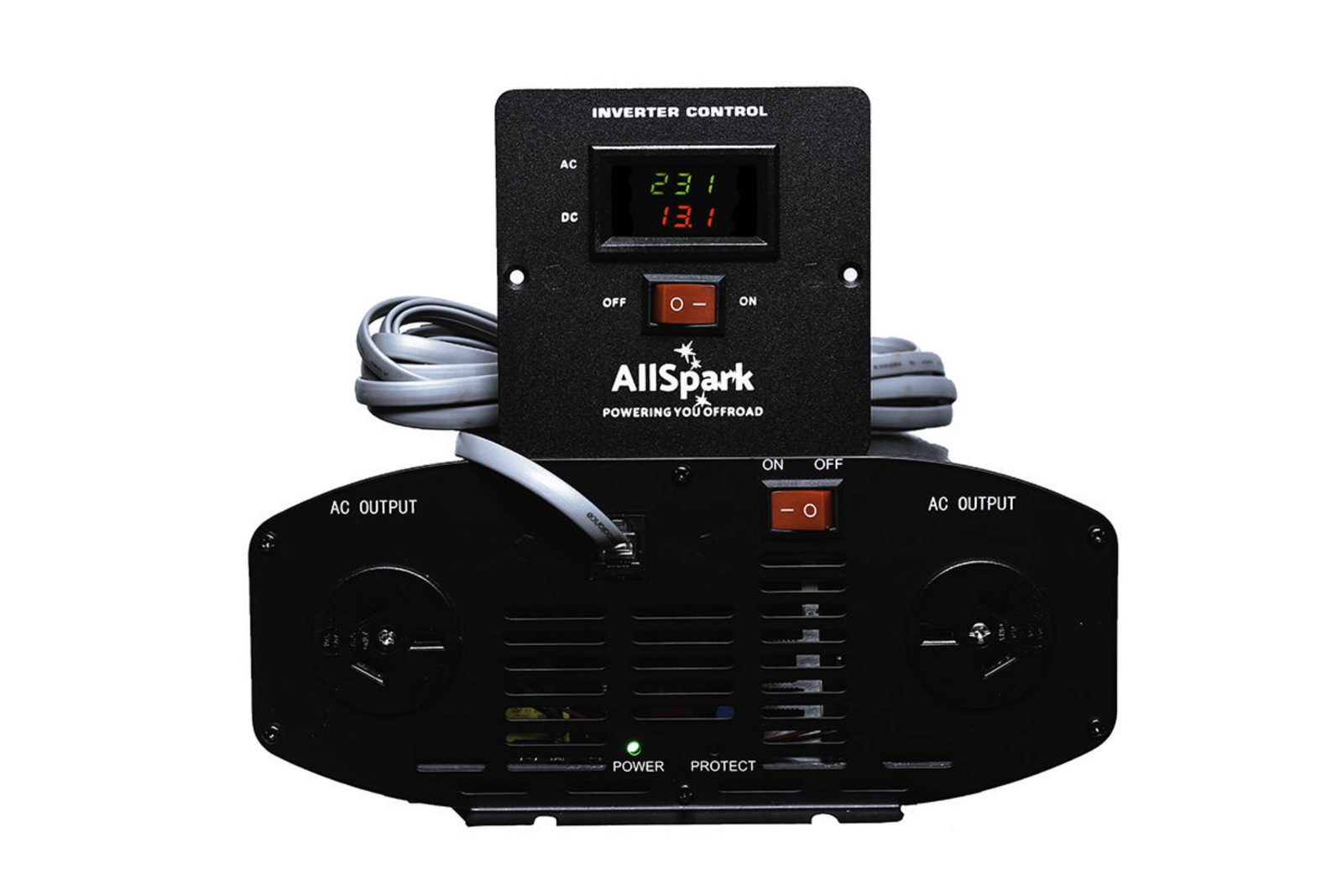

The wired LCD remote panel puts AC output and DC input voltage, fault codes and the on/off switch wherever you want them, rather than making you reach behind a seat to the inverter itself.

Install it properly: this unit needs a 100A DC circuit breaker, with 4 B&S cable up to 2m or 2 B&S for a 2–4m run. Undersized DC cable is the usual reason an inverter cuts out under load.

Features

+

1000W continuous, 2000W surge, pure sine wave output
12V DC input (9.6–15V DC), 230V 50Hz Australian standard output
1 × Australian Std 3 pin socket
Built-in circuit breaker
Wired LCD remote switch panel showing AC output and DC input voltages, error and fault codes, and on/off
Twin intelligent brushless cooling fans
Protection for DC under/over voltage, overload, reverse polarity, short circuit and over-temperature
Audible alarm for under/over voltage, fault, over-current and over-temperature
Anodised aluminium case

Specifications

+

Continuous power	1000W
Surge power	2000W
Waveform	Pure sine wave
Input voltage	12V DC (9.6–15V DC)
Output voltage	230V, Australian standard
Output frequency	50Hz ±0.2%
Output receptacle	1 × Australian Std 3 pin socket
Efficiency	>92%
Input connector	M8 red and black DC input terminals
DC under-voltage protection	10V ±0.5V DC
DC over-voltage protection	15V ±0.5V DC
Overload / short circuit / over heat	CPU controlled auto shutdown
Reverse polarity	Fuse protection
Cooling	Twin intelligent brushless fans
Remote	Wired LCD switch panel
Required circuit breaker	100A
Cable size — up to 2m	4 B&S
Cable size — 2 to 4m	2 B&S
Case	Anodised aluminium (black)
