Key features
- 3000W continuous, 6000W surge, pure sine wave output
- 24V DC input (19.2–30V DC), 230V 50Hz Australian standard output
- 2 × Australian Std 3 pin sockets
- Wired LCD remote switch panel showing AC output and DC input voltages, error and fault codes, and on/off
- Twin intelligent brushless cooling fans
- Protection for DC under/over voltage, overload, reverse polarity, short circuit and over-temperature
- Audible alarm for under/over voltage, fault, over-current and over-temperature
- Anodised aluminium case
Overview

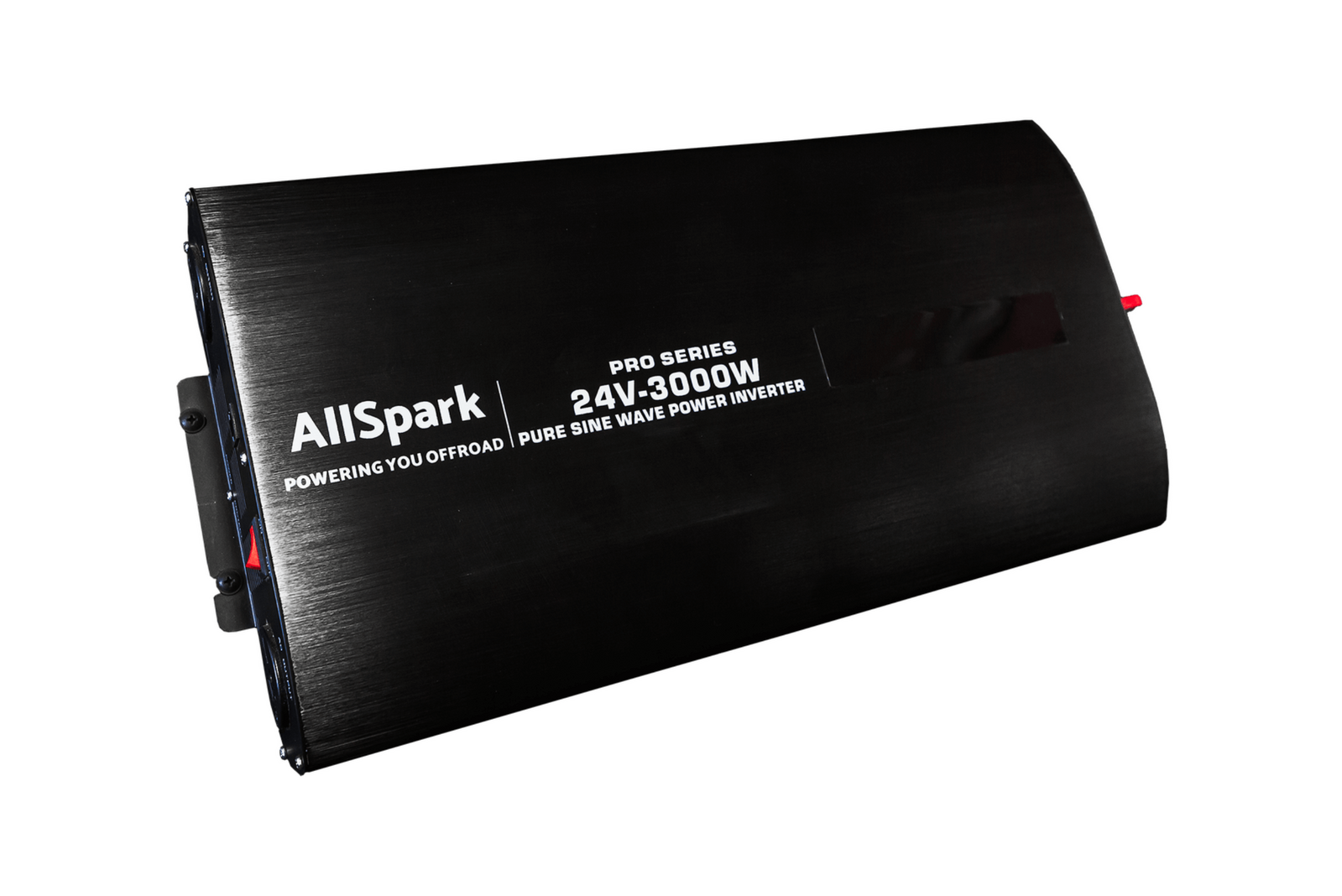

A 3000W pure sine wave inverter from the AllSpark PRO series, running 230V Australian-standard power off a 24V battery bank. Pure sine wave matters once you are running an induction cooktop, air conditioning on a caravan, and workshop tools away from mains — modified sine will run some of it badly and damage the rest.

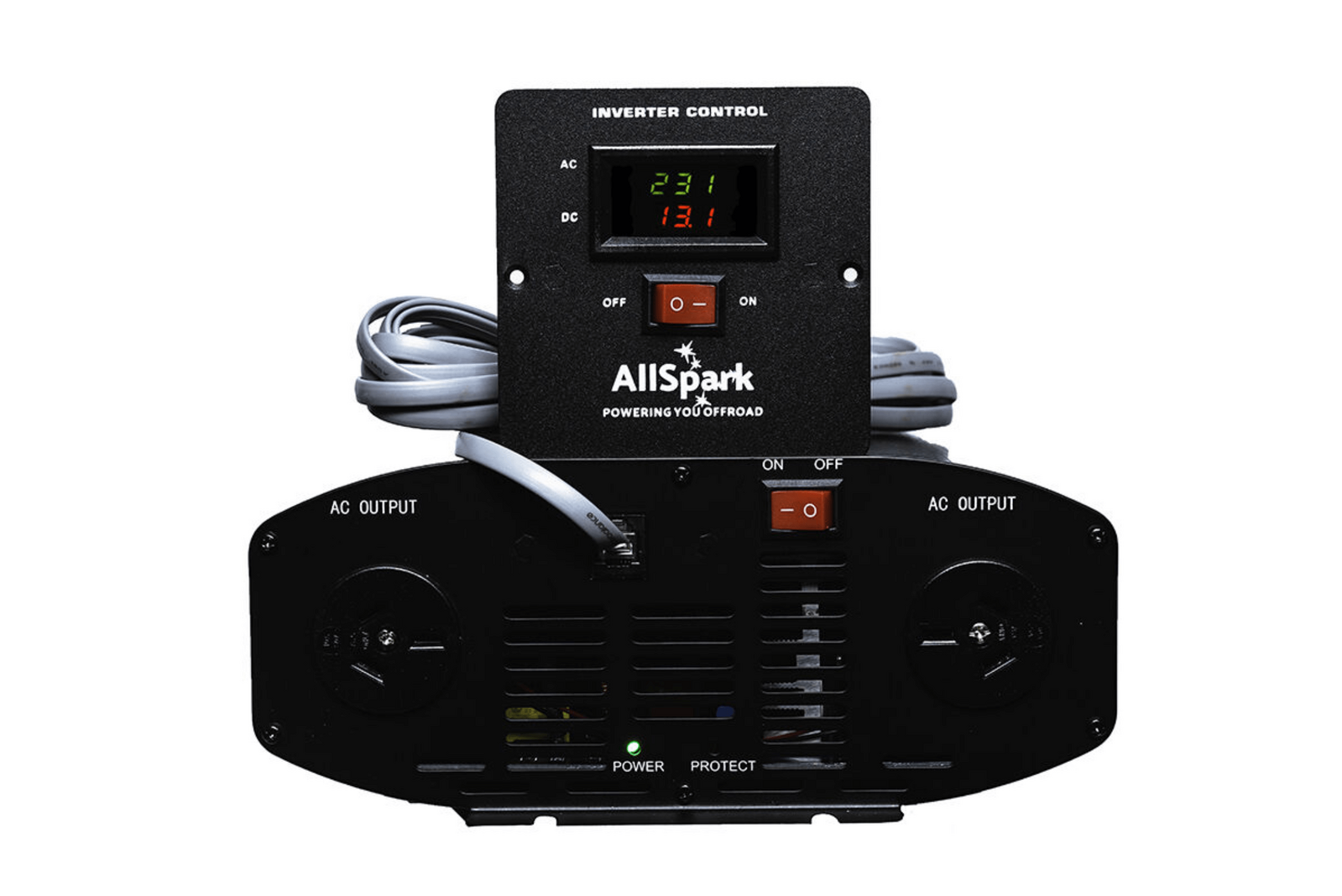

The wired LCD remote panel puts AC output and DC input voltage, fault codes and the on/off switch wherever you want them, rather than making you reach behind a seat to the inverter itself.
Install it properly: this unit needs a 150A DC circuit breaker, with 2 B&S cable up to 2m or 0 B&S for a 2–4m run. Undersized DC cable is the usual reason an inverter cuts out under load.
Delivery, returns & warranty
Shipping & Returns
Shipping
Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:
- Our warehouse in Bendigo, Victoria
- Partner supplier warehouses on the East Coast
- Partner supplier warehouses on the West Coast
This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.
Important Shipping Notes:
- We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
- Depot pickup options may be available at reduced rates (contact us to discuss)
- Off-mainland deliveries require additional shipping fees (custom quoted)
- Missed deliveries may incur a redelivery fee set by the courier
- All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex
Returns
As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.
You can return items if:
- The product is faulty or not of merchantable quality
- The product is not fit for its intended purpose
- The product does not match the description
- You can present proof of purchase
For change of mind returns:
- Item must be in original condition with tags attached
- Must be returned within 30 days of purchase
- Original proof of purchase required
- Return shipping is at customer's expense
- Original delivery charges are non-refundable unless due to our error
Refunds will be processed within 10 business days of receiving and inspecting the return.
For full details, please refer to our:
Warranty Details
+
Warranty Details
+
- 12-month manufacturer warranty against defects in materials and workmanship.
Specifications
| Continuous power | 3000W |
|---|---|
| Surge power | 6000W |
| Waveform | Pure sine wave |
| Input voltage | 24V DC (19.2–30V DC) |
| Output voltage | 230V, Australian standard |
| Output frequency | 50Hz ±0.2% |
| Output receptacle | 2 × Australian Std 3 pin sockets |
| Efficiency | >92% |
| Idle current | 0.4A |

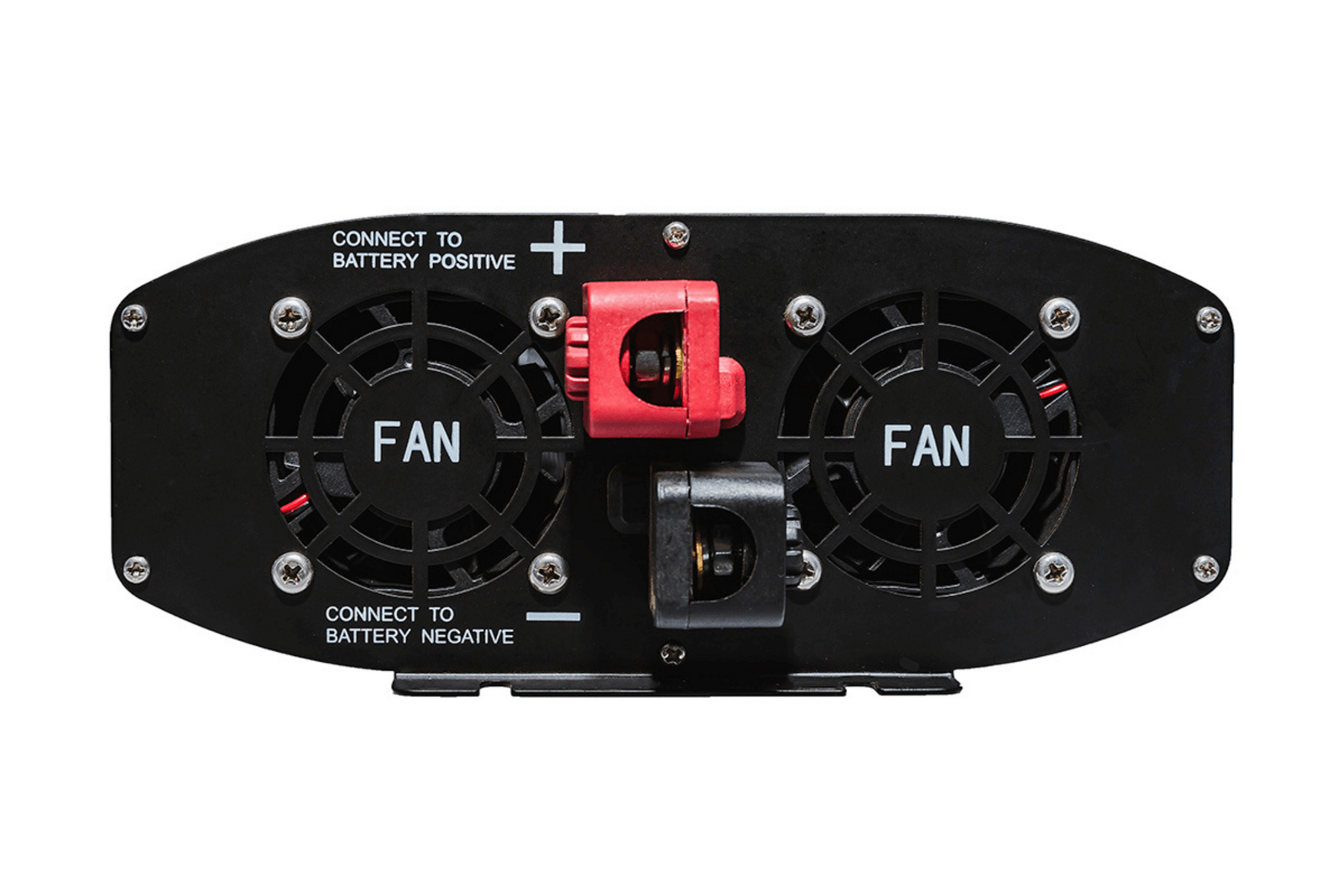

| Input connector | M8 red and black DC input terminals |
| DC under-voltage protection | 20V ±0.5V DC |
| DC over-voltage protection | 30V ±0.5V DC |
| Overload / short circuit / over heat | CPU controlled auto shutdown |
| Reverse polarity | Fuse protection |
| Cooling | Twin intelligent brushless fans |
| Remote | Wired LCD switch panel |
| Required circuit breaker | 150A |
| Cable size — up to 2m | 2 B&S |
| Cable size — 2 to 4m | 0 B&S |
| Case | Anodised aluminium (black) |
| Dimensions (L × W × H) | 470 × 220 × 92 mm |
| Weight | 5.4 kg (inc. remote) |
-
