DC DC Vehicle Charger (Yellow) |
30A input, 12.8-16VDC operating voltage, >13.2V start voltage |
Smart Alternator Compatibility |
11.8V-16V operating range with ignition sense wire (included) |
Solar Charger Input (Green) |
30A input, Maximum 25V OC / 450 Watts, 12V panels only |
Battery Type Settings |
Selectable: AGM/GEL (14.4V) or Lithium (14.6V) |
50A Inputs/Outputs (Grey) |
2 x 600W outputs with auto reset circuit breakers |
Inverter Output |
1 x 100A (1200W maximum) |
12V DC Outlets |
2 outlets (30A fuse protected) |
USB Outlets |
1 x Dual USB 5V/2.1A |

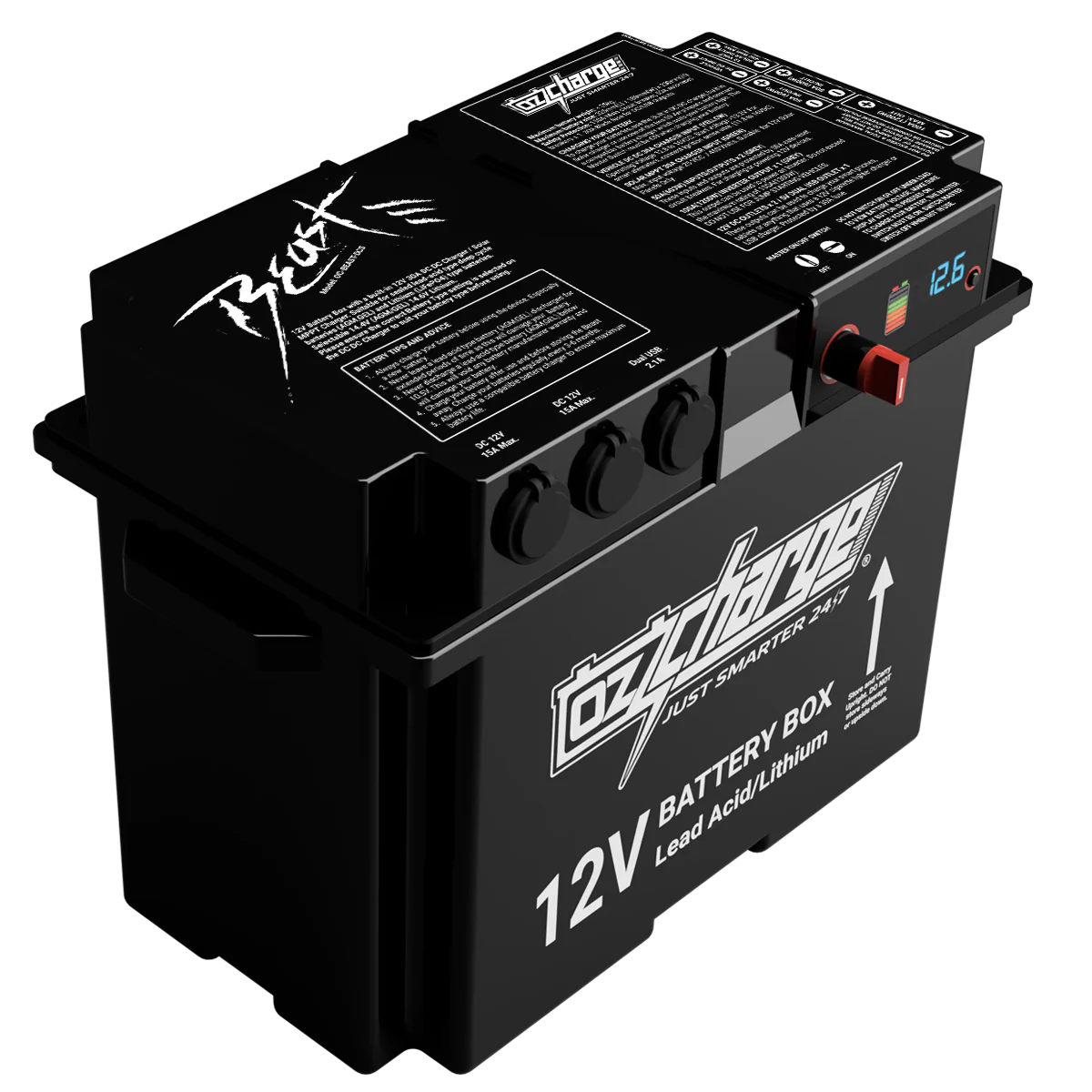

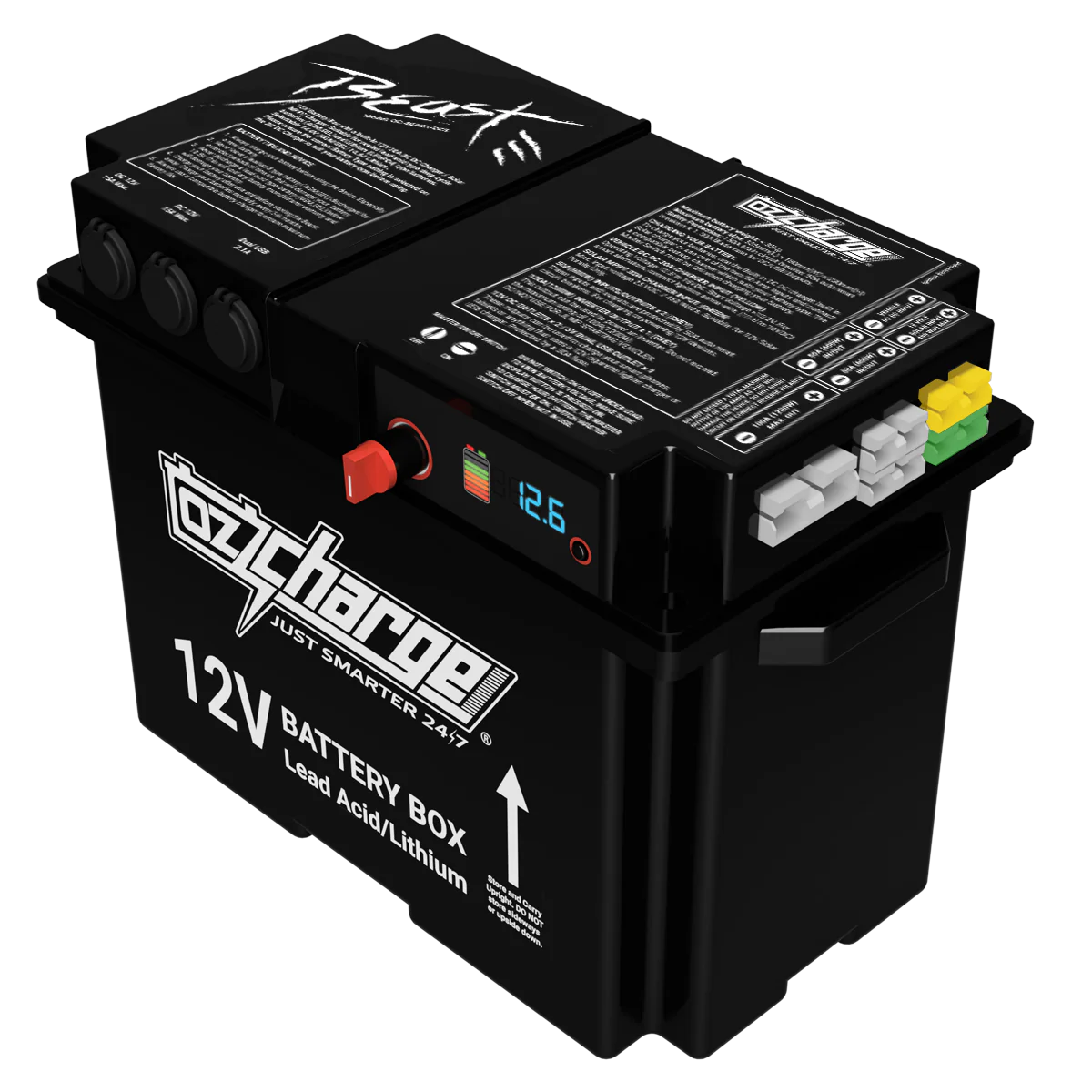

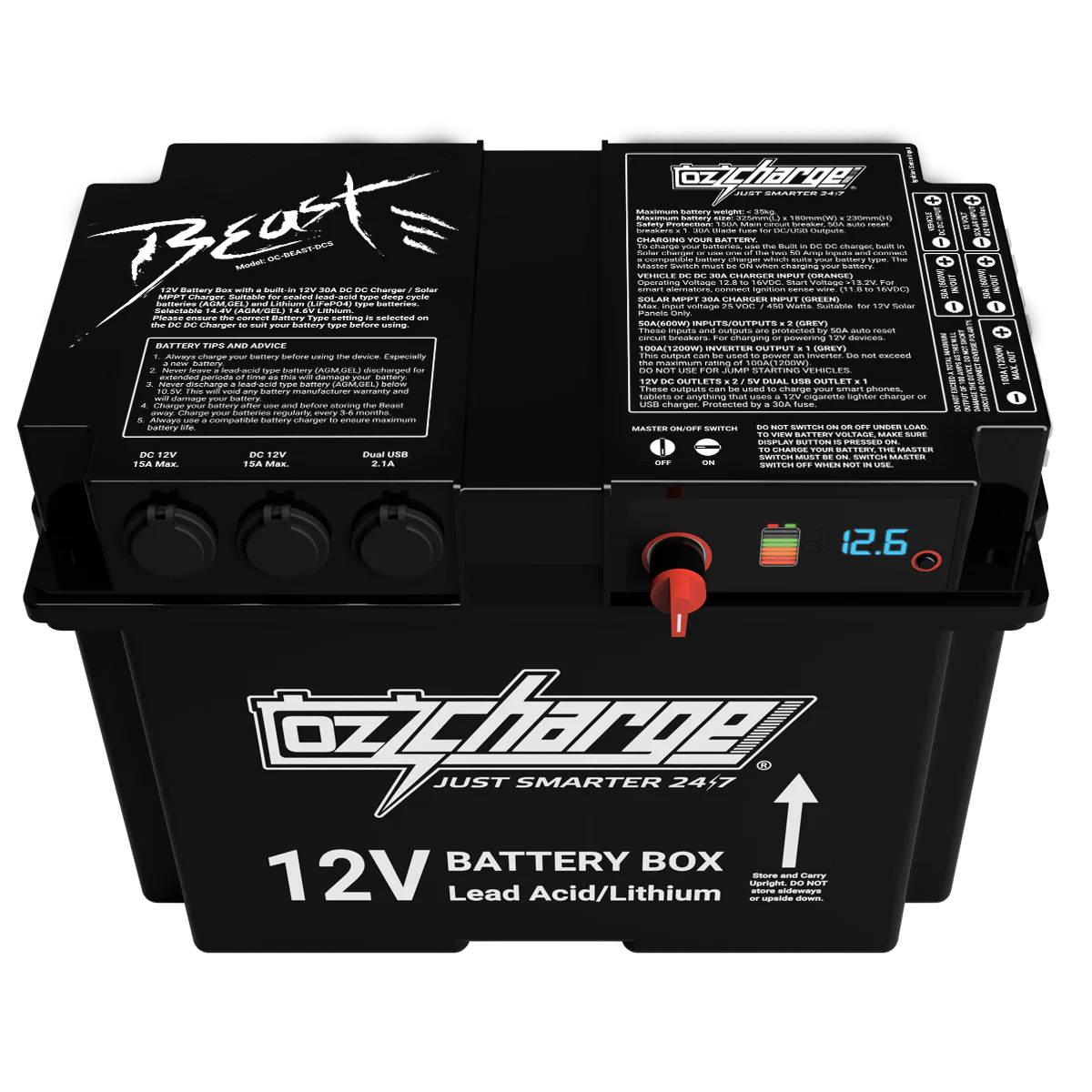

Main Unit |
Beast Battery Box (battery not included) |

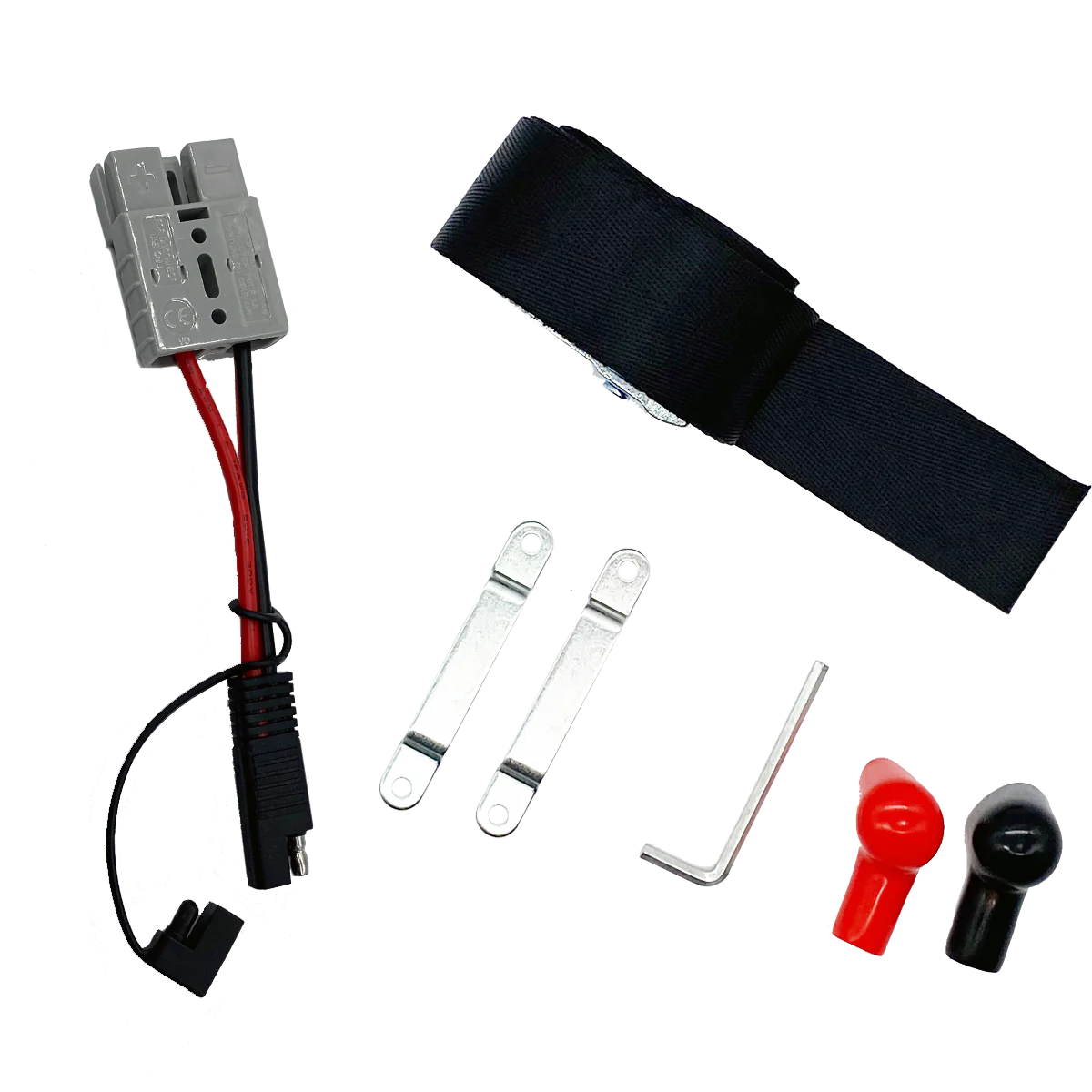

Mounting Hardware |
Hold/tie down mounting brackets and strap |

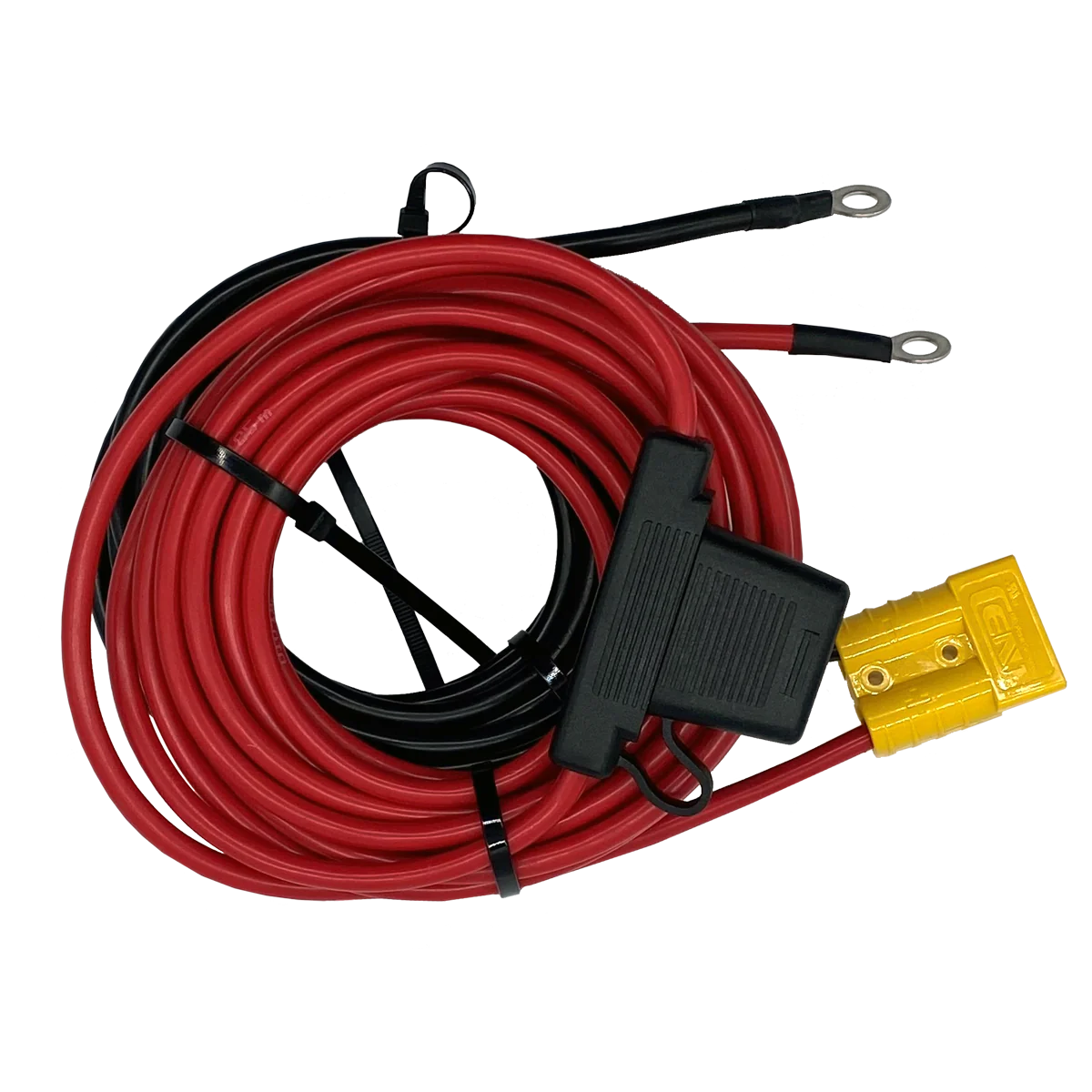

DC DC Cable |
6 Metre with 50A Yellow Connector & Ring Terminals |

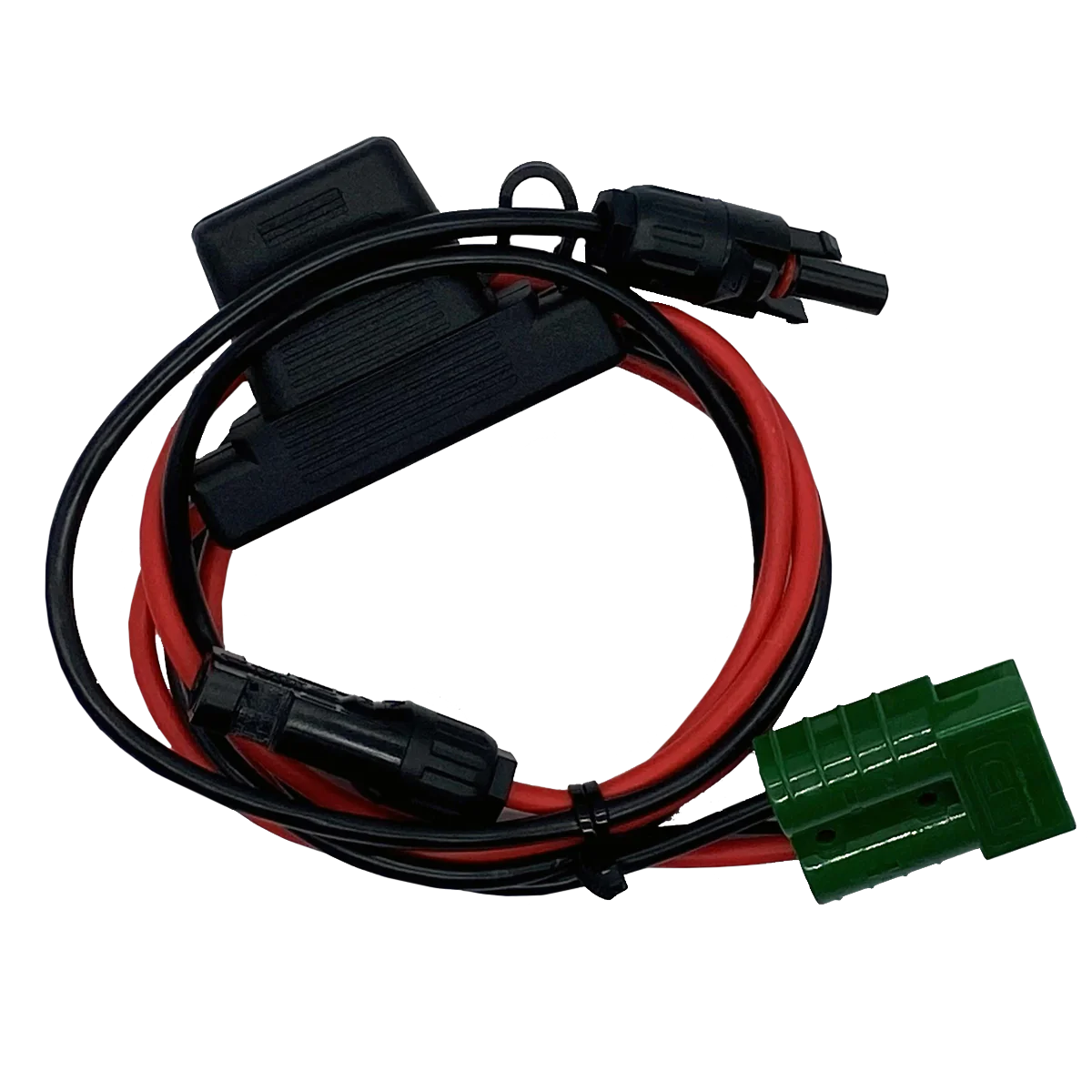

Solar Cable |
1 Metre with 50A Green Connector & MC4 Connectors |
Charging Adapter |
OC-50A-SAE: 150mm 50A to SAE adapter |
Charging Adapters |
OC-50A-PP30: 150mm 50A to PP30 adapter (for OC-PRO1200 and OC1212U chargers) |
Inverter Connection |
OC-RT175A: 1200mm 175A to Ring Terminal Lead (1200W Max) |
Usage Restrictions |
Not suitable for jump starting vehicles |
Display Note |
LCD battery level indicator to be used as guide only - voltage levels vary by battery type |
Charging Operation |
Master Switch must be ON when charging battery |
Compatible Chargers |
OzCharge PRO600 12V 6A Battery Charger (sold separately) |
