OzCharge 175A Ring Terminal Harness – 1200mm 25mm²

$49.00

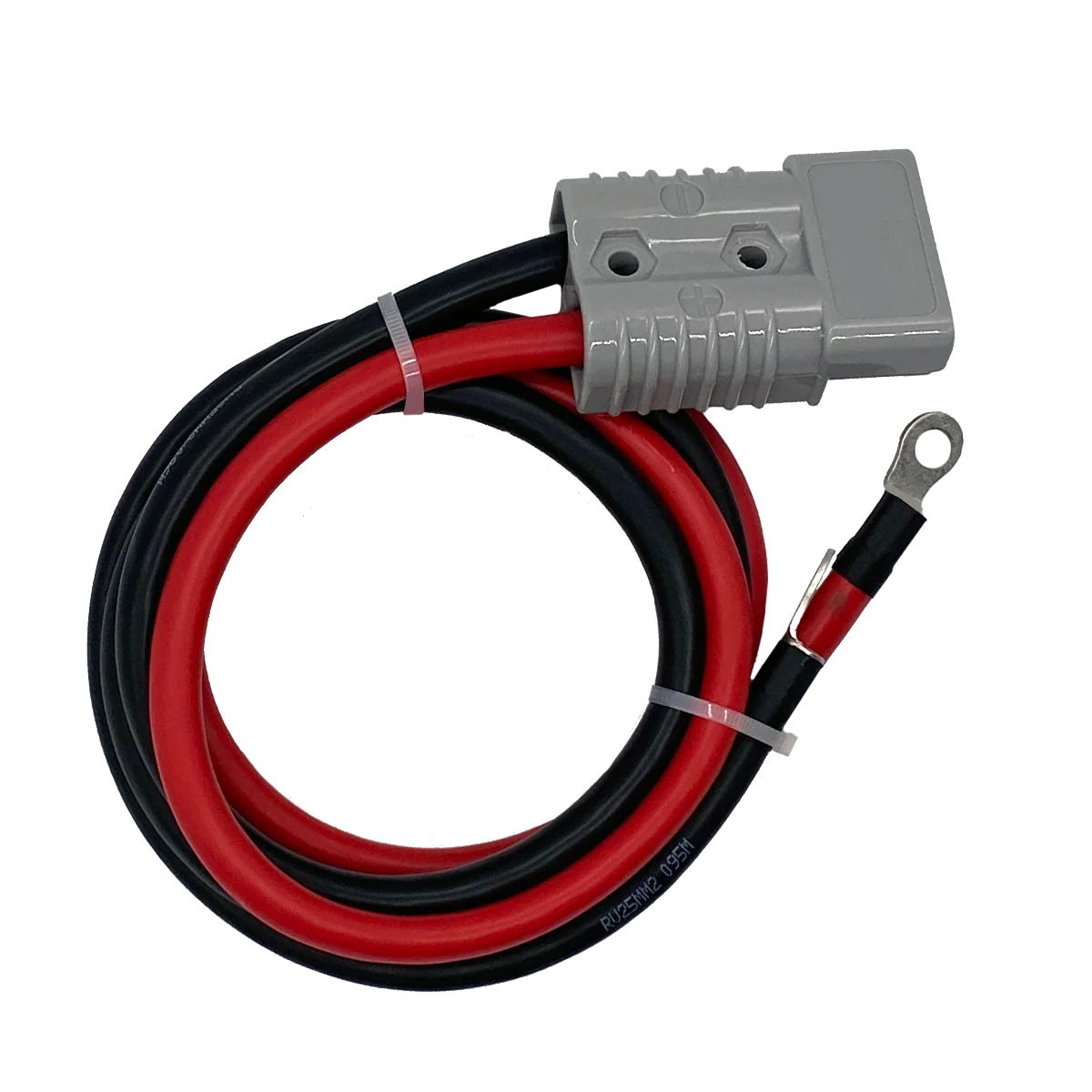

The OzCharge OC-RT175A Ring Terminal Harness is a high-current battery connection lead built for demanding 12V power setups. Rated at 175A and constructed from heavy-duty 25mm² cable spanning 1200mm, it delivers a reliable, low-resistance connection between your battery and power distribution components. The harness terminates in a 175A Anderson-style connector at one end and 8mm ring terminals at the other, making it purpose-built as an optional accessory for the OzCharge Beast Battery Box — one of Australia's most popular portable power solutions for off-grid and on-road use.

Whether you're running a dual-battery system in your 4WD, powering a fridge and lighting rig in your caravan, or charging up your battery box at a campsite, this harness is the trusted link between your power source and load. The 1200mm cable length provides enough reach for flexible mounting in tight engine bays, under-vehicle battery trays, or camper trailer setups. It's an essential upgrade or replacement lead for Australian campers and caravanners who demand safe, rated wiring that won't let them down on a remote outback run or a long-haul highway tow.

Key Features

175A rated 25mm² cable — handles high-current draw from fridges, inverters, and accessories
1200mm length for flexible installation in 4WDs, caravans, RVs, and camper trailers
175A Anderson-style connector with 8mm ring terminals for secure, vibration-resistant connections
Purpose-built accessory for the OzCharge Beast Battery Box and compatible 175A power systems
Heavy-duty construction rated for the harsh Australian environment — heat, dust, and vibration resistant

Features

+

175A current rating suitable for high-draw 12V applications including inverters, fridges, and winches
25mm² wire gauge delivers low resistance and minimal voltage drop under load
1200mm (1.2m) cable length provides flexible routing in 4WD engine bays, caravans, and battery trays
175A Anderson-style connector for quick-connect and quick-disconnect capability
8mm ring terminal ends for solid, bolt-down connections to battery posts and busbars
Designed as an optional accessory for the OzCharge Beast Battery Box
Compatible with other 175A Anderson connector-based power systems and battery management setups
Heavy-duty insulation rated for the heat, vibration, and dust conditions of Australian off-road and caravan travel
OzCharge brand quality — designed and specified in Australia for Australian power applications

Specifications

+

SKU	OC-RT175A
Brand	OzCharge
Current Rating	175A
Wire Gauge	25mm²
Cable Length	1200mm (1.2m)
Connector Type	175A Anderson-style connector
Terminal Type	8mm ring terminals
Terminal Size	M8
Compatibility	OzCharge Beast Battery Box and 175A Anderson connector systems
Application	12V battery harness for caravans, 4WDs, RVs, and off-grid power systems
Cable Insulation	Heavy-duty PVC, heat and abrasion resistant
Polarity	Positive and negative leads included
Country of Brand Origin	Australia (OzCharge)

Warranty Details

+

12-month manufacturer warranty against defects in materials and workmanship.

Download Manual PDF

Common questions about OzCharge 175A Ring Terminal Harness – 1200mm 25mm²

What are the key features of OzCharge 175A Ring Terminal Harness – 1200mm 25mm²?

175A current rating suitable for high-draw 12V applications including inverters, fridges, and winches. 25mm² wire gauge delivers low resistance and minimal voltage drop under load. 1200mm (1.2m) cable length provides flexible routing in 4WD engine bays, caravans, and battery trays.… Those are the maker's own figures for this model; the full list sits under Features above.

What are the specifications of OzCharge 175A Ring Terminal Harness – 1200mm 25mm²?

SKU: OC-RT175A. Brand: OzCharge. Current Rating: 175A. Wire Gauge: 25mm². Cable Length: 1200mm (1.2m). Connector Type: 175A Anderson-style connector. The full specification table sits above on this page, and it is worth checking the dimensions against your setup before you order.

How much is OzCharge 175A Ring Terminal Harness – 1200mm 25mm², and is it in stock?

OzCharge 175A Ring Terminal Harness – 1200mm 25mm² is $49.00. It is in stock and ships from our Australian distribution network. Prices change, so the figure on this page is the one that applies when you order, not the one in a search result.

How is OzCharge 175A Ring Terminal Harness – 1200mm 25mm² delivered?

Shipping: Outdoor Camping Australia operates a nationwide distribution network, with items shipping from: Our warehouse in Bendigo, Victoria. Partner supplier warehouses on the East Coast. Partner supplier warehouses on the West Coast. This multi-location approach allows us to provide efficient… The full shipping and returns terms are on this page under Shipping & Returns.

Does OzCharge 175A Ring Terminal Harness – 1200mm 25mm² come with a warranty?

12-month manufacturer warranty against defects in materials and workmanship. Warranty terms are set by the manufacturer rather than by us, and the period stated is the one that applies to this model. Keep your order confirmation somewhere safe, since any warranty claim starts with proof of purchase.
