12V Beast Battery Box by Ozcharge

12V Beast Battery Box by Ozcharge

$299.00

$279.00

Available for pre-order Estimated arrival:

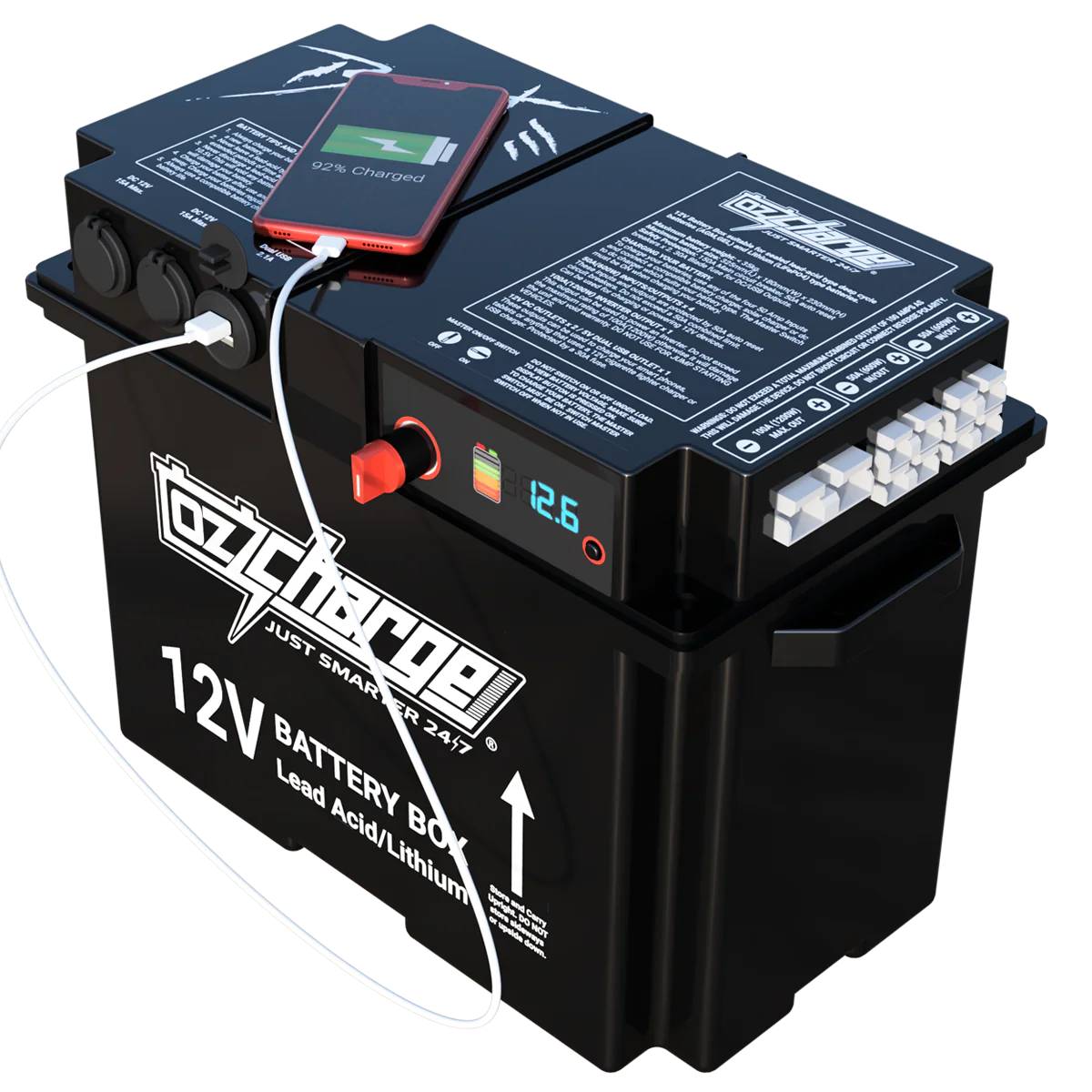

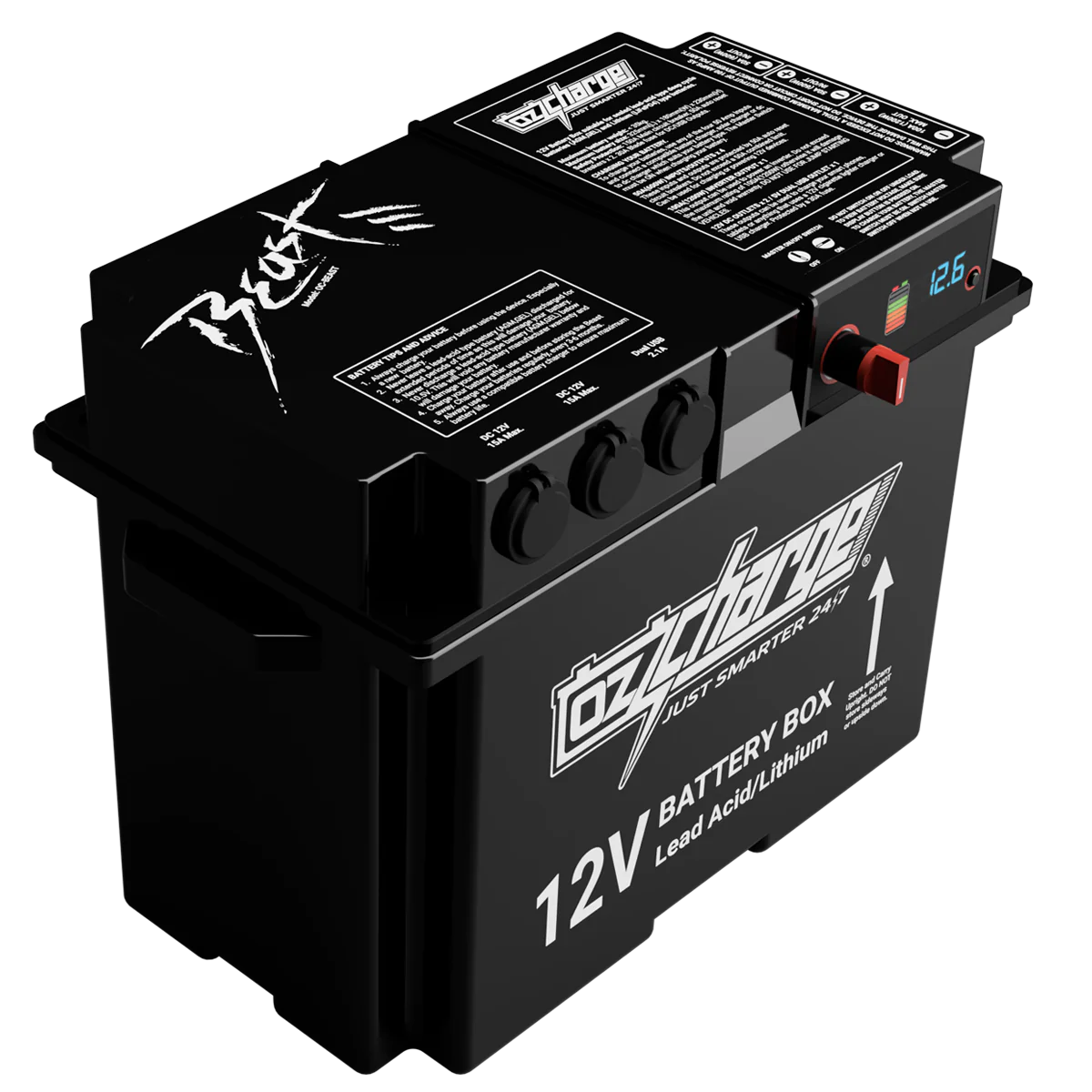

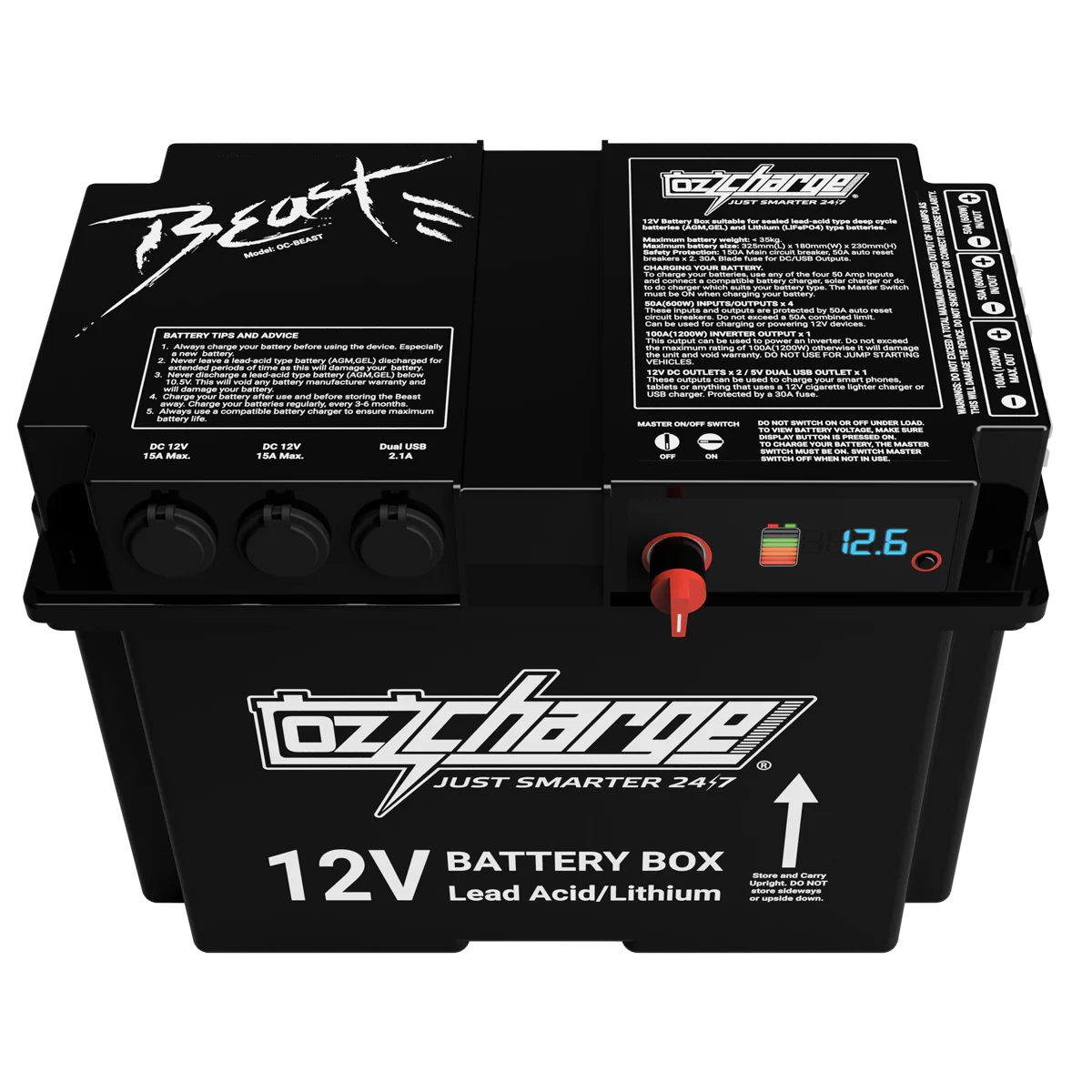

The OzCharge 12V Beast Battery Box is a heavy-duty portable power hub built to keep your camp running no matter how far off the beaten track you venture. Designed for sealed lead-acid (AGM/GEL) and Lithium (LiFePO4) deep-cycle batteries up to 120Ah (OzCharge) or up to 35 kg / 325 mm × 180 mm × 230 mm for other brands, the Beast arrives with serious built-in protection: a 150A main circuit breaker, dual 50A auto-reset breakers across four 50A inputs/outputs, and a 30A blade fuse guarding the 12V DC and USB outlets. The enclosed external dimensions of 440 mm × 240 mm × 322 mm keep everything neatly contained while the included tie-down brackets and strap lock the box securely in your rig.

Whether you are weekend camping in the Kimberley, running appliances in a caravan on a cross-country road trip, or keeping gear charged on a 4WD track deep in the outback, the Beast Battery Box delivers a centralised 12V power solution that handles it all. Four 50A inputs/outputs let you connect solar panels, DC-to-DC chargers, or 12V loads simultaneously, while the dedicated 100A (1200W) inverter output lets you run a mains-style inverter for power tools or kitchen appliances. An LCD battery monitor gives you a quick-glance state-of-charge reading, and the dual 12V cigarette-lighter outlets and dual-USB 5V/2.1A port mean phones, tablets, and accessories are always within reach. Ideal for caravanners, grey nomads, overlanders, and off-road adventure seekers who demand reliable, organised 12V power on the road.

Key Features

  • 150A main circuit breaker plus dual 50A auto-reset breakers protect all inputs and outputs
  • Four 50A (600W) inputs/outputs accept solar, DC-DC chargers, or 12V loads simultaneously
  • Dedicated 100A (1200W) inverter output for running a mains-style inverter in camp
  • Fits AGM, GEL, and Lithium (LiFePO4) deep-cycle batteries up to 120Ah or 35 kg
  • LCD battery monitor, dual 12V outlets, and dual-USB 5V/2.1A port built in

Features

+

  • Compatible with AGM, GEL, and Lithium (LiFePO4) deep-cycle batteries
  • 150A main circuit breaker for whole-system overload protection
  • Dual 50A auto-reset circuit breakers on all four 50A inputs/outputs
  • Four 50A (600W) inputs/outputs — use any combination for charging or powering 12V devices
  • Dedicated 100A (1200W) inverter output for connecting an external mains inverter
  • Two 12V DC cigarette-lighter outlets protected by a 30A blade fuse
  • Dual USB 5V/2.1A outlet for charging smartphones and tablets
  • LCD display battery monitor for quick state-of-charge indication
  • Supports OzCharge batteries up to 120Ah; accepts other brands up to 325 mm × 180 mm × 230 mm and 35 kg

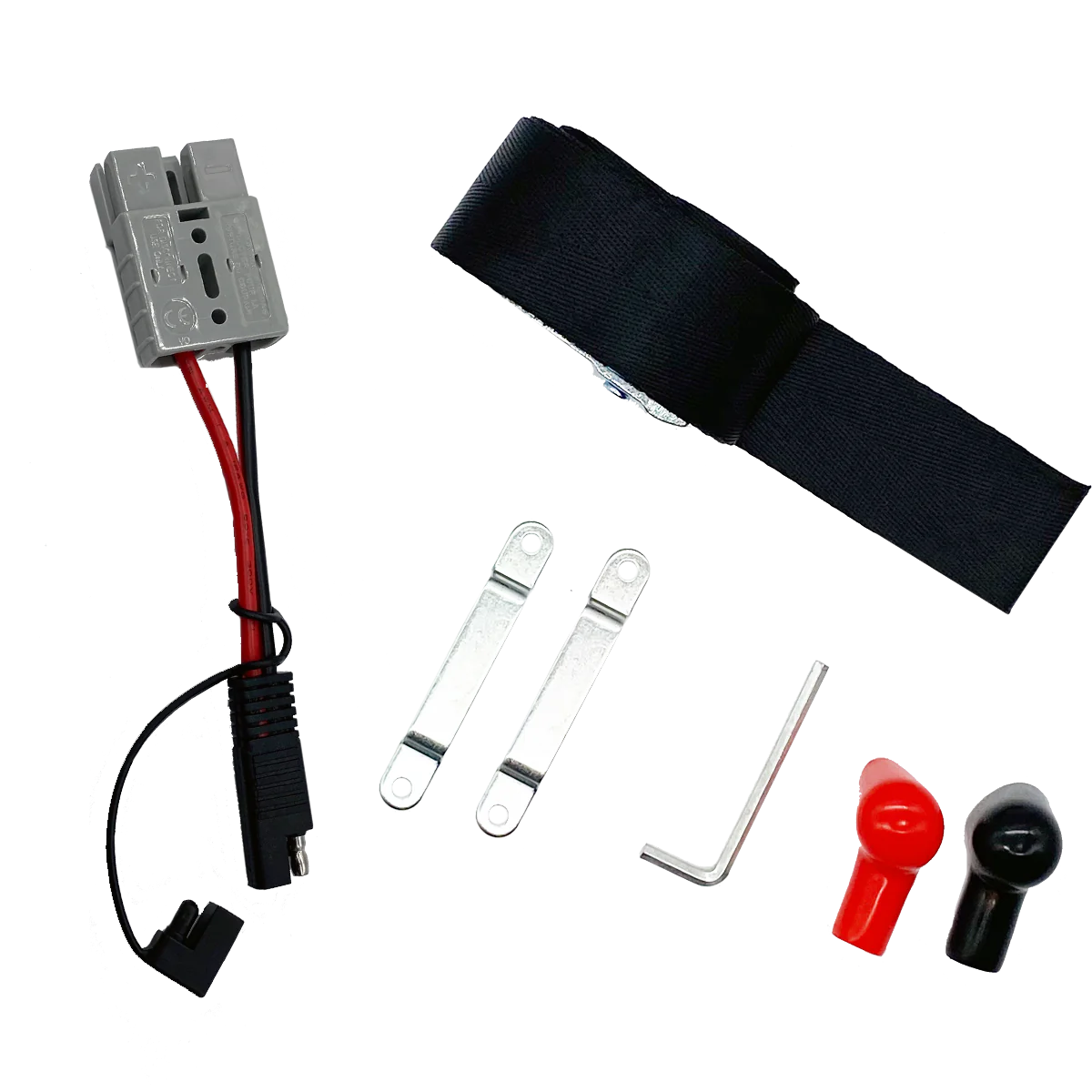

  • Includes hold/tie-down mounting brackets and strap for secure in-vehicle installation
  • Comes with OC-50A-SAE charging adapter (150 mm) to suit OzCharge PRO600 and compatible chargers

Specifications

+

SKU OC-BEAST
Battery Compatibility AGM, GEL, and Lithium (LiFePO4) deep-cycle batteries
Max Battery Capacity (OzCharge) 120Ah
Max Battery Size (Other Brands) 325 mm (L) × 180 mm (W) × 230 mm (H)
Max Battery Weight Supported 35 kg
External Dimensions 440 mm (L) × 240 mm (W) × 322 mm (H)
Box Weight (No Battery) 3.8 kg
Main Circuit Breaker 150A
50A Inputs/Outputs 4 × 50A (600W) — protected by 50A auto-reset circuit breakers
Max Combined Load per Input/Output 50A
Inverter Output 1 × 100A (1200W maximum)
12V DC Outlets 2 × cigarette-lighter style (30A blade fuse protected)
USB Outlet 1 × Dual USB 5V / 2.1A
Battery Monitor LCD display — battery level indication (guide only)
Included Accessories Hold/tie-down mounting brackets and strap; OC-50A-SAE 150 mm 50A-to-SAE charging adapter
Compatible Charger (Optional) OzCharge PRO600 12V 6A Battery Charger (sold separately)
Optional Adapter — PP30 Chargers OC-50A-PP30: 150 mm 50A-to-PP30 adapter (suits OC-PRO1200 and OC1212U)
Optional Adapter — Inverter OC-RT175A: 1200 mm 175A ring terminal lead (1200W max)
Not Suitable For Jump-starting vehicles
Warranty 12 months

Warranty Details

+

  • 12-month manufacturer warranty against defects in materials and workmanship.
