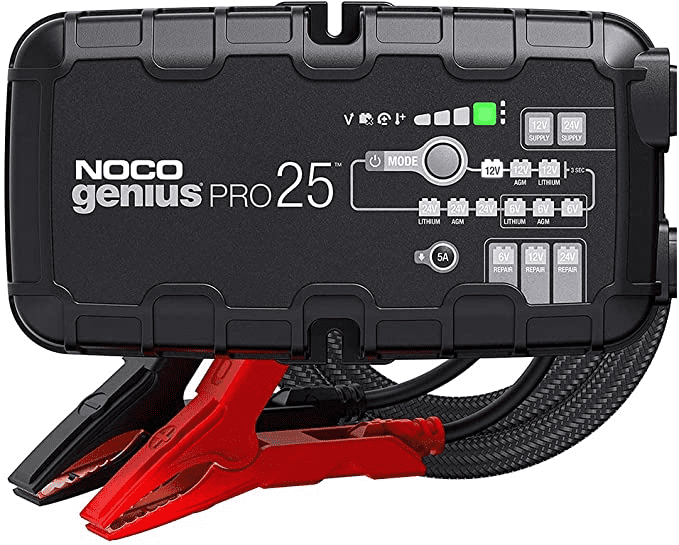

Introducing the all-new GENIUSPRO25, a fully-automatic professional smart charger, maintainer, power supply, and battery-desulfator designed for 6-volt, 12-volt, and 24-volt batteries. Rated at 25-amps, this charger is perfect for all types of automotive, marine, and deep-cycle batteries, including lead-acid and lithium-ion.
Key Features
-
Multi-Voltage Charging: Supports 6-volt (25-amps), 12-volt (25-amps), and 24-volt (12.5-amps) batteries.
-
Professional Performance: Delivers incredible charging speeds and functionality, ideal for professionals.
-
Ultra-Flexible Cabling: Features silicone cabling with nylon braided shielding for protection against abrasion, even in extreme temperatures down to -40ºC.
-
Dual-Voltage Power Supply: Maintains constant power delivery without ripple, noise, and spikes during ECU flashing, reprogramming, and diagnostic testing.
-
Thermal Sensor: Integrated thermal sensor adjusts charge to prevent over-charging in hot climates and under-charging in cold climates.
-
Advanced Detection: Detects batteries as low as 1-volt and features a force mode for charging dead batteries down to zero volts.
-
Battery Repair Modes: Includes cutting-edge repair modes for 6-volt, 12-volt, and 24-volt batteries.
Specifications
-
Line Voltage: 100V to 240V AC
-
Frequency: 50Hz to 60Hz
-
Operating Temperature: -20° to 50° C
-
Storage Temperature: -30° to 60° C
-
Charging Current: 25A (6V, 12V), 12.5A (24V) DC
-
Voltages: 6V, 12V, 24V
-
Battery Chemistry: Lead-Acid and Lithium (Wet, Gel, MF, CA, EFB, AGM, Lithium)
-
Battery Capacity Range: (6V and 12V) Up to 1000Ah, (24V) Up To 500Ah
-
Power Consumption: 375 W Max
-
IP Rating: IP20
Safety Features
- Short-Circuit Protection
- Open-Circuit Protection
- Overheating Protection
- Overcharge Protection
- Spark-Proof
- Reverse Polarity Protection
Product Dimensions
-
Height: 23.6 cm (9.3 Inches)
-
Width: 13 cm (5.1 Inches)
-
Depth: 7.6 cm (3.0 Inches)
-
Weight: 1.22 kg (2.7 Pounds)
Cord Management
-
DC Cable: 1.6m (5.4 Feet)
-
DC Extension Cable Length: 3m (10 Feet)
-
AC Cable Length: 1.8m (6 Feet)
-
Cable Size: 8 AWG
-
DC Fuse Size: 30 AMP ANL Fuse
-
Resistance: Oil, gas, grease, water, chemical, UV, abrasion resistant

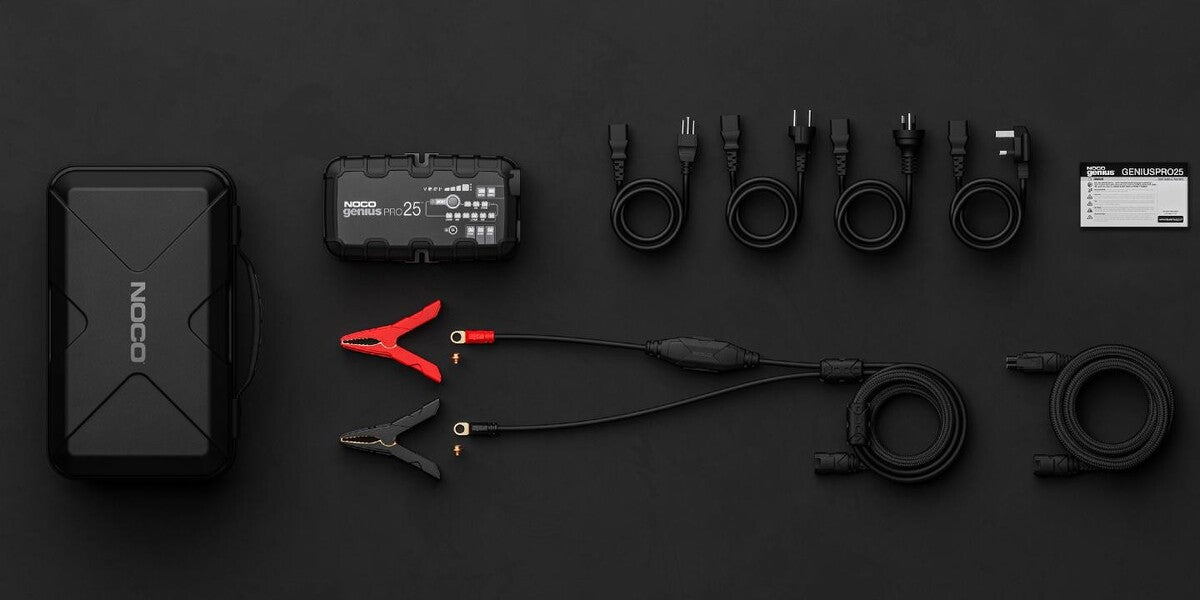

What's In The Box
- GENIUSPRO25 Battery Charger with Interchangeable Connectors
- Genius PRO Clamps with Integrated Eyelets
- 10’ Extension Cord
- EVA Case
- Self-Tapping Screws
- Type A, C, G, and I Power Cables
- User Guide & Warranty Information
Limited Warranty
- 3-Year Hassle-Free Warranty
