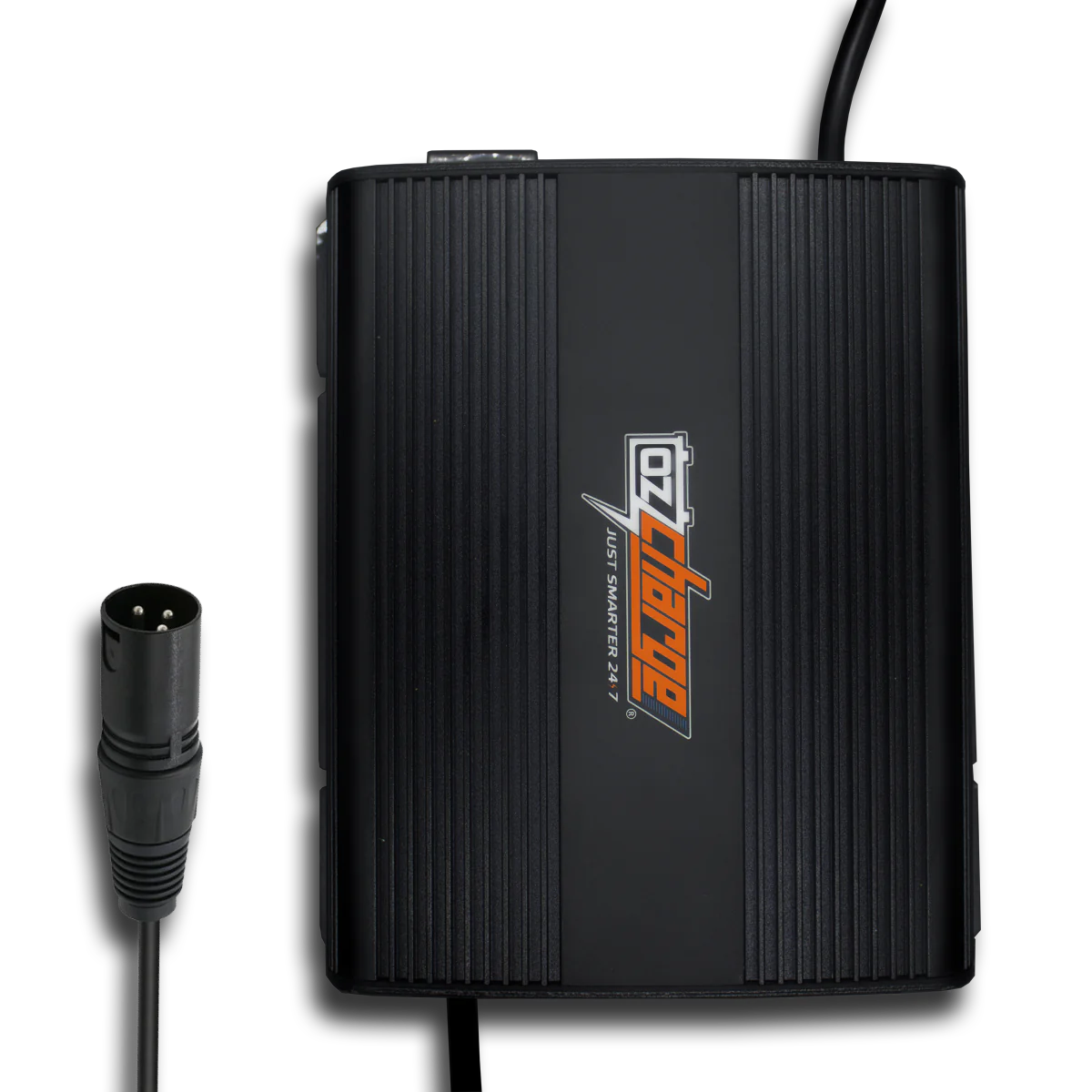

OzCharge PX-2408M 24 Volt 8AMP Charger & Maintainer with 3 Pin XLR Connector

The OzCharge PX-2408M Mobility Battery Charger and Maintainer is designed for lead-acid type batteries (AGM, Gel & Wet) from 3Ah to 240Ah. The charger can also be used to maintain batteries up to 360Ah, making it ideal for maintaining vehicles that spend extended amounts of time without being driven, including classic cars, motorcycles, and boats.

Features:

• High frequency, high efficiency switching mode ensures fast and efficient charging.
• Microprocessor controlled for precise and reliable charging.
• Compatible with all sealed Lead-Acid Type Batteries including AGM, Gel & Wet.
• Heavy-duty cables equipped with an Amphenol (Cannon) ‘XLR’ type connector.
• Built-in temperature, short circuit, and battery fault protections.
• IP51 rating for dust and drip-proof durability.
• AS/NZS 3696.14 approved for safe use with wheelchairs.
• Natural cooling without a fan.
• Low power consumption mode for efficient energy use.

Specifications:

• Model Number: PX-2408M
• Output: 8A @ 24V
• Input Voltage: 220-240Vac / 1.6A
• Input Frequency: 50Hz
• Charge Voltage: 28.8V
• Float Voltage: 27.2V
• Start Voltage: 3V
• Operating Temperature: -15 to 50° C
• Storage Temperature: -25 to 85°C
• Operating Humidity: 90% RH Max.
• Size: 185mm x 153mm x 70mm
• Weight: 1.7kg
• Approvals: CE, AS/NZS, EMC
• AC Power Cord: 1.8m with SAA 3 Pin AU Plug
• DC Output Lead: 1.5m with 3 Pin Amphenol (Cannon) XLR Type Connector

Package Includes:

• 1 x PX-2408M Charger
• 1 x Crocodile Clip with Integrated Ring Terminals Harness
• 1 x Owner's Manual
