Furrion Vision S Rear Camera & 5" Display Kit

Furrion Vision S Rear Camera & 5" Display Kit Furrion

Furrion Vision S Rear Camera & 5" Display Kit

SKU 900-02902

$741.00

Free shipping

Monitor Dimensions: 142mm

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

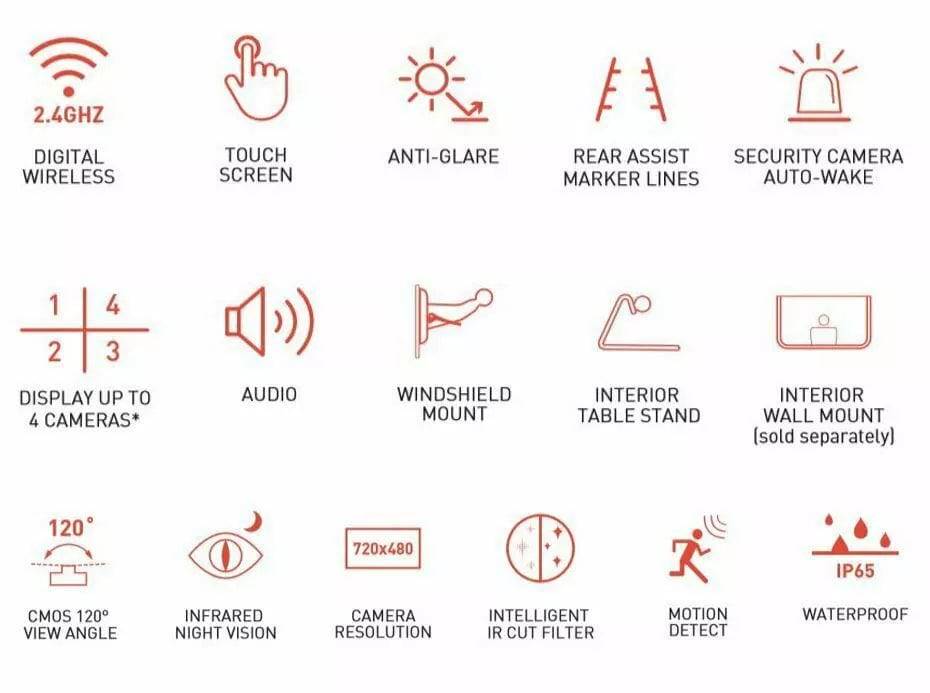

Key features

Observation systems are wireless with high-resolution touch screen monitors that can show up to four different camera images
IP65 waterproof cameras
Rear assist reversing lines
2.4GHz wireless communication digitally locks to the camera system for minimal interference
Cameras offers 120-degree viewing angle, with infrared night vision

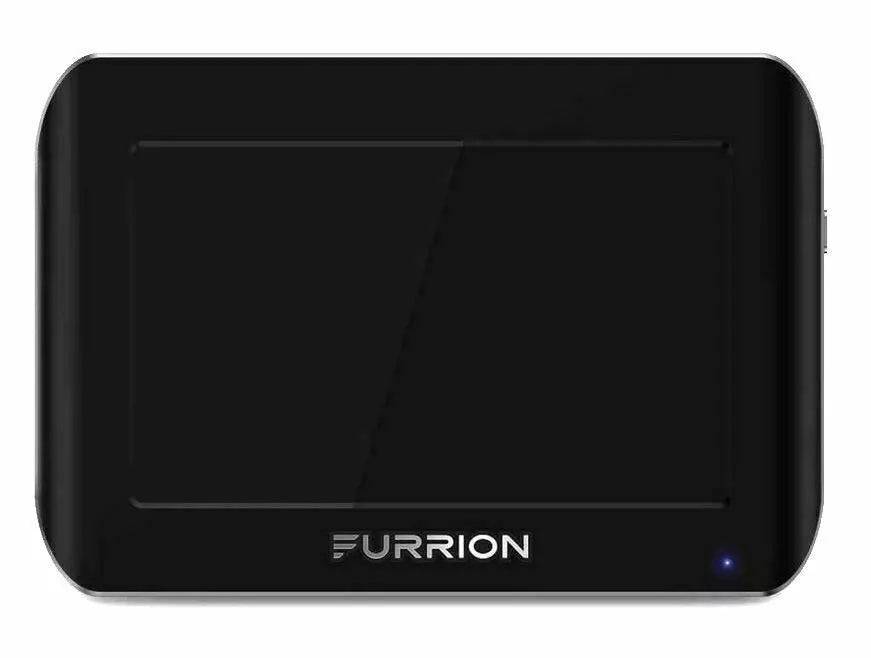

Touch screen anti-glare monitor.
The monitor can be mounted with the included windshield or universal surface mount.

Overview

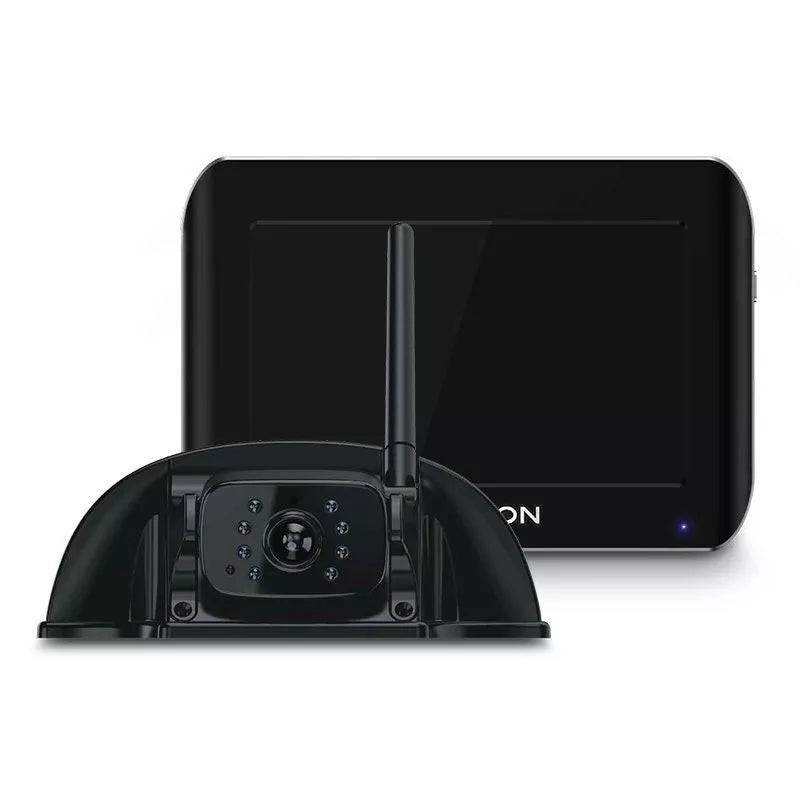

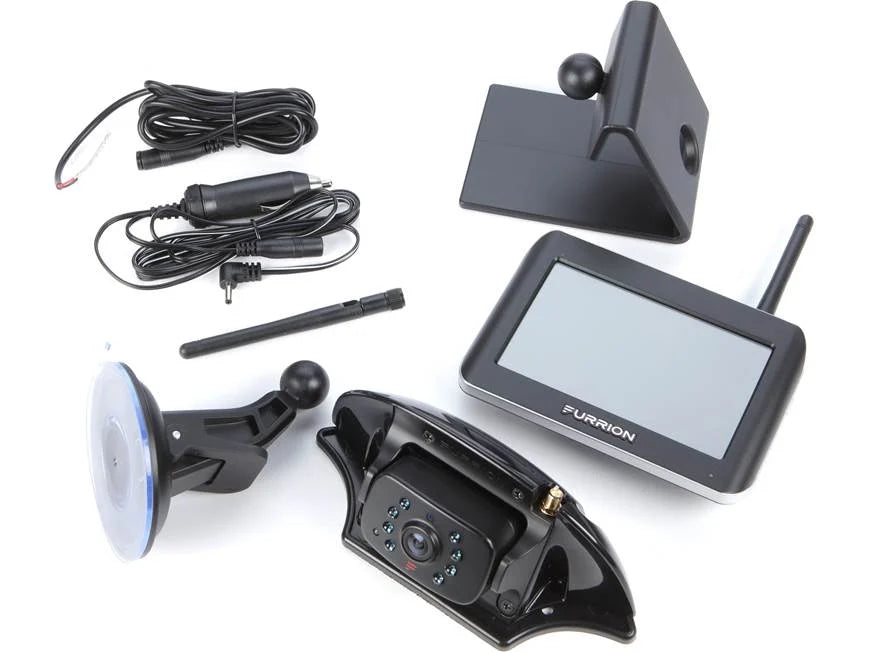

The Furrion Vision S Rear-Vision Camera & 5" Display Kit is a high-performance wireless vehicle observation system designed for RVs and caravans. It offers enhanced mobility with a mountable touch screen monitor, providing a full range of view for reversing and lane changes. This system includes a 5" anti-glare display and IP65 waterproof cameras with infrared night vision, offering a 120-degree viewing angle.

Features:

Wireless observation with 2.4GHz communication
IP65 waterproof camera
Rear assist reversing lines
Night vision
Anti-glare touch screen monitor
150m wireless range

Specifications:

Monitor Size: 142 x 97 x 19mm

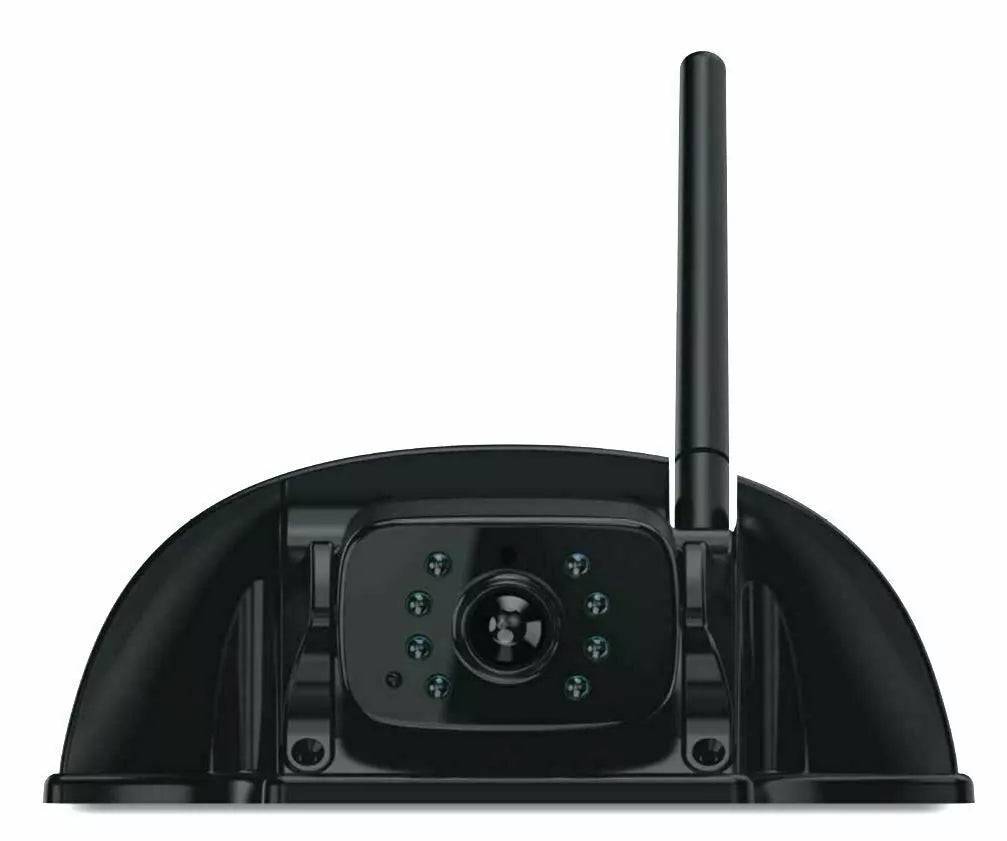

Camera Size: 168 x 65 x 78mm
Viewing Angle: 120°
Resolution: 720x480
Wireless Range: 150m

Download Manual PDF

Common questions

Is the night vision any use for reversing onto a dark site?

It gets you the last few metres, not the whole approach. The infrared reaches about 5m, which covers the drawbar and the ground right behind the van. Past that on a black night you are relying on your reversing lights and a spotter, same as everyone else.

Will the wireless drop out on a long van?

The 2.4GHz link is quoted to 150m, so length is not your issue, obstructions are. A metal-bodied tow vehicle, a loaded roof rack or another van parked hard alongside on the same band can chop the picture. Mount the monitor where the antenna has a clear line.

Is a 5-inch screen big enough, or should I look at the sharper kit?

For reversing and a quick glance at what is behind you, the 5-inch screen does the job at arm's length on the windscreen. If you want to read number plates or watch traffic on a highway merge, the 720 x 480 resolution here will feel soft.

Delivery, returns & warranty

Warranty Details

+

12 Month Manufacturer Warranty

Specifications

Physical Details
Monitor Dimensions	142mm (W) x 97mm (H) x 19mm (D)

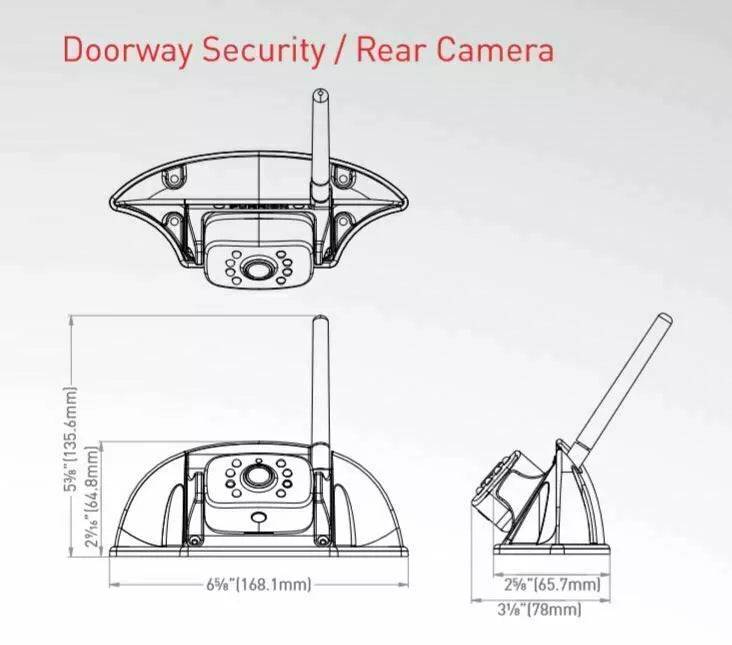

Camera Dimensions	168mm (W) x 65mm (H) x 78mm (D) (excluding antenna)
Camera Specifications
CMOS Size	1/3"
Optical Lens	F2.0
IR Cut Filter	850nm Automatic
View Angle	120 degrees
Night Vision Distance	<16.4ft (5m)
Working Current (IR ON)	<400mA@12V
Working Current (IR OFF)	<250mA@12V
Camera Resolution	720 x 480
Waterproof Rating	IP65
Display Specifications
LCD Size	5"
LCD Resolution	720 x 480
LCD Brightness	440 cd/m2
LCD Contrast	700:1
LCD Viewing Angle	L/R65, U50, D60
LCD Aspect Ratio	16:9
LCD Backlight Current ON	<500mA@12V
LCD Backlight Current OFF	<300mA@12V
Monitor Power Lead	DC 12V cigarette lighter power lead included
Wireless Specifications
Wireless Frequency	2.4GHz
Wireless Range	<492.13ft (150m) (open area)
Channel Bandwidth	20MHz
Emitting Power	18+/-2 dBm
Transmitting Speed	6 Mbps (single)
RF Modulation	OFDM
Receiving Sensitivity	-88 +/-3dBm
Decompression Format	H.264
Delaying Time	<250ms
System Specifications
Supply Voltage	DC8 to 30V
Type Approval	FCC Part 15
Features
Display Features	Anti-glare, Touch screen, Rear assist marker lines
Camera Support	Up to 4 cameras
Mounting Options	Windshield mount, Universal surface mount
Product Details
Model	Vision S Rear-Vision Camera & 5" Display Kit
Brand	FURRION
Product Code	900-02902
Special Notes	Includes DC 12V cigarette lighter power lead. May require CANBUS filters or power relays for vehicles with CANBUS/PWM controlled power circuits.
