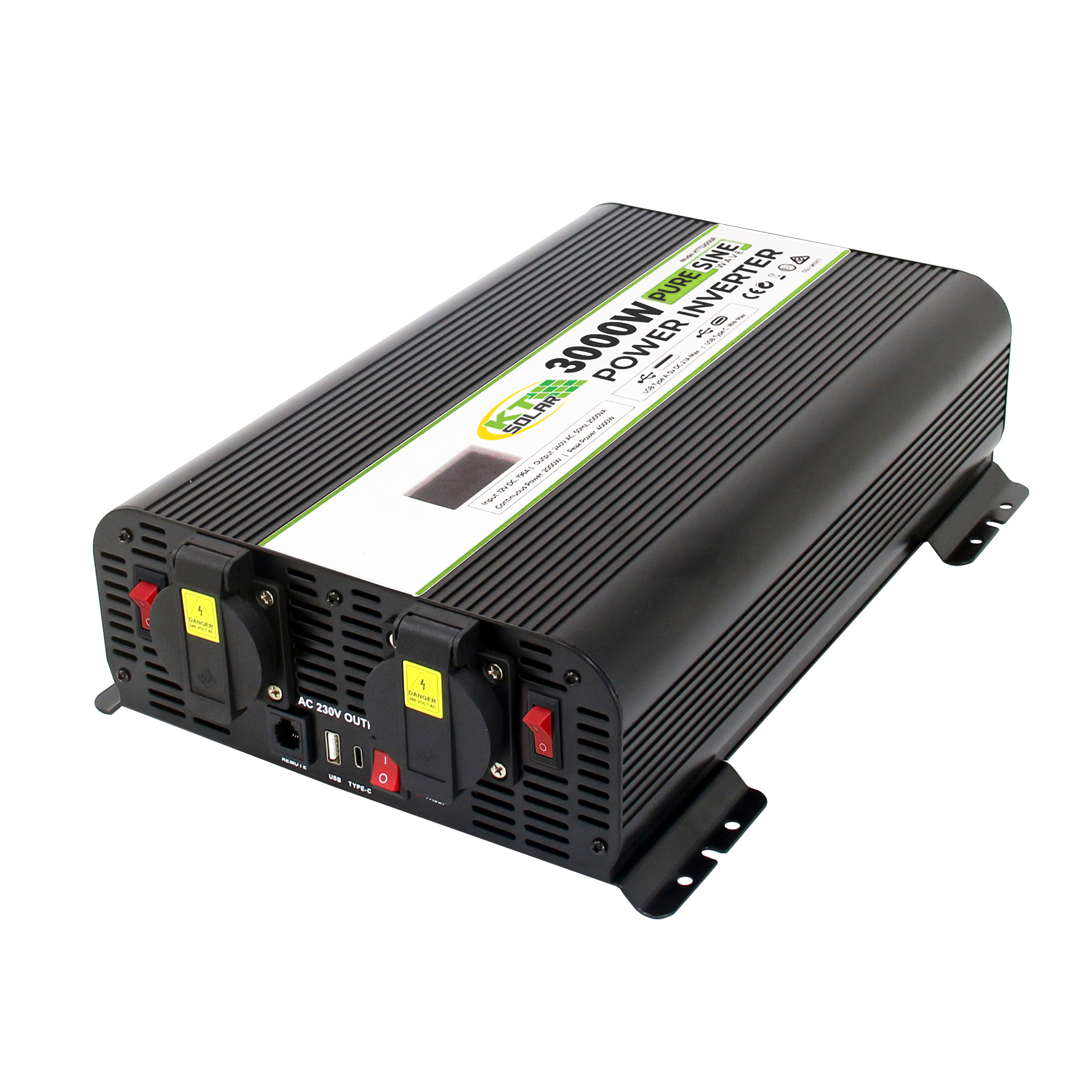

The KT Solar Pure Sine Wave Power Inverters consists of 3 Models, the 1000W (KTTS1000P), 1500W (KTTS1500P) and the 2000W (KTTS2000P).

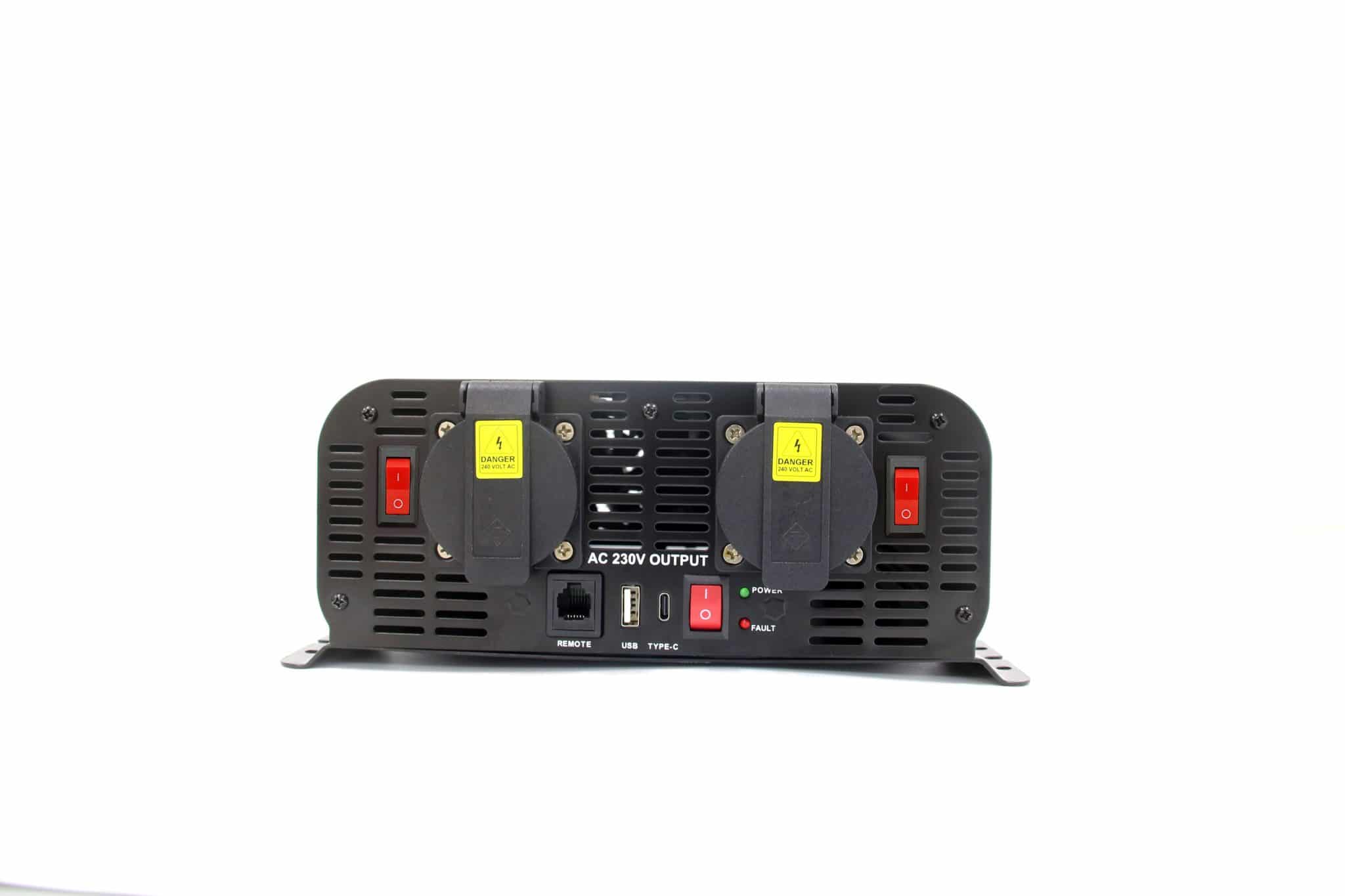

All models feature dual 240V Sockets ( AS/NZS 3112 ) with retracting protective covers, 3 x Illuminating LED ‘On/ Off’ rocker switches, a USB Type A Output & USB Type C Output for efficient charging & powering USB devices. KT PURE SINE WAVE Inverters are easily mounted to surfaces such as walls or floors via mounting hardware included. The internal fan allows for quick cooling to ensure the inverter performance is optimum and operating at a safe temperature.
The LCD Display illuminates blue, displaying Volts, Amps & Watts for battery and load, and also features a compact remote for easy On/Off and Fault Identification.
Each inverter boasts 5 Safety Protection features:
– Input Over Voltage Protection
– Over Load Protection
– Over Temperature Protection
– Output Short Circuit Protection
– Reverse Polarity Protection
Key Features:
• Pure Sine Wave Technology
• Converts DC Voltage to AC Voltage
• Easily power 240V devices without mains access
• 5 Innovative safety protection features
• 240V socket covers for safety protection
• Suitable for use with 12V deep cycle batteries
Specifications:

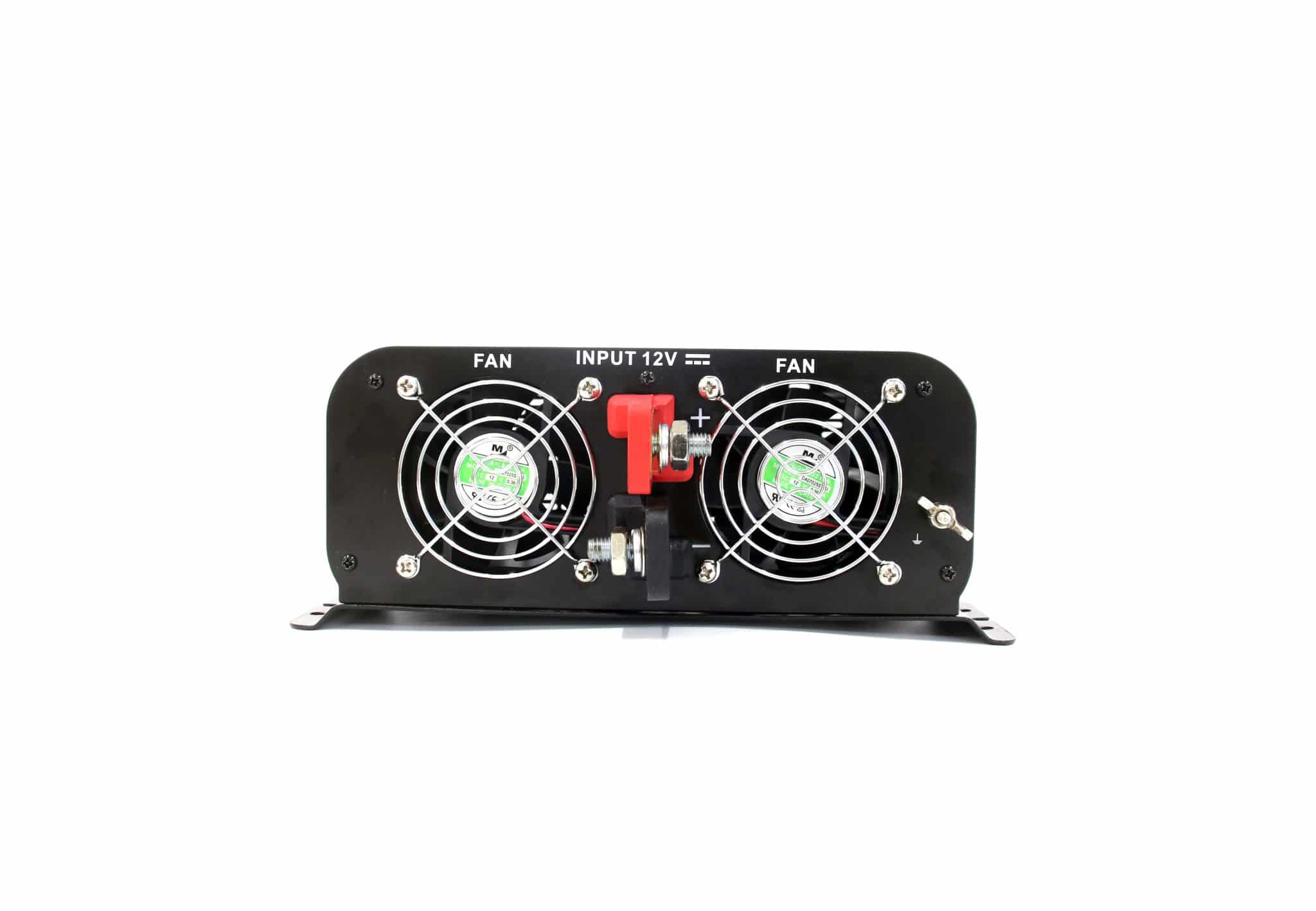

• Input: DC 12V, 196A
• AC Output: 240V AC 50Hz, 2000VA
• USB Output A: 5V DC, 2.1A Max
• USB Output C: 18W Max. 5V DC, 3.1A or 9V DC, 2A or 12V DC 1.5A
• Output Power: 2000W | Peak Power: 4000W
• Low Battery Alarm: DC 10.2 – 10.8V
• Low Battery Shutdown: DC 9.2 – 9.8V
• Thermal Shutdown: 60+5oC
• Replacement Fuses: 35A / 32V x 7
• Inverter Classification: (EPB) Equipotentially Bonded Inverter
Includes:
• 1 x remote control for easy on/off control & power/fault identification
• 2 x 16mm2 red (+) & 1 x black (-) 1.5-4 brass eye terminal leads – 480mm length
• 1 x 6 core (28AWG) crystal head telephone line lead – 6M length
(for remote control connection)
• 1 x grounding PVC cable with 5A nickel plated clamp – 1000mm length
• 4 x mounting screws for mounting inverter
Certifications:
• Inverter AS/NZS 4763:2011
• AU Socket AS/NZS 3112
• USB IEC 62368-1
• EMC IEC 61000.6.4:2012
