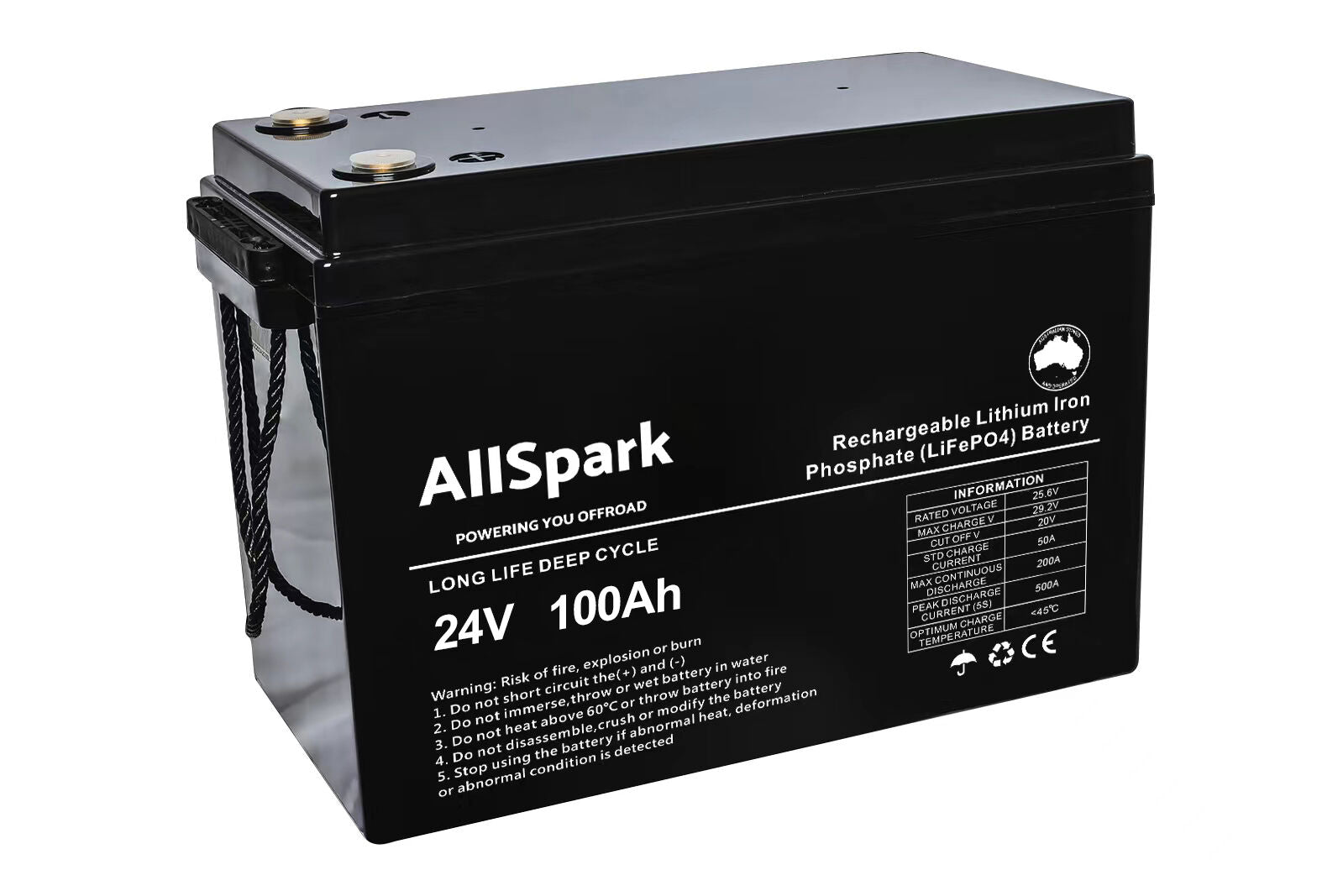

100AH 24V Lithium Battery ABS CASE IP65

SKU AS-10024BATLI200500

$2,199.00

Capacity: 100Ah (C5)

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

100Ah at 25.6V nominal — 2,560Wh
> 3,200 cycles @ 80% depth of discharge
> 4,200 cycles @ 60% depth of discharge
> 5,000 cycles @ 40% depth of discharge
Depth of discharge rated and warranted at 80%
IP65 rated
Parallel connection: Unlimited
Maximum series voltage: 48V

Overview

A 100Ah 24V lithium battery in an ABS case, for 24V systems that do not need a full house bank.

Rated IP65: dust-tight and splash resistant, with a maximum operating temperature of +60°C. That is an internal-mount rating — it is not presented as suitable for exposed under-vehicle or under-bonnet mounting.

Cycle life is rated at more than 3,200 cycles to 80% depth of discharge — the figure that matters is the one measured at the depth you actually use, which is why 60% and 40% DoD give more.

Specifications

Capacity	100Ah (C5)
Rated voltage	25.6V
Energy	2,560Wh
Charge cycles @ 80% DoD	> 3,200
Charge cycles @ 60% DoD	> 4,200
Charge cycles @ 40% DoD	> 5,000
Chemistry	LiFePO4
IP rating	IP65
Batteries in parallel	Unlimited
Max series voltage	48V
Warranty	5 year manufacturer replacement warranty
