Key features
- 100Ah at 51.2V nominal — 5,120Wh
- > 3,200 cycles @ 80% depth of discharge
- > 4,200 cycles @ 60% depth of discharge
- > 5,000 cycles @ 40% depth of discharge
- Depth of discharge rated and warranted at 80%
- IP67 rated
- Parallel connection: Up to 4 (400Ah / 20,480Wh total)
- Bluetooth monitoring built into the BMS
- IEC 62619 certified as a complete battery unit
- Powder-coated stainless steel enclosure

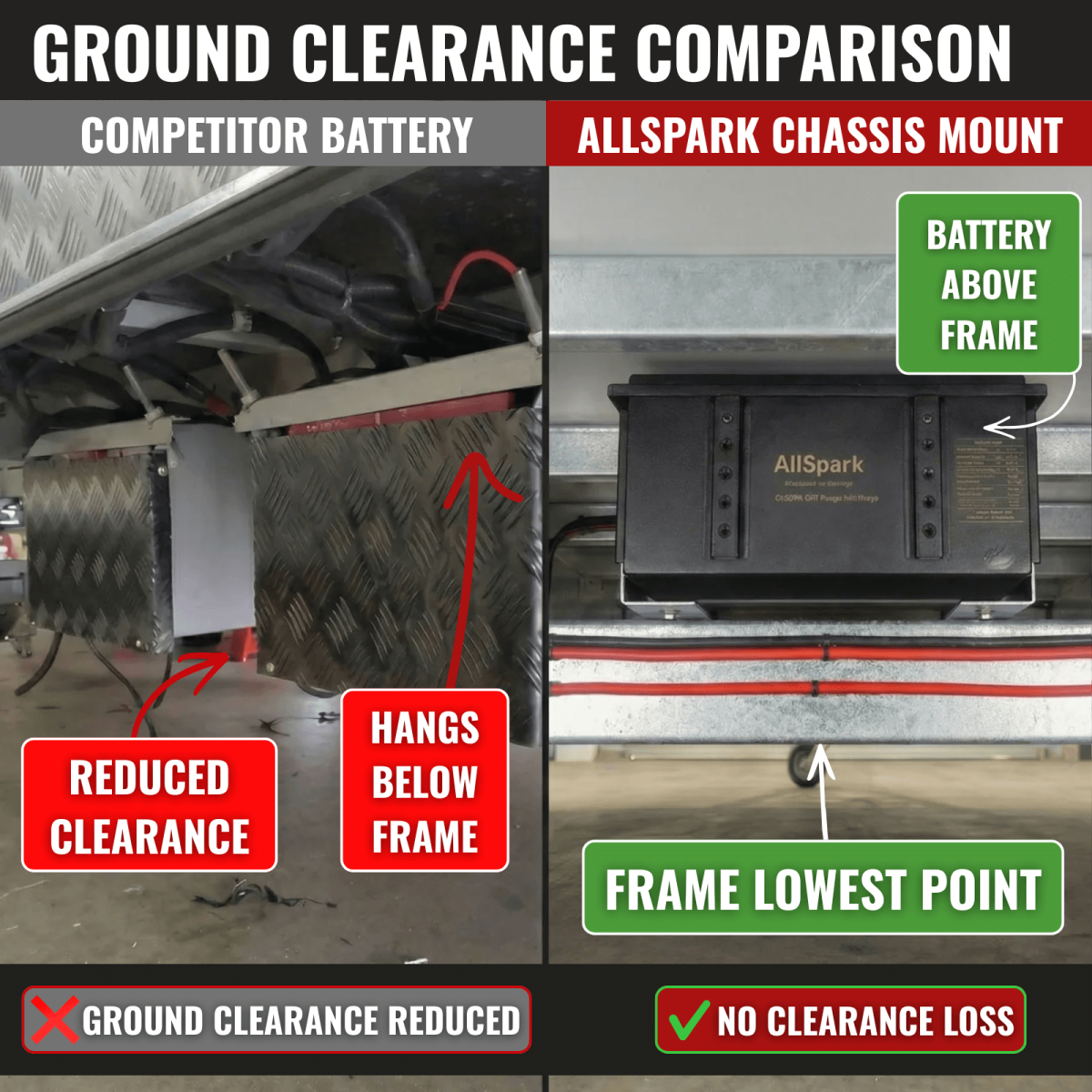

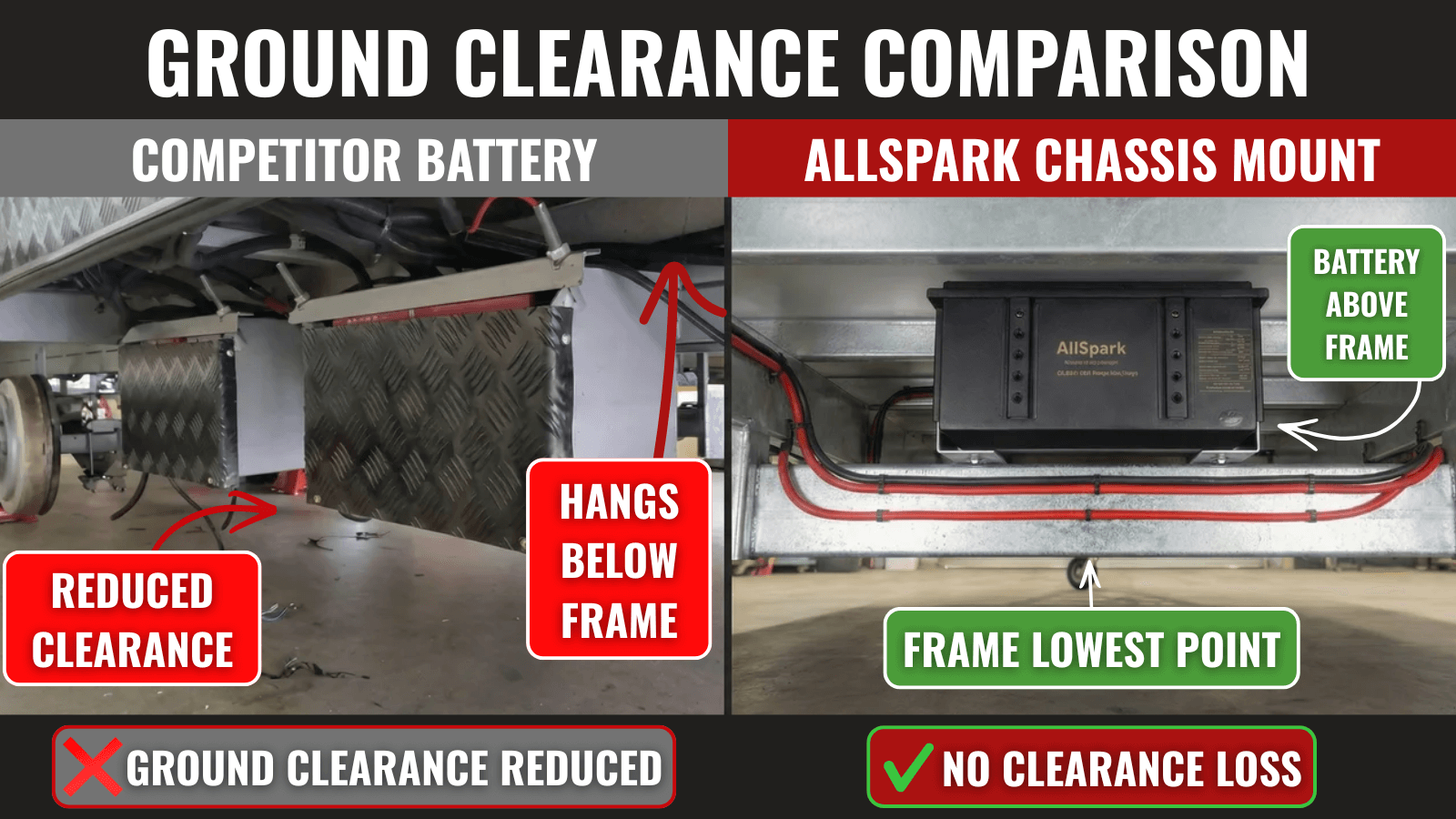

- Mounts above the chassis rail so the frame stays the lowest point
Overview

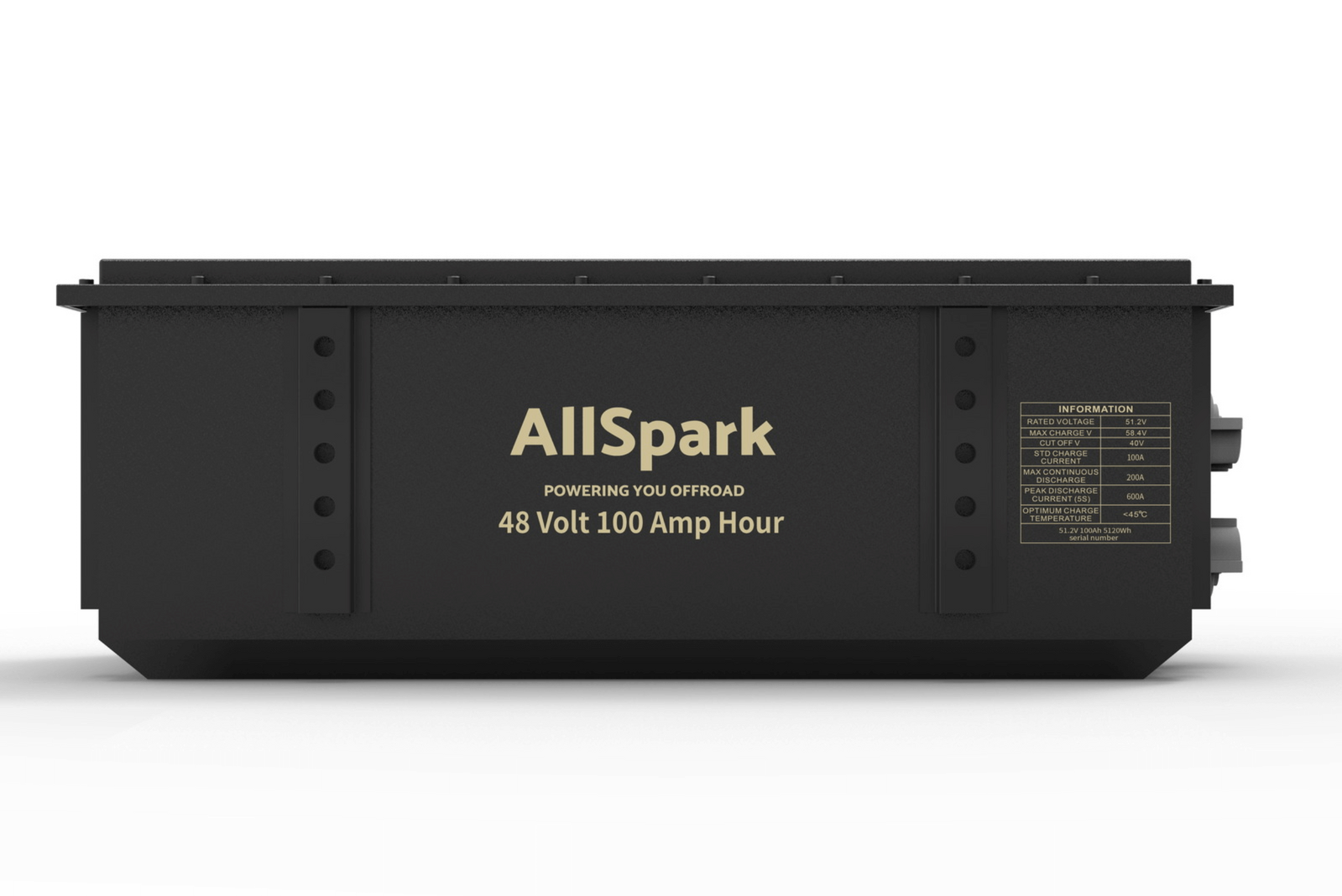

A 100Ah 48V chassis-mount lithium module — 5,120Wh from a single IP67 enclosure. A 48V system runs higher inverter efficiency and lower cable current than the 12V equivalent, which is what makes big loads practical without parallel banks.
Rated IP67, so it tolerates dust and temporary immersion — which is what a chassis-mounted battery needs. Bluetooth monitoring is built into the BMS, so state of charge, voltage and current are on your phone rather than guessed from a dash light.
Cycle life is rated at more than 3,200 cycles to 80% depth of discharge — the figure that matters is the one measured at the depth you actually use, which is why 60% and 40% DoD give more.
Specifications
| Capacity | 100Ah (C5) |
|---|---|
| Rated voltage | 51.2V |
| Energy | 5,120Wh |
| Charge cycles @ 80% DoD | > 3,200 |
| Charge cycles @ 60% DoD | > 4,200 |
| Charge cycles @ 40% DoD | > 5,000 |
| Chemistry | LiFePO4 |
| IP rating | IP67 |
| Batteries in parallel | Up to 4 (400Ah / 20,480Wh total) |
| Warranty | 5 year manufacturer replacement warranty |
