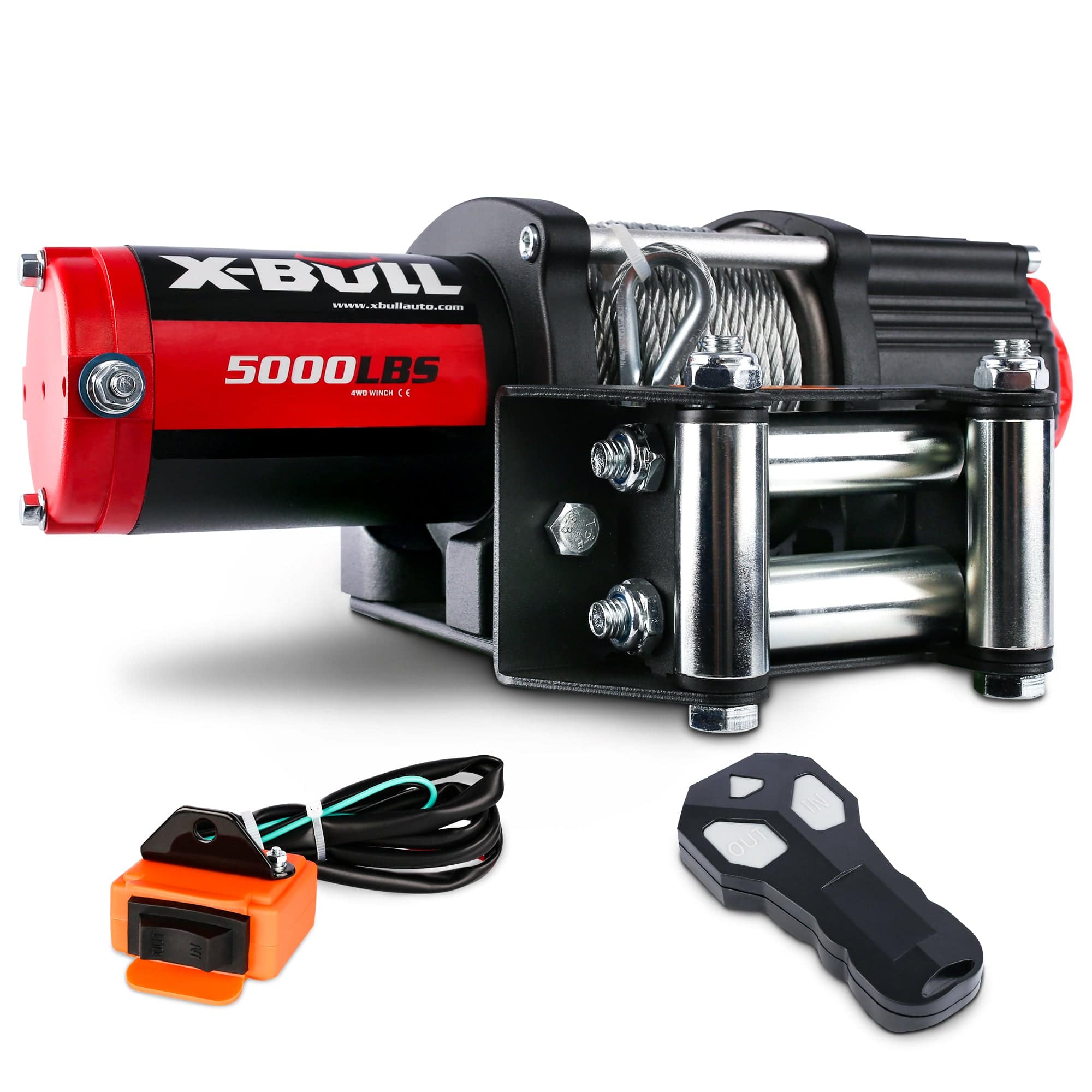

The X-BULL 5000lbs is one of our new X-BULL high-efficiency winches for all offroad and life-loving customers in 2021. Over the past few years, we document the product issues, needs and recommendations that our customers focus on, and have overcome and implemented it one by one. Notably, the X-BULL 5000lbs uses the stronger 500A relays on the market. We consolidate gearboxes, update ergonomic clutches, and upgrade remote controls, which make our customers more comfortable with their use. XX-BULL is to always strive to provide customers with quality items, excellent service, and constantly listen to the views and needs of customers, to become your life partner.
What do you need to focus on most?

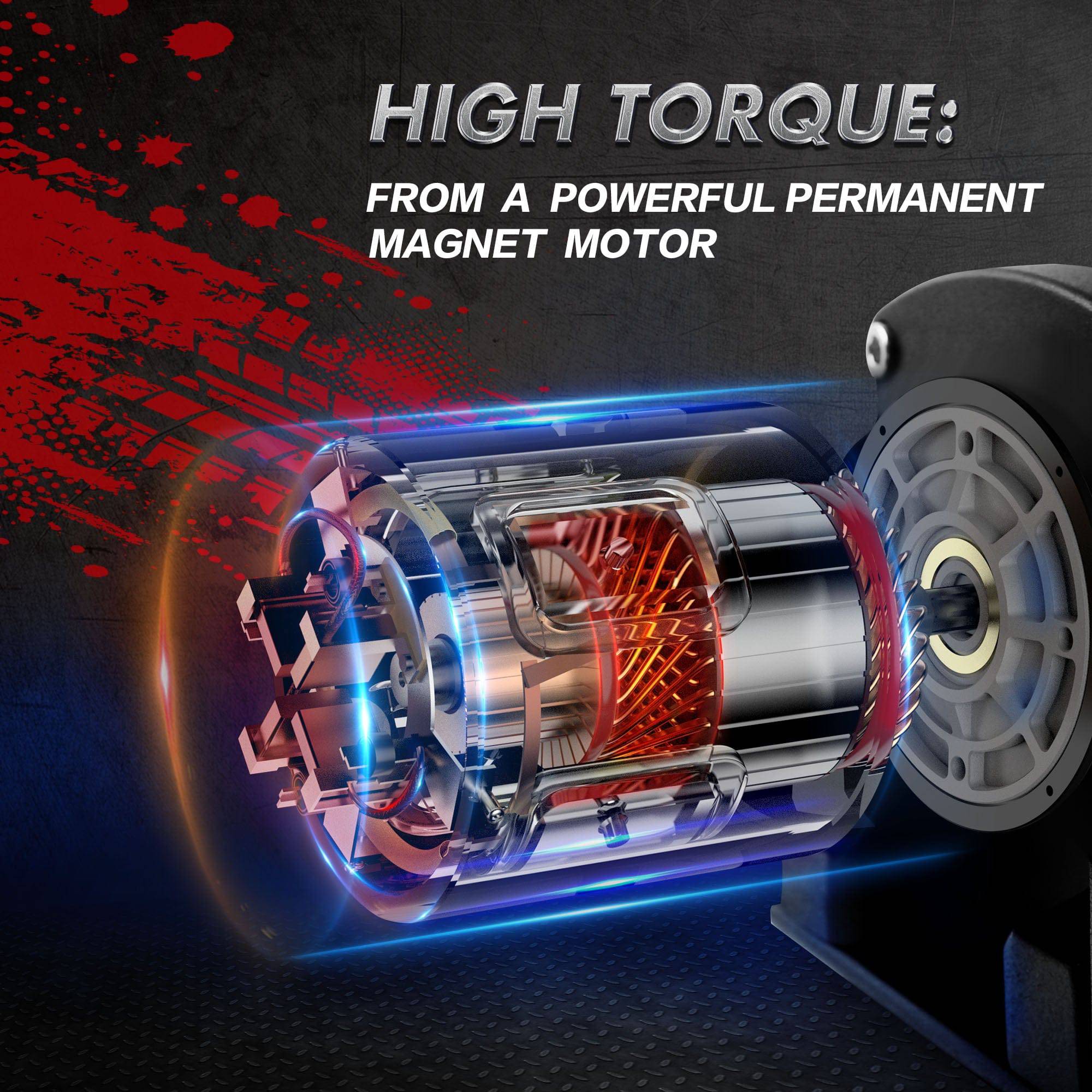

MOTOR:
Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.

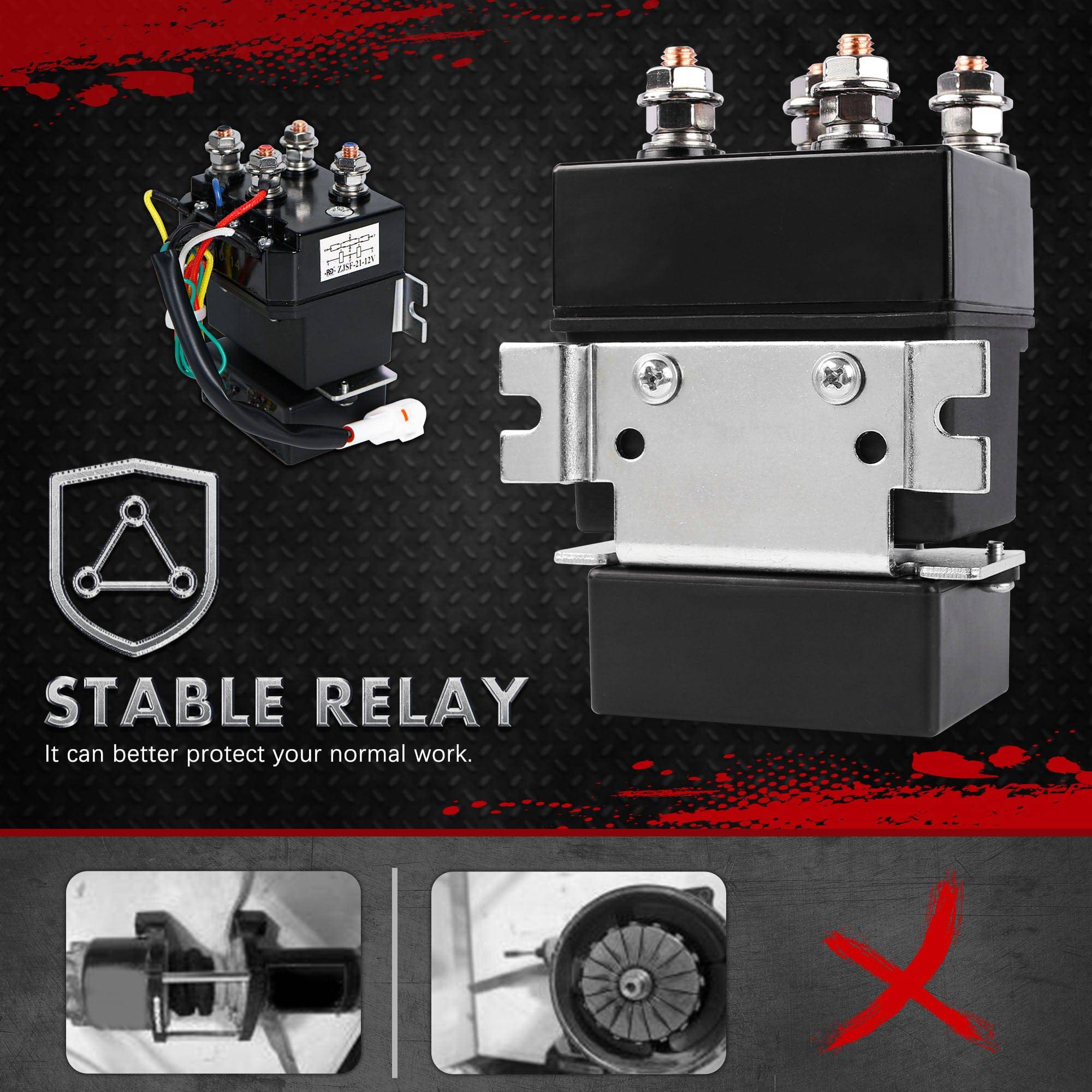

Winch Solenoid Relay:
Small or mismatched relays can cause a burning phenomenon. So we need to use a suitable relay for different winches,not necessarily an overload protector if your winch has a perfect relay. The X-BULL 500A relay is truly insulable, durable and stable, avoiding winch damage due to insufficient relay power.
3-Stage Planetary:
The real 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration (growth).

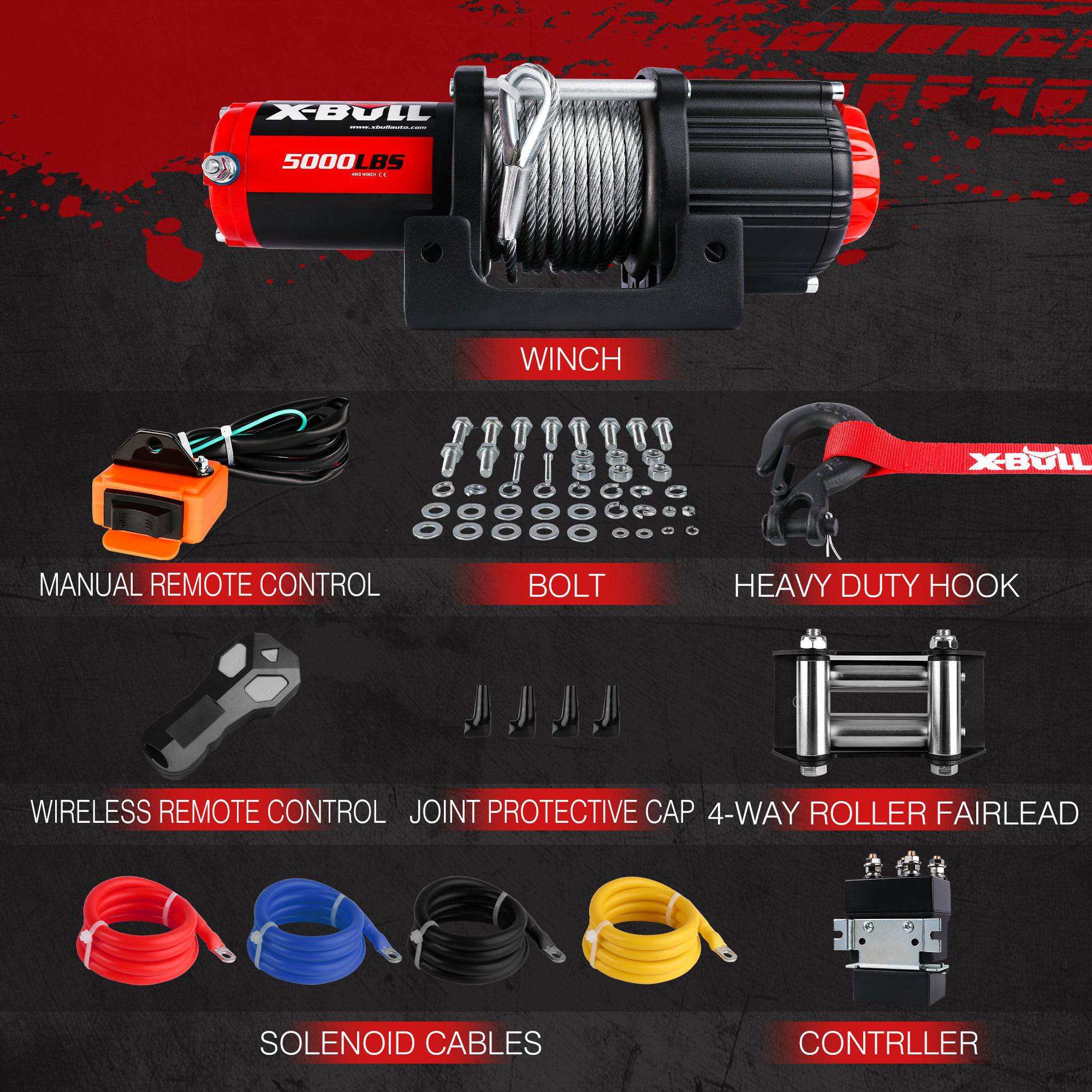

Tn The Box
5000LBS Winch x1

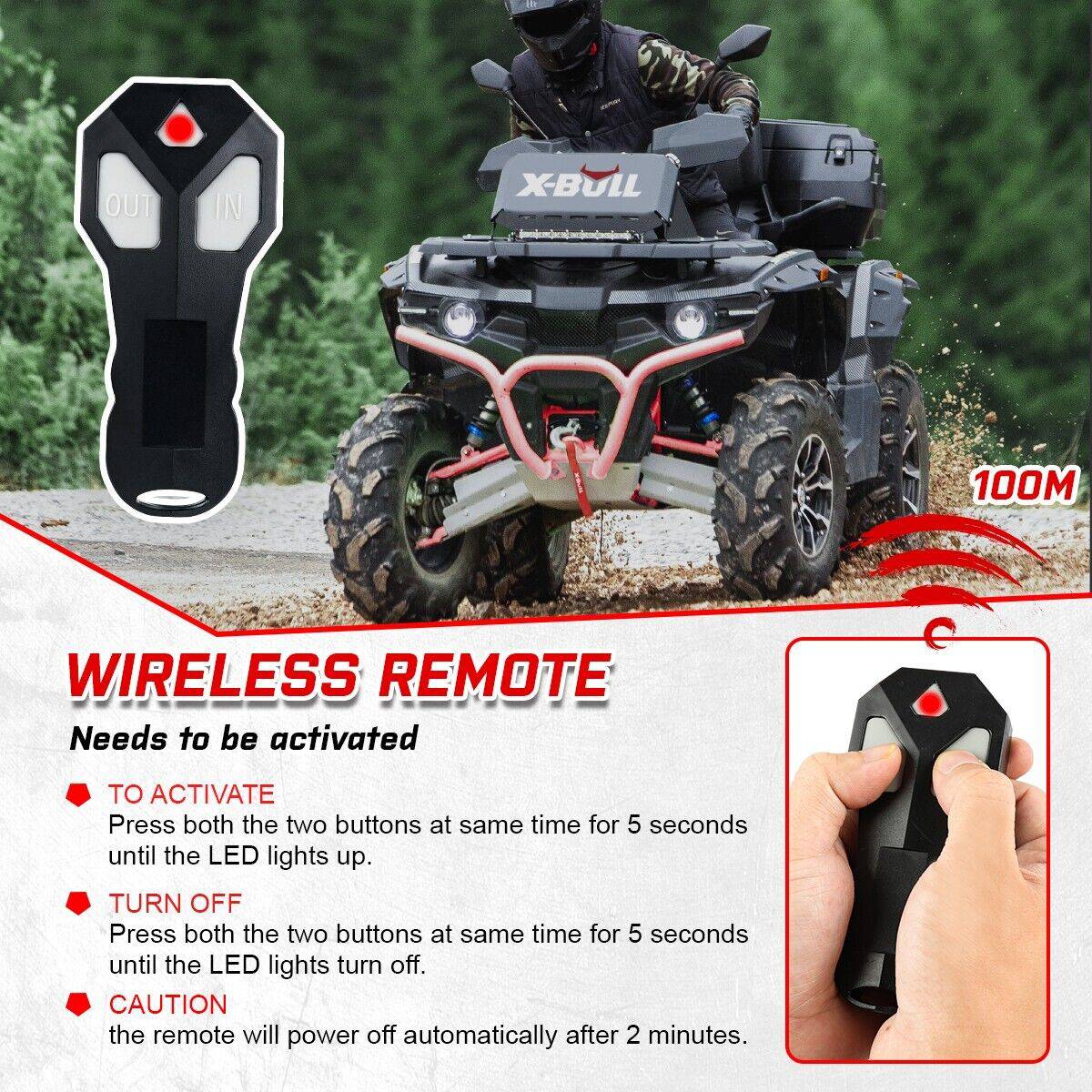

Wireless Remote Control x1
User Manual x1

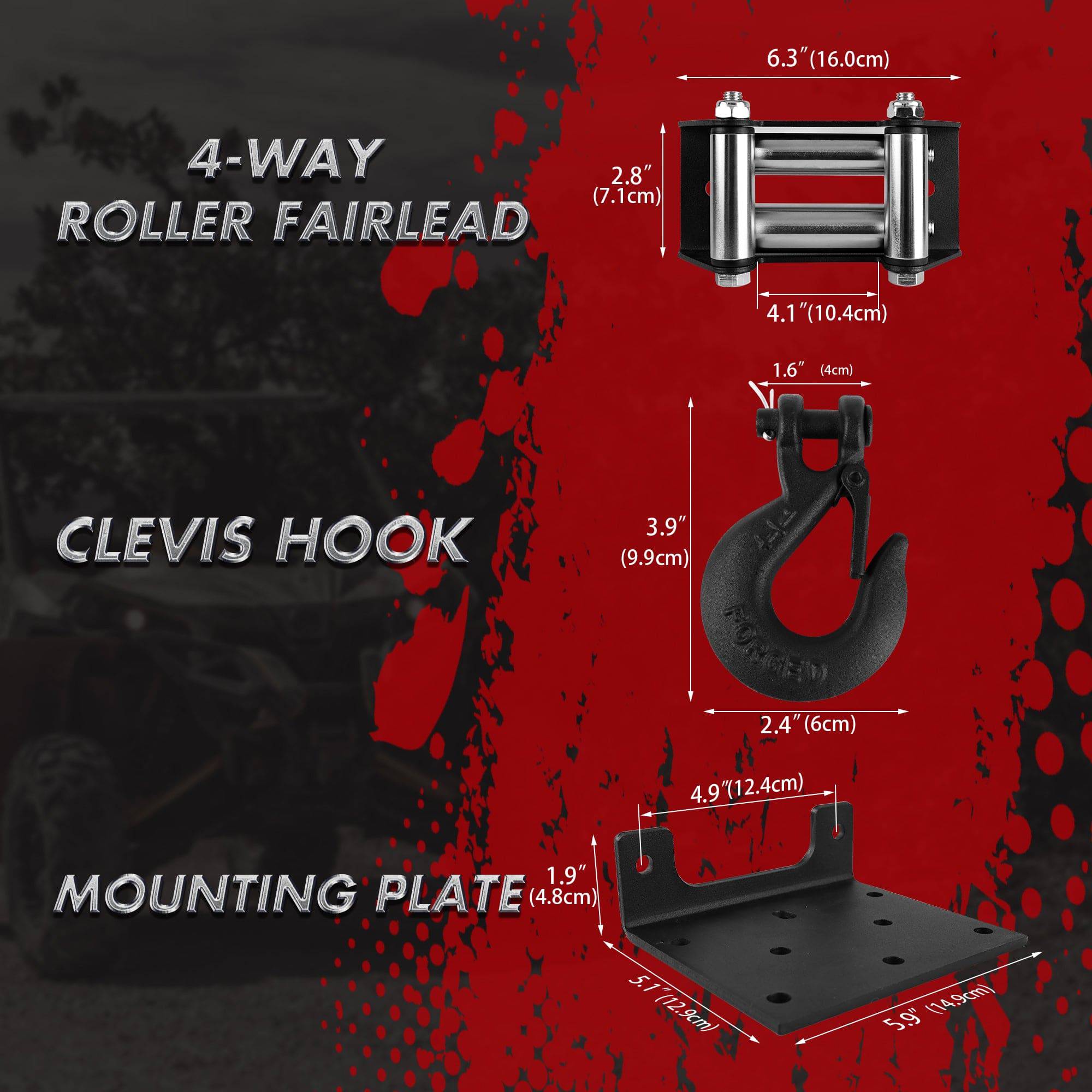

4-Way Roller Fairlead x1
Joint Protective cap x4
Controller(solenoid+receiver)
Winch Mounting Plate x1
Solenoid Cables x4
Set of Bolts x1
Clevis Hook x1
Hand Remote Control x1
Specifications
Rated Single Line Pull: 5000lb.(2268kg)

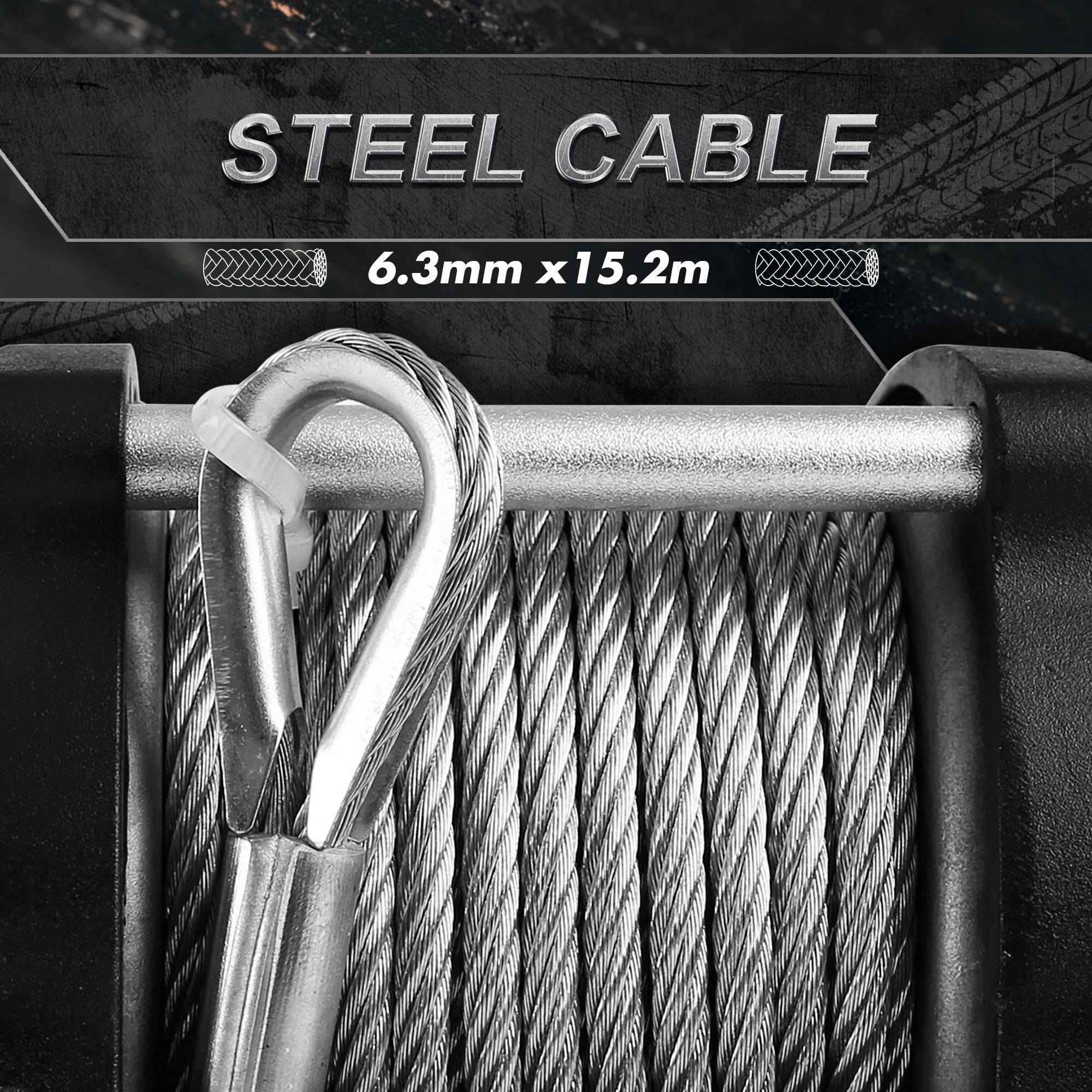

Steel Cable: 1/4'' x 50' (6.3mm x 15.2m)
Winch Certification: CE
Battery: 12VDC, Minimum 12Ah
Duty Cycle Rating: 5% (45 sec at Max Rated Load: 14 min, 15 sec Rest)
Overall Dimensions(L X D X H): 15.8'' X 4.6'' X 4.7'' (400 X 116 X 119mm)
Application:ATV/UTV/BOAT
Mounting Pattern: 3'' x 6.6'' (76.2mm x 167.6mm)
Motor:12VDC 1.5 HP Permanent Magnet
Gear train: 3-Stage Planetary
Adaptor Plate: 2x G8, M8-1.25 X 25mm

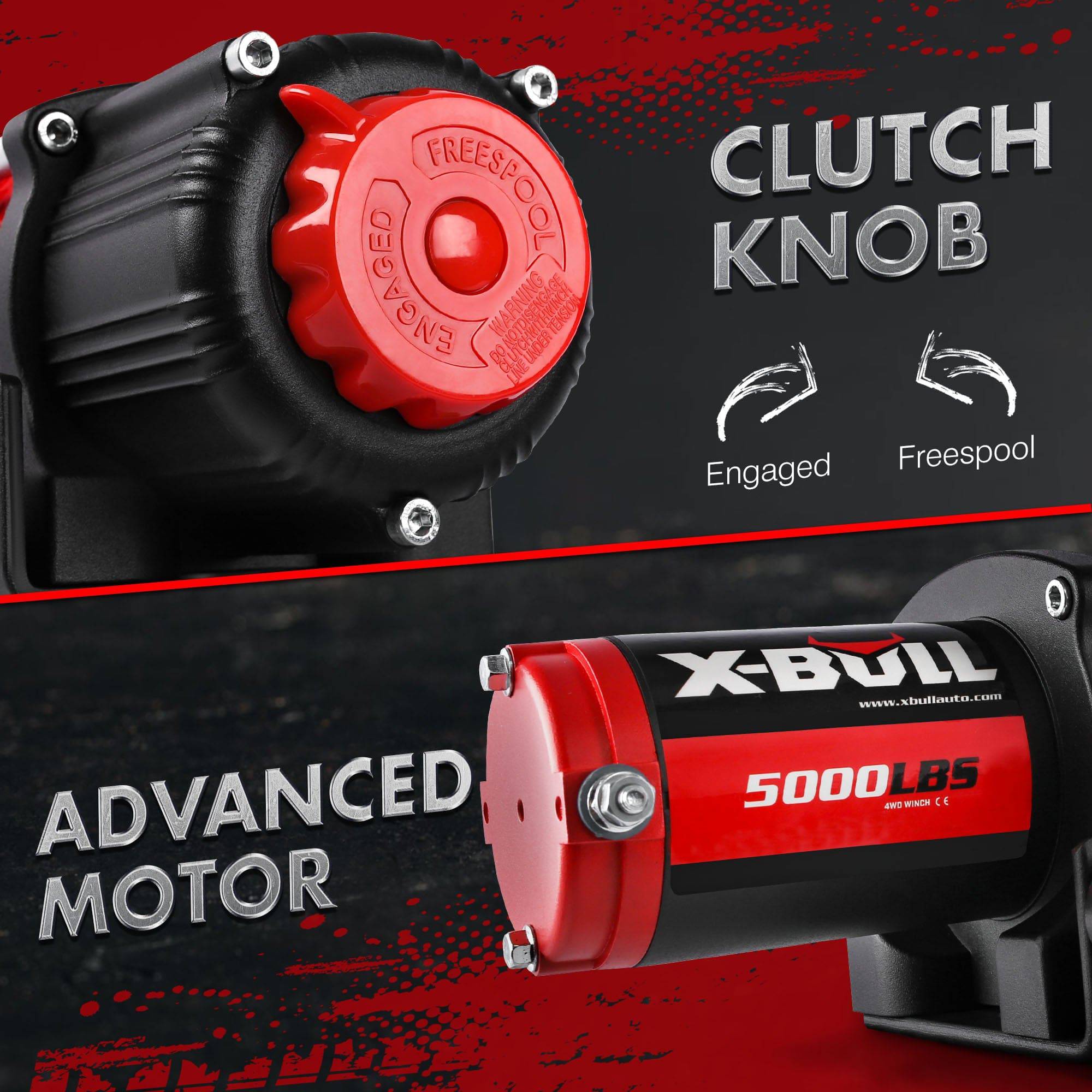

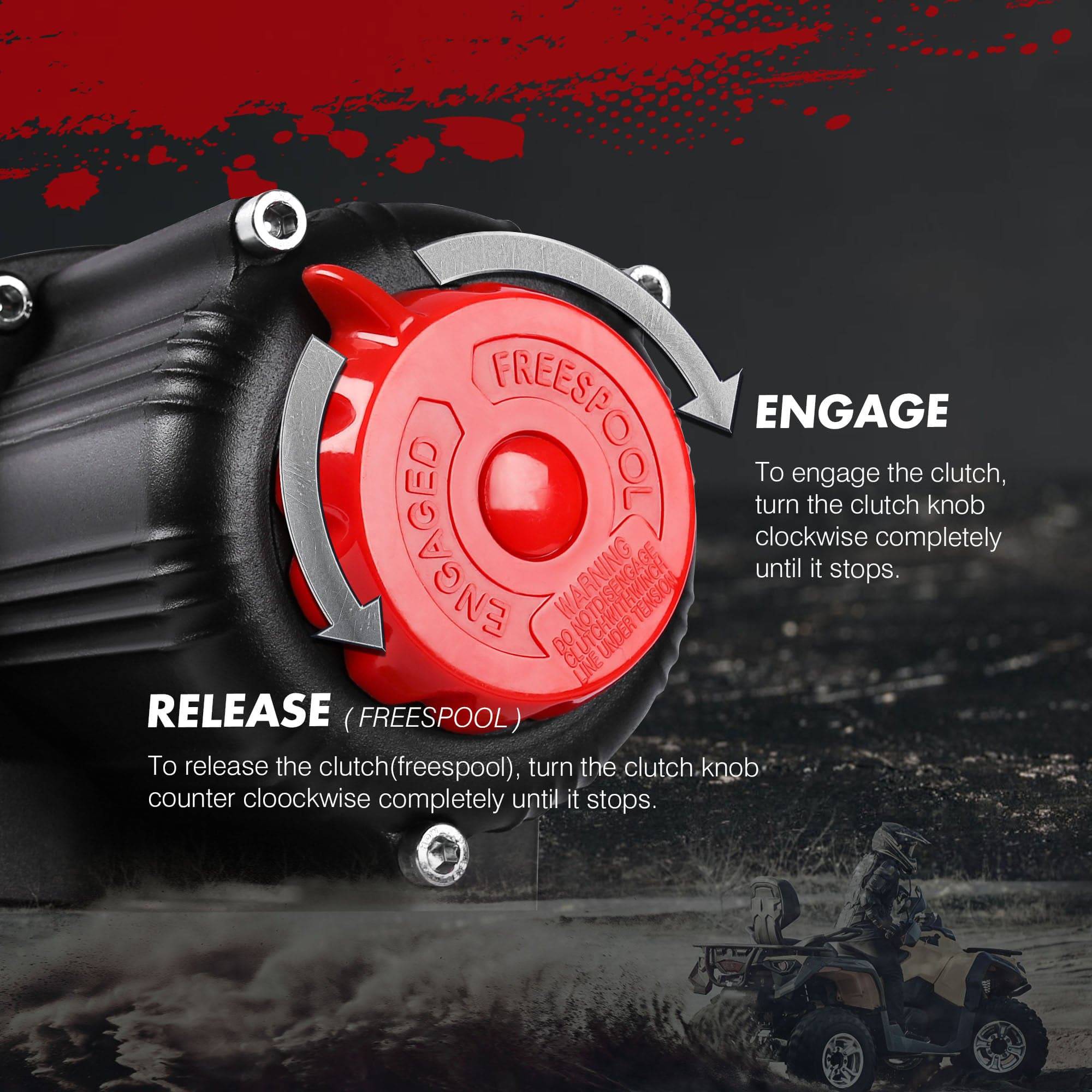

Freespool: Cam Activated
Fairlead: 2x G8, M8-1.25 X 20mmHook:1/4" Clevis, with Spring-loaded Safety Latch
Socket Lead: 2x G8, ST-M4 X 30mm
Sound Rating: 85 dB
Fairlead: Roller with nylon bushings
Weight: 26.45lb. (12kg.)
IP Rating: IP 66-Winch and Controls(except remote switch, resistant to powerful water jets??
