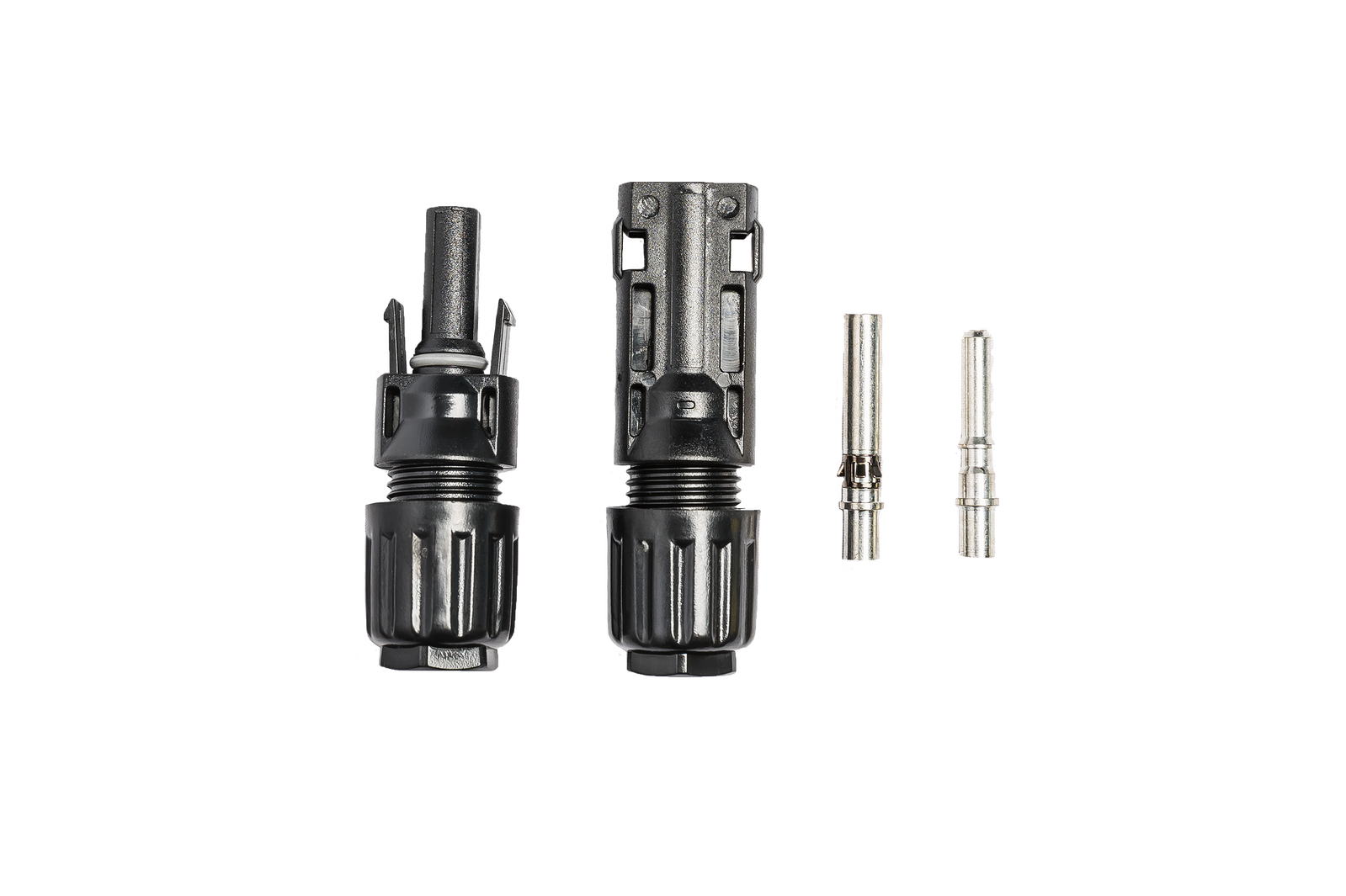

The AllSpark MC4 Solar Connector Pair is the industry-standard solution for making safe, weatherproof connections between solar panels and your charge controller, battery system, or solar combiner. Designed for 4mm² (12 AWG) solar cable, these connectors feature a secure locking snap mechanism and are rated to IP67 — meaning they are completely dust-tight and can withstand temporary water immersion, making them fully suited to the harsh, unpredictable conditions of Australian outback travel and coastal caravanning. Each pair includes one male and one female connector, both manufactured from UV-stabilised polymer housing with tinned copper contacts rated to 30A continuous current and up to 1000V DC, ensuring reliable conductivity and corrosion resistance across years of outdoor service.

Whether you're wiring a rooftop solar array on a caravan, connecting portable folding panels on a 4WD camp setup, extending solar leads on a motorhome or camper trailer, or building a DIY off-grid power system at a remote campsite, these MC4 connectors are the go-to choice for Australian campers and caravanners. The universal MC4 format is compatible with virtually all solar panels on the market, giving you the flexibility to mix and match panels, extend existing runs, or replace damaged connectors quickly — even in the field. Their tool-free mating design means connections can be made and broken without an MC4 spanner, while the positive-lock mechanism ensures they won't vibrate loose on corrugated outback tracks or during long highway tows.

Key Features

• One male + one female MC4 connector included — ready to wire as a matched pair
• Rated IP67 weatherproof — dust-tight and resistant to temporary water immersion
• 4mm² cable compatibility with tinned copper contacts rated 30A / 1000V DC
• UV-stabilised polymer housing for long-term outdoor and rooftop solar exposure
• Universal MC4 format — compatible with virtually all solar panels and solar accessories
