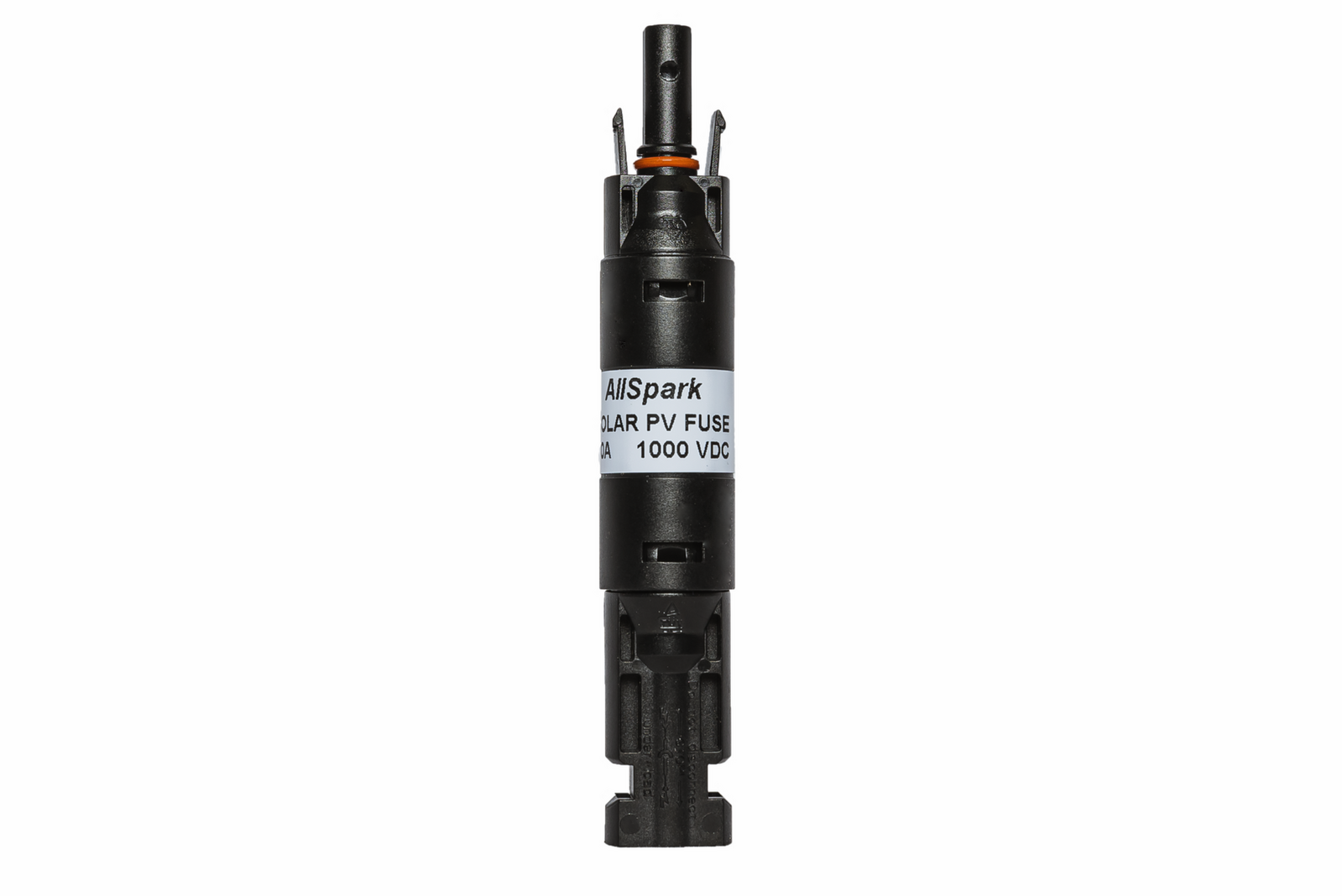

AllSpark Inline MC4 Fuse 15A 1000V DC

Name: AllSpark Inline MC4 Fuse 15A 1000V DC
Brand: AllSpark
SKU: CPA-MC4FUSE15A1000V
Price: 15.0 AUD
Availability: InStock

AllSpark Inline MC4 Fuse 15A 1000V DC

$15.00

An inline MC4 fuse rated 15A at 1000V DC, for protecting individual solar panels in a string. Fit one on the positive cable of each panel before connecting that panel to another in series or parallel — without it, a fault in one panel can be back-fed by every other panel on the array.

The 15A fuse suits any panel with a short-circuit current (Isc) up to 12 amps. Check the Isc on your panel's label rather than guessing from its wattage.

Features

+

15A inline fuse in an MC4-compatible housing
Suits panels with a short-circuit current (Isc) up to 12A
Rated 1000V DC
IP67 sealed, Safety Class II, Flame Class UL94-V0
Tin-plated copper contacts, PPO insulation
Fit one on each positive cable before connecting panels in series or parallel

Specifications

+

Fuse rating	15A
Maximum panel Isc	12A
Rated voltage	1000V
Test voltage	6kV (50Hz, 1 min)
Contact resistance	<5 mΩ
Contact material	Tin-plated copper
Insulation material	PPO
Degree of protection	IP67
Safety class	II
Flame class	UL94-V0
Insertion force	Max. 50N
Withdrawal force	Min. 50N
Ambient temperature range	−40°C to +85°C (IEC)
Suitable cable size	14 / 12 / 10 / 8 AWG
