Jarrett 8000 Series Brake Winch 10:1 - 7.5m x 6mm Cable & Snap Hook - Winch rated at 500kg capacity.
Note: F18260 is used on 500kg Backsaver Crane – Product Code: F19001 Recommended for lifting applications. Self actuating brake requires a minimum of 18kg to operate safely. Winches are not intended for the movement of people.
(WB-F18260)
Note: Common user problem with the 8000 Series range of winches is the brake mechanism does not work when first assembled. When packaged, the winch and handle are separate and need to be assembled as per the instructions included. Handle Assembly is: The handle adaptor is turned clockwise until the ratchet is engaged prior to attaching the handle and securing with screw.

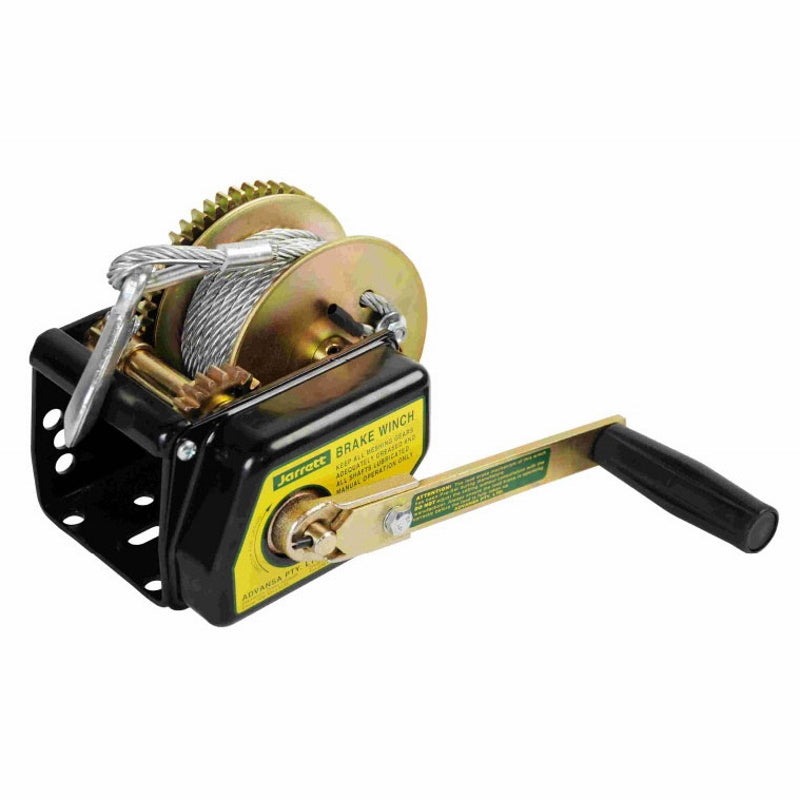

8000 Series Brake Winch
Model : F18260 Gear Ratio: 10:1 Application: Lifting Rated Capacity: 500kg (4900N) Mass (Winch only): 6kg Type of Brake: Self Actuating Drum Diameter: 50mm Flange Diameter: 130mm Drum Width: 52mm Cable size: Ø6mm Maximum Cable Capacity: 12m x Ø6mm Max. Effort on handle at Rated Load: 18kg Cable Breaking Strain: 2712kg Cable (Galv) as supplied: 7.5m x Ø6mm Fastening Device: Snap Hook
F18230 is used on 300kg Backsaver Crane – Product Code: F12643 F18260 is used on 500kg Backsaver Crane – Product Code: F19001
