FURRION 9000 BTU Rooftop Air Conditioner - 2.6kW Furrion

FURRION 9000 BTU Rooftop Air Conditioner - 2.6kW

SKU 100-04012

$1,799.50

$1,599.50

Save $200.00

Cooling Capacity: 2637W
Product Weight: Net: 42kg
Product Dimensions: 738mm
Operating Temperature Range: From -7°C to +43°C

All specifications

or pay now with

Questions? for expert advice, or read our buying guides

Key features

Multi-fit (36x36 or 40x40cm) enclosed gasket kit included
3 Speed Fan – Hi/Med/Low
Remote Control
Rubber Dampers for noise & vibration
Led Strip on the Plenum
Sleep Mode
Automatic Mode
On/Off Timer Mode
18°C to 30°C Temp Range
Dual Fan Motors
Heat Pump
Overload Protection for Safety

Overview

The Furrion 2.6kW BTU Underbench Air Conditioning Unit is an ideal solution for small to medium-sized RVs, combining space-saving design with high-efficiency performance. It offers both cooling and heating capabilities with its reverse cycle heat pump, making it suitable for year-round comfort. The unit features fan-only mode, dehumidification, auto mode, and is controllable via remote or wall pad. With low power consumption and sleek concealment options, it’s perfect for the Australian climate.

Features:

Fan-only mode and dehumidification
Timer on/off function
Auto mode based on room temperature
High efficiency and low power consumption
Remote or wired wall pad control

Specifications:

Cooling Capacity: 2637W
Heating Capacity: 3223W
Input Voltage: 220-240V (AC)/50Hz
Input Current: 4.2A (nominal), 22.5A (locked rotor)
Input Power: Cooling 925W, Heating 1250W
Max Airflow: 350m³/h
Refrigerant: R 410A, 620g
Protection Class: IP X5
Operating Temperature: -7℃ to +43℃
Dimensions: 398mm (W) x 296mm (H) x 734mm (D)
Weight: 28kg

*Ducting sold separately (5m and 10m rolls available for standard and large van installs).

Download Manual PDF

Common questions

How big a van will 2.6kW handle?

Small to medium. In a compact, well-insulated van with the blinds down it holds temperature nicely. Put it in a long van or a canvas-ended camper in the Top End and it will run flat out without ever catching up. Match the box to the space, not to optimism.

Will it heat the van on a frosty morning?

Down to a point. The heat pump works from -7°C, but like every heat pump it gets weaker as the outside air gets colder, so at the bottom of that range it is taking the edge off rather than warming the van. Below that, a diesel heater is the answer.

What about noise at night?

It is the usual rooftop trade: dual fan motors and rubber dampers take the edge off, but a compressor a metre above your pillow is never silent. Sleep mode drops the fan back, which most people find is the difference between background hum and lying awake.

Delivery, returns & warranty

Warranty Details

+

12 Month Manufacturer Warranty

Specifications

Performance
Cooling Capacity	2637W
Heating Capacity	2784W
Maximum Outlet Airflow	490m³/h
Operating Temperature Range	From -7°C to +43°C
Temperature Control Range	18°C to 30°C
Electrical Specifications
Input Supply Voltage	220-240V(AC)/50Hz
Cooling Mode	Input Power: 1000W, Input Current: 4.2A (nominal)
Heating Mode	Input Power: 800W
Locked Rotor Current	22.5A
Technical Details
Refrigerant Type/Quantity	R410A/620g
Protection Class	IPX5
Fan System	Dual Fan Motors, 3 Speed (Hi/Med/Low)
Features
Control Features	Remote Control, Sleep Mode, Automatic Mode, On/Off Timer Mode
Safety Features	Overload Protection, Rubber Dampers for noise & vibration
Additional Features	LED Strip on Plenum, Heat Pump, Multi-fit (36x36 or 40x40cm) enclosed gasket kit
Physical Specifications

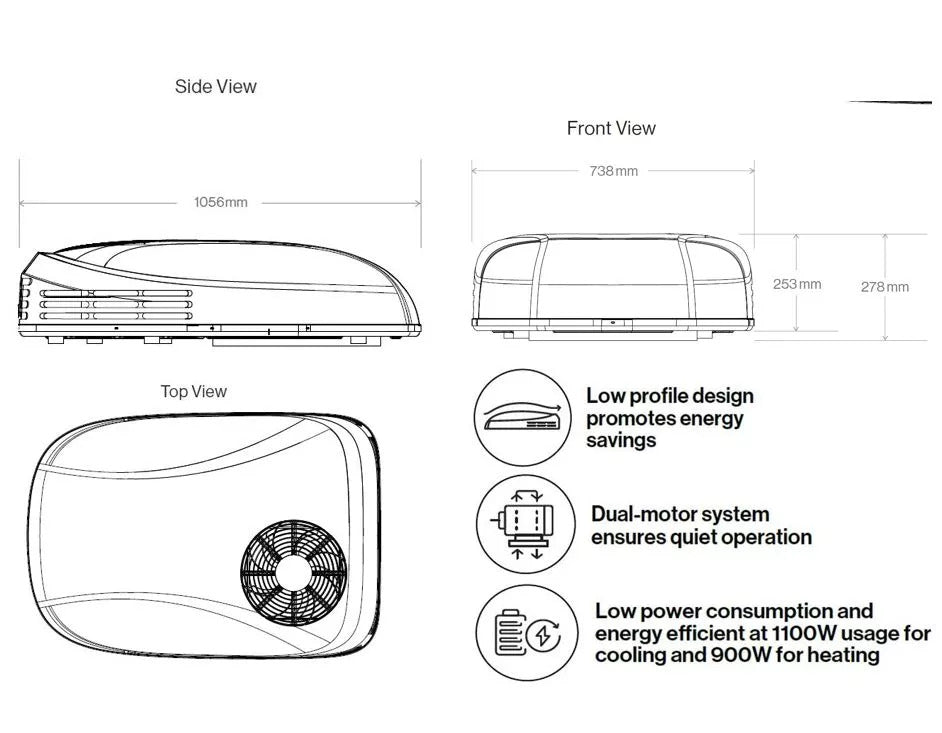

Product Dimensions	738mm (W) x 278mm (H) x 1056mm (D)
Product Weight	Net: 42kg
Shipping Information
Shipping Dimensions	1200mm (L) x 800mm (W) x 600mm (H)
Shipping Weight	50kg
Shipping Volume	0.576m³
Product Details
Model	FACR09SM-PS
Brand	Furrion
SKU	100-04010
Barcode	OEBC538409
