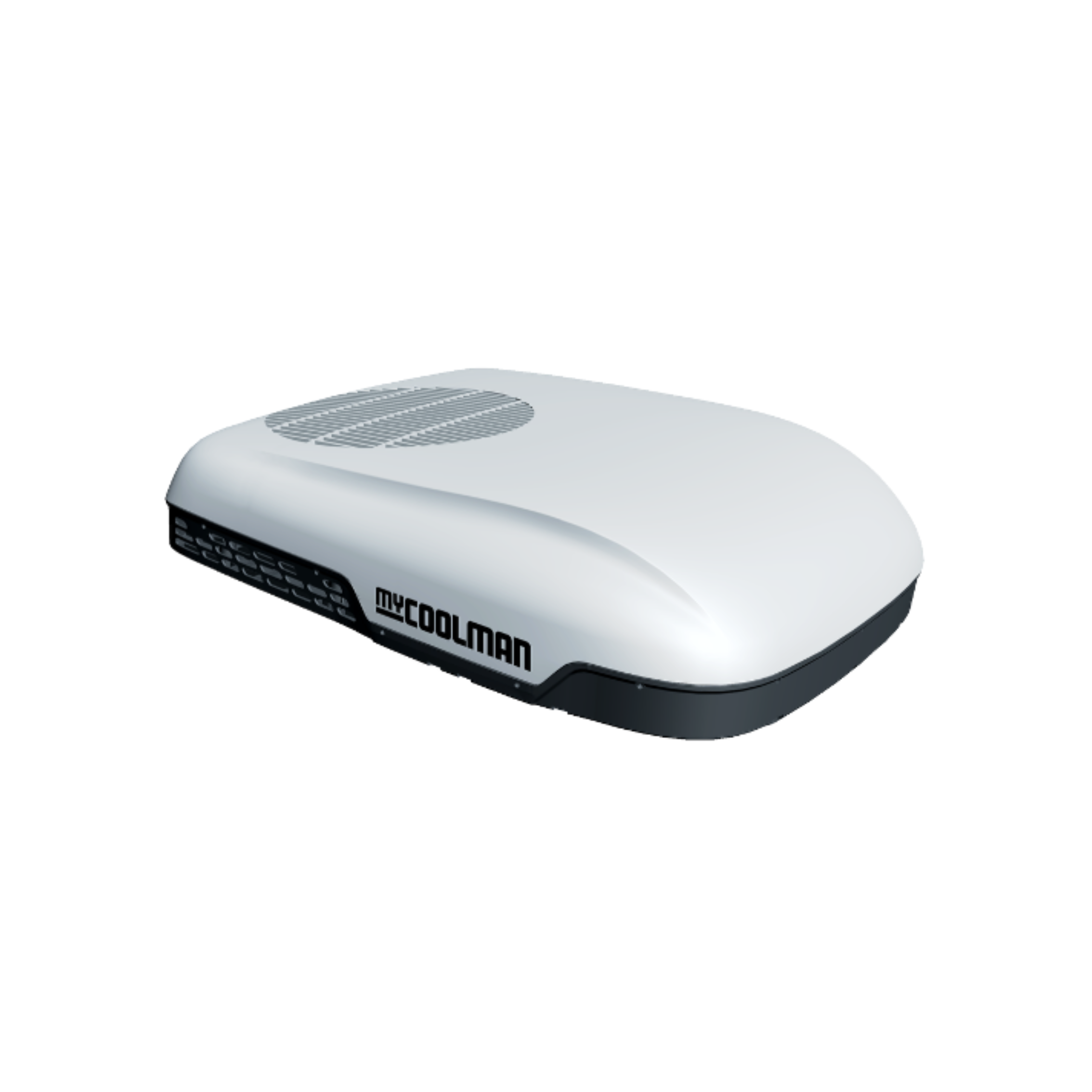

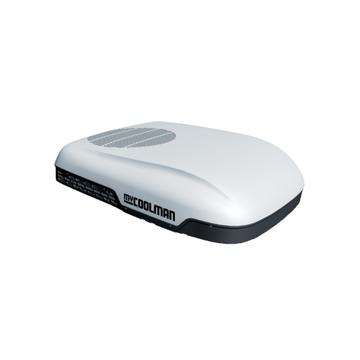

myCOOLMAN Roof Top Air Conditioner, 3-Year Warranty
Are you tired of sweltering summer days and restless, sweaty nights and shivering in the Winter months? Say goodbye to discomfort and welcome the myCOOLMAN Roof Top Air Conditioner designed to transform your living spaces into pure comfort.

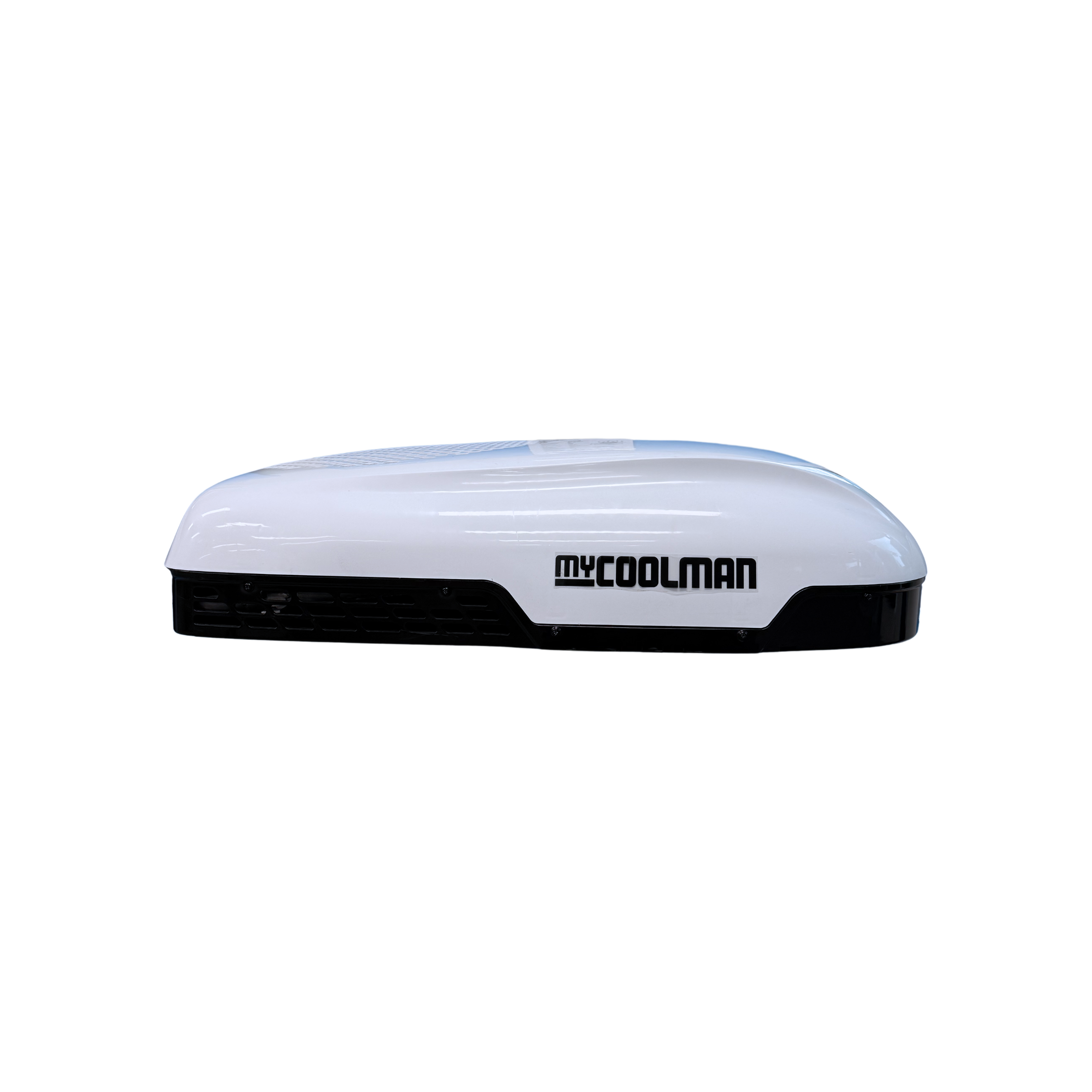

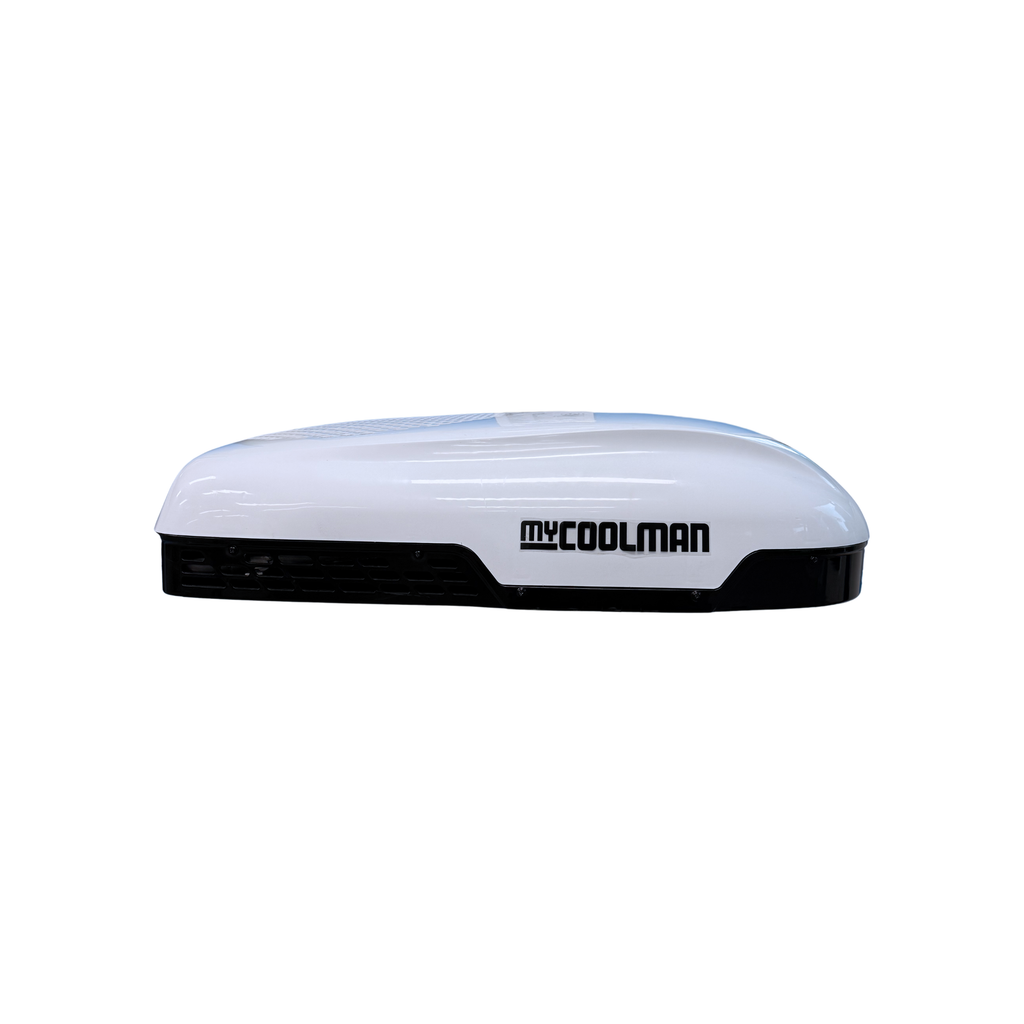

Sleek, Modern Aerodynamic Design: The myCOOLMAN Roof Top Air Conditioner not only cools and heats but also elevates your space with its sleek, modern, aerodynamic design.

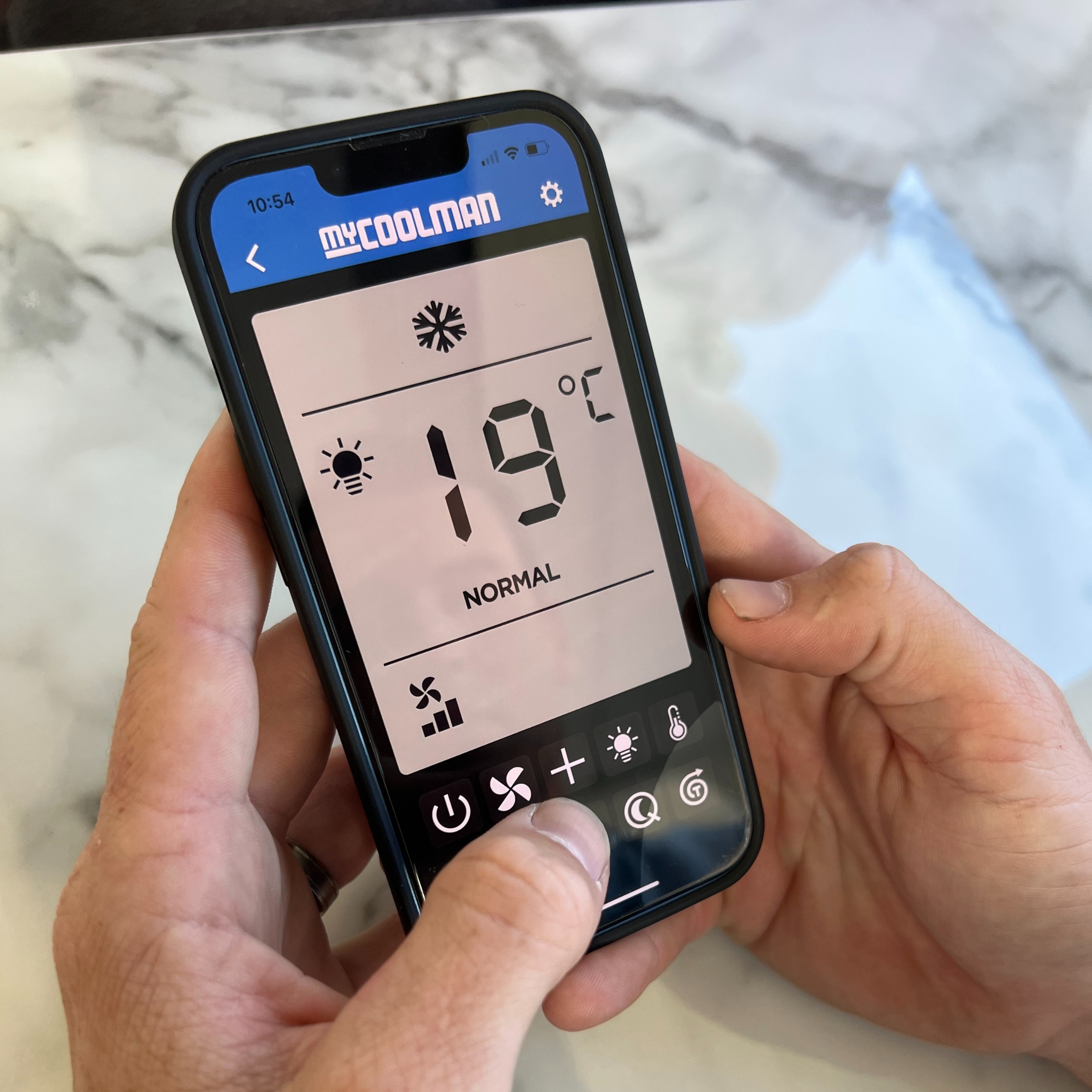

Full Bluetooth Capability: The myCOOLMAN Roof Top Air Conditioner is not just about cooling and heating; it's about convenience. With full Bluetooth capability, you can control and monitor your system directly from your smartphone, ensuring the perfect environment wherever you are.
Powerful 2700w (2.7kW) Output: With 2700 watts (2.7kW) of cooling and 2500W (2.5kW) heating power, the myCOOLMAN provides rapid and efficient cooling and heating, so you can embrace comfort at a moment's notice.
Latest Technology for Reduced Power Consumption: We're committed to efficiency and sustainability. The myCOOLMAN incorporates cutting-edge technology to reduce power consumption, making it ideal for off-grid operation via Inverter/Battery bank or Generator
Smooth, Soft Start, and Whisper-Quiet Operation: No more rattling or surging. The myCOOLMAN boasts a smooth, soft start feature and operates at whisper-quiet levels, ensuring your comfort without any unnecessary disruptions.
Lightweight Design: Weighing in at 38.4kg, including the Air Distribution Box (ADB) & Remote, the myCOOLMAN is designed to be able to install it effortlessly wherever there is a suitable location
Versatile Sealing Frame: For hassle-free installation, the myCOOLMAN Roof Top Air Conditioner comes with both 400x400 and 360x360 sealing frames, along with bonus roof thickness adaptors, ensuring a perfect fit in any setup. **NOTE Unit suitable for roof panel thickness from 20mm - 100mm (extra spacers will be needed for 40-100mm roof panels)

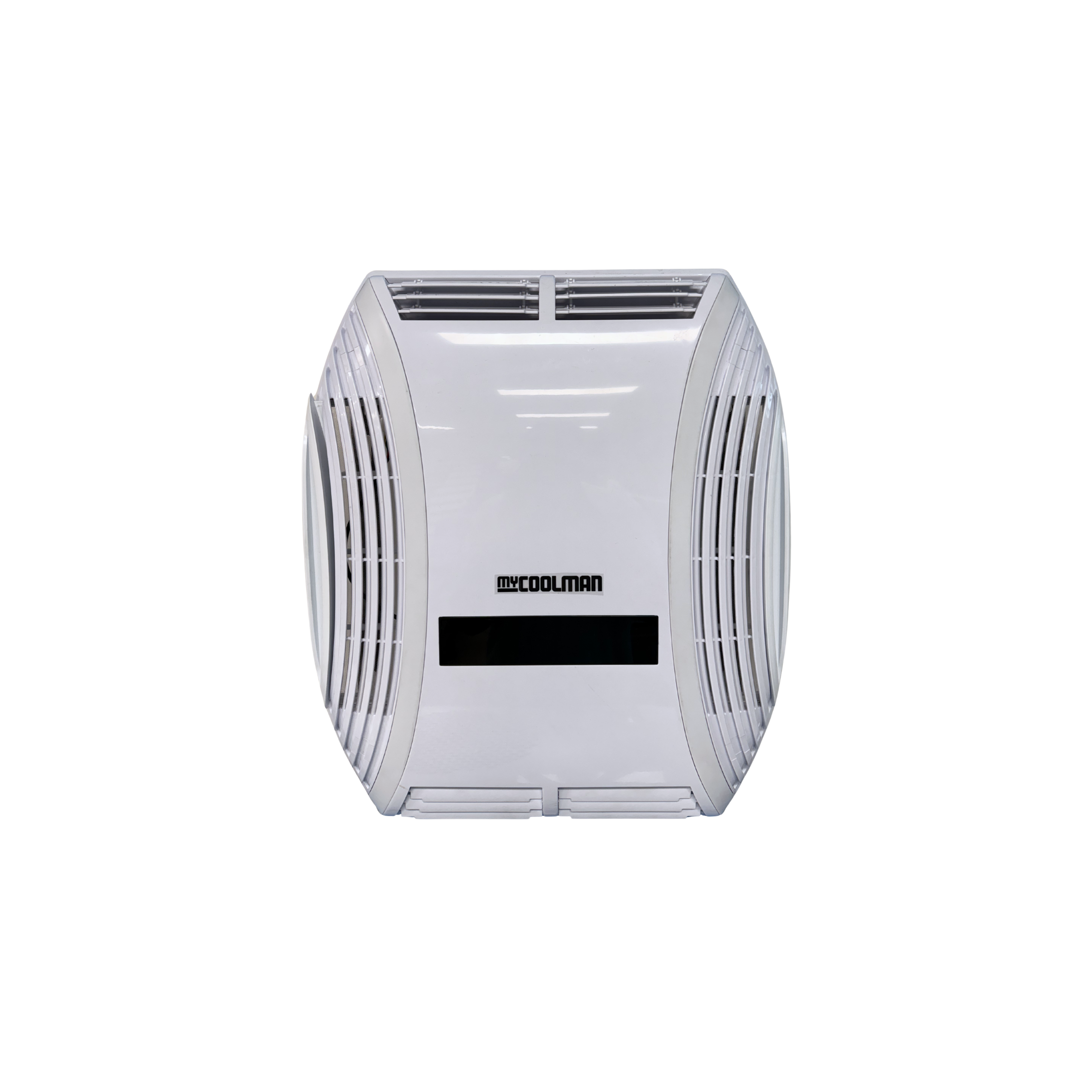

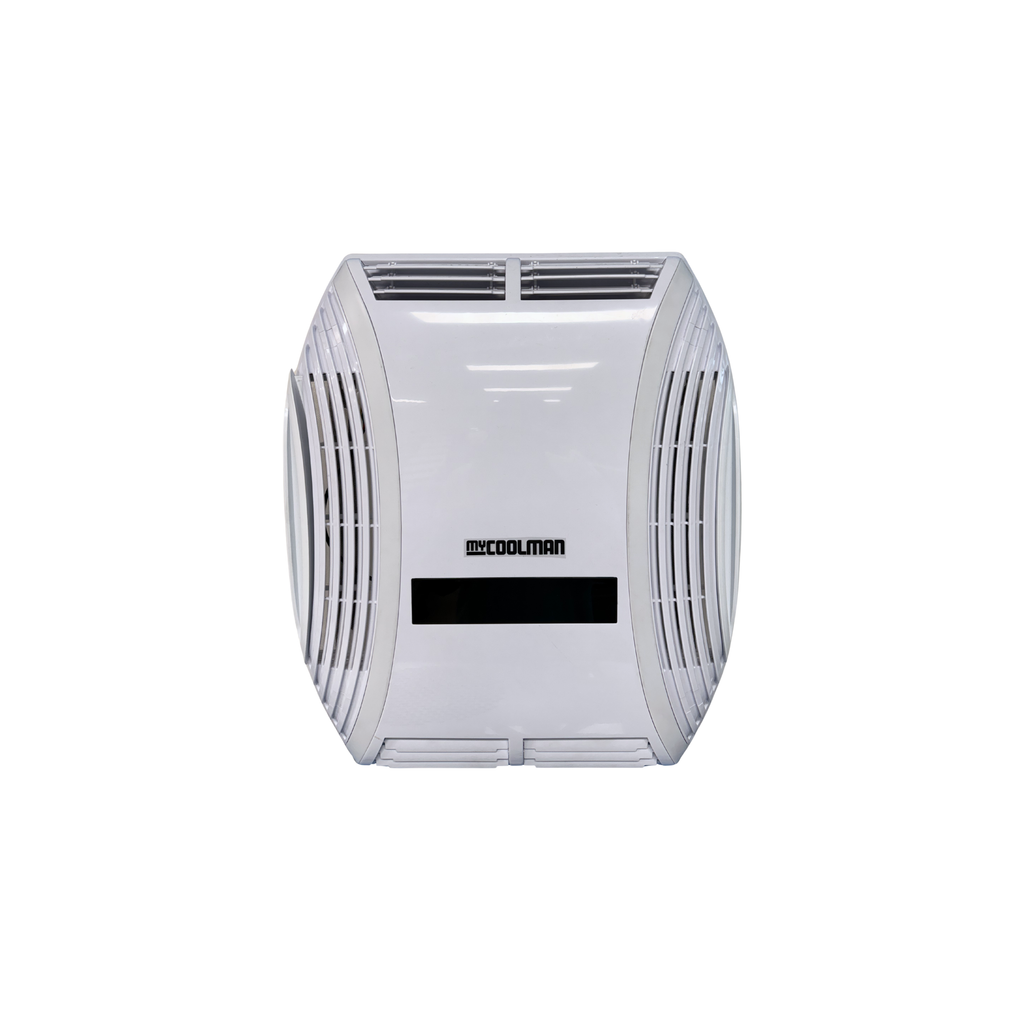

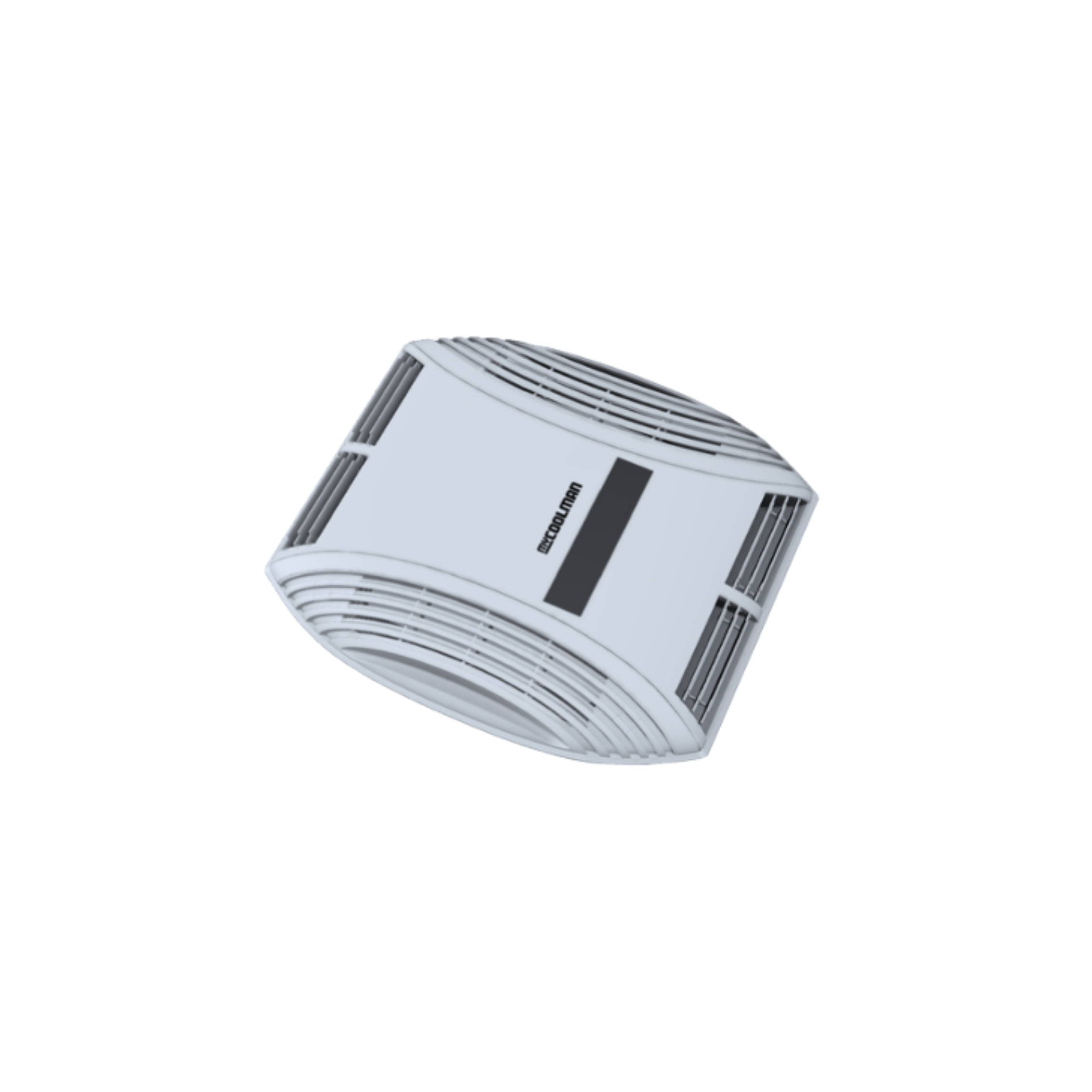

Slimline ADB with Multiple Airflow Angles: The included Air Distribution Box (ADB) features a slimline design with adjustable airflow angles, offering precise control over the direction of air. Plus, the white LED mood lighting integrated into the ADB will enhance your ambiance.
*NOTE - The myCOOLMAN Rooftop AC will comfortably operate from a quality 2000W inverter via a battery bank. We recommend the 2000W or 3000W myCOOLMAN Energy Inverter/Chargers.
If running the AC from a Generator we recommend a quality pure sign wave generator of 2kva capacity - For more info on off grid operation click here
Specs
Technical Data for Model: CCA2700i
| Specification |
Value |
Type
|
Inverter Style Compressor
|
Cooling Capacity
|
2700W
|
Input Power Cooling/Heating (IEC60335)
|
1240W/1050W
|
| Heating Capacity |
2500W
|
Rated Input Voltage
|
220V-240V/50/60HZ
|
Maximum Current
|
7A
|
IP Rating
|
IP55 |
Rated cooling input current
|
5.6A
|
Rated heating input current
|
4.8A |
| Max Pressure (high) |
4.0Mpa
|
Max Pressure (low)
|
1.7Mpa
|
Circuit Protection
|
20A Fuse or Circuit Breaker
|
Cable Section
|
2.5mm2 Copper & Length
|
Cable Length
|
Not more than 8m
|
Airflow
|
550m3/h |
| Operating Temparature |
- 2°C ~ 55°C
|
Refrigerant
|
R410a
|
Refrigerant Quantity
|
550g
|
Dimensions (Roof Top Unit)
|
920L x 765W x 220H (mm) |
Installed Weight (Total)
|
38.4kg |
| Installation Requirements |
360x360mm or 400x400m Cutout / 20-100mm Roof Panel Thickness** |
| Warranty |
3 years |
IMPORTANT: This air conditioner requires electrical connection by a licensed electrician and must be connected to Australian standards AS/NZS3000 & AS/NZS3001 By purchasing this product, you acknowledge that failure to have this product installed by the appropriately qualified tradesperson will void the warranty & may pose a potential risk to your health & safety.
Manual, PDS, Install & FAQs
View our myCOOLMAN Air Con FAQs
View our myCOOLMAN Operating Tips/Off Grid Operation Guidelines
View our myCOOLMAN Air Product Data Sheet
View our myCOOLMAN Air Con Operations/Installation Manual
View our myCOOLMAN Air Con Installation Tips Video
IMPORTANT: This air conditioner requires electrical connection by a licensed electrician and must be connected to Australian standards AS/NZS3000 & AS/NZS3001 By purchasing this product, you acknowledge that failure to have this product installed by the appropriately qualified tradesperson will void the warranty & may pose a potential risk to your health & safety.
