Key features
Superior energy efficiency. Reduced power consumption allows a longer run time on batteries and generators
CleanAir technology. Keeps your RV smelling fresh and clean thanks to the inbuilt air purification system

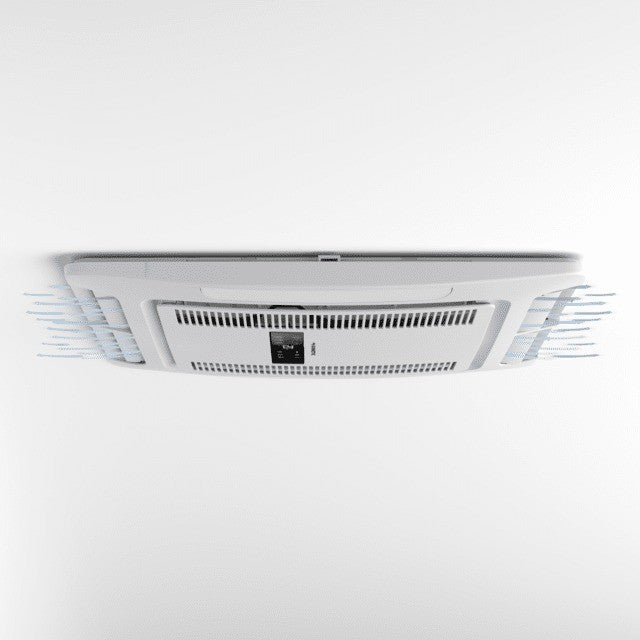

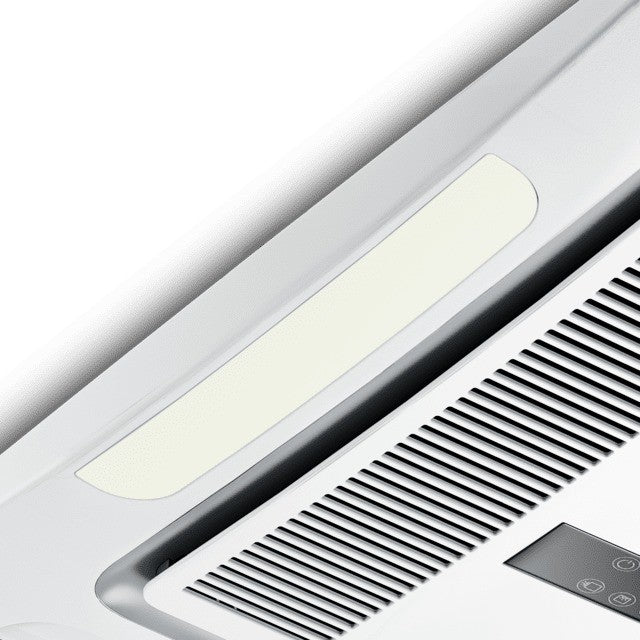

Premium air distribuion box (ADB) with full connectivity. Air distribution box with touch control panel and remote, integrated ambient LED light and Wifi/Bluetooth connectivity.
Next generation of Dometic inverter technology. The quietest and smoothest operation ever, perfect for off-grid adventures

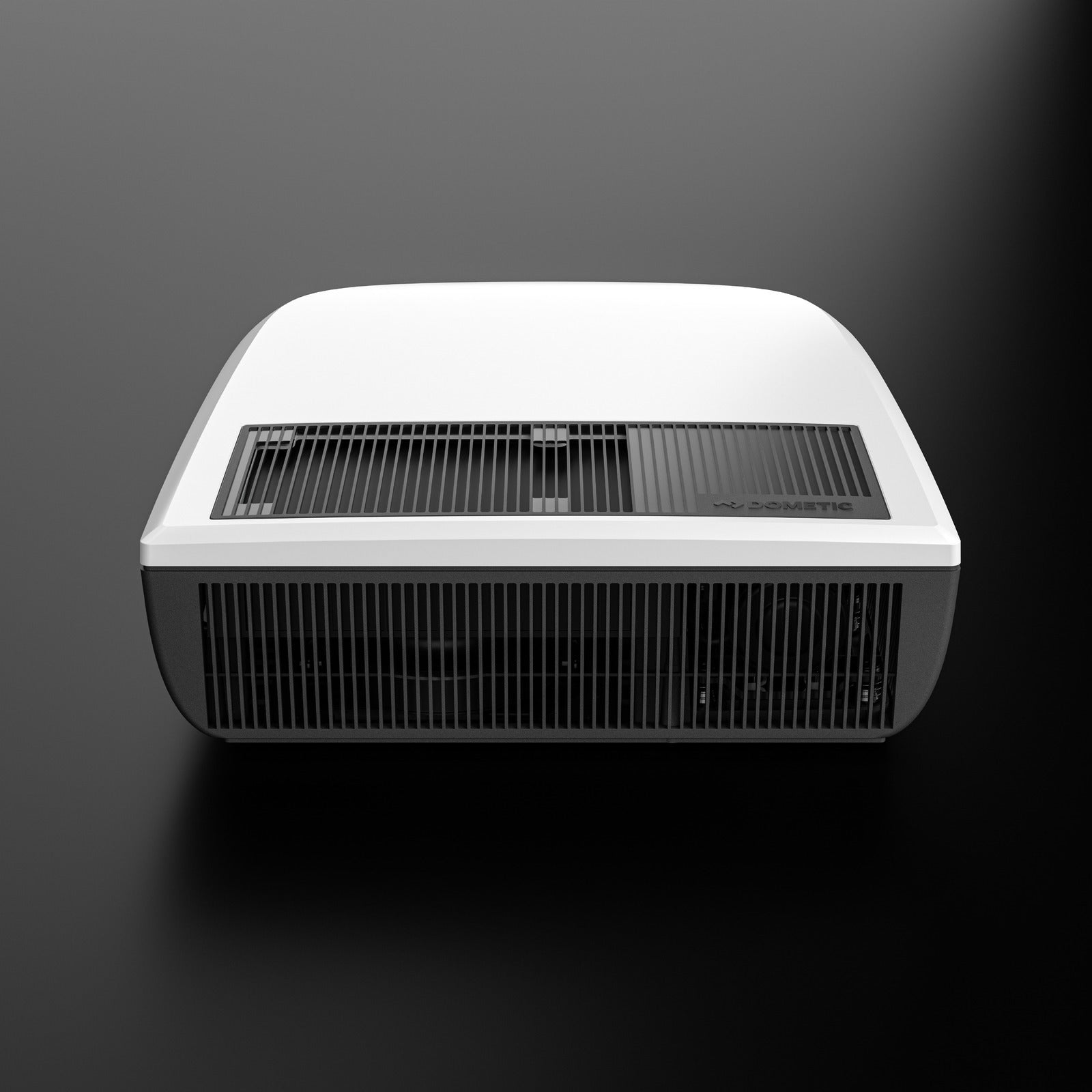

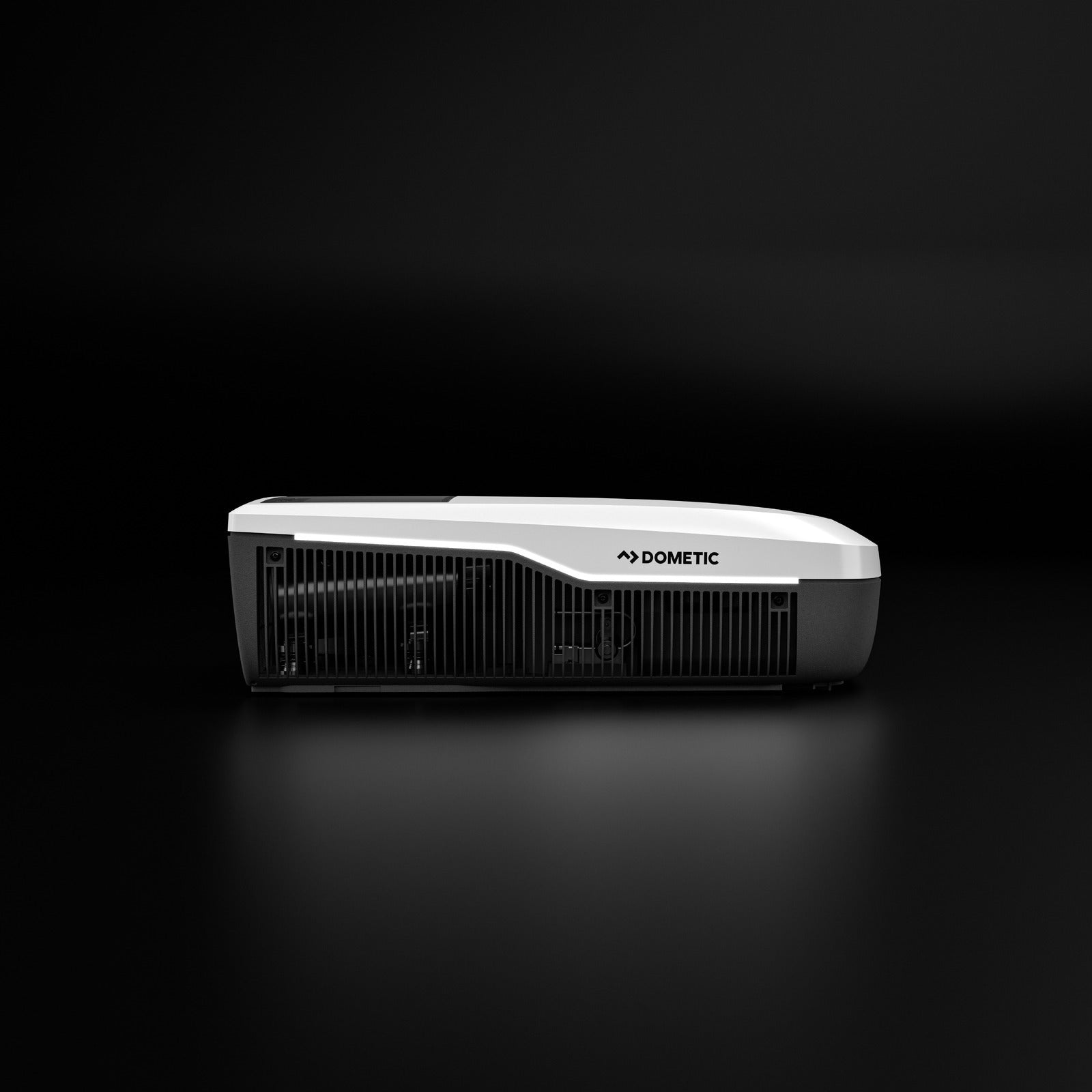

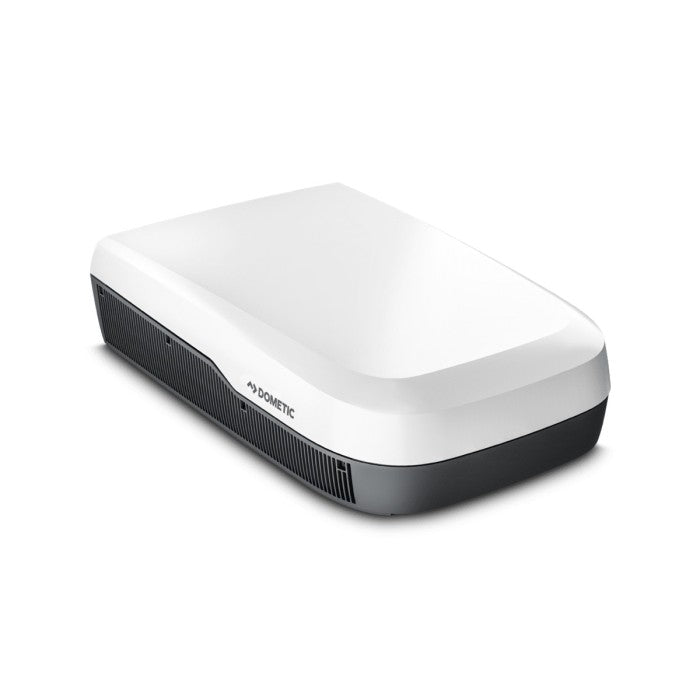

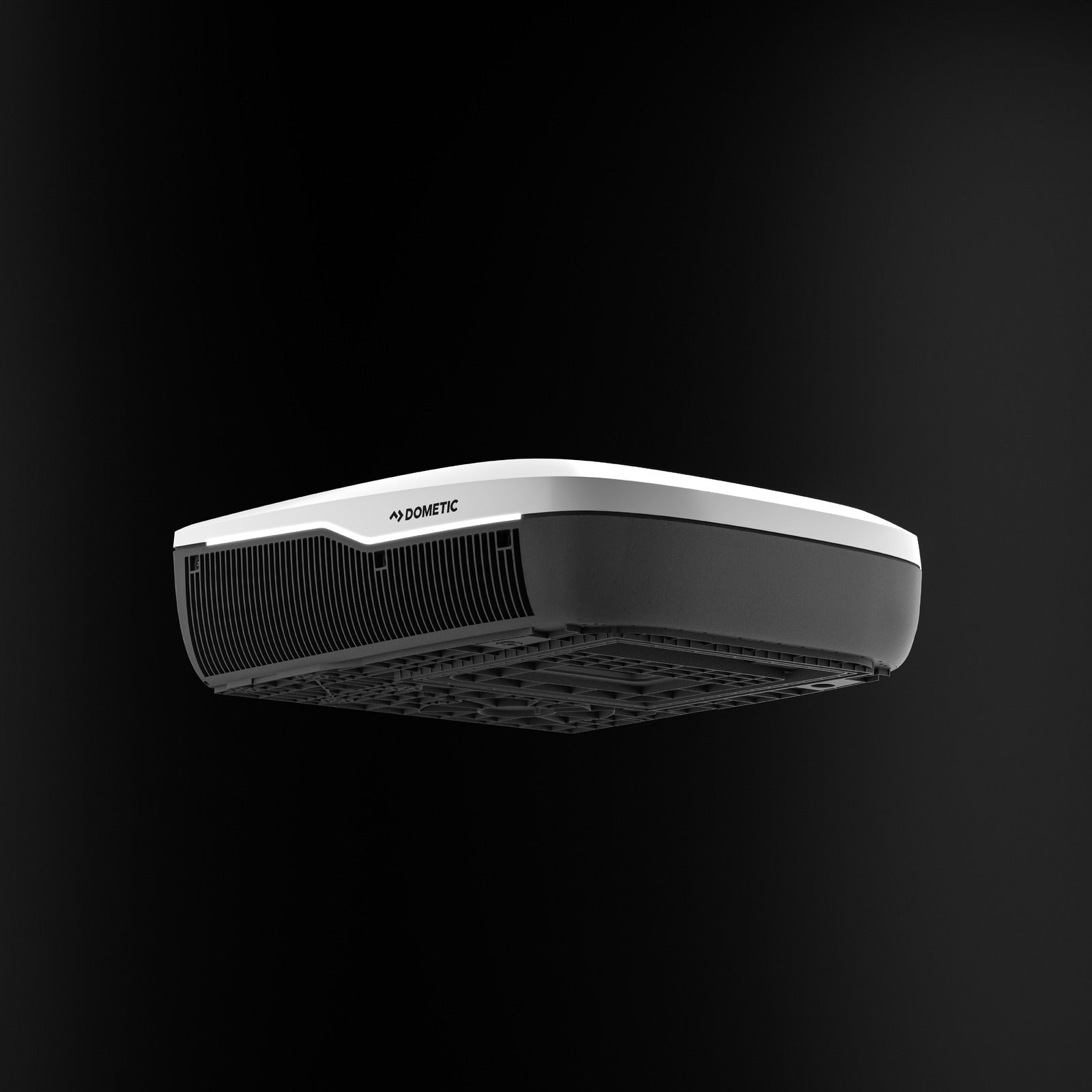

Modern and fresh design. Aerodynamically shaped rooftop unit

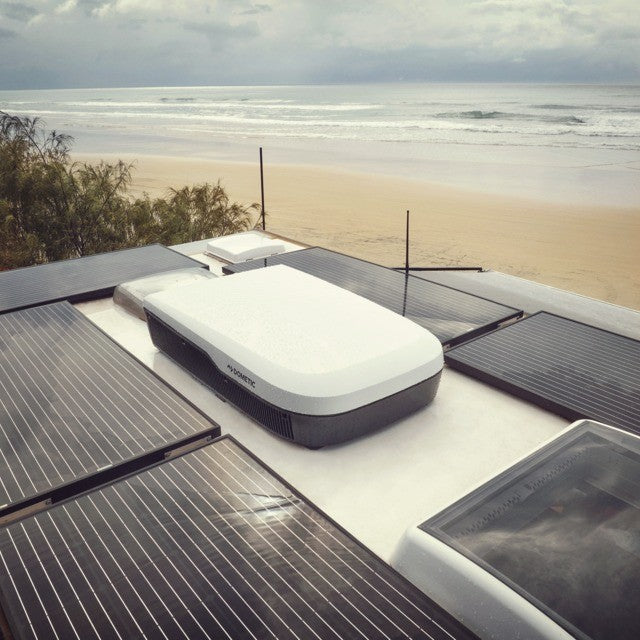

Lightweight and compact. Ideal for optimised rooftop layout with solar panels and other devices
3 year warranty.
Overview
Beat the Aussie heat with ultimate caravan comfort. The Dometic FreshJet 7 Series Pro Roof Top Air Conditioner with ADB delivers a powerful 2.5kW cooling capacity, ideal for keeping medium caravans up to 6m long blissfully cool during sweltering summers from the Gold Coast to the Gibson Desert, while its inverter technology ensures whisper-quiet operation under 70dB(A) and efficient power use for off-grid battery or generator setups. Featuring CleanAir purification to filter out dust and allergens, this sleek, aerodynamic unit minimizes rooftop space at just 225mm height, leaving room for solar panels on your Jayco or Avan. The integrated Air Distribution Box offers intuitive touch controls, ambient LED lighting, and full Wi-Fi/Bluetooth connectivity via the Dometic Climate app for effortless remote adjustments from your swag or beach chair. Built lightweight at 35kg yet rugged for bumpy outback tracks, it's the perfect upgrade from the Ibis 4, blending modern design with sustainable performance for endless road trips.
Product Features
2.5kW Cooling Power: Delivers rapid, efficient cooling for caravans up to 6m in extreme heat
Inverter Technology: Smooth, quiet operation with reduced energy draw for longer battery life

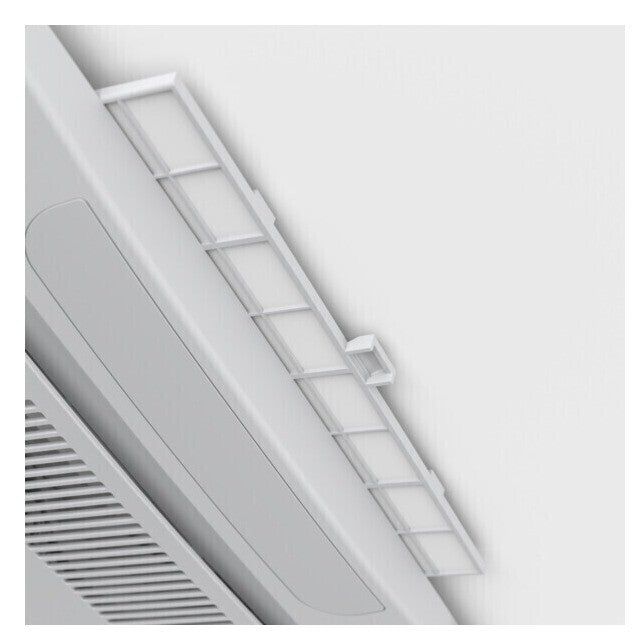

CleanAir Purification: Built-in system keeps air fresh and hygienic, filtering dust and odors

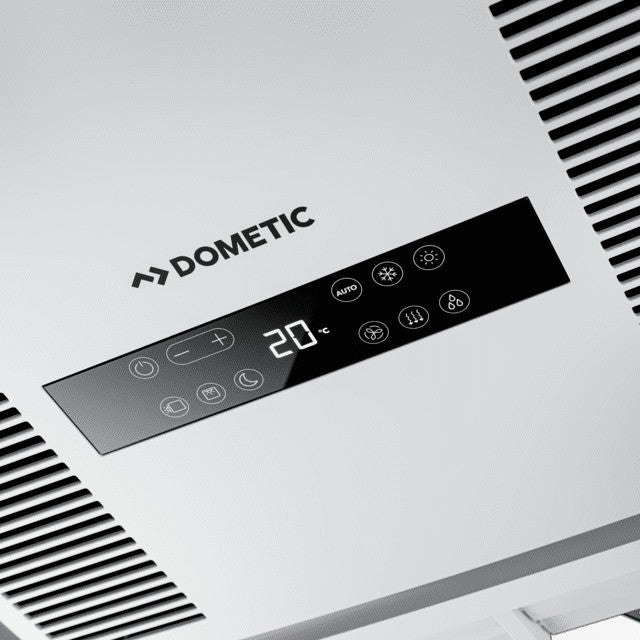

Smart ADB Control: Touch panel with remote, LED lights, and Wi-Fi/Bluetooth app integration
Aerodynamic Design: Low-profile 225mm height optimizes rooftop space for accessories
Lightweight Build: Just 35kg for easy installation on standard caravan roofs
Eco-Efficient Mode: Minimizes power consumption, perfect for solar or generator use
Detailed Features
Ideal for Australian summers – cools large spaces quickly without the noise of traditional units
App control via Dometic Climate for heating/cooling adjustments from anywhere in camp
Reinforced for rough roads, with UV-resistant materials that handle coastal salt and inland dust
Enables off-grid freedom, running longer on batteries during remote stays in national parks
Simple DIY-friendly install with included instructions, though professional fitting recommended
Pairs seamlessly with solar setups for completely sustainable caravan power
Ambient LED lighting in ADB enhances evening annex ambiance
Sustainable design reduces environmental impact while boosting comfort on long laps
Common questions
Will it run off a generator or my battery bank?
Better than an old rooftop will. The inverter keeps start-up under 6.9A, so there is no big surge slamming a small generator or an inverter the moment the compressor kicks in. Running all night off batteries is still a big ask, but a few hours in the afternoon is realistic.
Is 2.5kW enough for my van?
It is matched to vans up to 6m. Put it on something longer and it will run flat out on a stinking hot day without ever quite catching up, which is hard on the unit and noisy with it. Insulation, window covers and where you park matter almost as much as capacity.
How does the heating compare with a diesel heater?
It heats at 2.2kW and works down to -2°C, which suits a powered site in autumn rather than a frosty night at Jindabyne. It also needs mains. If you free camp in the high country through winter, a rooftop is your cooling answer and something diesel is your heating answer.
Delivery, returns & warranty
Warranty Details
+
3 year warranty
Specifications
Model Information
Model
9620008762-ADB, FJX7333IHP
Brand
Dometic
Barcode
6975399592129
Rooftop Unit Part Number
9620001685
ADB Part Number
9620001693
Performance
Electrical Rating
220 to 240V
Best for Vehicle Length
Up to 6m
Cooling Capacity
2.5kW, 6.9A
Heating Capacity
2.2kW, 4.7A
Start-up Current
<6.9A
Max Airflow
449 m³/h
Fan Speeds
4
Operating Temperature Range
-2 to 52°C
Max Noise
<70 dB(A)
WiFi Connectivity
Yes
Technology
Inverter compressor for efficient, quiet operation
Air Purification
CleanAir system for fresh, hygienic air
Connectivity
Wi-Fi/Bluetooth with Dometic Climate app control
Controls
Touch panel, remote, integrated ambient LED lighting
Power Consumption
Optimized for batteries and generators
Dimensions & Weight

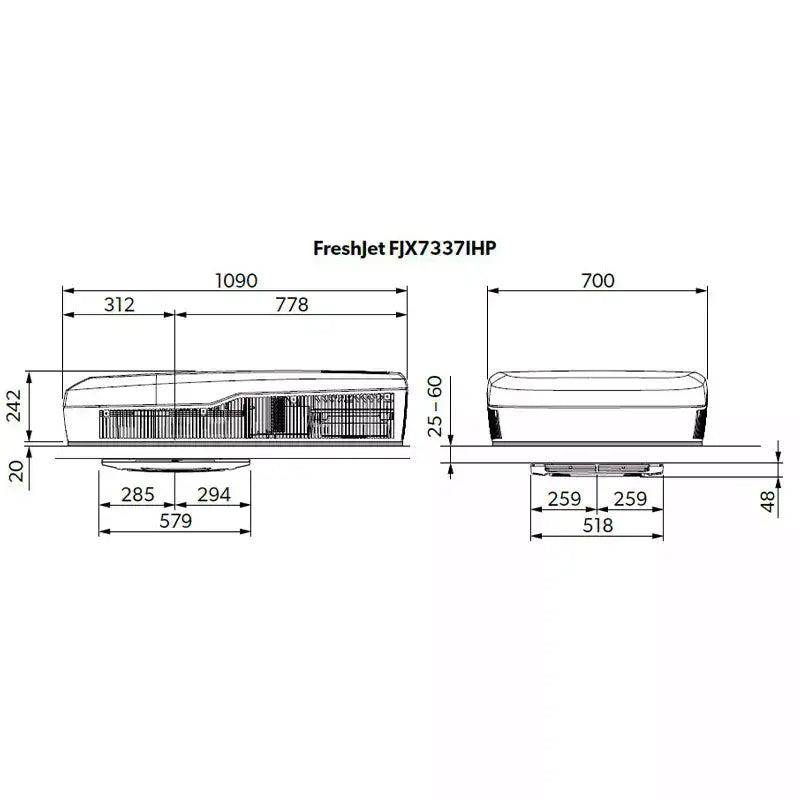

External Dimensions (W×H×L)
702 × 225 × 752 mm
Internal Dimensions (W×H×L)
518 × 48 × 579 mm
Roof Opening
360 × 360 mm or 400 × 400 mm
Roof Thickness
25-60 mm (optional adaptors for up to 120 mm)
Weight
35 kg
Shipping Weight
52.70 kg
Shipping Dimensions (H×W×L)
48 × 116 × 116 cm
Design
Aerodynamic, compact for maximized rooftop space
Compatibility
Suitable For
Medium caravans (up to 6m)
Installation
Professional electrical contractor recommended
In the Box
Contents
Dometic FreshJet 7 Series Pro Roof Top Air Conditioner × 1, Dometic FreshJet Electronic Air Distribution Box (ADB) × 1, Installation Instructions
