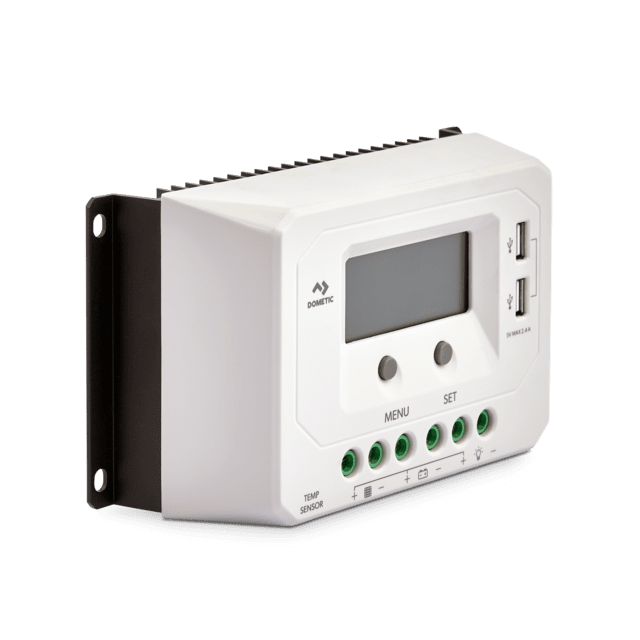

The Dometic SC1230 Solar Charge Controller is an efficient and reliable solution for managing solar power in various battery systems. Ideal for sealed, gel, and flooded batteries, this solar charge controller ensures optimal charging and maintenance for your power needs. Featuring touch-button convenience, it’s user-friendly and designed for a wide range of applications including caravans, motorhomes, and 4x4 vehicles.

Key Features:

• Intelligent PWM Solar Charging: 3-stage intelligent Pulse Width Modulation (PWM) solar charging for efficient and reliable performance.
• Twin USB Ports: Conveniently charge your devices with dual USB ports.
• Low Voltage Disconnect: Protects your battery by disconnecting loads when the voltage drops too low.
• Multiple Load Control Modes: Versatile load control for various applications and environments.
• Informative LCD Display: Backlit LCD display provides clear information on charging status and battery health.

Specifications:

• Dimensions (W x H x D): 181 x 100.90 x 59.80 mm
• Net Weight: 0.55 kg
• Input Voltage (DC): 12/24 V
• Output Voltage: 12/24 V
• Maximum Output Current: 30 A
• Operating Temperature Range: -25˚C to +55˚C
• Battery Types Supported: AGM, Lead Acid, Gel, Sealed Lead Acid
• IP Class: IP21
• Standby Mode Current Consumption: 10 mA
• Color: White-Grey
