Questions? for expert advice, or read our buying guides
Key features
- 620Ah LiFePO₄ capacity at 12.8V nominal voltage
- 620A maximum discharge current with integrated 620A BMS protection
- Built-in Bluetooth battery monitoring via smartphone or tablet
- CC/CV charging at 14.2–14.6V with 310A recommended charge current
- 10V cut-off voltage for cell protection
- IP67-rated enclosure — dust-tight and immersion-protected
- IEC 62619 safety accreditation
- Operating temperature range −20°C to +60°C
- Charging temperature range 0°C to +55°C
- 5-year manufacturer warranty
Overview

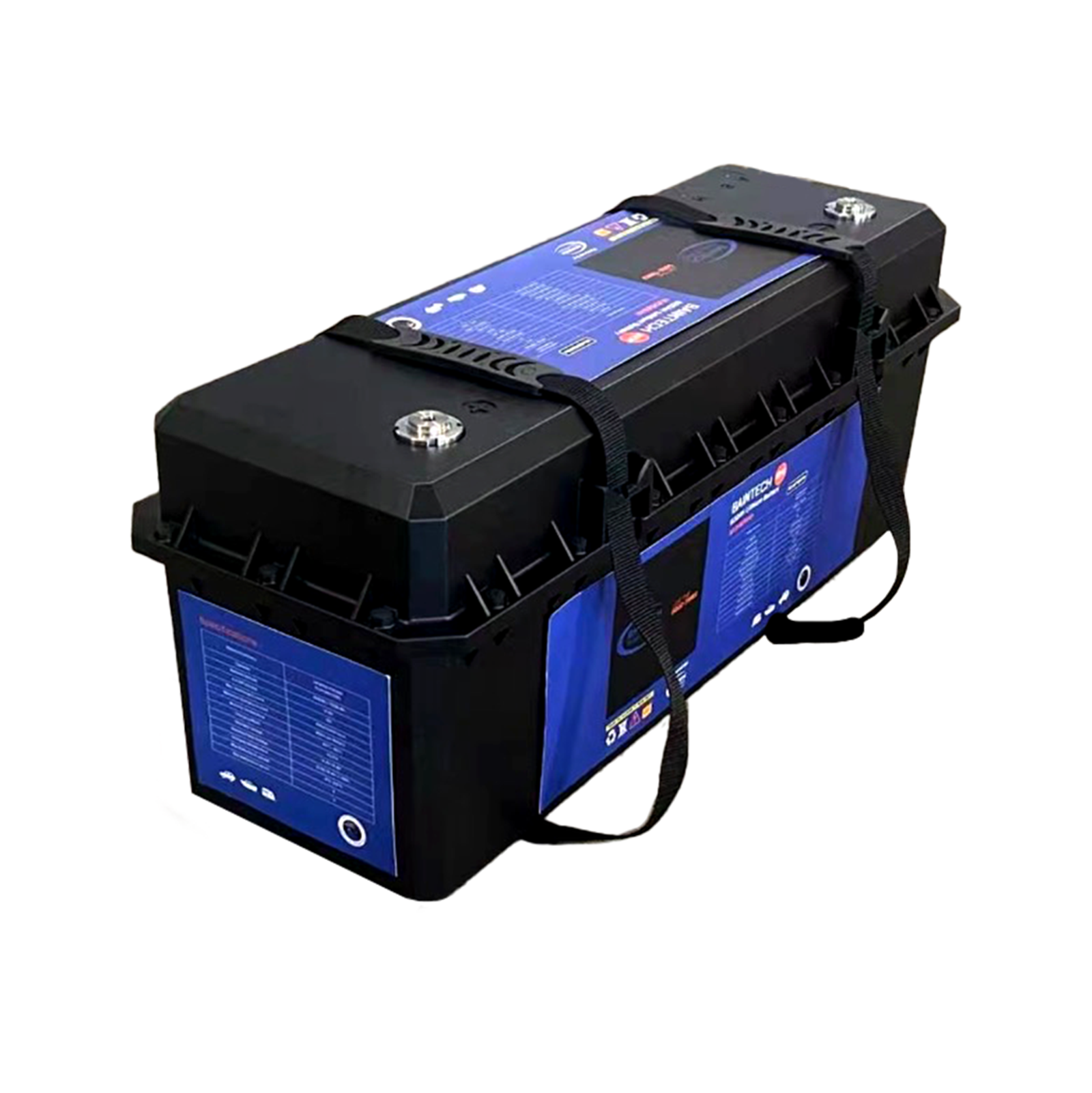

The Baintech Extreme 620Ah 12.8V LiFePO₄ battery delivers class-leading energy storage for the most demanding off-grid and auxiliary power systems. With a massive 620A maximum discharge current managed by an integrated 620A BMS, it sustains high-draw loads that smaller batteries simply cannot handle. Built-in Bluetooth connectivity lets you monitor state of charge, voltage and battery health directly from a compatible smartphone or tablet, while IP67-rated construction and IEC 62619 accreditation confirm it is built to handle harsh Australian conditions — whether mounted in a caravan underbody compartment, a motorhome bay or a marine application.
Designed for large caravan, motorhome, marine and auxiliary power installations that demand extended runtimes and serious power delivery, the Extreme 620Ah is the centrepiece of a capable 12V system. It charges via standard CC/CV at 14.2–14.6V with a recommended charge current of 310A, making it compatible with most quality DC-DC chargers, solar regulators and mains chargers. The five-year manufacturer warranty and proven LiFePO₄ chemistry give long-term confidence for full-time travellers and serious off-grid setups alike.
- 620Ah LiFePO₄ capacity for extended off-grid runtimes
- 620A maximum discharge current via integrated 620A BMS
- Built-in Bluetooth for real-time monitoring from a smartphone or tablet
- CC/CV charging at 14.2–14.6V; recommended charge current 310A
- IP67-rated enclosure — fully dust-tight and protected against water immersion
- IEC 62619 accredited for safety and performance
- Wide operating temperature range: −20°C to +60°C
- Compact footprint for capacity: 520 × 268 × 220 mm
Delivery, returns & warranty
Shipping
This product is shipped Australia-wide and typically arrives within 3–5 business days to metropolitan areas, with extended transit times to regional and remote locations. At 54 kg this is a heavy freight item — a freight quote may be required before dispatch, and we will contact you to confirm shipping costs and arrange delivery before your order is sent.
Warranty Details
+
Warranty Details
+
- Baintech Extreme lithium batteries are covered by a 5-year manufacturer warranty.
Specifications
| Capacity | 620Ah |
|---|---|
| Nominal Voltage | 12.8V |
| Cell Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Maximum Discharge Current | 620A |
| BMS Rating | 620A |
| Bluetooth Monitoring | Yes |
| Charging Mode | CC/CV |
| Charging Voltage | 14.2–14.6V |
| Recommended Charge Current | 310A |
| Cut-off Voltage | 10V |
| Operating Temperature | −20°C to +60°C |
| Charging Temperature | 0°C to +55°C |
| IP Rating | IP67 |
| Dimensions (L × W × H) | 520 × 268 × 220 mm |
| Weight | 54 kg |
-
