Key features
- 5-metre plug-and-play Anderson extension cable
- 40-amp continuous current rating
- AWG10 (2.6 mm²) heavy-gauge conductor
- Anderson SB50-compatible plugs on both ends
- Protective Anderson covers on each connector
- Grey cable — standard 12V Anderson colour convention
- Suitable for solar, fridge, dual battery and DC-to-DC charger use
- No cutting or crimping required — ready to use out of the box
- Designed to minimise voltage drop at rated load
Overview

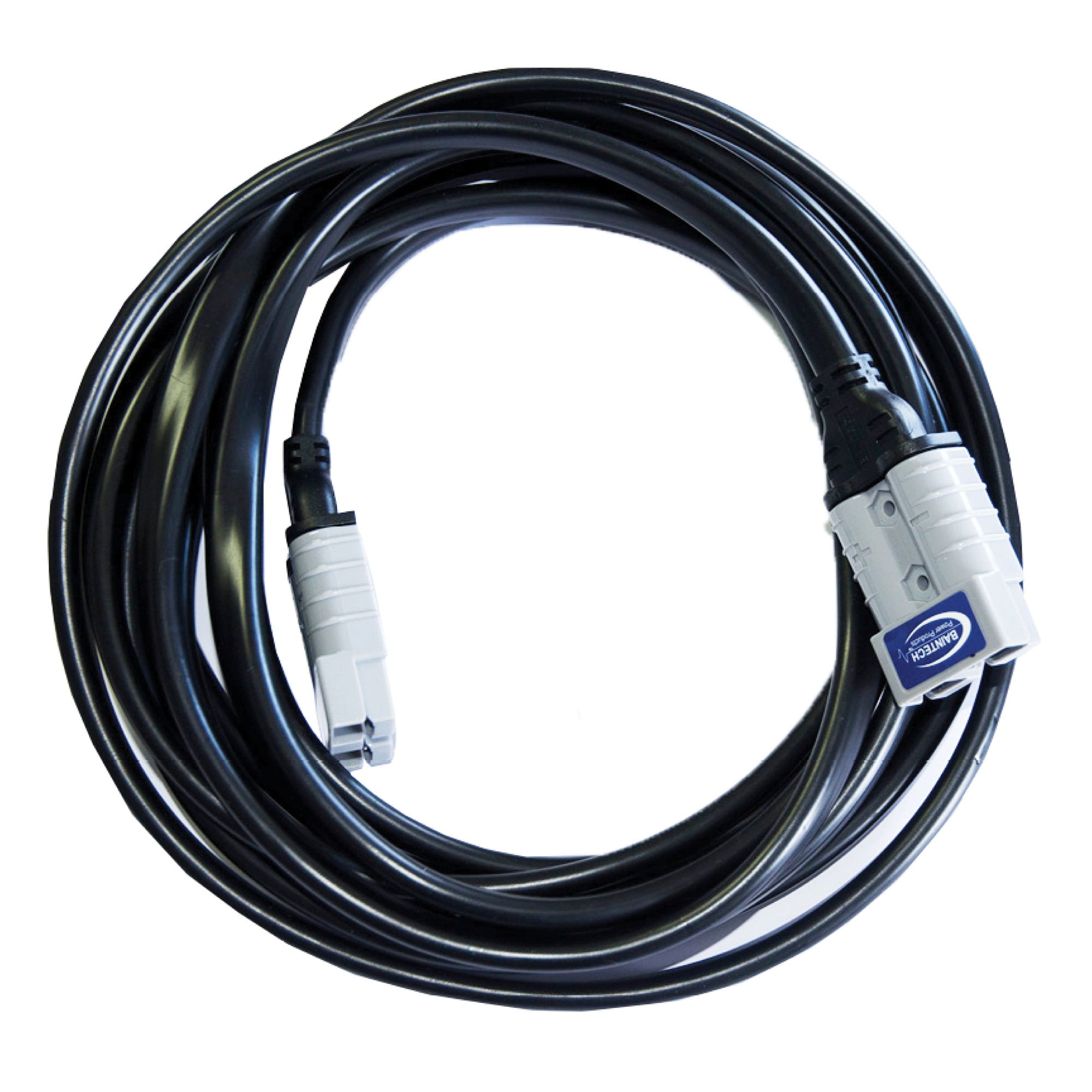

The Baintech Anderson to Anderson Extension Cable 5m is a plug-and-play DC power cable rated at 40 amps, built with AWG10 (2.6 mm²) conductors to handle the demands of solar panels, 12V fridges and dual-battery systems. Heavy-duty Anderson covers shield every connection point, eliminating the risk of frayed or exposed wiring even in the vibration-prone environment of a caravan, camper trailer or 4WD.
Designed for overlanders and campers who need a reliable, ready-to-run link between a vehicle's Anderson outlet and a trailer, portable solar panel or auxiliary battery, this 5-metre cable gives you the length to route cleanly without compromising current capacity. The quality construction means no cutting, crimping or heat-shrinking — simply connect and go.
- 5-metre cable length for flexible, tidy installation between vehicle and trailer or accessory
- 40-amp current rating handles fridges, dual-battery chargers and solar inputs without voltage drop
- AWG10 (2.6 mm²) conductors — heavy-gauge for safe, efficient power transfer at full rated current
- Anderson SB50-compatible plug and socket on both ends for true plug-and-play connection
- Quality Anderson covers on both connectors protect contacts from dust, moisture and vibration
- Grey colour coding matches the standard Anderson plug convention used across Australian 4WD and caravan accessories
- No crimping or modification required — ready to use straight from the packaging
- Suitable for fridge, solar, DC-to-DC charger and auxiliary battery applications
Common questions
Will five metres of cable lose me fridge performance?
Not meaningfully at fridge loads. The AWG10 (2.6 mm²) conductor is heavy enough that a 5 m run holds voltage well under the sort of current a 12V fridge pulls. Where you feel a long lead is at the top of the 40 A rating, not at a few amps.
Can I use it to bring a portable solar panel closer to the sun?
Yes, that is one of its best uses. Five metres lets you park in shade and put the panel in the open. Keep the protective covers clipped when it is unplugged, because a grubby Anderson face is the usual reason a connection starts running warm.
Is 40 amps enough for a DC-to-DC charger?
For the common caravan chargers, yes, provided your unit's input draw sits under the 40 A rating. Check the charger's own figure rather than its output number, because input current is higher. Anything hungrier wants heavier cable than AWG10 and a shorter run than five metres.
Specifications
| SKU | BTA2A5 |
|---|---|
| Cable Length | 5 m |
| Current Rating | 40 A |
| Conductor Size | AWG10 (2.6 mm²) |
| Cable Colour | Grey |
| Connector Type | Anderson SB50-compatible (male and female) |
| Application | Solar, 12V fridge, dual battery, DC-to-DC charger |
| Voltage System | 12 V DC |
| Plug Type – Both Ends | Anderson with protective covers |
| Brand | Baintech |
Delivery, returns & warranty
Warranty Details
+
Warranty Details
+
- This product is covered by a 12-month manufacturer warranty from Bainbridge Technologies.
-
