| Available Models |

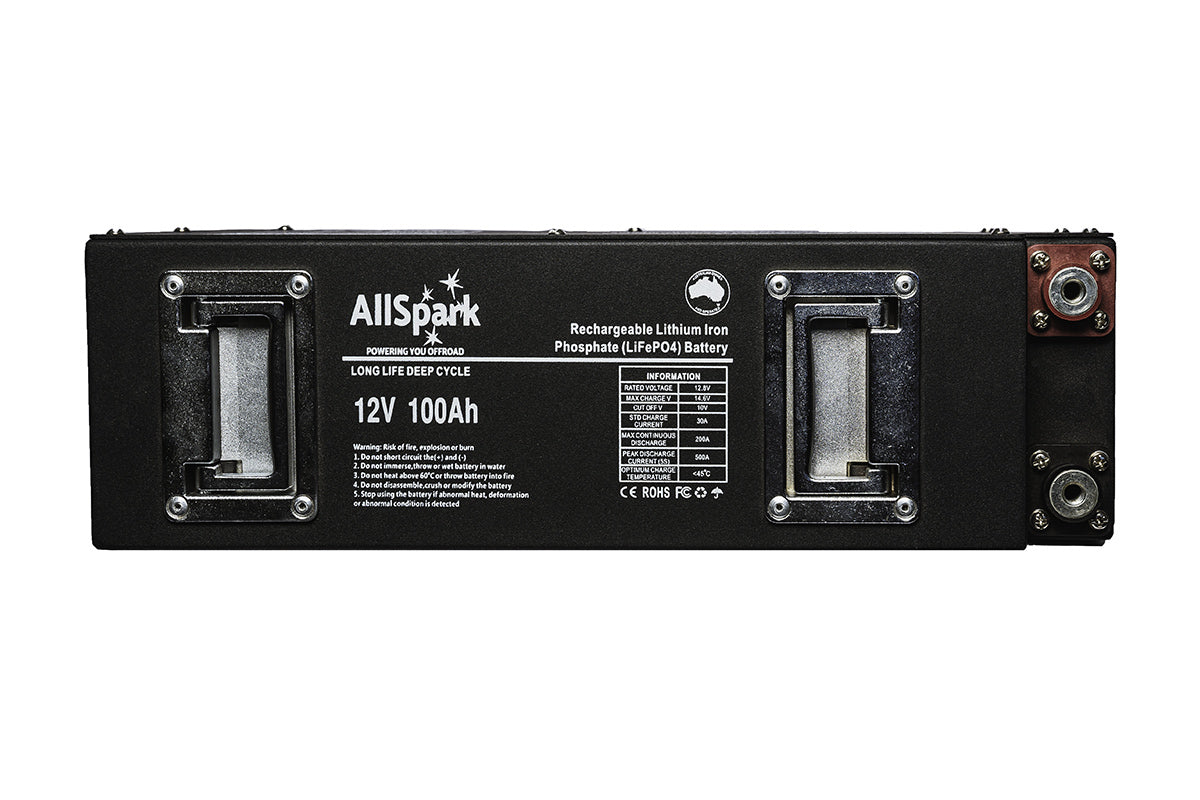

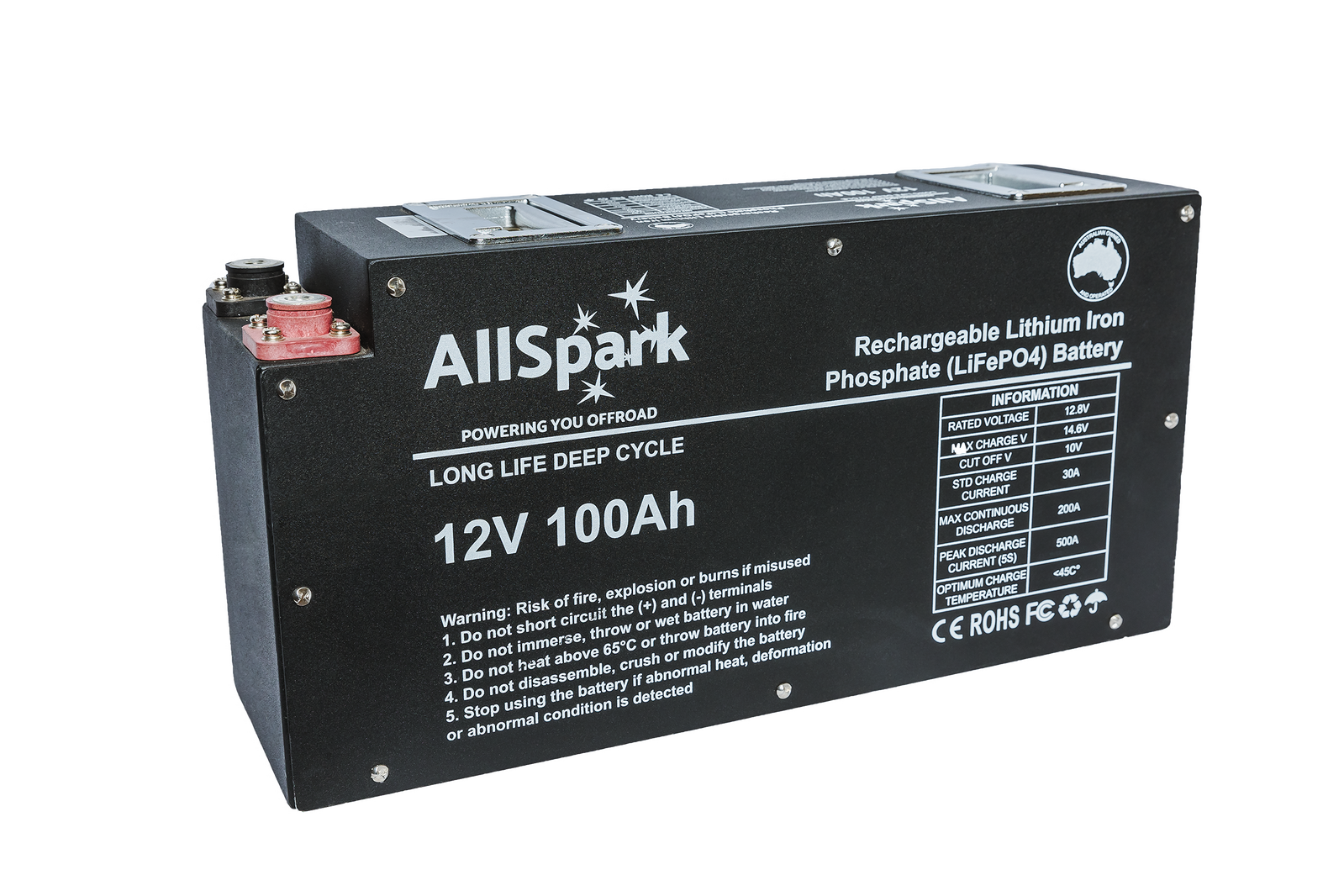

AS-10012BATLI200500USG2 (Ultraslim 12.8V 100Ah)AS-10012BATLI200500SLIM (Slimline 12.8V 100Ah)AS-15012BATLI200500SLIMG2 (Slimline 12.8V 150Ah)AS-20012BATLI200500SLIMG2 (Slimline 12.8V 200Ah)AS-10024BATLI200500SLIMG1 (Slimline 25.6V 100Ah) |
| Capacity Range |
100-200 Amp Hours (C5) |
| Watt Hours |
1,280-2,560 Wh |
| Rated Voltage Options |
12.8V / 25.6V |
| Maximum Charge Voltage |
14.6V / 29.2V |
| Float Voltage |
13.6V / 27.2V |
| Low Voltage Cutoff |
10V / 20V |
| Maximum Series Voltage |
24V / 48V |
| Rapid Charge Current |
100A (1C) for 30 mins |
| Recommended Charge Current |
30-50A |
| Charge Profile |
CC/CV |
| Maximum Inverter Size |
2500-4000W (model dependent) |
| Maximum Continuous Discharge |
200A |
| Peak Discharge |
500A (5 seconds) |
| 80% Depth of Discharge |
> 3200+ cycles (85% residual capacity) |
| 60% Depth of Discharge |
> 4200+ cycles |
| 40% Depth of Discharge |
> 5000+ cycles |
| Optimum Charging Temperature |
< 45°C |
| Operating Temperature Range |
-20°C to +60°C |
| Storage Temperature Range |
-40°C to +125°C |
| Case Material |
Ultraslim/Slimline Aluminium |
| Dimensions |
Ultraslim: 635 x 60 x 260mm, Slimline: 400 x 120 x 200-300mm |
| Weight Range |
12-21kg |
| Important Note |
Cases are not waterproof - For internal use only |
| Cell Type |
Prismatic |
| Cell Configuration |
4S1P / 8S1P |
| Cell Capacity |
3.2V @ 100-200Ah |
| Cell Casing |
Nickel Plated steel |
| Cell Balancing |
3.65V ±0.025V, 35mA ±5mA |
| Over Discharge Protection |
2.5V ±0.025V, releases at 10.5V+ & 1A+ |
| Over Charge Protection |
3.75V ±0.025V, 1-1.6s delay, releases at 3.6V ±0.0625V |
| Over Current Protection |
220A (10s delay), 500A (5s delay) |
| Short Circuit Protection |
200-400µs detection delay, auto-release on load removal |
| Internal Resistance |
≤20mΩ |
| Shipping Weight |
12.3kg |
| Shipping Dimensions |
250mm (W) x 300mm (H) x 470mm (L) |
| Shipping Volume |
0.03525m³ |
| Brand |
AllSpark |
| Barcode |
0745178224222 |
