| Available Models |

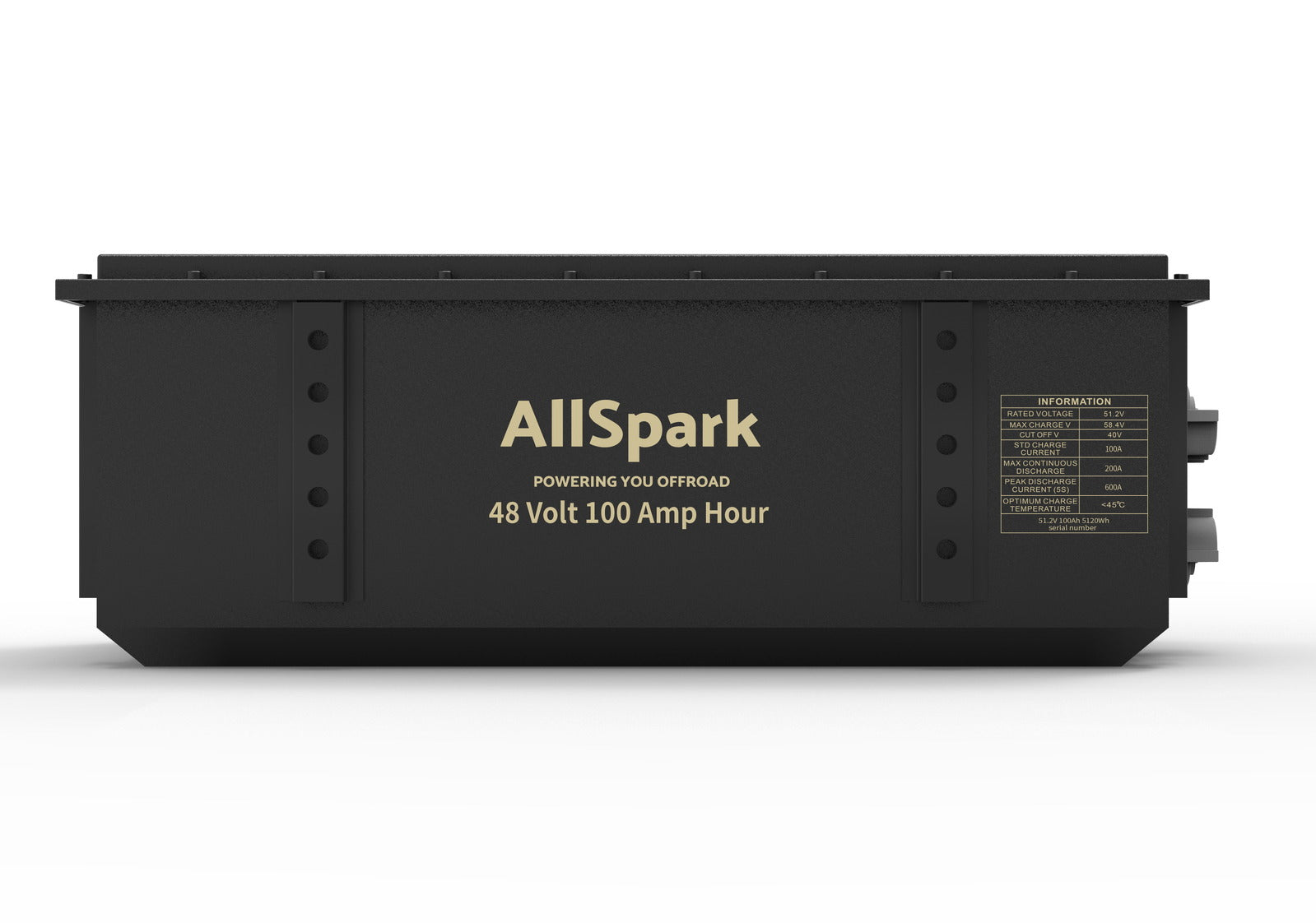

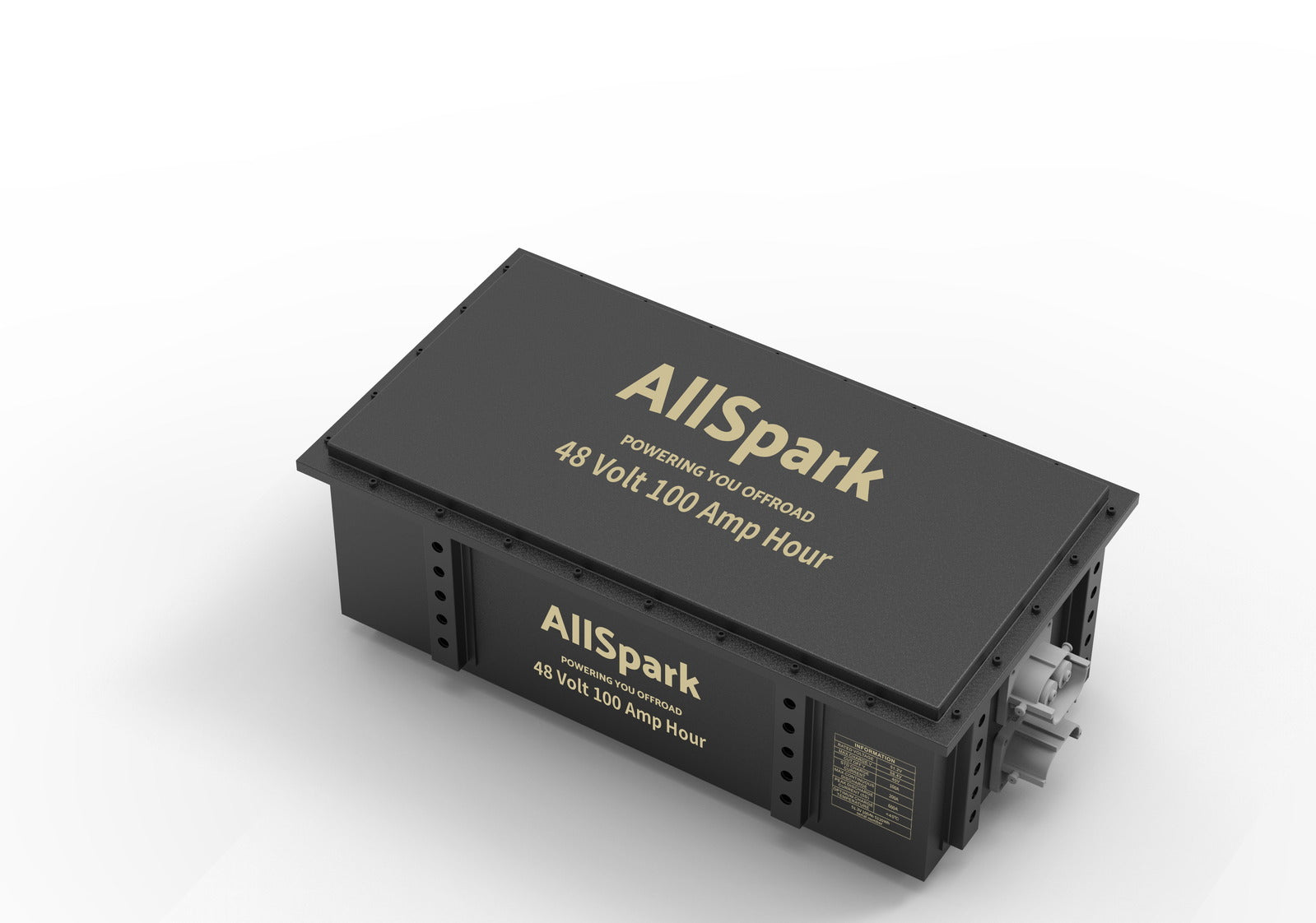

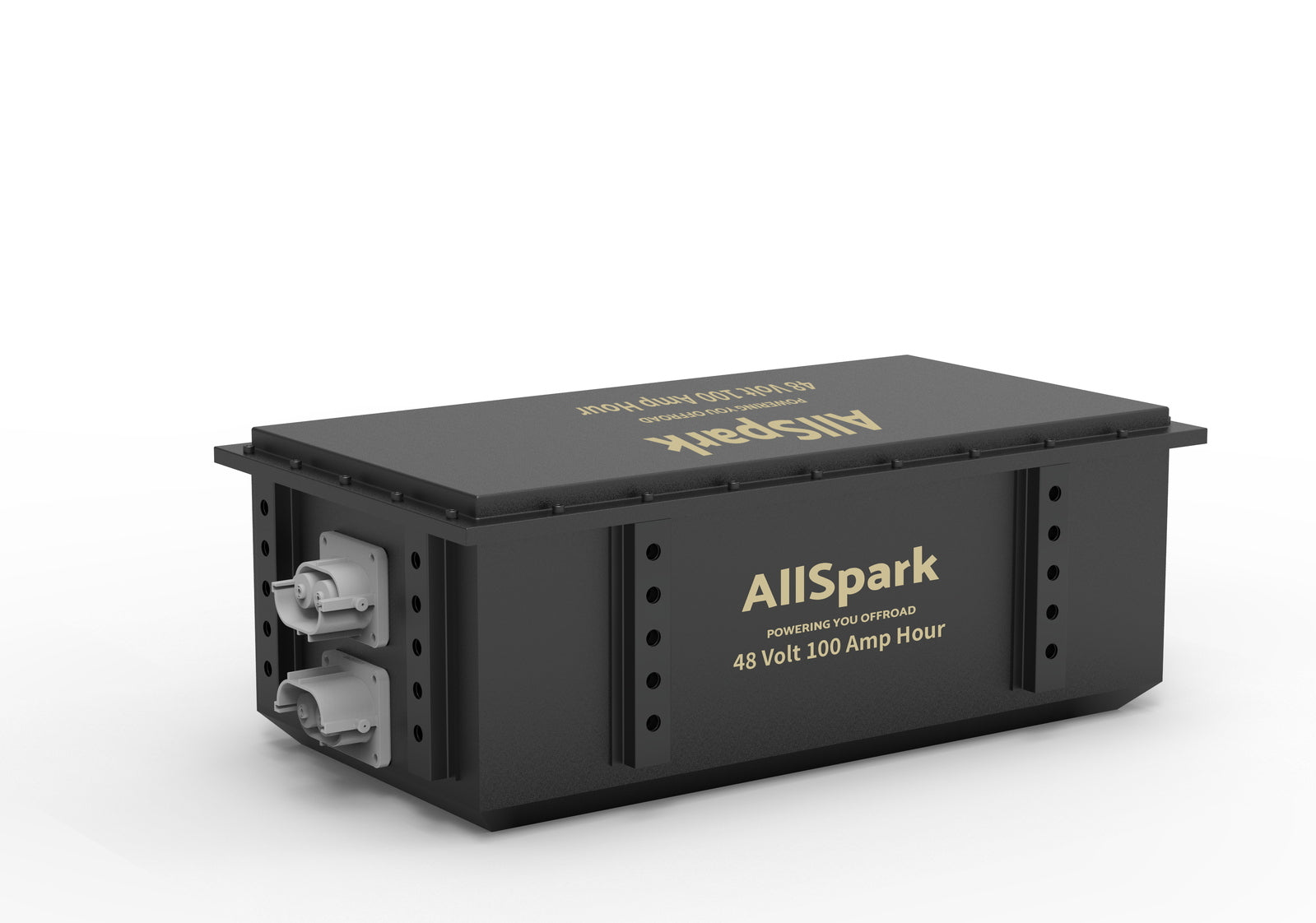

AS-20012BATLI200500CM (12.8V 200Ah)AS-30012BATLI300600CM (12.8V 300Ah)AS-40012BATLI300600CM (12.8V 400Ah)AS-20024BATLI300600CM (25.6V 200Ah)AS-10048BATLI200500CM (51.2V 100Ah) |
| Capacity Range |
100-400 Amp Hours (C5) |
| Watt Hours |
2560-5120 Wh |
| Rated Voltage Options |
12.8V / 25.6V / 51.2V |
| Maximum Charge Voltage |
14.6V / 29.2V / 58.4V |
| Float Voltage |
13.6V / 27.2V / 54.4V |
| Low Voltage Cutoff |
10V / 20V / 40V |
| Rapid Charge Current |
100A (1C) for 30 mins |
| Recommended Charge Current |
30-150A (varies by model) |
| Charge Profile |
CC/CV |
| Maximum Inverter Size |
2500-5000W (model dependent) |
| Maximum Continuous Discharge |
200-300A |
| Peak Discharge |
500-600A (10 seconds) |
| 80% Depth of Discharge |
> 3200+ cycles (85% residual capacity) |
| 60% Depth of Discharge |
> 4200+ cycles |
| 40% Depth of Discharge |
> 5000+ cycles |
| Optimum Charging Temperature |
< 45°C |
| Operating Temperature Range |
-20°C to +60°C |
| Storage Temperature Range |
-40°C to +125°C |
| Series Connection |
Not permitted |
| Maximum Parallel Batteries |
4 |
| Case Material |
Powder coated stainless steel construction |
| Dimensions |
350-550mm x 300mm x 200mm (varies by model) |
| Weight Range |
25-51.3kg |
| IP Rating |
IP67 |
| Cell Type |
Prismatic |
| Cell Configurations |
4S1P, 4S2P, 8S1P, 16S1P (model dependent) |
| Cell Capacity |
3.2V @ 100-300Ah |
| Cell Casing |
Nickel Plated steel |
| Cell Balancing |
3.65V ±0.025V, 35mA ±5mA |
| Over Discharge Protection |
2.5V ±0.025V, releases at 10.5V+ & 1A+ |
| Over Charge Protection |
3.75V ±0.025V, 1-1.6s delay, releases at 3.6V ±0.0625V |
| Over Current Protection |
220-330A (10s delay), 500-600A (5s delay) |
| Short Circuit Protection |
200-400µs detection delay, auto-release on load removal |
| Internal Resistance |
≤20mΩ |
| Shipping Weight |
59.6kg |
| Shipping Dimensions |
370mm (W) x 375mm (H) x 685mm (L) |
| Shipping Volume |
0.095043750m³ |
| Brand |
AllSpark |
