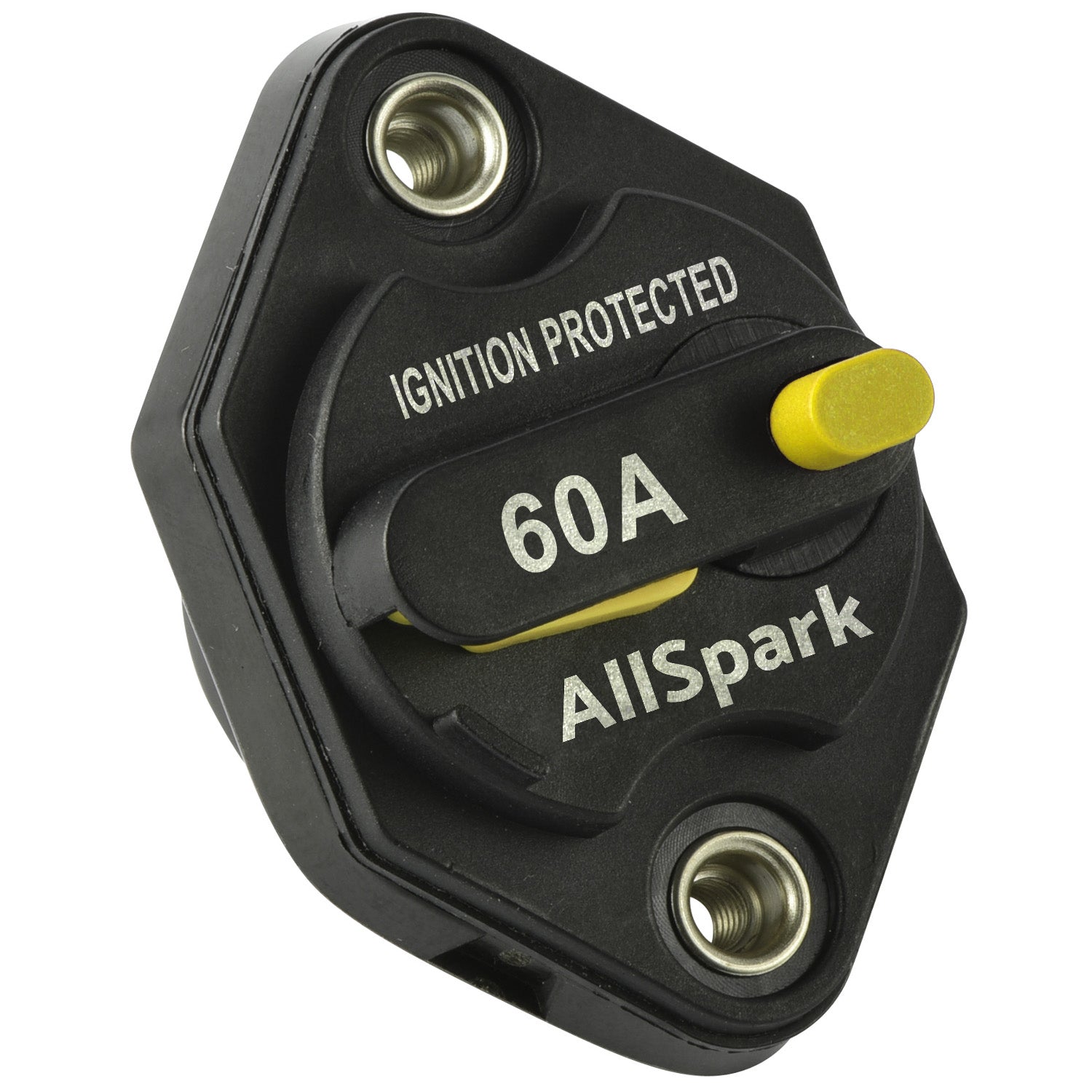

AllSpark - 60A Mini Panel Mount Circuit Breaker

$29.00

DESCRIPTION

PREMIUM QUALITY, HIGH PERFORMANCE CIRCUIT BREAKERS YOU CAN RELY ON

AllSpark Mini Panel Mount Circuit breakers are a premium quality, high performance manual reset Circuit Breaker suitable for 12V up to 32V DC circuit protection. All models are resettable and have a manual push to trip function.

Available in 10A, 15A, 20A, 30A, 40A, 50A & 60A current ratings, you can select the right size to suit your requirements.

All models are waterproof with IP66 rating and are ignition protected for use in high moisture and marine environments, including engine bays where fuel vapour ignition risks could be present.

IMPORTANT NOTE: These are Mini CB's are for light duty applications up to 60A. During installation you must take care not to over tighten the nuts on the terminal studs. A torque wrench should be used with tension of 2.7Nm MAX

WHATS IN THE BOX

60A AllSpark Mini Panel Mount Circuit Breaker
Gasket
2 x #10 Nyloc terminal nuts

*Panel mounting bolts not included - #10-32 mounting bolts 13-16mm in length required to use captive nut or M3 bolt and nut as a full pass through bolt

WARRANTY

5 YEAR MANUFACTURERS WARRANTY
30 DAY MONEY BACK GUARANTEE

FEATURES

Push to trip function - allowing for circuits to be open and closed as required
Waterproof - All models have an IP66 rating for use in high moisture and marine environments
Ignition protected - Intrinsically safe (for use in engine bays where fuel vapour maybe present)
Certified - all models are tested and certified to be compliant with ABYC E-11 & SAE J1171 External Ignition Protection and SAE J553 Circuit Breakers

SPECIFICATIONS

Specification	Mini Panel Mount Circuit Breakers
Common Specifications — All Ratings
Voltage Range	12–32 VDC
Interrupt Rating	Circuit Protection (2.5kA) per ABYC E-11
Operating Temperature	−40˚C to +85˚C
Storage Temperature	−40˚C to +125˚C
IP Rating	IP66
Materials	Black UL-rated 94V-0 thermoplastic. Cover has a black thermoplastic elastomer overmold
Termination	#10-32 threaded studs (nuts included)
Torque Rating	24 in-lb (2.7Nm) max
Mounting Torque Rating	Panel mount with #8-32 threaded inserts or #10 clearance holes. 18 in-lb (2.0Nm) max
Ring Hole Size	5mm
Per-Rating Specifications
Rating (A)	10	15	20	30	40	50	60
Min Cable Size	3mm Auto	4mm Auto		6mm Auto		8 B&S
Lug	Red Ring	Blue Ring		Yellow Ring		10-05

All RatingsCommon Specifications

Voltage Range	12–32 VDC
Interrupt Rating	Circuit Protection (2.5kA) per ABYC E-11
Operating Temperature	−40˚C to +85˚C
Storage Temperature	−40˚C to +125˚C
IP Rating	IP66
Termination	#10-32 threaded studs (nuts included)
Torque Rating	24 in-lb (2.7Nm) max
Mounting Torque	Panel mount with #8-32 threaded inserts or #10 clearance holes. 18 in-lb (2.0Nm) max
Ring Hole Size	5mm
Materials	Black UL-rated 94V-0 thermoplastic with elastomer overmold cover

Rating10A

Min Cable Size	3mm Auto
Lug	Red Ring

Rating15A

Min Cable Size	4mm Auto
Lug	Blue Ring

Rating20A

Min Cable Size	4mm Auto
Lug	Blue Ring

Rating30A

Min Cable Size	6mm Auto
Lug	Yellow Ring

Rating40A

Min Cable Size	6mm Auto
Lug	Yellow Ring

Rating50A

Min Cable Size	8 B&S
Lug	10-05

Rating60A

Min Cable Size	8 B&S
Lug	10-05

Mounting Specifications
