Key features
- 20A rating, manual push-to-trip and hand reset
- Compact footprint for crowded switch panels
- IP66 rated against dust and water ingress
- Ignition protected for use where fuel vapour may be present
- #10-32 threaded studs with Nyloc terminal nuts included
- Light-duty range — rated to 60A maximum
- DC only — not for use on 240V AC circuits
- Certified to ABYC E-11 and SAE J1171 External Ignition Protection, and SAE J553
Overview

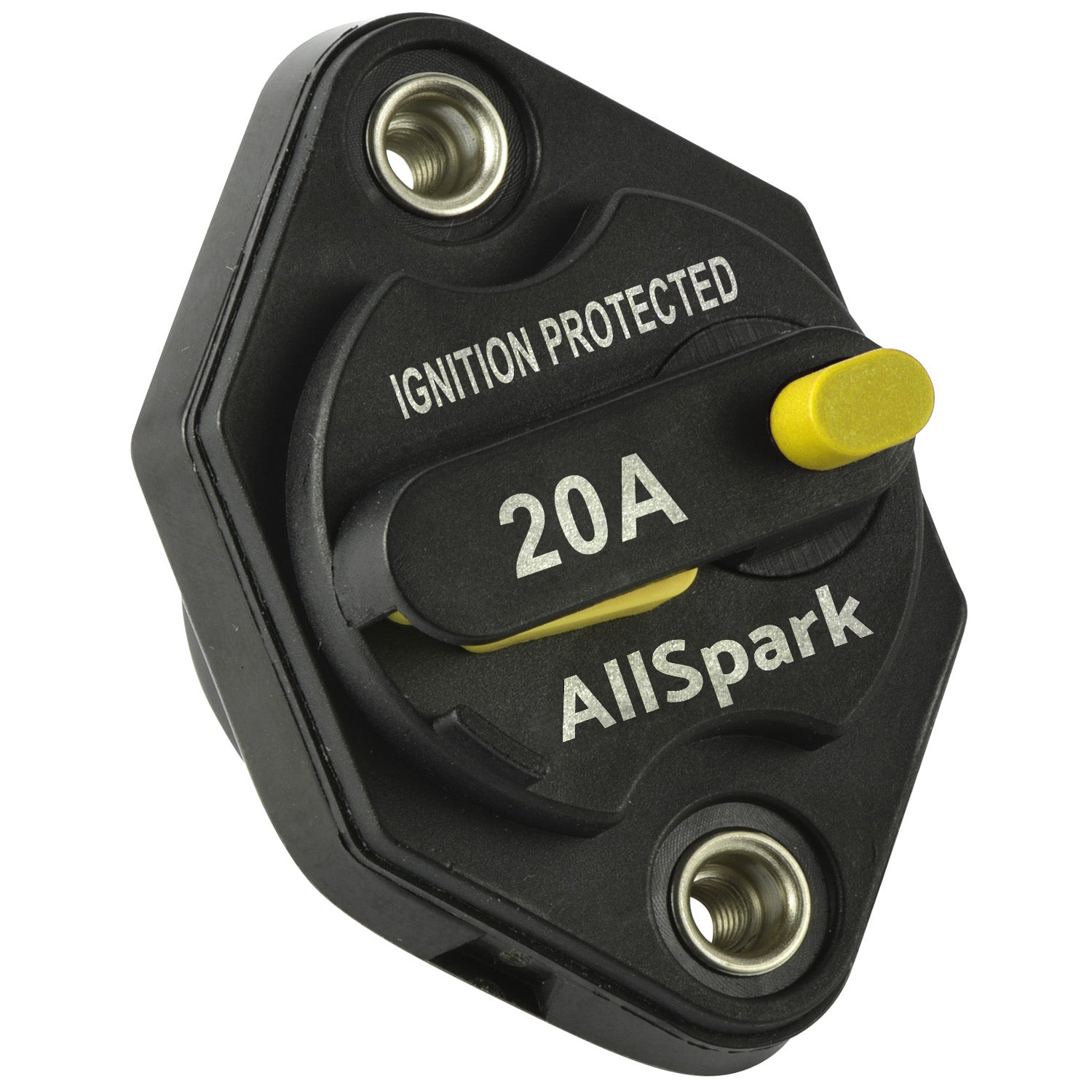

A compact panel-mount circuit breaker for light-duty 20A circuits — accessory sockets, lighting, small pumps and the individual branches off a distribution panel. A tripped circuit is a button press rather than a fuse hunt.
The mini range is intended for light-duty applications up to 60A. Take care not to over-torque the terminal studs during installation: 24 in-lb (2.7 N•m) maximum.
Specifications
| Rating | 20A |
|---|---|
| Mounting | Mini panel mount |
| Termination | #10-32 threaded studs (nuts included) |
| IP rating | IP66 |
| Torque rating | 24 in-lb (2.7 N•m) max |
| Voltage range | 12–48V DC |
| Certification | ABYC E-11, SAE J1171 External Ignition Protection, SAE J553 |
| Warranty | 5 year manufacturer warranty |
| In the box | 1 × AllSpark 20A mini panel-mount circuit breaker, gasket, 2 × #10 Nyloc terminal nuts (panel mounting bolts not included) |
| Range available | 10A, 15A, 20A, 30A, 40A, 50A, 60A |
Delivery, returns & warranty
Shipping & Returns
Shipping
Outdoor Camping Australia operates a nationwide distribution network, with items shipping from:
- Our warehouse in Bendigo, Victoria
- Partner supplier warehouses on the East Coast
- Partner supplier warehouses on the West Coast
This multi-location approach allows us to provide efficient delivery across Australia. Use our shipping calculator on the product pages for accurate delivery times and costs to your location.
Important Shipping Notes:
- We cannot deliver to PO Boxes, Private Mail Bags or Parcel Lockers
- Depot pickup options may be available at reduced rates (contact us to discuss)
- Off-mainland deliveries require additional shipping fees (custom quoted)
- Missed deliveries may incur a redelivery fee set by the courier
- All shipments managed through our trusted delivery partners including Border Express, VicTas, DHL, StarTrack, AusPost, Sendle and Aramex
Returns
As outlined in our Refund Policy, we follow the Australian Consumer Law (ACL) which protects consumers by providing certain guaranteed rights when buying goods and services.
You can return items if:
- The product is faulty or not of merchantable quality
- The product is not fit for its intended purpose
- The product does not match the description
- You can present proof of purchase
For change of mind returns:
- Item must be in original condition with tags attached
- Must be returned within 30 days of purchase
- Original proof of purchase required
- Return shipping is at customer's expense
- Original delivery charges are non-refundable unless due to our error
Refunds will be processed within 10 business days of receiving and inspecting the return.
For full details, please refer to our:
Warranty Details
+
Warranty Details
+
- 12-month manufacturer warranty against defects in materials and workmanship.
-
AllSparkAllSpark - 10A Mini Panel Mount Circuit Breaker
$29.00
-
AllSparkAllSpark - 15A Mini Panel Mount Circuit Breaker
$29.00
-
AllSparkAllSpark - 30A Mini Panel Mount Circuit Breaker
$29.00
-
AllSparkAllSpark - 40A Mini Panel Mount Circuit Breaker
$29.00
-
AllSparkAllSpark - 60A Mini Panel Mount Circuit Breaker
$29.00
-
AllSparkAllSpark 1m Black Slotted Wiring Duct 50 x 50mm
$15.00
-

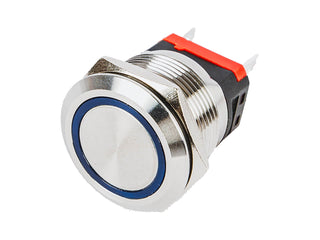

AllSpark20A 22mm Silver On/Off switch with Blue LED
