| 12.8V Models |

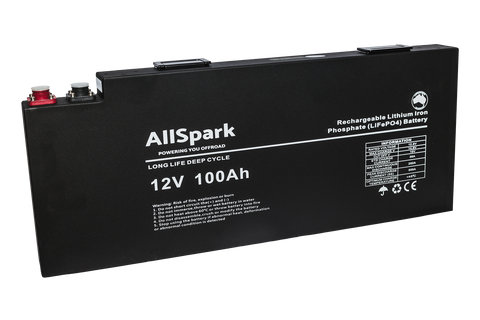

AS-10012BATLI175320G2 (100Ah)AS-15012BATLI175320 (150Ah)AS-20012BATLI200500G2 (200Ah)AS-25012BATLI200500 (250Ah)AS-30012BATLI300600 (300Ah) |
| 25.6V Models |
AS-12024BATLI175320 (120Ah)AS-20024BATLI200500 (200Ah) |
| Capacity Range |
100-300Ah (12.8V), 120-200Ah (25.6V) |
| Watt Hours |
1,280-5,120 Wh |
| 12.8V Models |
Max Charge: 14.6V, Float: 13.6V, Cutoff: 10V |
| 25.6V Models |
Max Charge: 29.2V, Float: 27.2V, Cutoff: 20V |
| Maximum Series Voltage |
24V (12.8V models), 48V (25.6V models) |
| Rapid Charge Current |
100-200A (1C) for 30 mins |
| Recommended Charge Current |
20-150A (model dependent) |
| Charge Profile |
CC/CV |
| Maximum Inverter Size |
2000-4000W (model dependent) |
| Maximum Continuous Discharge |
175-300A |
| Peak Discharge |
320-600A (10 seconds) |
| Case Material |
ABS Plastic |
| Dimensions by Model |
100Ah: 229 x 138 x 208mm (+4mm terminals)150Ah: 405 x 172 x 217mm (terminals below handle)200/300Ah: 367 x 190 x 247mm (+5mm terminals)250Ah & 24V Models: 520 x 265 x 220mm (+3mm terminals) |
| Weight Range |
9.5-42kg (model dependent) |
| IP Rating |
IP65 |
| Cell Type |
Prismatic |
| Cell Configurations |
4S1P, 4S2P (12.8V models), 8S1P (25.6V models) |
| Cell Capacity Range |
3.2V @ 50-300Ah |
| Cell Casing |
Nickel Plated steel |
| Cell Balancing |
3.65V ±0.025V, 35mA ±5mA |
| Over Discharge Protection |
2.5V ±0.025V, releases at 10.5V+ & 1A+ |
| Over Charge Protection |
3.75V ±0.025V, 1-1.6s delay, releases at 3.6V ±0.0625V |
| Over Current Protection |
Primary: 200-330A with 10s delay (selected models)Secondary: 320-500A with 5-10s delay (all models) |
| Short Circuit Protection |
200-400µs detection delay, auto-release on load removal |
| Internal Resistance |
≤20mΩ |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +125°C |
| Optimum Charging Temperature |
< 45°C |
| 80% DoD |
> 3200+ cycles (85% residual capacity) |
| 60% DoD |
> 4200+ cycles |
| 40% DoD |
> 5000+ cycles |
| Test Conditions |
0.25C Discharge/Charge rate at 25°C |
| Shipping Weight |
20kg |
| Shipping Dimensions |
460mm (W) x 295mm (H) x 250mm (L) |
| Shipping Volume |
0.033925m³ |
| Brand |
AllSpark |
| Barcode |
0705632684610 |
